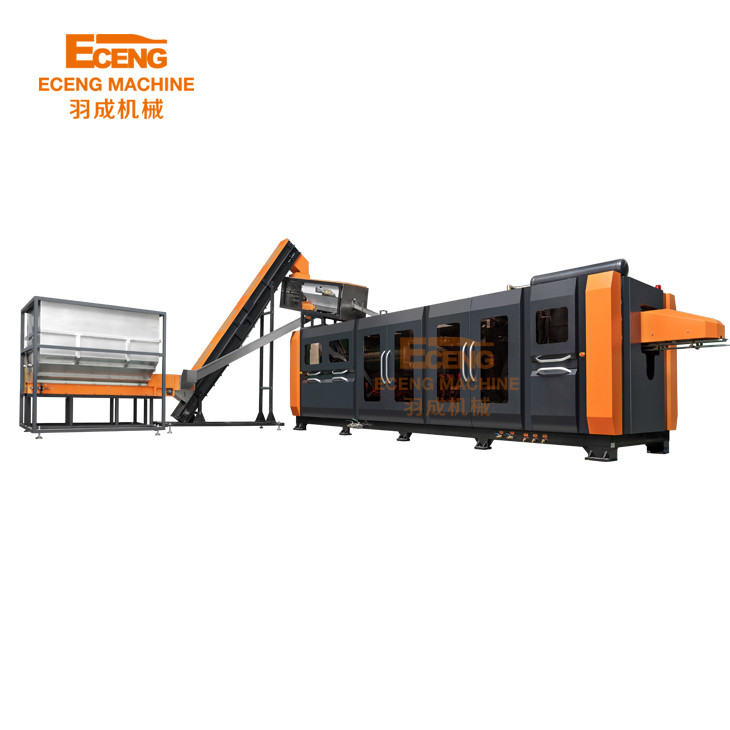

750ml High Speed Automatic Blow Molding Machine Output 10000

750ml High Speed Automatic Blow Molding Machine Output 10000

  • High Light

    750ml Automatic Blow Molding Machine

    ,

    high speed blow molding machine output 10000

    ,

    750ml high speed blow molding machine

  • Plastic Processed
    PET
  • Max.Bottle Height(mm)
    180 Mm
  • Neck Diameter(mm)
    30 Mm
  • Max.Bottle Diameter(mm)
    75 Mm
  • Bottle Volume(ml)
    750 Ml
  • Condition
    New
  • Application
    Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Voltage
    380V,50HZ
  • Dimension(L*W*H)
    7.57*1.6*1.9m
  • Hollow Part Volume
    750ml
  • High Pressure Valve Brand
    SMC
  • Rotary Cylinder Brand
    SMC
  • PLC Brand
    DELTA
  • Power (kW)
    56
  • Weight (KG)
    11600 KG
  • Automation
    Automatic
  • Warranty
    1 Year
  • Key Selling Points
    Automatic
  • Applicable Industries
    Manufacturing Plant
  • Marketing Type
    New Product 2020
  • Machinery Test Report
    Provided
  • Video Outgoing-inspection
    Provided
  • Warranty Of Core Components
    1 Year
  • Color
    Black And White
  • Output
    10000
  • Size Of The Machine
    7.57*1.6*1.9
  • Weight
    11.6tons
  • Power(W)
    56KW
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE ISO
  • Model Number
    K12
  • Minimum Order Quantity
    1set
  • Price
    $25,000.00 - $40,000.00/Sets
  • Packaging Details
    standard export wooden case or according to your requirements
  • Delivery Time
    35days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    500 Set/Sets per Year

750ml High Speed Automatic Blow Molding Machine Output 10000

High speed small medicine bottle making equipment factory

Our company is a bottle making equipment factory.

750ml High Speed Automatic Blow Molding Machine Output 10000 0

Main Features

1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.

2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.

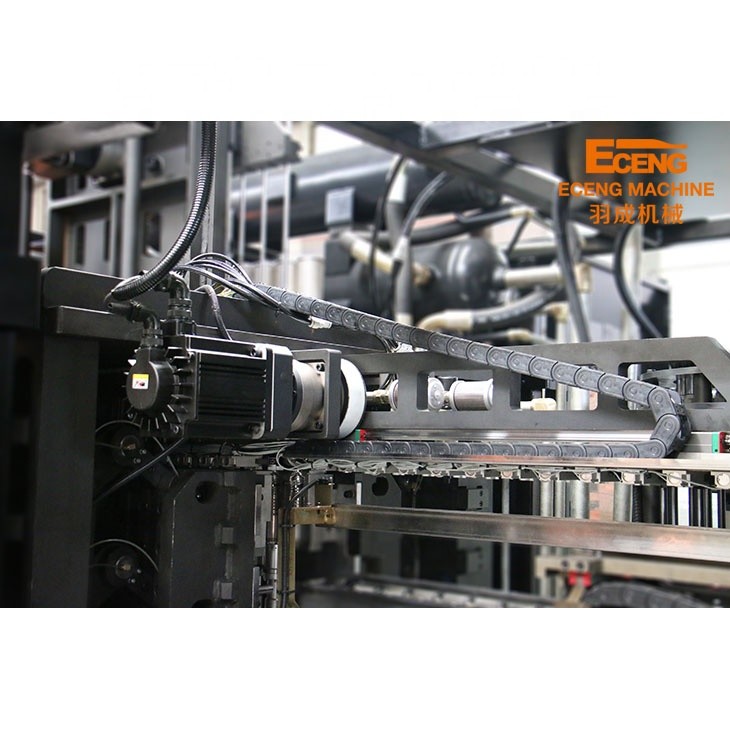

3. servo transmission system, high positioning accuracy, fast speed, good stability and reliability.

4. suitable for flexible production of small quantity and various bottle shape,wide range of applications,meet customer needs.

5. increase energy using efficiency,increase productivity per unit of time.

6. manual and automatic methods of operation, human-machine interface control, simple operation.

7. servo transmission system, high positioning accuracy, fast speed stability and good reliability.

8. safety self-locking device in each mechanical action,when a certain process fails, the program will automatically switch to a safe state.

9. heat and noise are significantly reduced compared with YCQ series.

10. less than 0.2% scrap rate for finished bottle .

Product Parameters

                               Model                                                                 K12

Bottle type specification



Cavity

12

Max.volume

0.75L

Bottle mouth maximum overall diameter

28-30mm

Bottle biggest diameter

75mm

Bottle maximum height

180mm

Capacity specification



Theory output

24000BPH

Bottle type volume

200ML

Bottle type weight

12g

Bottle type

Round

Power specification

Light tube quantity

32pcs

Light tube power

1.75KW

Maximum heating power

56KW

All electric machine installation

71KW

Actual consumption

30%--60%

Air pressure specification



Work pressure

5-6kg/cm2

Blow bottle pressure

25-45kg/cm2

Higher -pressure gas consumption

8000Ltr/min

Air pressure specification



Work pressure

5-6 kg/cm2

Temperature range

10℃

Consumption

24000kcal/hr

Forzen water flow

220L/min

Machine specification

Machine size

7.57x1.6x1.9

Machine weight

11.6ton

750ml High Speed Automatic Blow Molding Machine Output 10000 2750ml High Speed Automatic Blow Molding Machine Output 10000 4750ml High Speed Automatic Blow Molding Machine Output 10000 6750ml High Speed Automatic Blow Molding Machine Output 10000 8750ml High Speed Automatic Blow Molding Machine Output 10000 10750ml High Speed Automatic Blow Molding Machine Output 10000 12
