100ml-2L 6 Cavity PET Blowing Machine DELTA PLC Control

100ml-2L 6 Cavity PET Blowing Machine DELTA PLC Control

  • High Light

    100ml-2L 6 cavity pet blowing machine

    ,

    6 cavity pet blowing machine DELTA PLC

    ,

    stretch blow molding machine DELTA PLC

  • Plastic Processed
    PET
  • Max.Bottle Height(mm)
    330 Mm
  • Neck Diameter(mm)
    29 Mm
  • Max.Bottle Diameter(mm)
    100 Mm
  • Bottle Volume(ml)
    2000 Ml
  • Condition
    New
  • Application
    Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Year
    2019
  • Voltage
    220V Or As Customer Request
  • Dimension(L*W*H)
    5.78*1.8*1.9
  • Hollow Part Volume
    2L
  • High Pressure Valve Brand
    SMC
  • Rotary Cylinder Brand
    SMC
  • PLC Brand
    DELTA
  • Power (kW)
    65
  • Weight (KG)
    7450 KG
  • Automation
    Automatic
  • Warranty
    1 Year
  • Key Selling Points
    Automatic
  • Applicable Industries
    Food & Beverage Factory
  • Marketing Type
    Hot Product 2019
  • Machinery Test Report
    Provided
  • Video Outgoing-inspection
    Provided
  • Warranty Of Core Components
    1 Year
  • Automatic
    YES
  • Step
    2
  • Heating Method
    Electric Cycle Heating
  • Service
    Full Technical Training
  • Bottle Volume
    100ml -2L
  • Light Tube
    32 Pieces
  • Production Capacity (BPH)
    16000
  • Port
    Shanghai/Ningbo
  • Place of Origin
    Jiangsu, China
  • Brand Name
    eceng
  • Certification
    CE/ISO
  • Model Number
    k8
  • Minimum Order Quantity
    1set
  • Price
    $40,000.00 - $70,000.00/Sets
  • Packaging Details
    packed by wooden pallet or as customer request
  • Delivery Time
    45days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    15 Set/Sets per Month

100ml-2L 6 Cavity PET Blowing Machine DELTA PLC Control

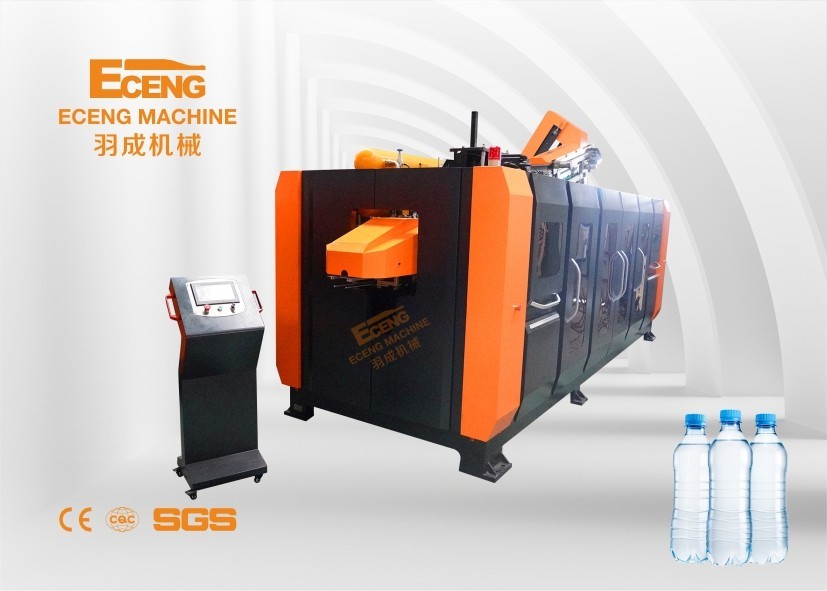

Linear Full Servo Stretch Pet Bottle Machine Maker Plastic Blow Molding Machine100ml-2L 6 Cavity PET Blowing Machine DELTA PLC Control 0

100ml-2L 6 Cavity PET Blowing Machine DELTA PLC Control 2

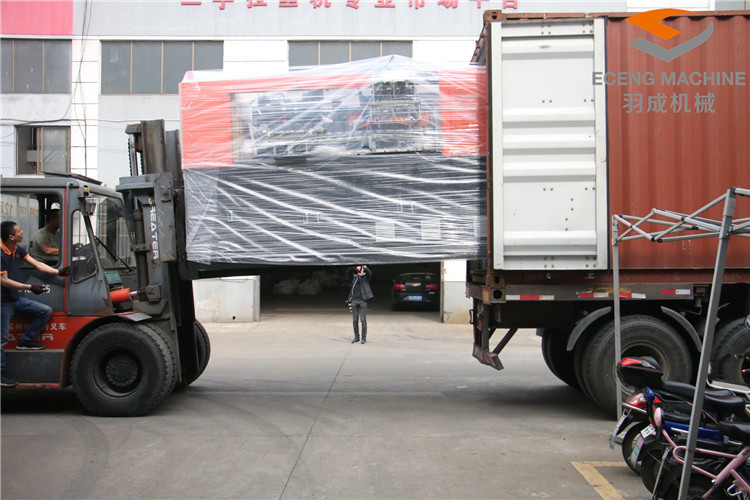

100ml-2L 6 Cavity PET Blowing Machine DELTA PLC Control 4

k series linear bottle blowing machines are used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles.Eceng Machinery's Q series linear bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.Ensure the uniformity and consistency of each preform stretching.At the same time,bottle blowing machine has a fast stretching speed and precise position.

k series linear bottle blowing machine features:

1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.

2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.

3. servo transmission system, high positioning accuracy, fast speed, good stability and reliability.

4. suitable for flexible production of small quantity and various bottle shape,wide range of applications,meet customer needs.

5. increase energy using efficiency,increase productivity per unit of time.

6. manual and automatic methods of operation, human-machine interface control, simple operation.

7. servo transmission system, high positioning accuracy, fast speed stability and good reliability.

8. safety self-locking device in each mechanical action,when a certain process fails, the program will automatically switch to a safe state.

9. heat and noise are significantly reduced compared with YCQ series.

10. less than 0.2% scrap rate for finished bottle .

100ml-2L 6 Cavity PET Blowing Machine DELTA PLC Control 6



Item K4 K6 K8
Cavity 4 6 8
Theory output 6000-8500BPH 9000-12000 12000-16000
Max.volume 2L 2L 2L
Bottle mouth maximum overall diameter 28-38mm 28-38mm 28-38mm
Bottle biggest diameter 100mm 100mm 100mm
Bottle maximum height 330mm 330mm 330mm
Light tube quantity 16pcs 32pcs 32pcs
Light tube power 1.25KW 1.25KW 1.5KW
Maximum heating power 20KW 40KW 48KW
All electric machine installation 29KW 49KW 65KW
Actual consumption 30%-60% 30%-60% 30%-60%
Work pressure 5-6kg/c 5-6kg/c 5-6kg/c
Blow bottle pressure 25-45kg/c 25-45kg/c 25-45kg/c
Higher -pressure gas consumption 6000Ltr/min 8000Ltr/min 12000Ltr/min
Work pressure 5-6 kg/c 5-6 kg/c 5-6 kg/c
Temperature range 10ºC 10ºC 10ºC
Consumption 8000kcal/hr 8000kcal/hr 12000kcal/hr
Forzen water flow 30L/min 88L/min 88L/min
Size of the machine 3.6*1.6*1.9(m) 4.8x1.6x1.9 5.78x1.6x1.9
Weight of the machine 4.3ton 6.1ton 7.45ton


100ml-2L 6 Cavity PET Blowing Machine DELTA PLC Control 8

k series linear bottle blowing machine adopt servo control system,with stable and reliable structure,high speed,stable, simple maintenance,flexible and convenient mold matching etc,which can meet needs of continuous production.Use microcomputer touch screen controls and adjusts temperature, make temperature adjustment of blow molding different bottle type simple.Servo transmission system,high positioning accuracy,fast speed,good stability and reliability, no need air source,energy saving,low maintenance cost.

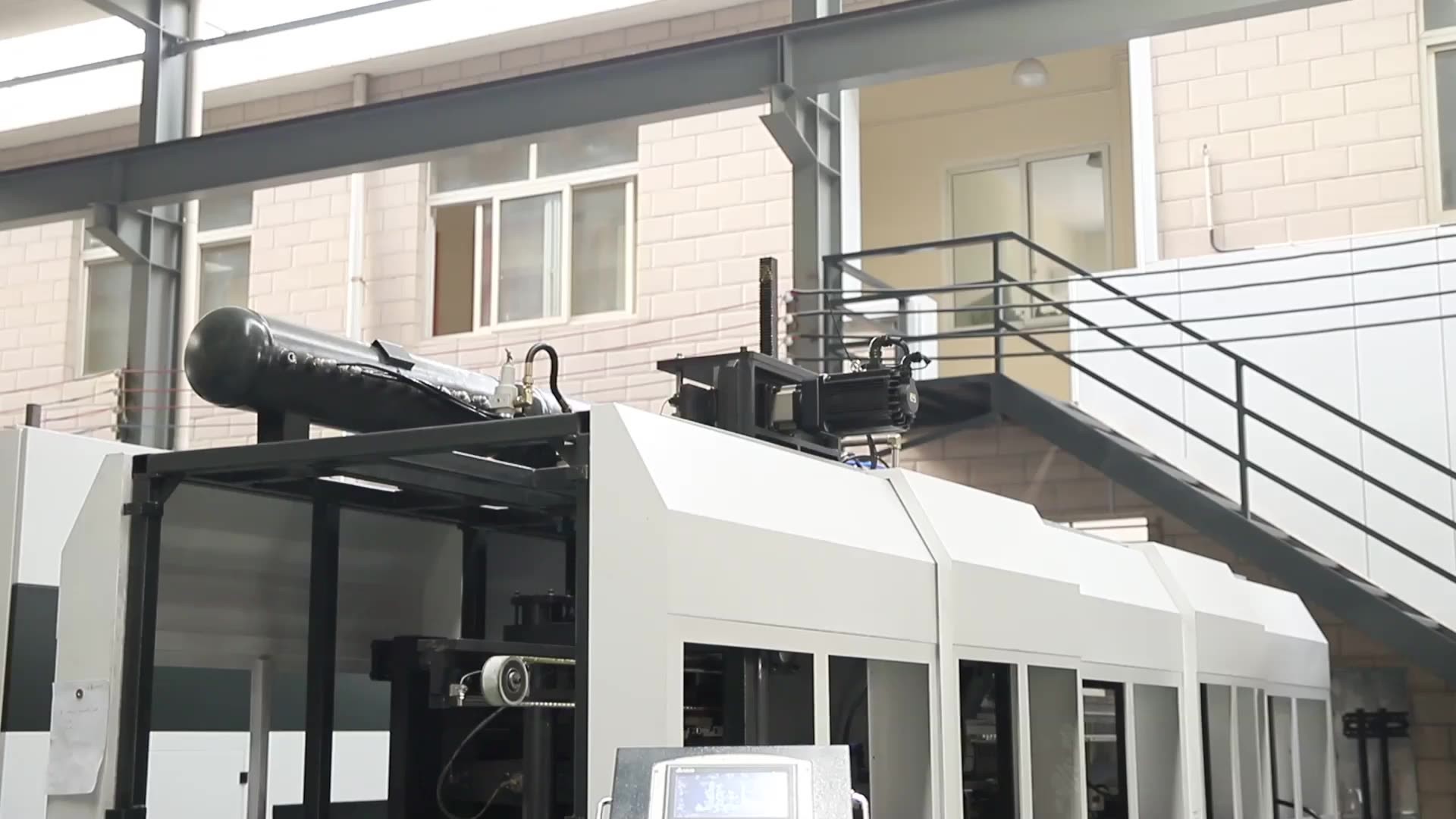

 100ml-2L 6 Cavity PET Blowing Machine DELTA PLC Control 10

Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

100ml-2L 6 Cavity PET Blowing Machine DELTA PLC Control 12

New clamping system,upgraded on the basis of the original ones,increase mould clamping speed and output,greatly reduce mold clamping noise.

100ml-2L 6 Cavity PET Blowing Machine DELTA PLC Control 14

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

100ml-2L 6 Cavity PET Blowing Machine DELTA PLC Control 16

k series bottle blowing machine adopts advanced microcomputer PLC control system, stable performance; servo transmission system, high positioning accuracy, fast speed, stable and reliable.



100ml-2L 6 Cavity PET Blowing Machine DELTA PLC Control 18

 100ml-2L 6 Cavity PET Blowing Machine DELTA PLC Control 20

100ml-2L 6 Cavity PET Blowing Machine DELTA PLC Control 22100ml-2L 6 Cavity PET Blowing Machine DELTA PLC Control 24

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
