8 Cavity Auto PET Blowing Machine K8 Molding Equipment DELTA PLC Control

8 Cavity Auto PET Blowing Machine K8 Molding Equipment DELTA PLC Control

  • High Light

    8 cavity Auto Pet Blowing Machine

    ,

    blow molding equipment DELTA PLC control

    ,

    k8 8 cavity blow molding equipment

  • Plastic Processed
    PET
  • Application
    Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Hollow Part Volume
    2L
  • Automation
    Automatic
  • Warranty
    1 Year
  • Key Selling Points
    Automatic
  • Warranty Of Core Components
    1 Year
  • Automatic
    YES
  • Step
    2
  • Production Capacity (BPH)
    16000
  • Port
    Shanghai/Ningbo
  • Place of Origin
    Jiangsu, China
  • Brand Name
    eceng
  • Certification
    CE/ISO
  • Model Number
    k8
  • Minimum Order Quantity
    1set
  • Price
    $40,000.00 - $70,000.00/Sets
  • Packaging Details
    packed by wooden pallet or as customer request
  • Delivery Time
    45days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    15 Set/Sets per Month

8 Cavity Auto PET Blowing Machine K8 Molding Equipment DELTA PLC Control

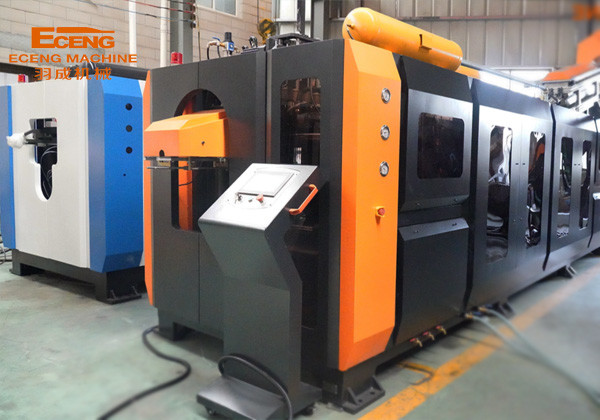

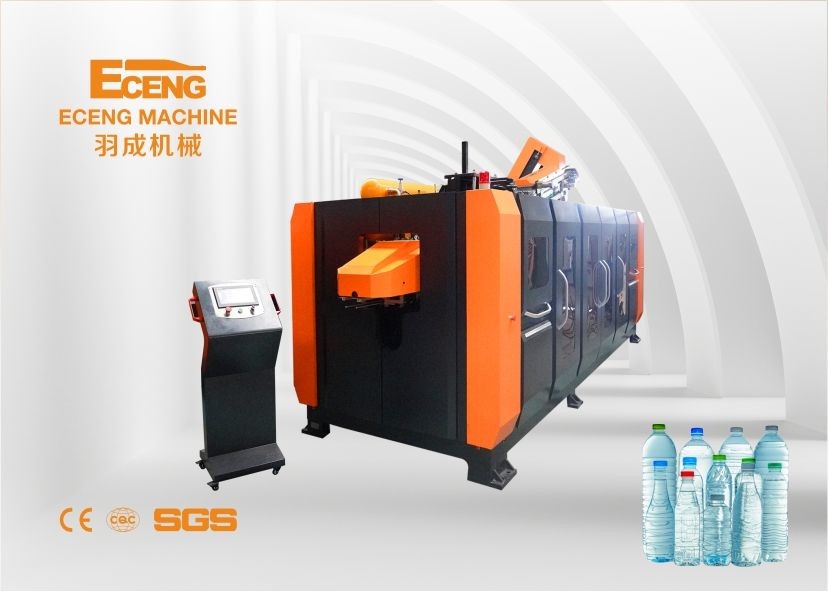

Factory Supply 8 cavity Auto Pet Blowing Machines / Blow Molding Equipment To Make Plastic Bottles8 Cavity Auto PET Blowing Machine K8 Molding Equipment DELTA PLC Control 0

8 Cavity Auto PET Blowing Machine K8 Molding Equipment DELTA PLC Control 2



8 Cavity Auto PET Blowing Machine K8 Molding Equipment DELTA PLC Control 4



8 Cavity Auto PET Blowing Machine K8 Molding Equipment DELTA PLC Control 5

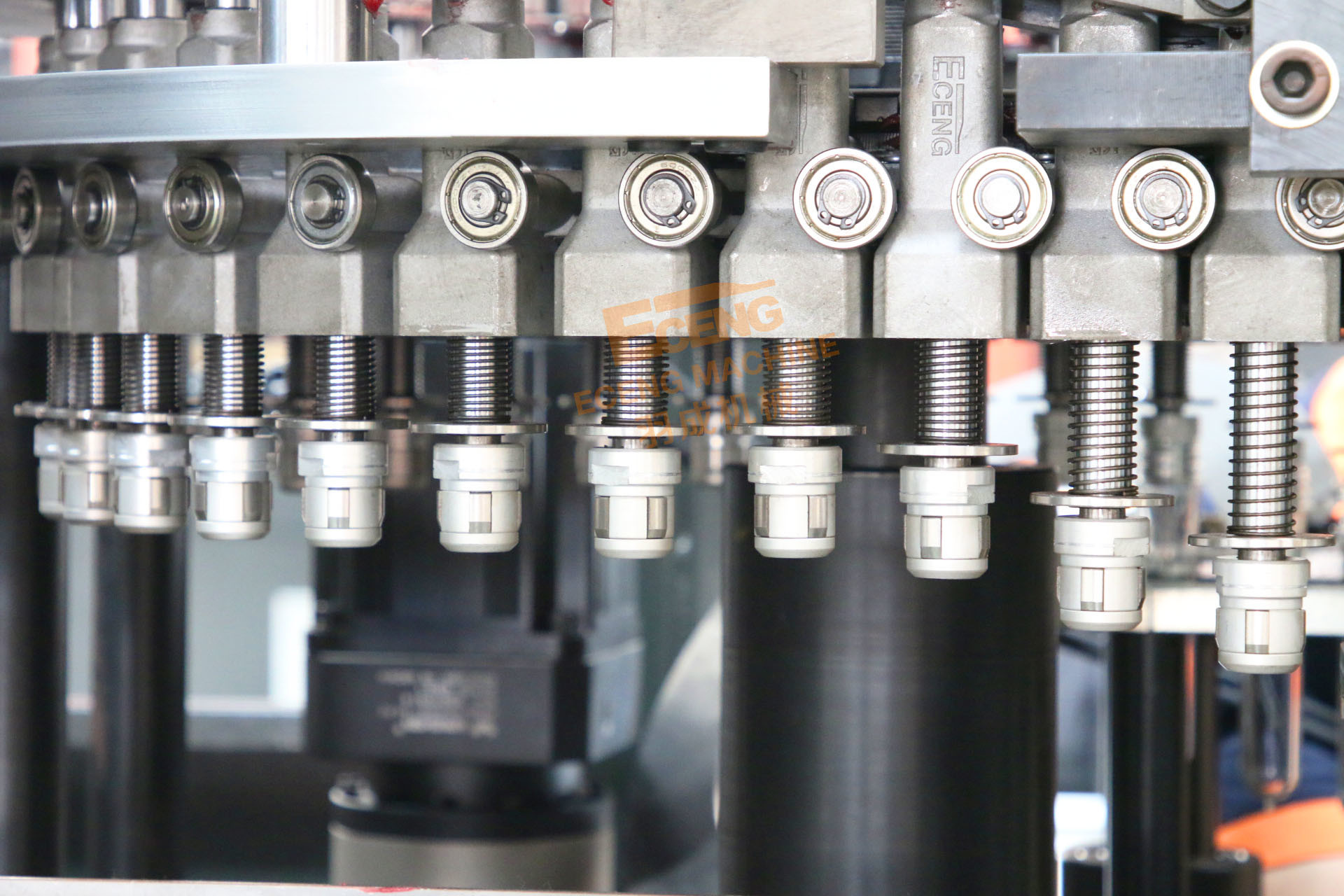

k series linear bottle blowing machines are used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles.Eceng Machinery's Q series linear bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.Ensure the uniformity and consistency of each preform stretching.At the same time,bottle blowing machine has a fast stretching speed and precise position.

k series linear bottle blowing machine features:

1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.

2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.

3. servo transmission system, high positioning accuracy, fast speed, good stability and reliability.

4. suitable for flexible production of small quantity and various bottle shape,wide range of applications,meet customer needs.

5. increase energy using efficiency,increase productivity per unit of time.

6. manual and automatic methods of operation, human-machine interface control, simple operation.

7. servo transmission system, high positioning accuracy, fast speed stability and good reliability.

8. safety self-locking device in each mechanical action,when a certain process fails, the program will automatically switch to a safe state.

9. heat and noise are significantly reduced compared with YCQ series.

10. less than 0.2% scrap rate for finished bottle .

8 Cavity Auto PET Blowing Machine K8 Molding Equipment DELTA PLC Control 7



Item K4 K6 K8
Cavity 4 6 8
Theory output 6000-8500BPH 9000-12000 12000-16000
Max.volume 2L 2L 2L
Bottle mouth maximum overall diameter 28-38mm 28-38mm 28-38mm
Bottle biggest diameter 100mm 100mm 100mm
Bottle maximum height 330mm 330mm 330mm
Light tube quantity 16pcs 32pcs 32pcs
Light tube power 1.25KW 1.25KW 1.5KW
Maximum heating power 20KW 40KW 48KW
All electric machine installation 29KW 49KW 65KW
Actual consumption 30%-60% 30%-60% 30%-60%
Work pressure 5-6kg/c 5-6kg/c 5-6kg/c
Blow bottle pressure 25-45kg/c 25-45kg/c 25-45kg/c
Higher -pressure gas consumption 6000Ltr/min 8000Ltr/min 12000Ltr/min
Work pressure 5-6 kg/c 5-6 kg/c 5-6 kg/c
Temperature range 10ºC 10ºC 10ºC
Consumption 8000kcal/hr 8000kcal/hr 12000kcal/hr
Forzen water flow 30L/min 88L/min 88L/min
Size of the machine 3.6*1.6*1.9(m) 4.8x1.6x1.9 5.78x1.6x1.9
Weight of the machine 4.3ton 6.1ton 7.45ton


8 Cavity Auto PET Blowing Machine K8 Molding Equipment DELTA PLC Control 9

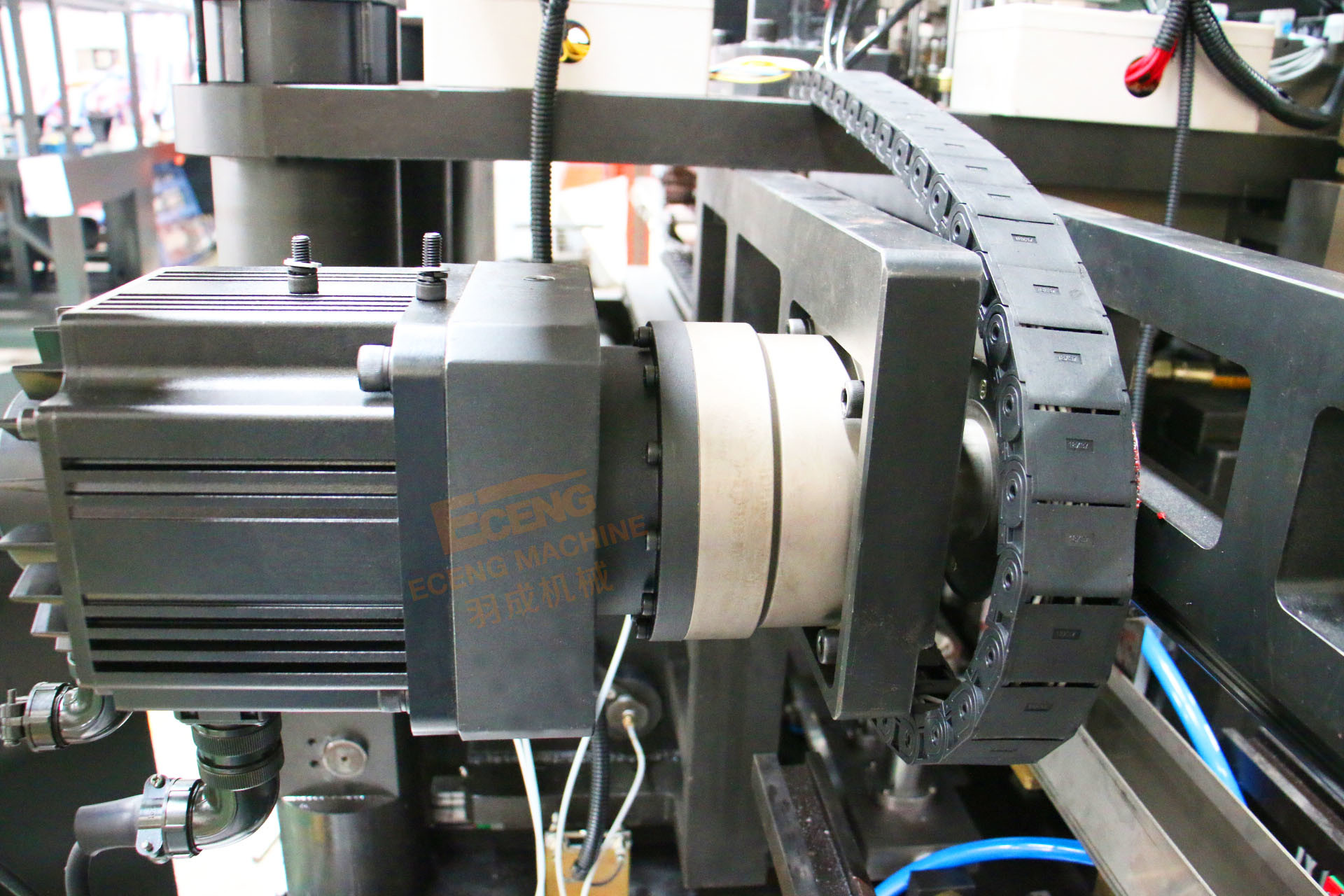

k series linear bottle blowing machine adopt servo control system,with stable and reliable structure,high speed,stable, simple maintenance,flexible and convenient mold matching etc,which can meet needs of continuous production.Use microcomputer touch screen controls and adjusts temperature, make temperature adjustment of blow molding different bottle type simple.Servo transmission system,high positioning accuracy,fast speed,good stability and reliability, no need air source,energy saving,low maintenance cost.

 8 Cavity Auto PET Blowing Machine K8 Molding Equipment DELTA PLC Control 11

Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

8 Cavity Auto PET Blowing Machine K8 Molding Equipment DELTA PLC Control 13

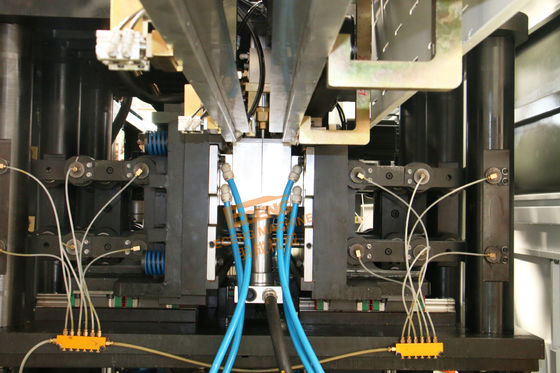

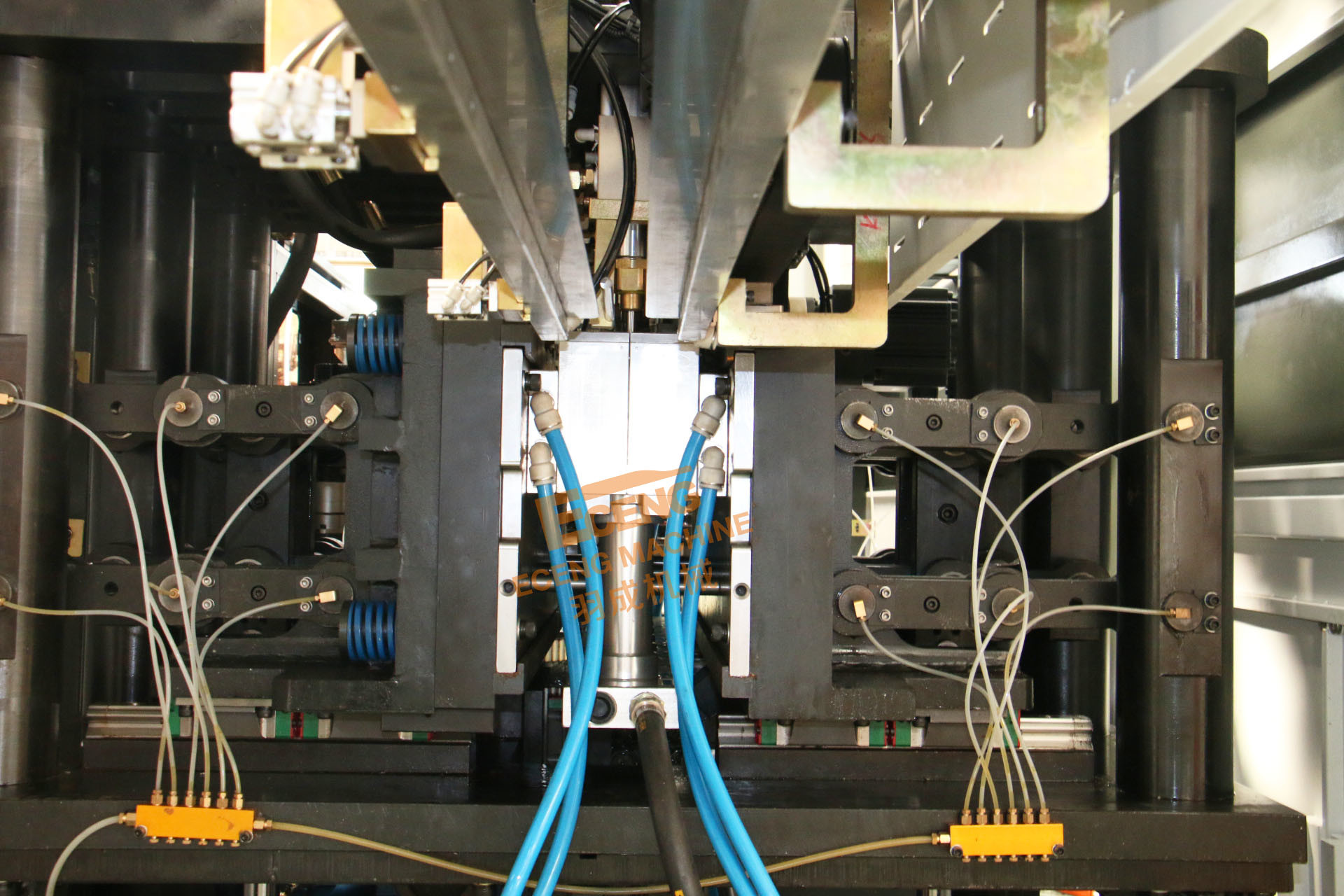

New clamping system,upgraded on the basis of the original ones,increase mould clamping speed and output,greatly reduce mold clamping noise.

8 Cavity Auto PET Blowing Machine K8 Molding Equipment DELTA PLC Control 15

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

8 Cavity Auto PET Blowing Machine K8 Molding Equipment DELTA PLC Control 17

k series bottle blowing machine adopts advanced microcomputer PLC control system, stable performance; servo transmission system, high positioning accuracy, fast speed, stable and reliable.



8 Cavity Auto PET Blowing Machine K8 Molding Equipment DELTA PLC Control 19

 8 Cavity Auto PET Blowing Machine K8 Molding Equipment DELTA PLC Control 21

8 Cavity Auto PET Blowing Machine K8 Molding Equipment DELTA PLC Control 238 Cavity Auto PET Blowing Machine K8 Molding Equipment DELTA PLC Control 25
