Dia 100mm Plastic Bottle Molding Machine 600ml PET Stretch Blow Molding

Dia 100mm Plastic Bottle Molding Machine 600ml PET Stretch Blow Molding

Dia 100mm Plastic Bottle Molding Machine 600ml PET Stretch Blow Molding
Dia 100mm Plastic Bottle Molding Machine 600ml PET Stretch Blow Molding
Dia 100mm Plastic Bottle Molding Machine 600ml PET Stretch Blow Molding
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: K4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $35,800.00/Sets 1-1 Sets
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Max.Bottle Height(mm): 330 Mm
Neck Diameter(mm): 29 Mm Max.Bottle Diameter(mm): 100 Mm
Bottle Volume(ml): 2000 Ml Condition: New
Application: Bottle Blow Moulding Type: Stretch Blow Moulding
Year: 2019 Voltage: 380V,50HZ
Dimension(L*W*H): 3.3*1.6*1.9m Hollow Part Volume: 2L
High Pressure Valve Brand: SMC Rotary Cylinder Brand: SMC
PLC Brand: DELTA Power (kW): 29
Weight (KG): 3400 KG Automation: Automatic
Warranty: 1 Year Key Selling Points: Automatic
Applicable Industries: Food & Beverage Factory Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Color: Black And White Output: 7000
Size Of The Machine: 3.3*1.6*1.9 Weight: 3.4tons
Power(W): 29KW Production Capacity (BPH): 7000 BPH
Port: Shanghai
High Light:

600ml Plastic Bottle Molding Machine

,

bottle dia 100mm pet stretch blow molding machine

,

600ml pet stretch blow molding machine

China Produced Good Cost Performance Plastic PET Bottle Stretch Blow Molding Machine for 200ml - 2000ml
Dia 100mm Plastic Bottle Molding Machine 600ml PET Stretch Blow Molding 0
specification
             Model                                                                    K4






Bottle type specification
Cavity
4

Max.volume
2L

Bottle mouth maximum overall diameter
25-29mm

Bottle biggest diameter
100mm

Bottle maximum height
330mm


Capacity specification
Theory output
6000BPH

Bottle type volume
600ML

Bottle type weight
13.5g

Bottle type
Round



Power specification
Light tube quantity
16pcs

Light tube power
1.25KW

Maximum heating power
20KW

All electric machine installation
29KW

Actual consumption
30%--60%


Air pressure specification
Work pressure
5-6kg/cm2

Blow bottle pressure
25-45kg/cm2

Higher -pressure gas consumption
6000Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
6000kcal/hr

Forzen water flow
120L/min

Machine specification
Machine size
3.6x1.6x1.9

Machine weight
4.3ton
Dia 100mm Plastic Bottle Molding Machine 600ml PET Stretch Blow Molding 2
K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 1500 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
Detailed Images
Dia 100mm Plastic Bottle Molding Machine 600ml PET Stretch Blow Molding 4
Dia 100mm Plastic Bottle Molding Machine 600ml PET Stretch Blow Molding 6
Dia 100mm Plastic Bottle Molding Machine 600ml PET Stretch Blow Molding 8
K linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.
Kseries linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .

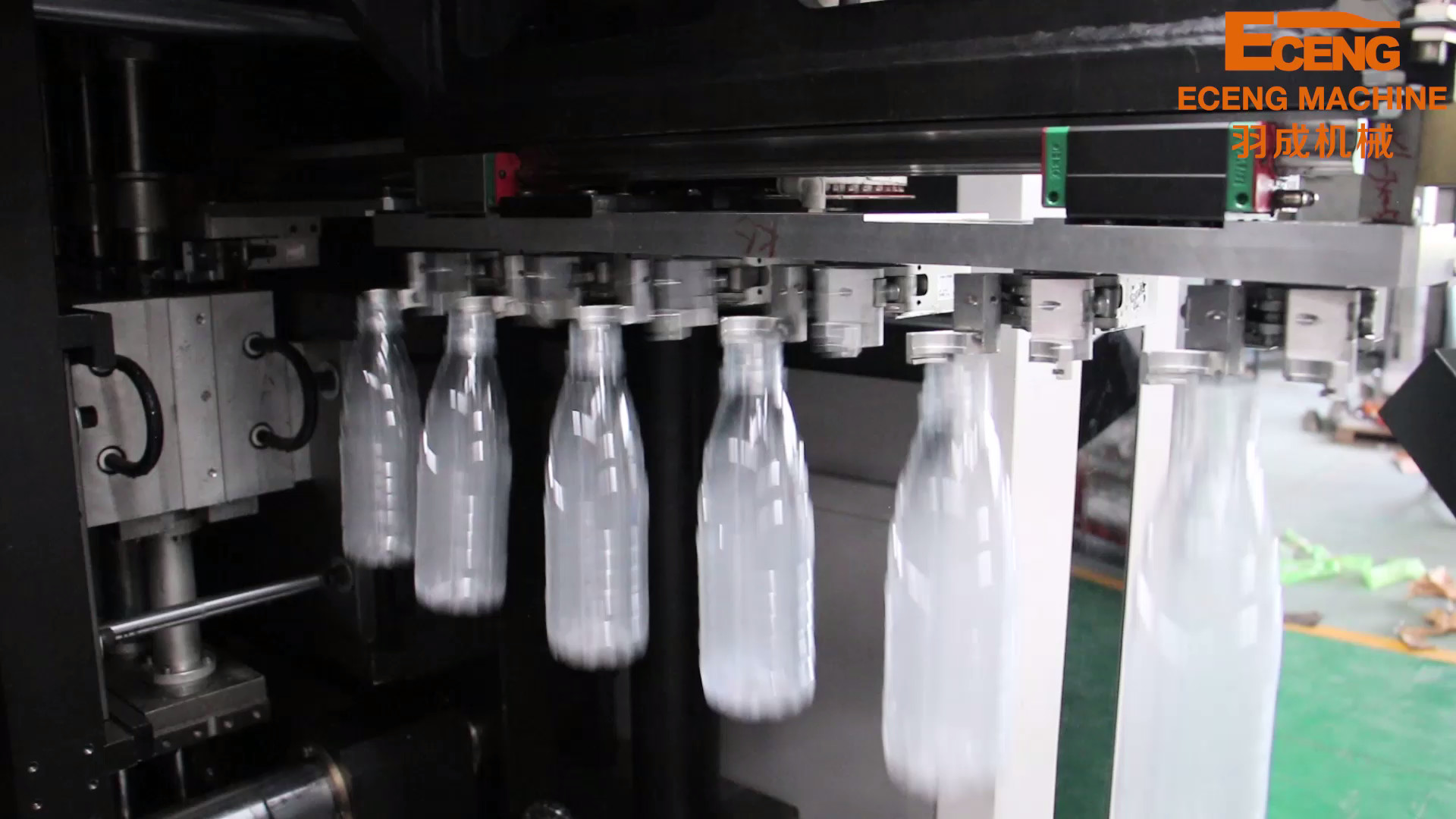

blowing mould
Dia 100mm Plastic Bottle Molding Machine 600ml PET Stretch Blow Molding 10
Dia 100mm Plastic Bottle Molding Machine 600ml PET Stretch Blow Molding 12
our advantage
1. Resonable price
2. Good after service
3. experienced skilled workers and professional engineers
4. Good quality ,excellent service ,long life mould
5. on time delivery time
6.our engineers can be online for 24 hours to serve you
Company Introduction
Dia 100mm Plastic Bottle Molding Machine 600ml PET Stretch Blow Molding 14
Dia 100mm Plastic Bottle Molding Machine 600ml PET Stretch Blow Molding 16
Dia 100mm Plastic Bottle Molding Machine 600ml PET Stretch Blow Molding 18
Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,located in Zhangjiagang city,only 120km away from Shanghai.We are professional manufacturer of PET bottle blowing machines and plastic molds. We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 20,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging. Our products has covered all over China and exported to more than 100 countries,including Southest Asia,Middle East,South America,Africa etc.We’d like to provide high quality solution to clients with our enthusiasm and rich experience.We sincerely hope to establish business relationship with friends all over the world.
Packing&Shipping
Dia 100mm Plastic Bottle Molding Machine 600ml PET Stretch Blow Molding 20
Dia 100mm Plastic Bottle Molding Machine 600ml PET Stretch Blow Molding 22
Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
After Sales Service
1.Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could  master the operation and maintenance, could adjust the process and treat different failures.
3. the sample service
1' We can send you the video of the running machine.
2' You are welcome to come to visit our factory,and see the machine running.
4. We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5. well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7. Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.
Dia 100mm Plastic Bottle Molding Machine 600ml PET Stretch Blow Molding 24
Dia 100mm Plastic Bottle Molding Machine 600ml PET Stretch Blow Molding 26
Dia 100mm Plastic Bottle Molding Machine 600ml PET Stretch Blow Molding 28
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
