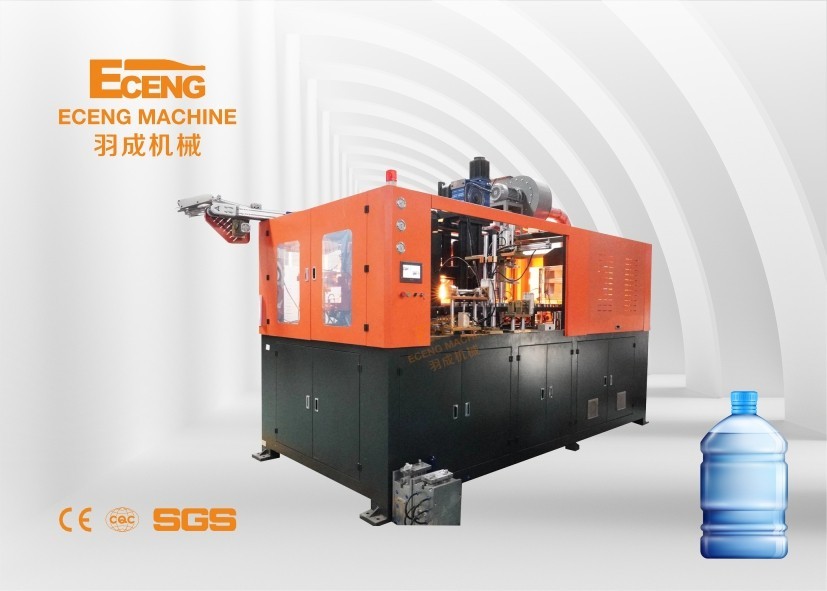

Eceng 5 Gallon Bottle Blowing Machine PLC Control PET Bottle Manufacturing

Name: Eceng 5 Gallon Bottle Blowing Machine PLC Control PET Bottle Manufacturing
Brand: eceng
SKU: YCQ-20L-1
Rating: 5 (104 reviews)

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	eceng
Certification:	CE/ISO
Model Number:	YCQ-20L-1

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	packed by wooden pallet or as customer request of 3 gallon 5 gallon water pet bottle blow molding machine
Delivery Time:	60days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	15 Set/Sets per Month

Contact Now

Detailed Product Description

Blow Moulding Type:	Stretch Blow Moulding	Voltage:	220V Or As Customer Request
Style:	Plastic Mineral Water Bottle Blowing Machine	Heating Method:	Electric Cycle Heating
Service:	Full Technical Training	Bottle Volume:	MAX 20Liter
Production Capacity (BPH):	400 BPH	Port:	Shanghai/Ningbo
Highlight:	eceng 5 Gallon Bottle Blowing Machine , PLC control pet bottle manufacturing machine , eceng pet bottle manufacturing machine

5 Gallon Water Bottle Blow Molding Machine / PET Bottle Blowing / Blow Molding 5 Gallon Bottle Making Machine

specification

Item			YCQ-20L-1
Bottle type specification	Cavity	1
		Theory output	350
		Max.volume	20L
		Bottle mouth maximum overall diameter	150mm
		Bottle biggest diameter	350mm
		Bottle maximum height	550mm
Power specifications	Light tube quantity	48pcs
		Light tube power	1.5KW
		Maximum heating power	72KW
		All electric machine installation	75KW
		Actual consumption	52.5KW
Air pressure specification	Work pressure	7-9kg/c㎡
		Low-pressure gas consumption	1600L/min
		Blow bottle pressure	25-35kg/c㎡
		Higher -pressure gas consumption	2000-3000Ltr/min
Forzen water specification	Work pressure	5-6 kg/c㎡
		Temperature range	10℃
		Consumption	12000kcal/hr
		Forzen water flow	88L/min
Machine specification	Size of the machine	5.2x2.0x2.0
Machine specification		Weight of the machine	6ton

YCQ series is a stable two-step blow-down stretch automatic blowing machine. max volume 20L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

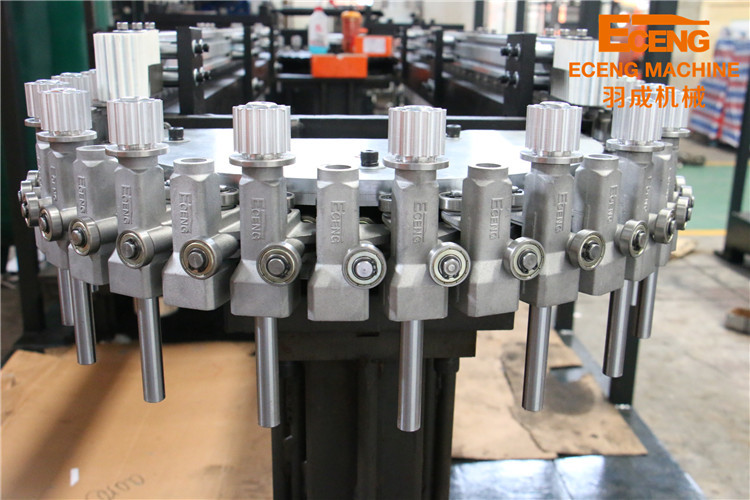

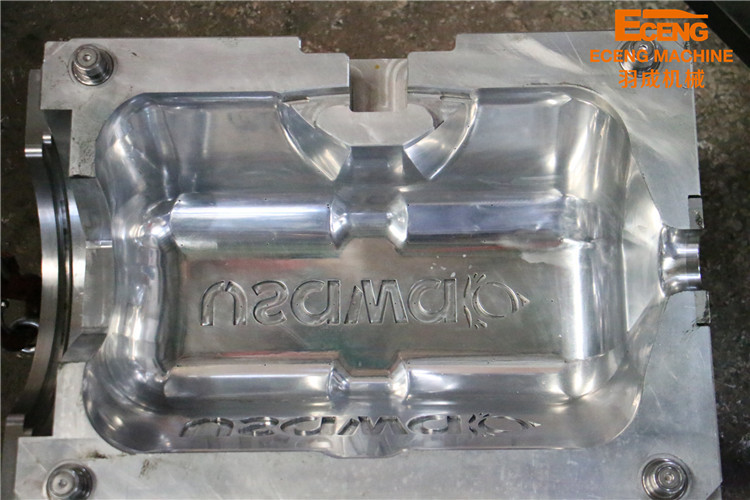

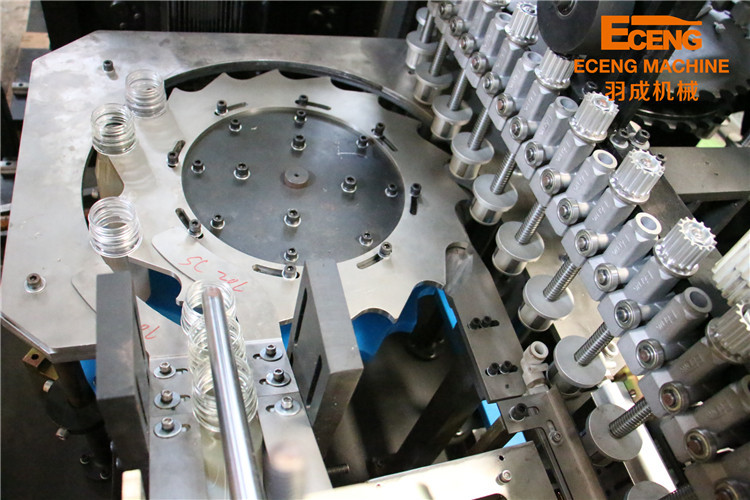

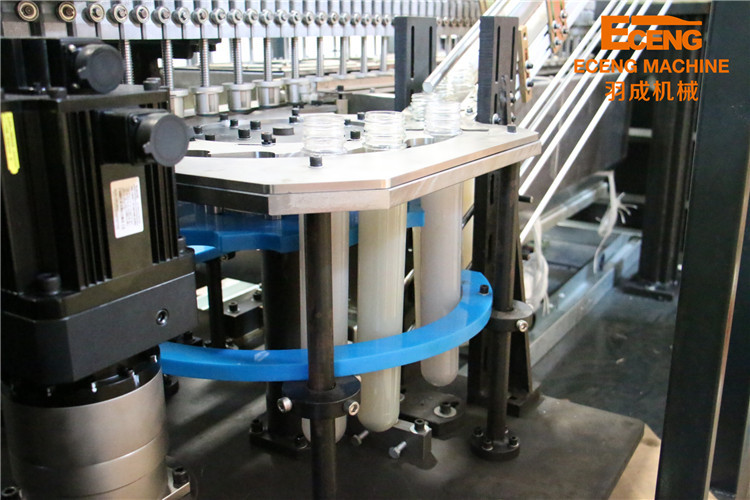

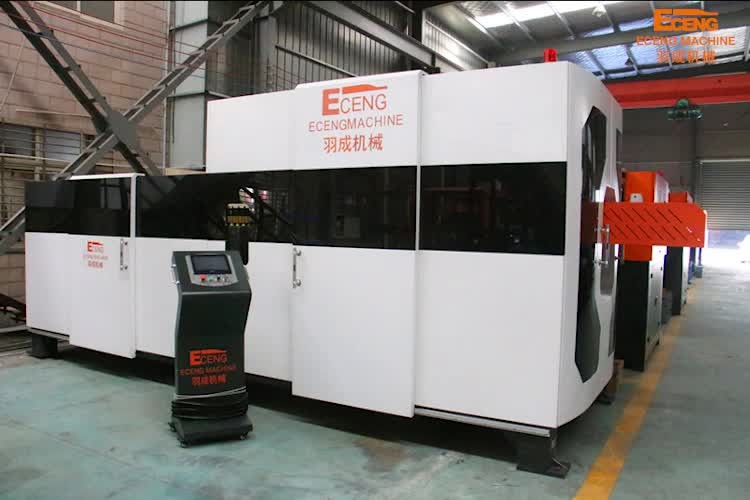

Detailed Images

YCQ linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. YCQ series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .

our advantage

1. Resonable price

2. Good after service
3. experienced skilled workers and professional engineers
4. Good quality ,excellent service ,long life mould
5. on time delivery time
6.our engineers can be online for 24 hours to serve you

Company Introduction

Packing&Shipping

After Sales Service

1.Installation, debug

We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.

2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. the sample service
1' We can send you the video of the running machine.
2' You are welcome to come to visit our factory,and see the machine running.
4. We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5. well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7. Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.
