380V 20 Ltr Water Jar Making Machine 400BPH Automatic PET Blow Molding

380V 20 Ltr Water Jar Making Machine 400BPH Automatic PET Blow Molding

  • High Light

    20 ltr water jar making machine 400BPH

    ,

    380V 20 ltr water jar making machine

    ,

    400BPH automatic pet blow molding machine

  • Plastic Processed
    PET
  • Max.Bottle Height(mm)
    550 Mm
  • Neck Diameter(mm)
    150 Mm
  • Max.Bottle Diameter(mm)
    350 Mm
  • Bottle Volume(ml)
    20000 Ml
  • Condition
    New
  • Application
    Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Voltage
    380V,50-60HZ
  • Dimension(L*W*H)
    5.2*2.0*2.0
  • Power (kW)
    79
  • Weight (KG)
    6100 KG
  • Automation
    Automatic
  • Warranty
    1 Year
  • Key Selling Points
    High Safety Level
  • Applicable Industries
    Manufacturing Plant
  • Marketing Type
    Hot Product 2019
  • Machinery Test Report
    Provided
  • Video Outgoing-inspection
    Provided
  • Warranty Of Core Components
    1 Year
  • Weight
    5 TON
  • Automatic
    Yes
  • Product
    5 Gallon Bottle Blowing Machine
  • Bottle Volume
    10L-20L
  • Cavity
    1
  • Output
    200-300bph
  • Replacement Assembly Parts
    Provide For Free
  • Model Type
    Bottle Blowing Machine
  • Production Capacity (BPH)
    400 BPH
  • Port
    Shanghai / Ningbo
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    EC
  • Model Number
    YCQ-20L-1E
  • Minimum Order Quantity
    1set
  • Price
    $39,800.00/Sets 1-1 Sets
  • Packaging Details
    5 gallon bottle blowing machine is packed with wooden case or as customers' request.
  • Delivery Time
    60days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    10 Set/Sets per Month 5 gallon bottle blowing machine

380V 20 Ltr Water Jar Making Machine 400BPH Automatic PET Blow Molding

20 LITER jar automatic pet bottle making machine
380V 20 Ltr Water Jar Making Machine 400BPH Automatic PET Blow Molding 0
specification
Item

YCQ-20L-1





Bottle type specification
Cavity
1

Theory output
350

Max.volume
20L

Bottle mouth maximum overall diameter
150mm

Bottle biggest diameter
350mm

Bottle maximum height
550mm



Power specifications
Light tube quantity
48pcs

Light tube power
1.5KW

Maximum heating power
72KW

All electric machine installation
75KW

Actual consumption
52.5KW



Air pressure specification
Work pressure
7-9kg/c㎡

Low-pressure gas consumption
1600L/min

Blow bottle pressure
25-35kg/c㎡

Higher -pressure gas consumption
2000-3000Ltr/min


Forzen water specification
Work pressure
5-6 kg/c㎡

Temperature range
10℃

Consumption
12000kcal/hr

Forzen water flow
88L/min

Machine specification
Size of the machine
5.2x2.0x2.0

Weight of the machine
6ton

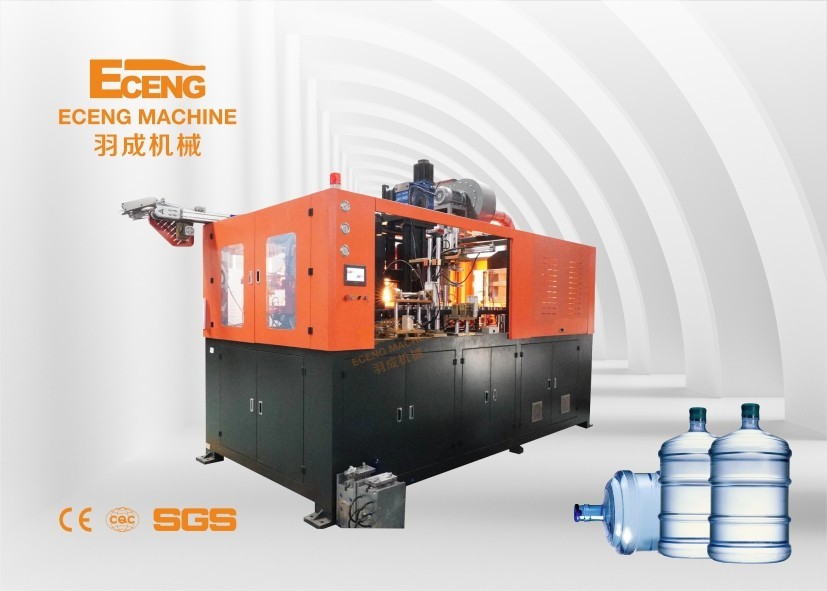

380V 20 Ltr Water Jar Making Machine 400BPH Automatic PET Blow Molding 2
YCQ series is a stable two-step blow-down stretch automatic blowing machine. max volume 20L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
Detailed Images

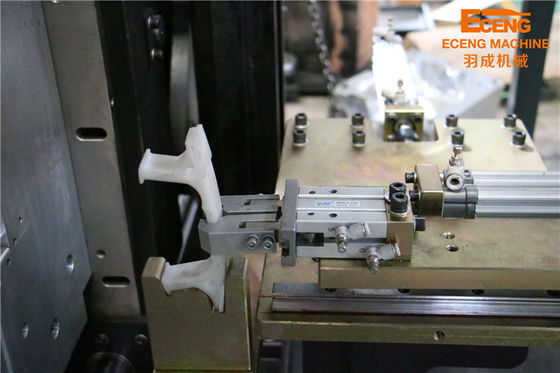

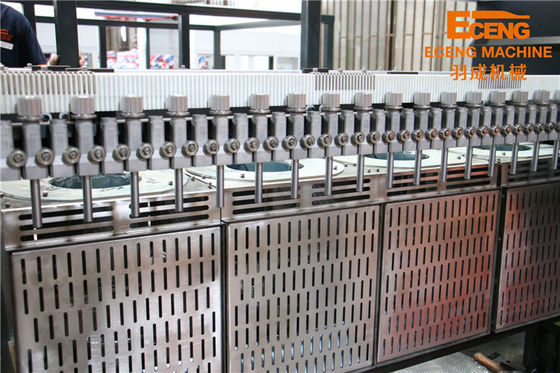

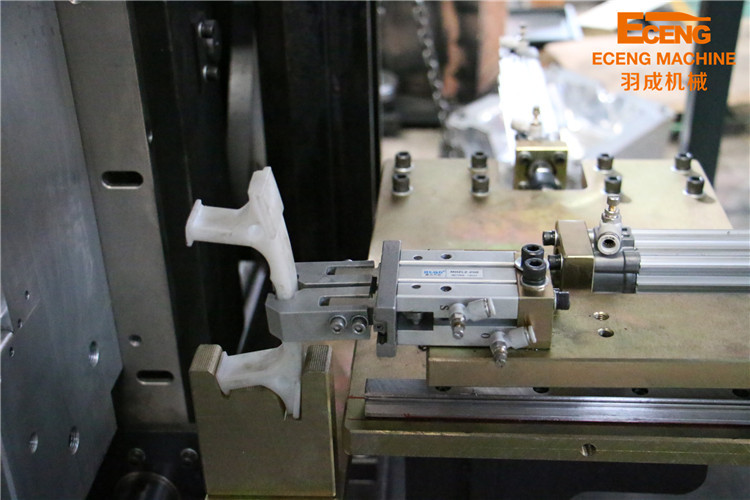

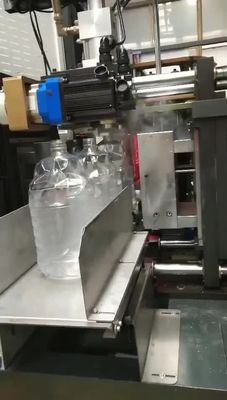

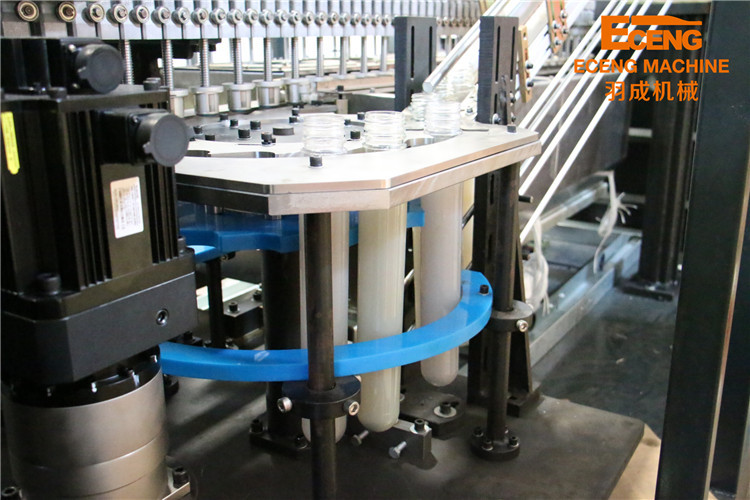

380V 20 Ltr Water Jar Making Machine 400BPH Automatic PET Blow Molding 4
380V 20 Ltr Water Jar Making Machine 400BPH Automatic PET Blow Molding 6
380V 20 Ltr Water Jar Making Machine 400BPH Automatic PET Blow Molding 8
YCQ linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. YCQ series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .

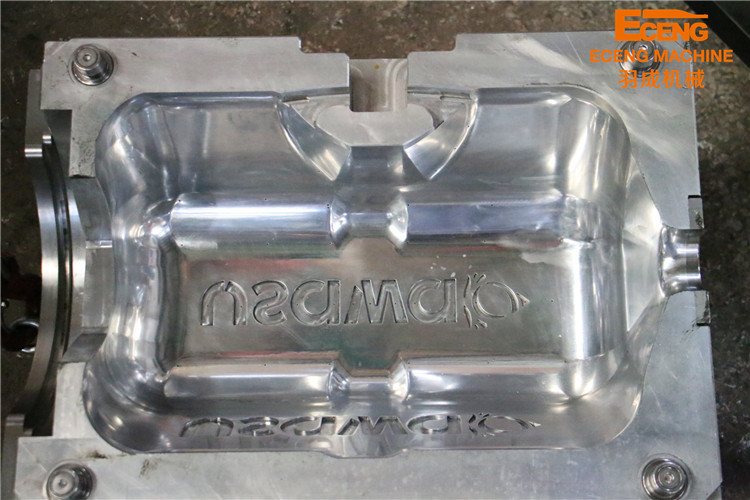

380V 20 Ltr Water Jar Making Machine 400BPH Automatic PET Blow Molding 10
our advantage
1. Resonable price
2. Good after service
3. experienced skilled workers and professional engineers
4. Good quality ,excellent service ,long life mould
5. on time delivery time
6.our engineers can be online for 24 hours to serve you
Company Introduction
380V 20 Ltr Water Jar Making Machine 400BPH Automatic PET Blow Molding 12
Packing&Shipping
380V 20 Ltr Water Jar Making Machine 400BPH Automatic PET Blow Molding 14
After Sales Service
1. Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. the sample service
1' We can send you the video of the running machine.
2' You are welcome to come to visit our factory,and see the machine running.
4. We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5. well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 . 12 Months guarantee and life-long technical support.
7. Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any question
