Eceng Round PET Preform Blowing Machine DELTA PLC Contorl Bottle Mouth Dia 30mm

Eceng Round PET Preform Blowing Machine DELTA PLC Contorl Bottle Mouth Dia 30mm

Eceng Round PET Preform Blowing Machine DELTA PLC Contorl Bottle Mouth Dia 30mm
Eceng Round PET Preform Blowing Machine DELTA PLC Contorl Bottle Mouth Dia 30mm
Eceng Round PET Preform Blowing Machine DELTA PLC Contorl Bottle Mouth Dia 30mm
Product Details:
Place of Origin: China
Brand Name: eceng
Certification: CE/ISO
Model Number: k6
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $35,000.00/Sets 1-1 Sets
Packaging Details: packed by wooden pallet or as customer request
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Blow Moulding Type: Stretch Blow Moulding Voltage: 220V Or As Customer Request
Warranty: 1 Year Key Selling Points: Automatic
Applicable Industries: Manufacturing Plant Step: 2
Heating Method: Electric Cycle Heating Service: Full Technical Training
Bottle Volume: 1L -2L Output: 9000-12000 Bph
High Light:

eceng round pet preform blowing machine

,

pet preform blowing machine DELTA PLC

,

bottle mouth dia 30mm blow molding machine

factory supply high quality pet blowing bottle machine pet hot filling bottle blow moulding machine
Eceng Round PET Preform Blowing Machine DELTA PLC Contorl Bottle Mouth Dia 30mm 0
specification
             Model                                                                    K6






Bottle type specification
Cavity
6

Max.volume
2L

Bottle mouth maximum overall diameter
28-30mm

Bottle biggest diameter
100mm

Bottle maximum height
330mm


Capacity specification
Theory output
9000~12000BPH

Bottle type volume
500ML

Bottle type weight
17g

Bottle type
Round



Power specification
Light tube quantity
32pcs

Light tube power
1.25KW

Maximum heating power
40KW

All electric machine installation
49KW

Actual consumption
30%--60%


Air pressure specification
Work pressure
5-6kg/cm2

Blow bottle pressure
25-45kg/cm2

Higher -pressure gas consumption
8000Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
8000kcal/hr

Forzen water flow
120L/min

Machine specification
Machine size
5.5x1.8x1.9

Machine weight
6.1ton
Eceng Round PET Preform Blowing Machine DELTA PLC Contorl Bottle Mouth Dia 30mm 2

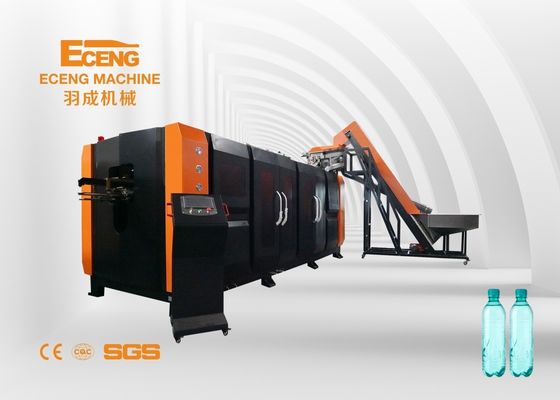

K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 1500 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

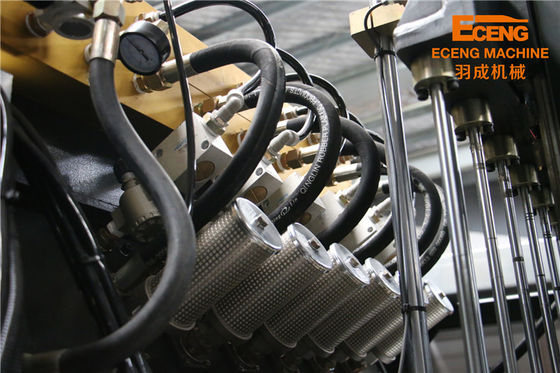

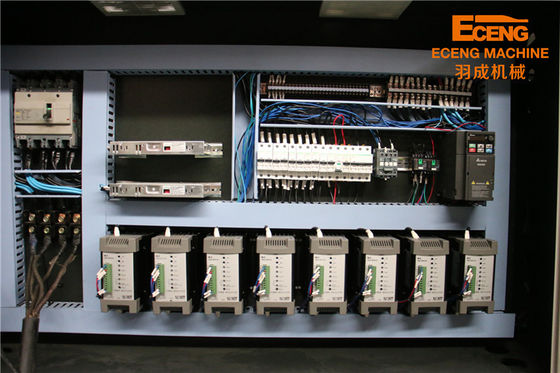

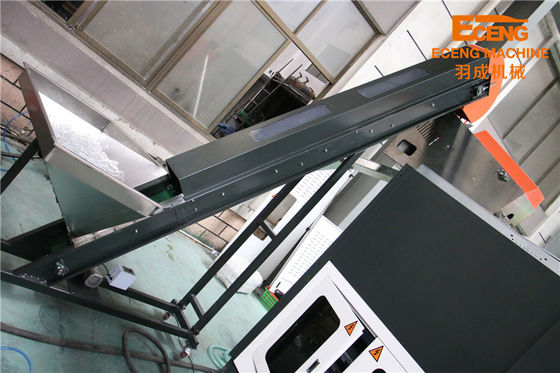

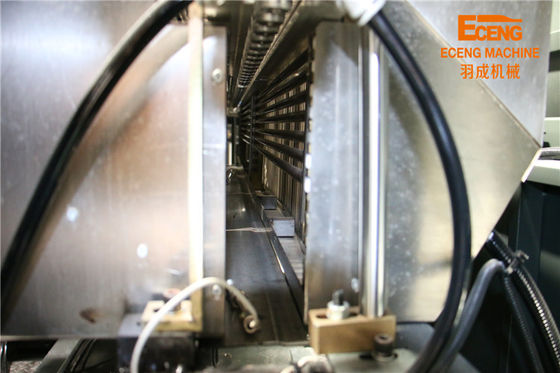

Detailed Images
Eceng Round PET Preform Blowing Machine DELTA PLC Contorl Bottle Mouth Dia 30mm 4
Eceng Round PET Preform Blowing Machine DELTA PLC Contorl Bottle Mouth Dia 30mm 6
Eceng Round PET Preform Blowing Machine DELTA PLC Contorl Bottle Mouth Dia 30mm 8
K linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Kseries linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .
Eceng Round PET Preform Blowing Machine DELTA PLC Contorl Bottle Mouth Dia 30mm 10
our advantage
1. Resonable price
2. Good after service
3. experienced skilled workers and professional engineers
4. Good quality ,excellent service ,long life mould
5. on time delivery time
6.our engineers can be online for 24 hours to serve you
Company Introduction
Eceng Round PET Preform Blowing Machine DELTA PLC Contorl Bottle Mouth Dia 30mm 12
Packing&Shipping
Eceng Round PET Preform Blowing Machine DELTA PLC Contorl Bottle Mouth Dia 30mm 14

Eceng Round PET Preform Blowing Machine DELTA PLC Contorl Bottle Mouth Dia 30mm 16
Eceng Round PET Preform Blowing Machine DELTA PLC Contorl Bottle Mouth Dia 30mm 18
Eceng Round PET Preform Blowing Machine DELTA PLC Contorl Bottle Mouth Dia 30mm 20
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
