LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG

LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG

LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG
LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG
LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG
Product Details:
Place of Origin: Jiangsu, China
Brand Name: eceng
Certification: CE/ISO
Model Number: k6
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $25,000.00 - $50,000.00/Sets
Packaging Details: packed by wooden pallet or as customer request
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Plastic Processed: PET, PE, PE/PP, LDPE, HDPE Max.Bottle Height(mm): 330 Mm
Neck Diameter(mm): 28 Mm Max.Bottle Diameter(mm): 100 Mm
Bottle Volume(ml): 2000 Ml Condition: New
Application: Bottle Blow Moulding Type: Stretch Blow Moulding
Year: 2019 Voltage: 220V Or As Customer Request
Dimension(L*W*H): 5.5*1.8*1.9 Hollow Part Volume: 2L
Power (kW): 49 Weight (KG): 6100 KG
Automation: Automatic Warranty: 1 Year
Key Selling Points: Energy Saving Applicable Industries: Food & Beverage Factory
Marketing Type: Hot Product 2019 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Automatic: Yes Step: 2
Heating Method: Electric Cycle Heating Service: Full Technical Training
Bottle Volume: 100ml -2L Light Tube: 32 Pieces
Weight: 6.1 Tons Production Capacity (BPH): 10000
Port: Shanghai/Ningbo
High Light:

6 cavity pet blowing machine 6100KG

,

6 cavity pet perfume bottle making machine

,

LDPE HDPE perfume bottle making machine

High quality 6 cavity automatic perfume bottle making machines
LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG 0
specification
             Model                                                                    K6






Bottle type specification
Cavity
6

Max.volume
2L

Bottle mouth maximum overall diameter
28-30mm

Bottle biggest diameter
100mm

Bottle maximum height
330mm


Capacity specification
Theory output
9000~12000BPH

Bottle type volume
500ML

Bottle type weight
17g

Bottle type
Round



Power specification
Light tube quantity
32pcs

Light tube power
1.25KW

Maximum heating power
40KW

All electric machine installation
49KW

Actual consumption
30%--60%


Air pressure specification
Work pressure
5-6kg/cm2

Blow bottle pressure
25-45kg/cm2

Higher -pressure gas consumption
8000Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
8000kcal/hr

Forzen water flow
120L/min

Machine specification
Machine size
5.5x1.8x1.9

Machine weight
6.1ton
LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG 2

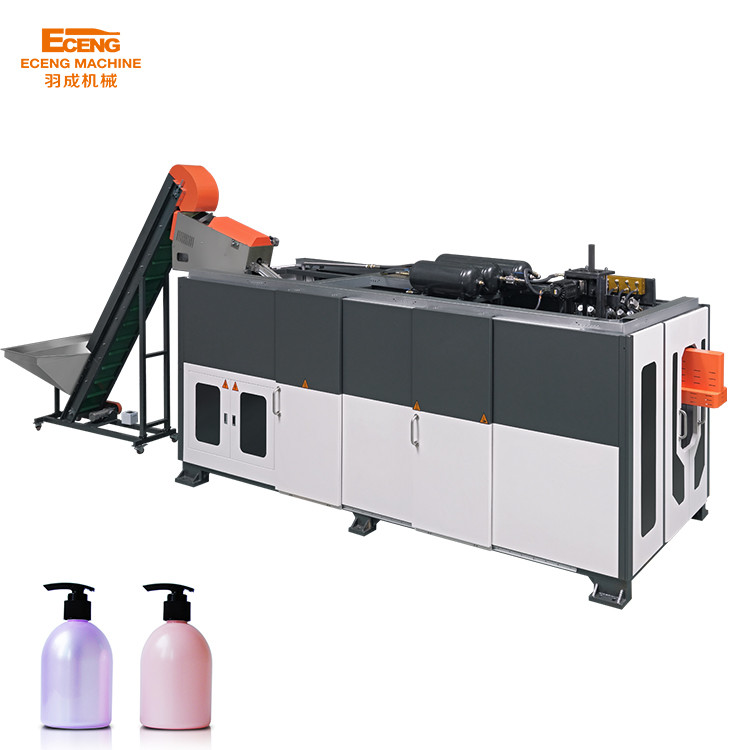

K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 1500 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG 4
Detailed Images
LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG 6
LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG 8
LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG 10

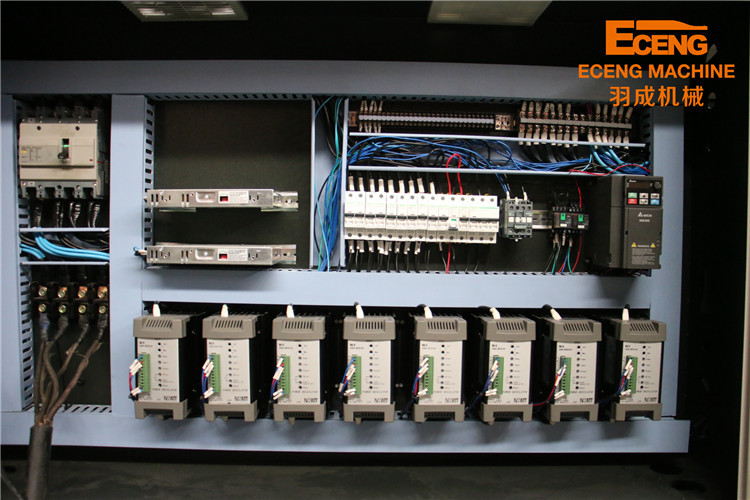

K linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.
Kseries linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG 12

Bottle design.

Our designers can design bottle styles according to your requirements.
LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG 14

Professional planning.

Since we built your line, our engineering experts can analyse equipment and processes to determine how to strengthen performance.
LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG 16

Service Online.

Engineers will be online 24 hours to answer your questions
blowing mould
LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG 18
LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG 20
our advantage
1. Resonable price
2. Good after service
3. experienced skilled workers and professional engineers
4. Good quality ,excellent service ,long life mould
5. on time delivery time
6.our engineers can be online for 24 hours to serve you
Recommend Products
LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG 22

jar bottle 4 cavity blowing machine

suitable bottle:100-5000ml

LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG 24

full automatic 2 cavity blowing machine.

suitable bottle:100-2000ml

LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG 26

full automatic 4 cavity blowing machine.

suitable bottle:100-2000ml
LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG 28

full automatic 1 cavity servo motor blow molding machine .

suitable bottle:3-5gallon
LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG 30

full servo 4 cavity motor blow molding machine.

suitable bottle:3000-6000ml
LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG 32

semi automatic 4 cavity blow molding machine.

suitable bottle:100-2000ml
Company Introduction
LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG 34
LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG 36
LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG 38
Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,located in Zhangjiagang city,only 120km away from Shanghai.We are professional manufacturer of PET bottle blowing machines and plastic molds. We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 20,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging. Our products has covered all over China and exported to more than 100 countries,including Southest Asia,Middle East,South America,Africa etc.We’d like to provide high quality solution to clients with our enthusiasm and rich experience.We sincerely hope to establish business relationship with friends all over the world.
Packing&Shipping
LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG 40
LDPE HDPE 6 Cavity PET Perfume Bottle Making Machine 6100KG 42
Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
