K Series 1 Litre Blow Moulding Machine

K Series 1 Litre Blow Moulding Machine

  • High Light

    K series 1 litre blow moulding machine

    ,

    Eceng 1 litre blow moulding machine

    ,

    2000ml small plastic blow molding machine

  • Plastic Processed
    PET, PE, PE/PP, LDPE, HDPE
  • Max.Bottle Height(mm)
    330 Mm
  • Neck Diameter(mm)
    28 Mm
  • Max.Bottle Diameter(mm)
    100 Mm
  • Bottle Volume(ml)
    2000 Ml
  • Condition
    New
  • Application
    Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Voltage
    380V,50HZ
  • Dimension(L*W*H)
    5.5x1.8x1.9m
  • Hollow Part Volume
    2l
  • High Pressure Valve Brand
    SMC
  • Clamping Force (kN)
    150
  • Rotary Cylinder Brand
    SMC
  • PLC Brand
    DELTA
  • Power (kW)
    50
  • Weight (KG)
    6100 KG
  • Automation
    Automatic
  • Warranty
    One Year For Free, One Year For Free
  • Key Selling Points
    Automatic
  • Applicable Industries
    Food & Beverage Factory
  • Marketing Type
    Hot Product 2019
  • Machinery Test Report
    Provided
  • Video Outgoing-inspection
    Provided
  • Warranty Of Core Components
    1 Year
  • Automatic
    Yes
  • Color
    Blue And Orange
  • Warranty
    1 Year
  • Output
    9000-12000
  • Size Of The Machine
    5.5x1.8x1.9
  • Weight
    6.1 Tons
  • Keywords
    Plastic Blowing Machine
  • Port
    Shanghai
  • Place of Origin
    China
  • Brand Name
    Eceng
  • Certification
    CE ISO
  • Model Number
    k6
  • Minimum Order Quantity
    1set
  • Price
    $5,500.00 - $45,000.00/Sets
  • Packaging Details
    standard export wooden case or according to your requirements for high speed automatic plastic blow moulding machine good price made in China
  • Delivery Time
    60days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    500 Set/Sets per Year

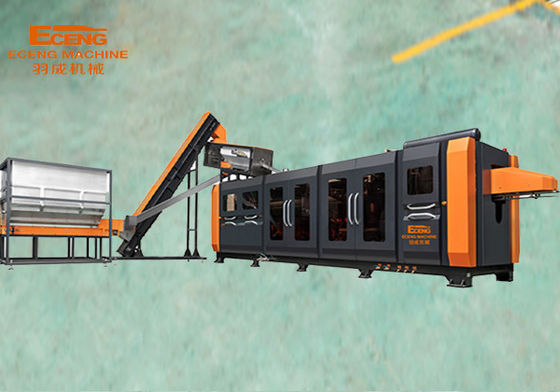

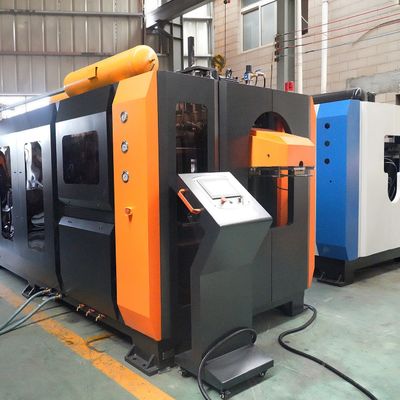

K Series 1 Litre Blow Moulding Machine



Factory price fully automatic stretch 1L small pet plastic mineral water bottle blow making blowing molding machine pric

K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 1500 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
K Series 1 Litre Blow Moulding Machine 0
K series fully servo bottle blowing machine features:

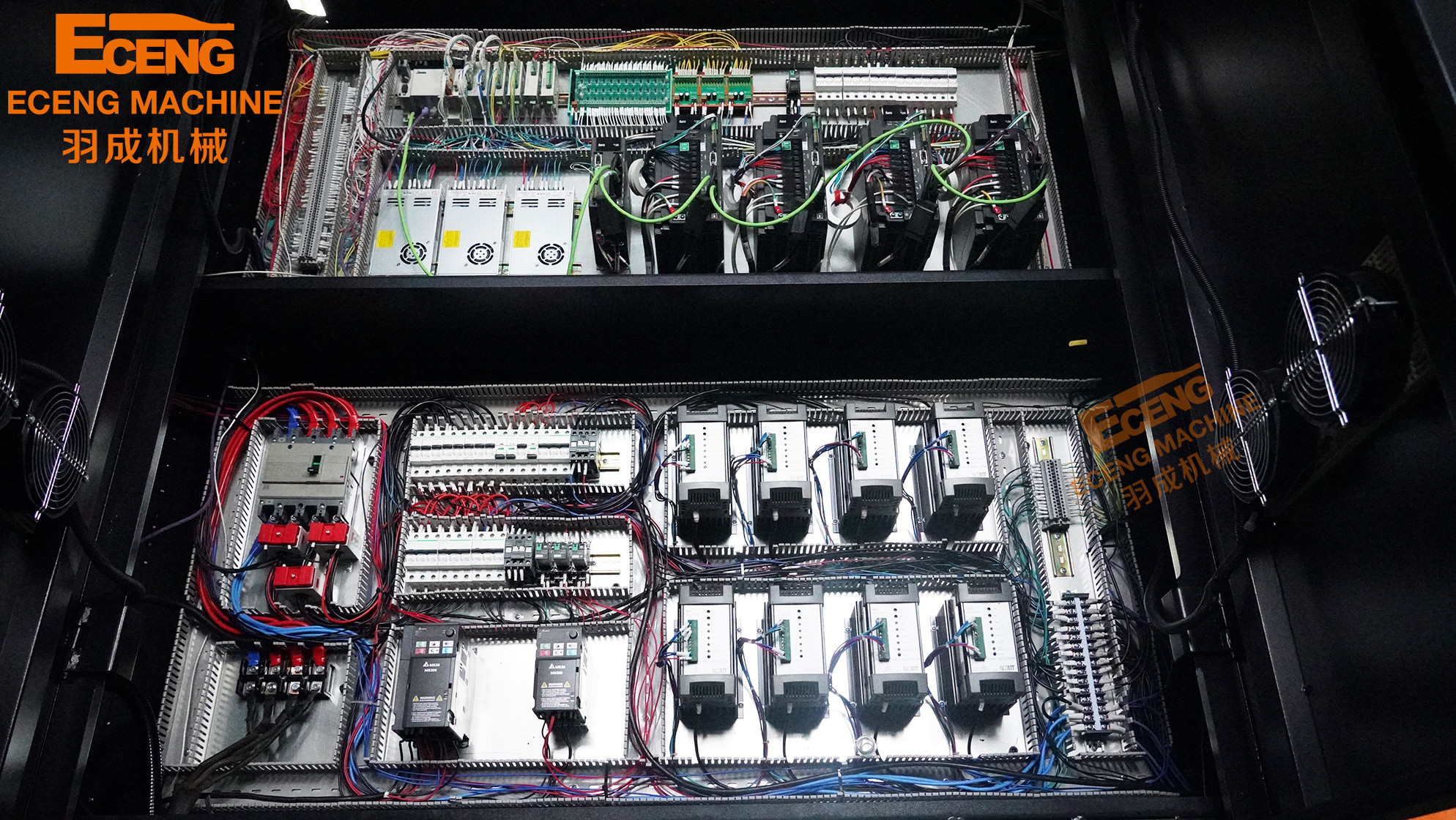

1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
K Series 1 Litre Blow Moulding Machine 2

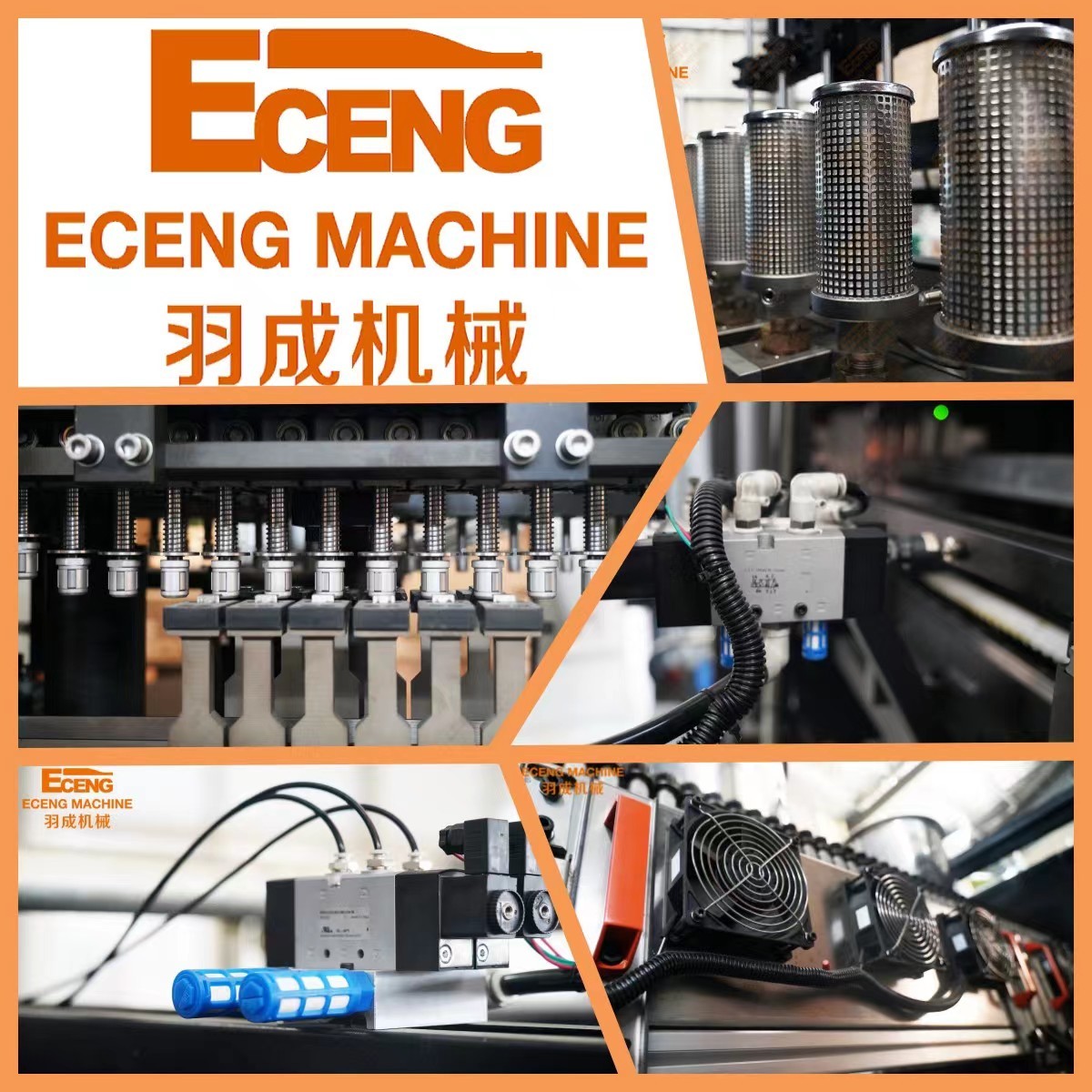

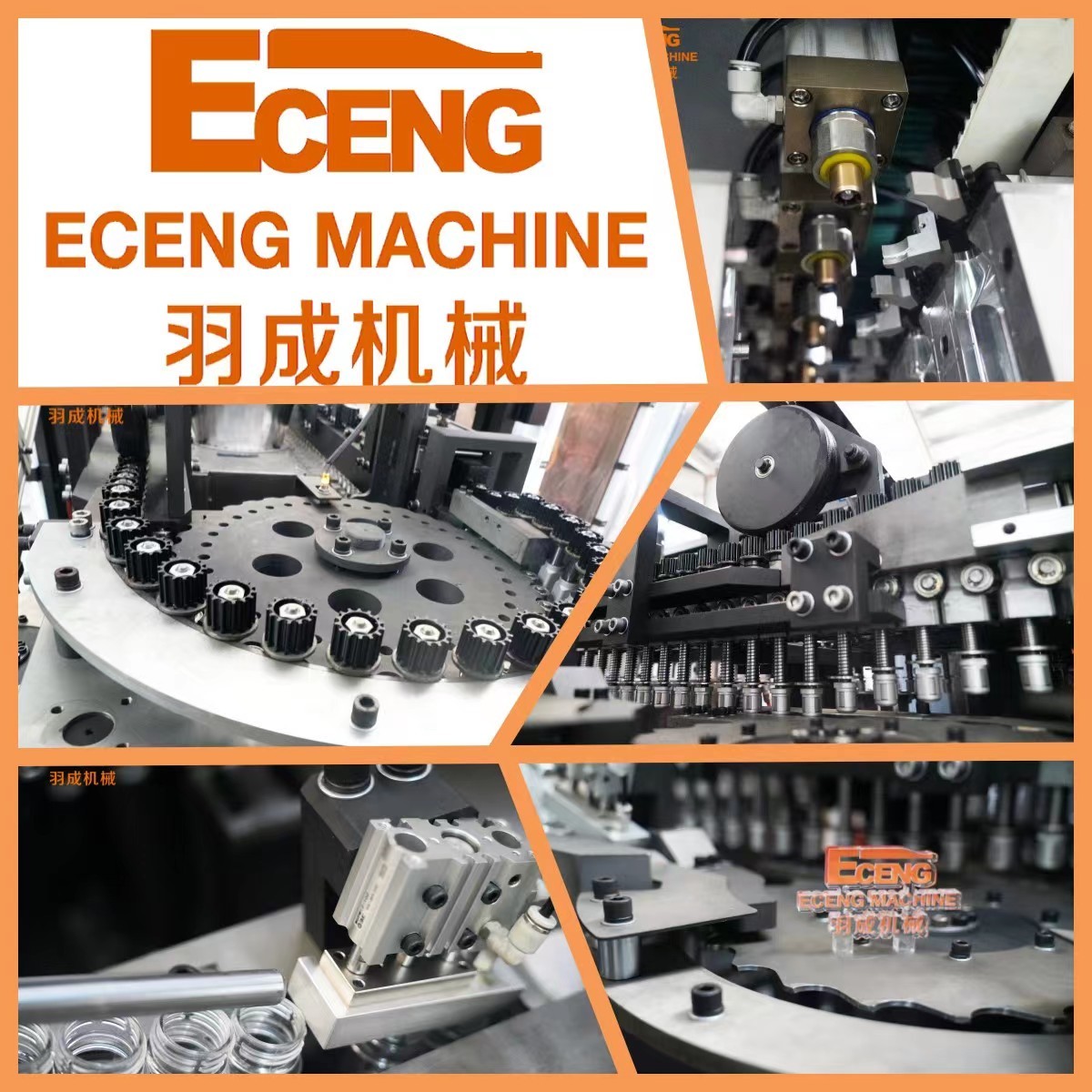

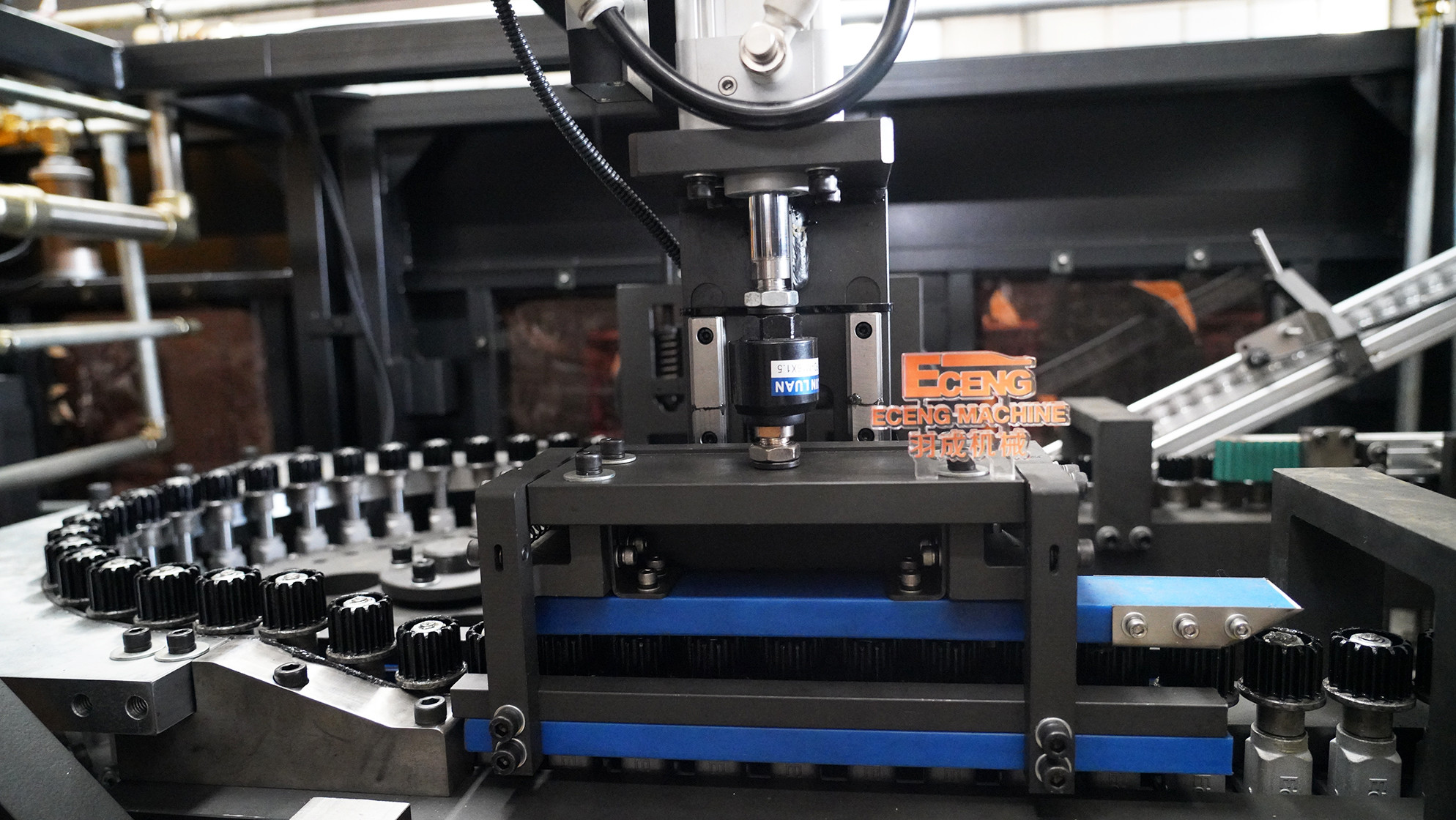

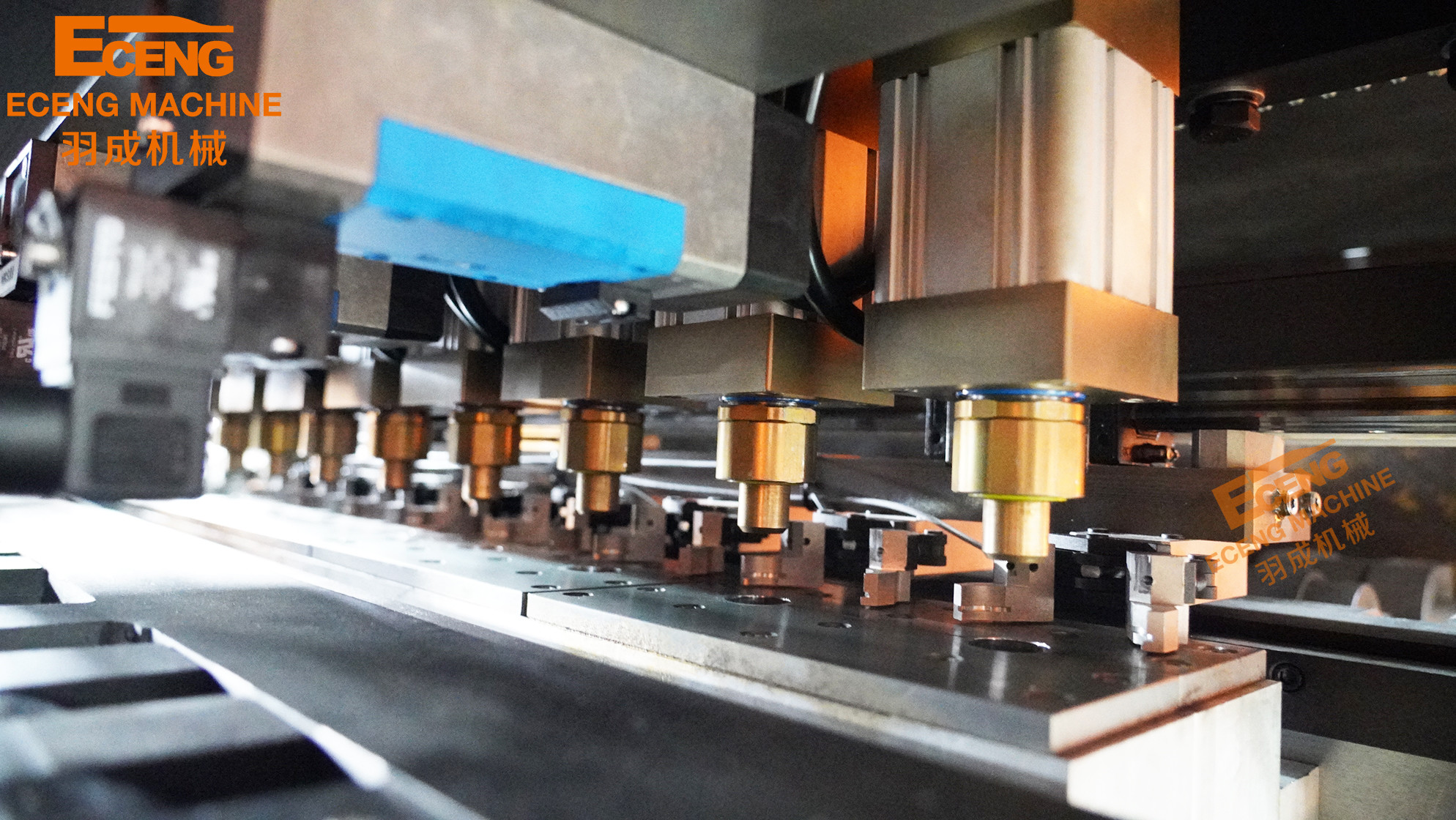

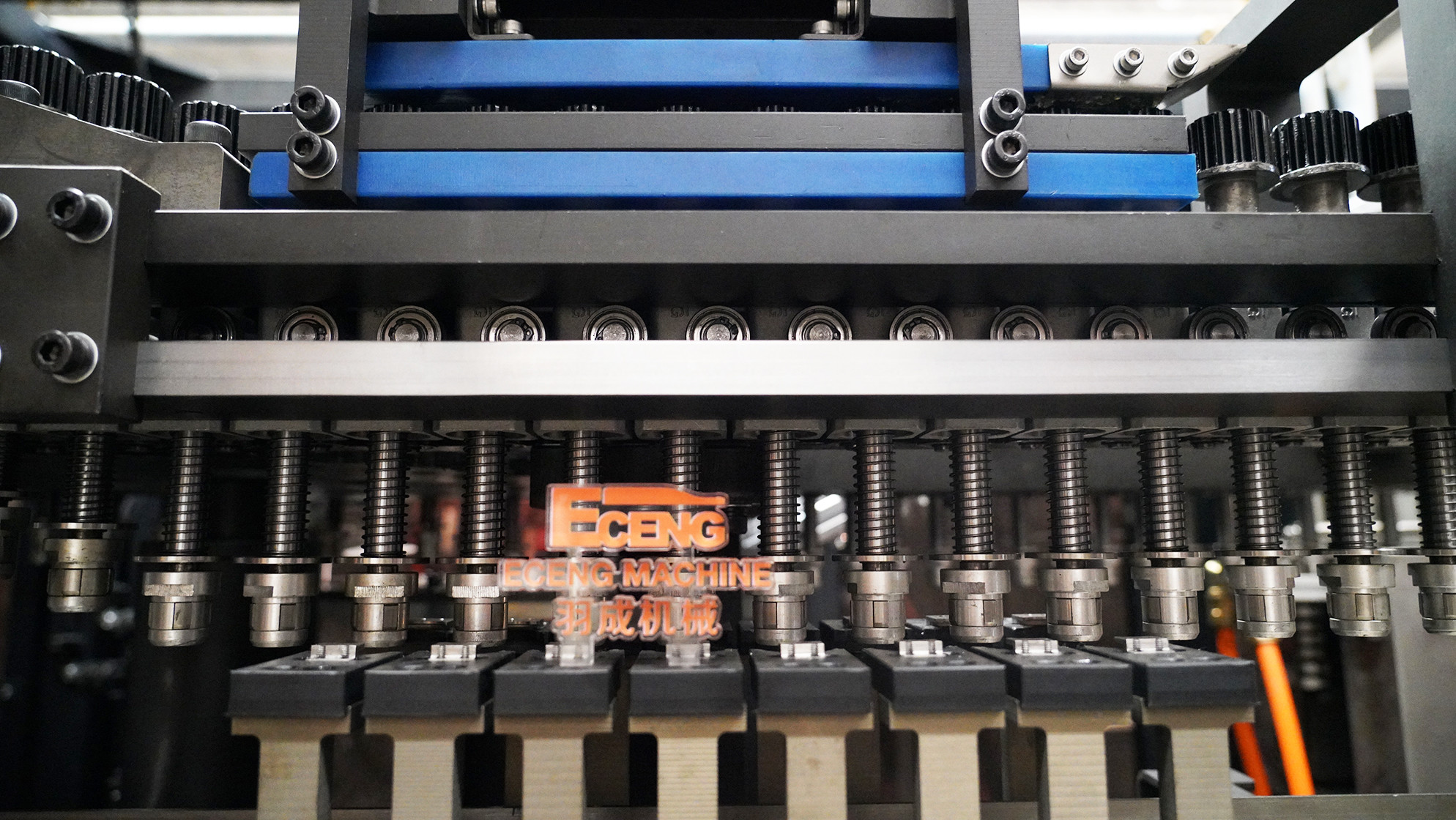

Servo transmission system

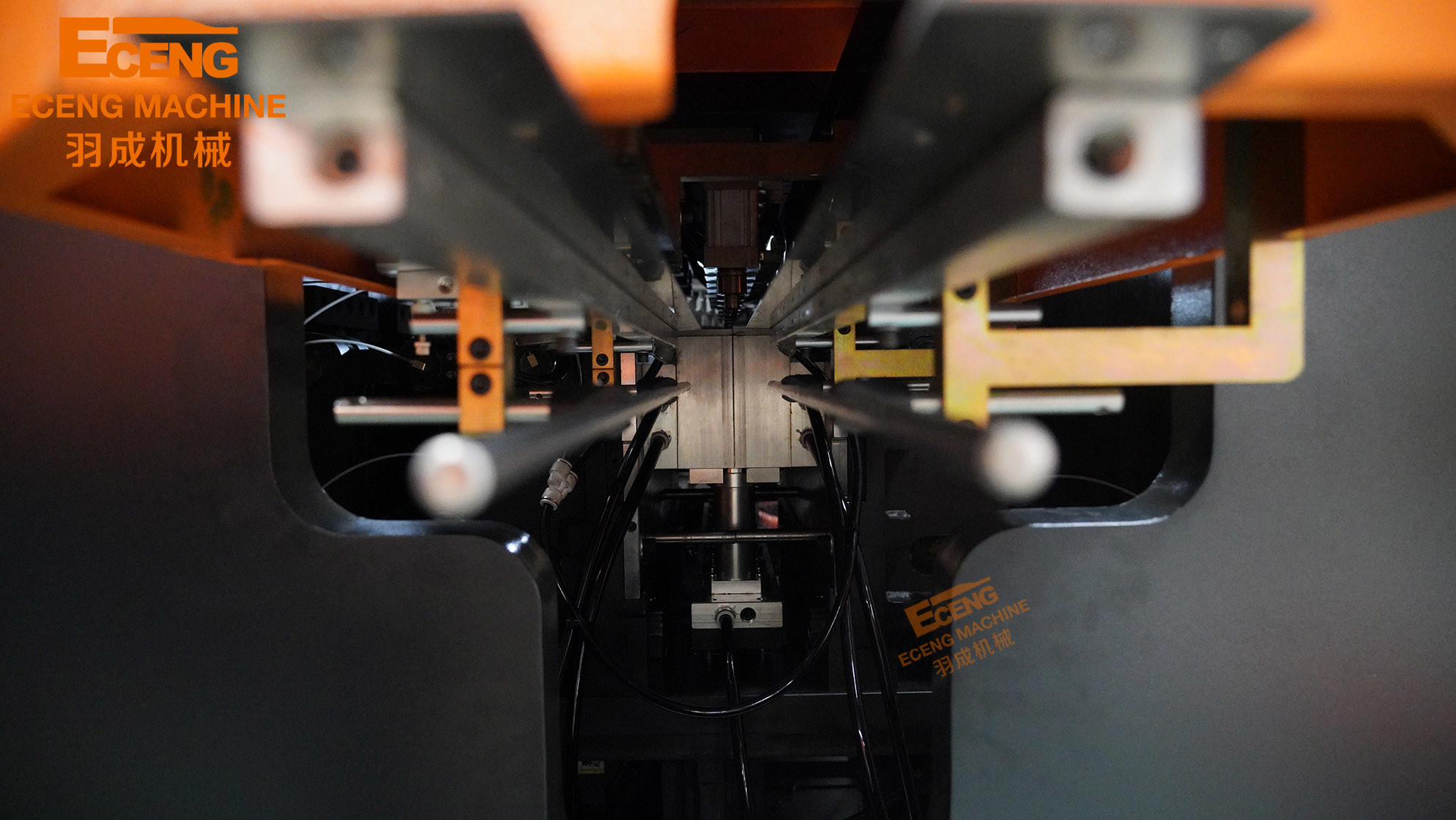

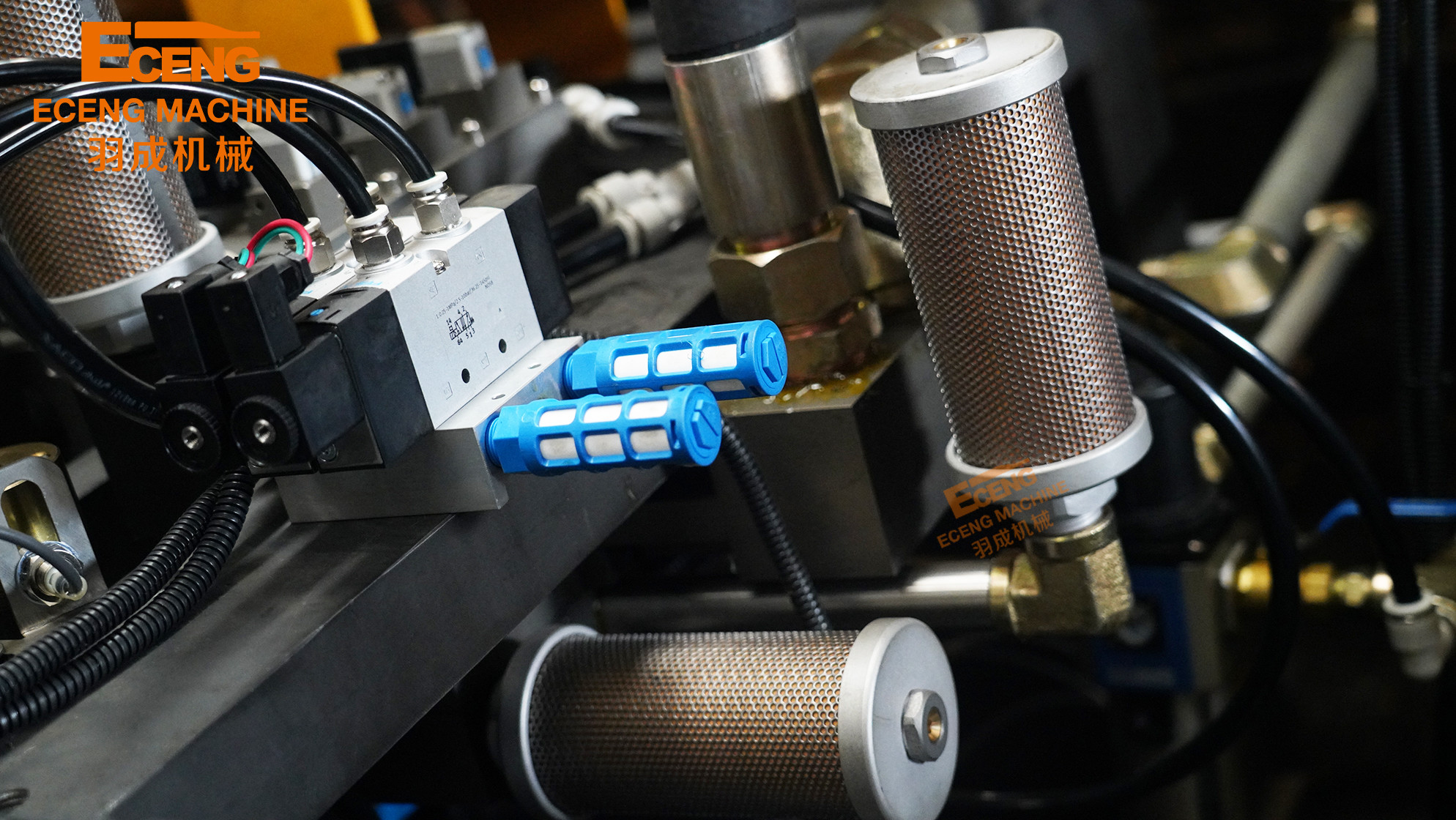

High positioning accuracy, fast speed and stability, good reliability. Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement; Adopt high pressure and double crank arm link locking, strong clamping force.
K Series 1 Litre Blow Moulding Machine 4
K Series 1 Litre Blow Moulding Machine 6

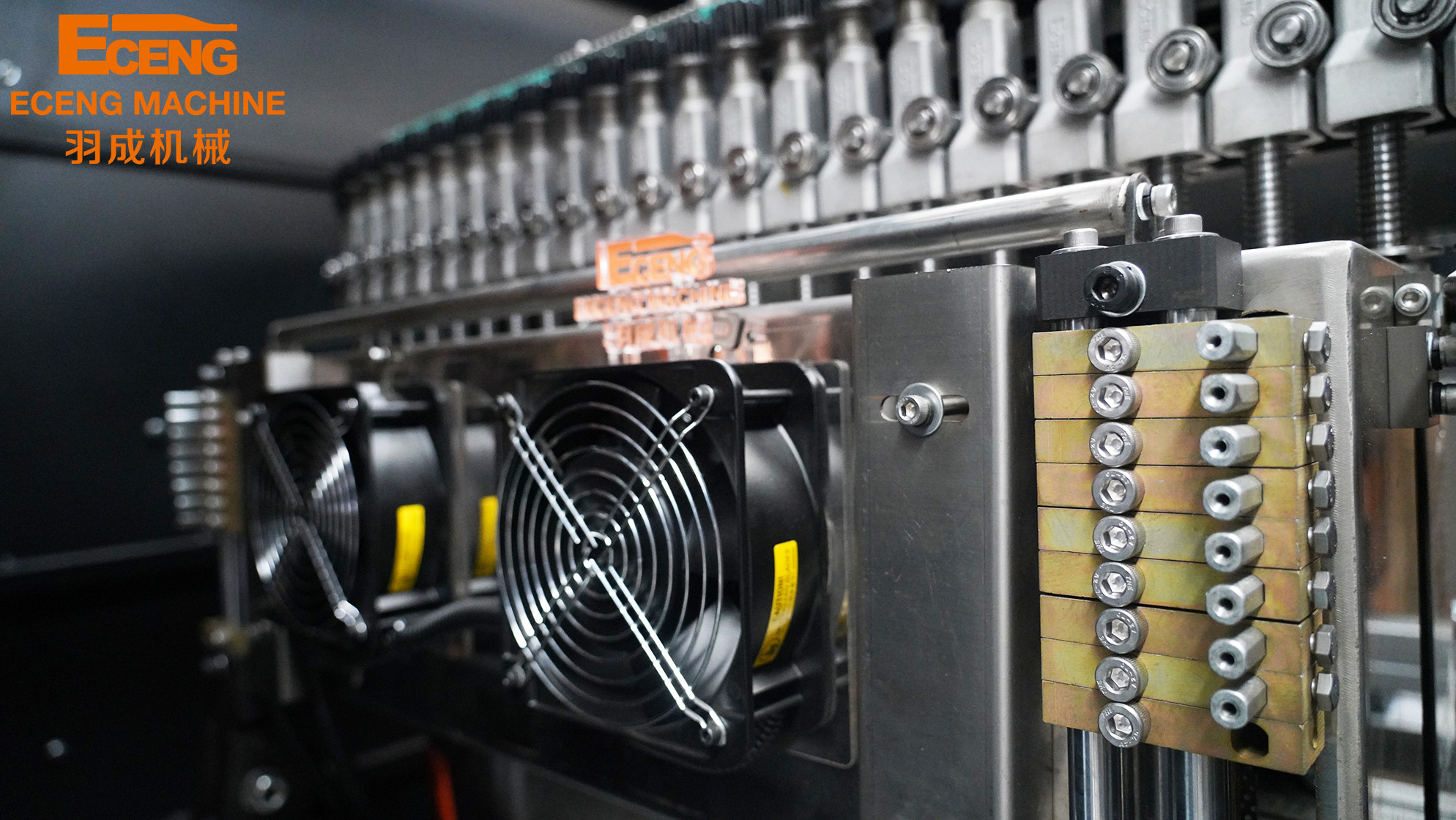

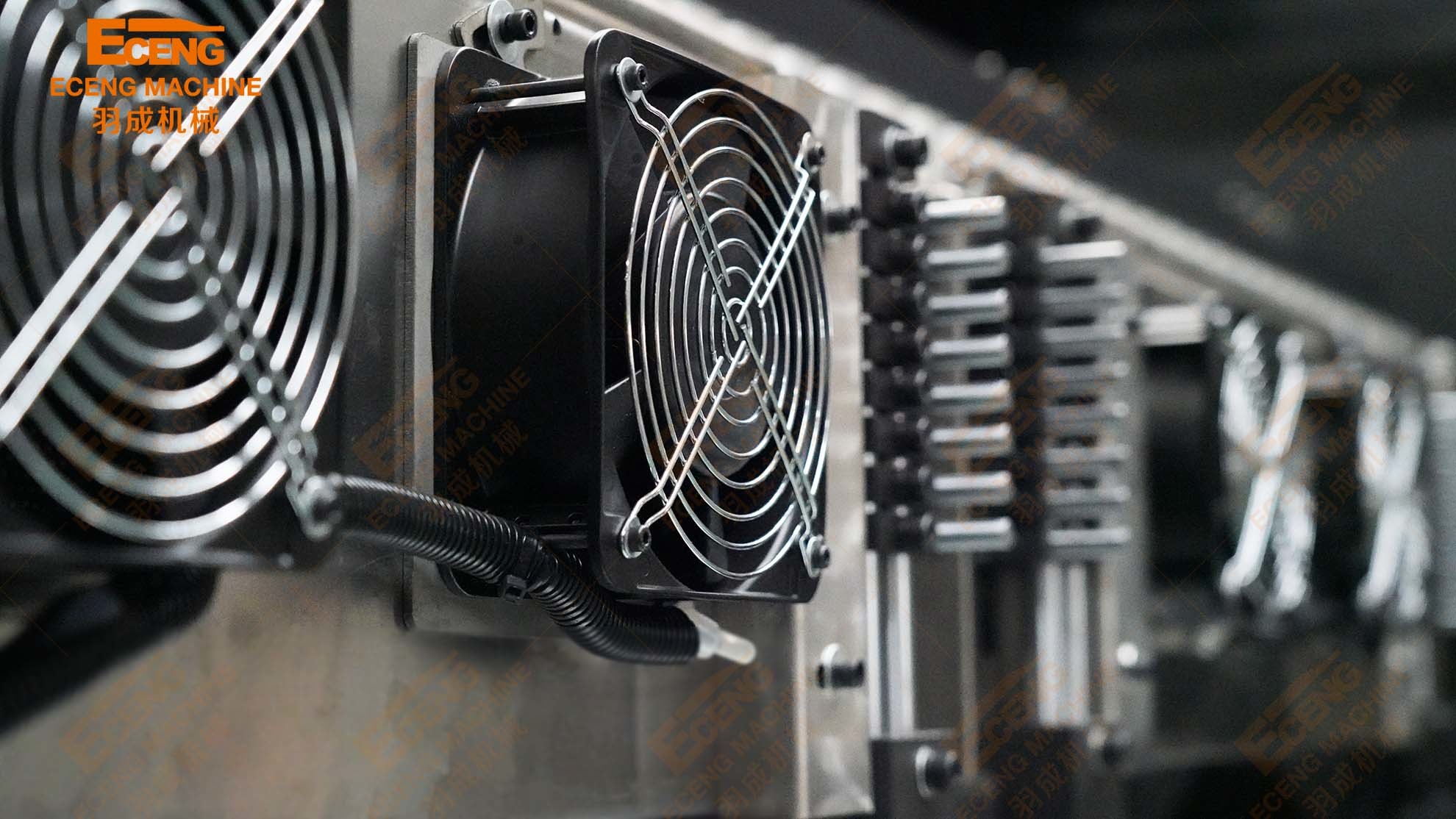

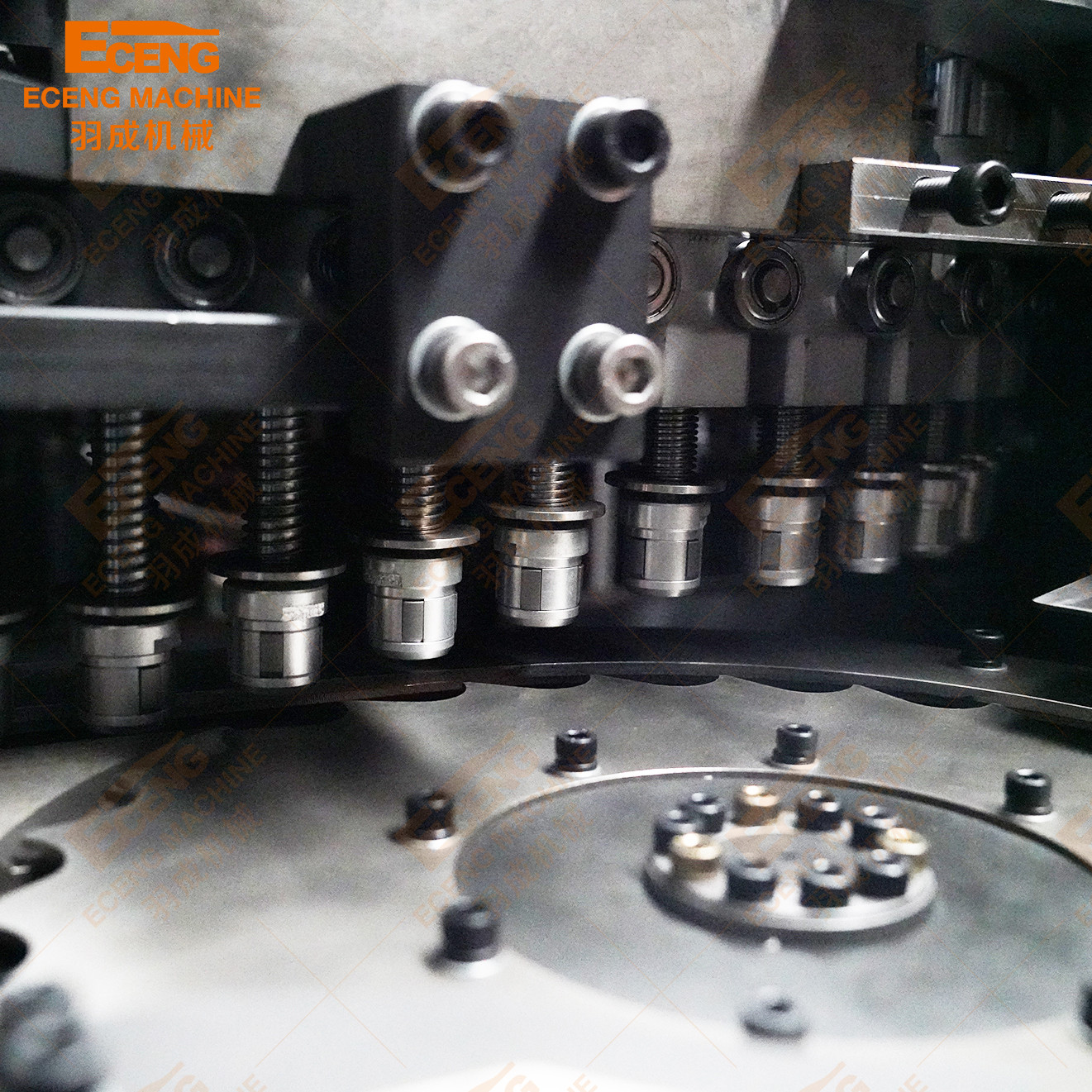

Adopt infrared lamp heating
Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable;Heating lamp, reflector width and height can be adjusted to suit preform heating of different structure, with automatic temperature-removal device to ensure the constant temperature of oven.

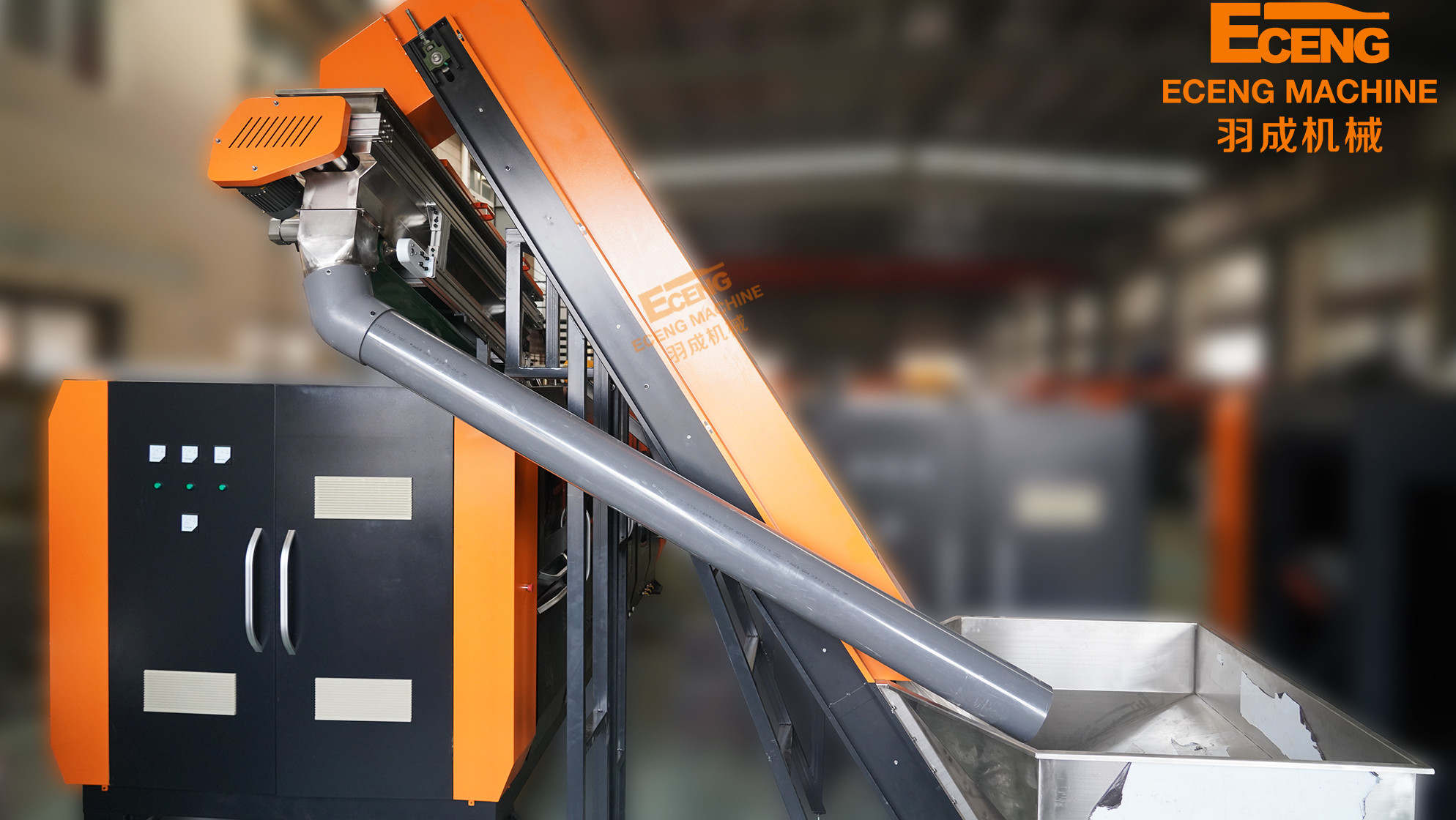

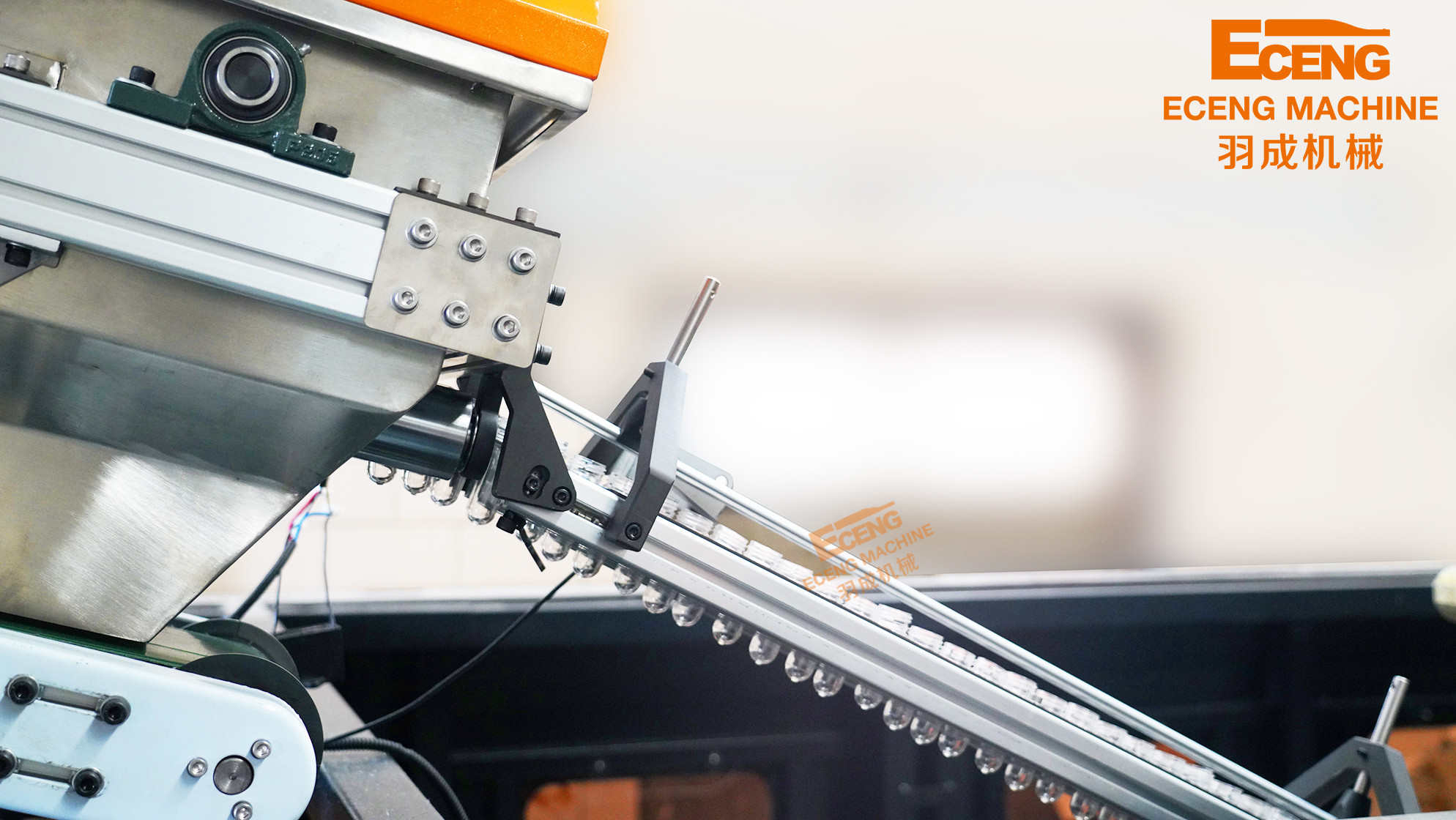

Auto-loader
Auto-loader improves working efficiency, accurate transportation, reliable and durable, raw materials are completely free of moisture, pollution, foreign matter, and loss during feeding process. Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.
K Series 1 Litre Blow Moulding Machine 8
K Series 1 Litre Blow Moulding Machine 10
Intelligent Human-Machine Interface
1.Human-machine interface control, easy operate and monitor.
2.Live production information supervise, auto record production data everyday
3.Failure warning and troubleshooting.
specification
Item

K6




Bottle type specification
Cavity
6

Theory output
10000

Max.volume
2L

Bottle mouth maximum overall diameter
28-30mm

Bottle biggest diameter
100mm

Bottle maximum height
330mm



Power specification
Light tube quantity
32pcs

Light tube power
1.25KW

Maximum heating power
40KW

All electric machine installation
49KW

Actual consumption
30%--60%

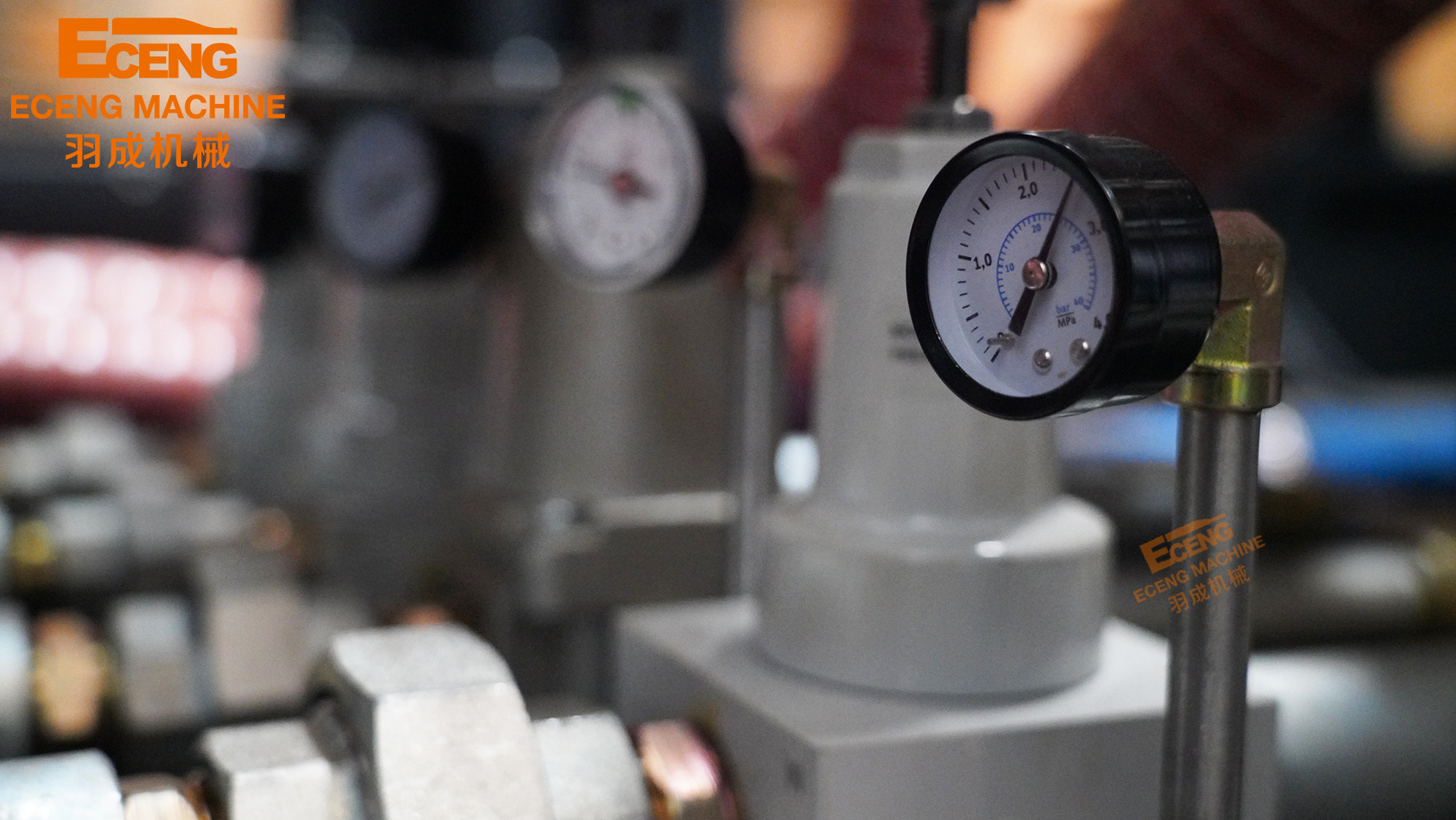

Air pressure specification
Work pressure
5-6kg/cm2

Low-pressure gas consumption
1600L/min

Blow bottle pressure
25-45kg/cm2

Higher -pressure gas consumption
8000Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
8000kcal/hr

Frozen water flow
138L/min

Machine specification
Machine size
5.5x1.8x1.9

Machine weight
6.1ton
K Series 1 Litre Blow Moulding Machine 12
Company Introduction
K Series 1 Litre Blow Moulding Machine 14
ECENG MACHINE
1 / A standardized workshop with a total area of 20,000 square meters.
2/Founded in 2007,has 13 years of experience in blow molding machines.
3 / Located in Zhangjiagang, only 120km from Shanghai.
4/ The equipment will be tested and run for 24 hours before leaving the factory to ensure the smooth operation of the water pipeline and the stability of the pneumatic, electrical and mechanical.
5/The spare parts inventory is sufficient to ensure timely delivery and supply of spare parts.

ECENG Machine Sales Manager Team and Engineer Team.
1 / Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
2 / The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
Exhibition
K Series 1 Litre Blow Moulding Machine 16
Packing&Shipping
K Series 1 Litre Blow Moulding Machine 18
After Sales Service
1.Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5.well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7.Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.
K Series 1 Litre Blow Moulding Machine 20
K Series 1 Litre Blow Moulding Machine 22
K Series 1 Litre Blow Moulding Machine 24
Recommend Products
K Series 1 Litre Blow Moulding Machine 26
FAQ
1.Your company is a trading company or a direct factory?
We are a direct factory located in Zhangjiagang City. Very close to Shanghai and Wuxi (airport and train provided). If you arrive in Shanghai or Wuxi, we can pick you up to visit our factory.
2.If we buy your machine, what is your guarantee or guarantee of quality?
We provide you with high-quality machines with 1-year warranty and lifetime technical support.
3.How to ensure the safety of your funds and deliver on time?
1/Through Alibaba's letter guarantee service, it will ensure on-time delivery and the quality of the equipment to be purchased.
2/Through the letter of credit, you can easily lock the delivery time.
3/After visiting the factory, you can ensure the authenticity of our bank account.
4.Check how ECENG MACHINE ensures quality!
1/In order to ensure the accuracy of each part, we are equipped with various professional processing equipment, and we have accumulated professional processing methods in the past few years.
2/Each component before assembly needs to be strictly controlled by inspectors.
3/After all equipment is completed, we will connect all machines and run the entire production line for at least 12 hours to ensure the stable operation of the customer’s factory.
