Blow your bottle, Shape your dream

|
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE ISO SGS |
| Model Number: | k6 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | standard export wooden case or according to your requirements for high speed automatic plastic blow moulding machine good price made in China |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Set/Sets per Year |
| Plastic Processed: | PET | Condition: | New |
|---|---|---|---|
| Application: | Bottle | Blow Moulding Type: | Stretch Blow Moulding |
| Voltage: | 380V,50HZ | Dimension(L*W*H): | 5.5x1.8x1.9m |
| Hollow Part Volume: | 2l | High Pressure Valve Brand: | SMC |
| Clamping Force (kN): | 150 | Rotary Cylinder Brand: | SMC |
| PLC Brand: | DELTA | Power (kW): | 50 |
| Weight (KG): | 6100 | Automation: | Automatic |
| Warranty: | One Year For Free | Key Selling Points: | Automatic |
| Applicable Industries: | Food & Beverage Factory | Automatic: | Yes |
| Color: | Blue And Orange | Warranty: | 1 Year |
| Output: | 9000-12000 | Size Of The Machine: | 5.5x1.8x1.9 |
| Weight: | 6.1 Tons | Power(W): | 50KW |
| Port: | Shanghai | ||
| High Light: | Eceng k6 pet stretch blow molding machine,pet stretch blow molding machine 12000 output,plastic blow molding machine 12000 output |
||

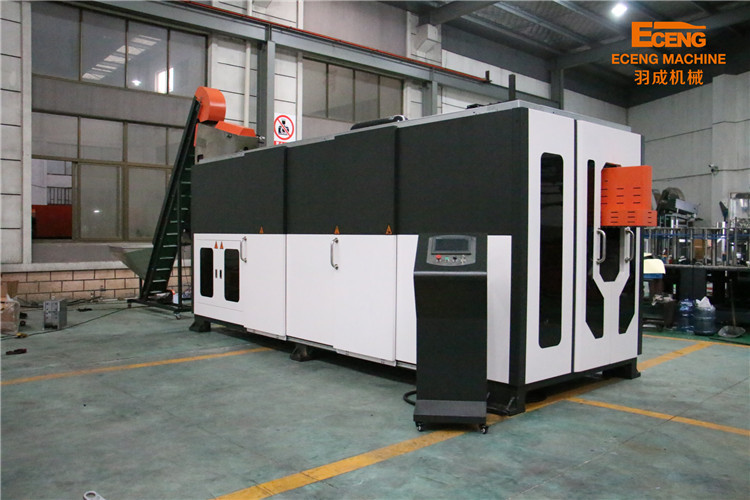

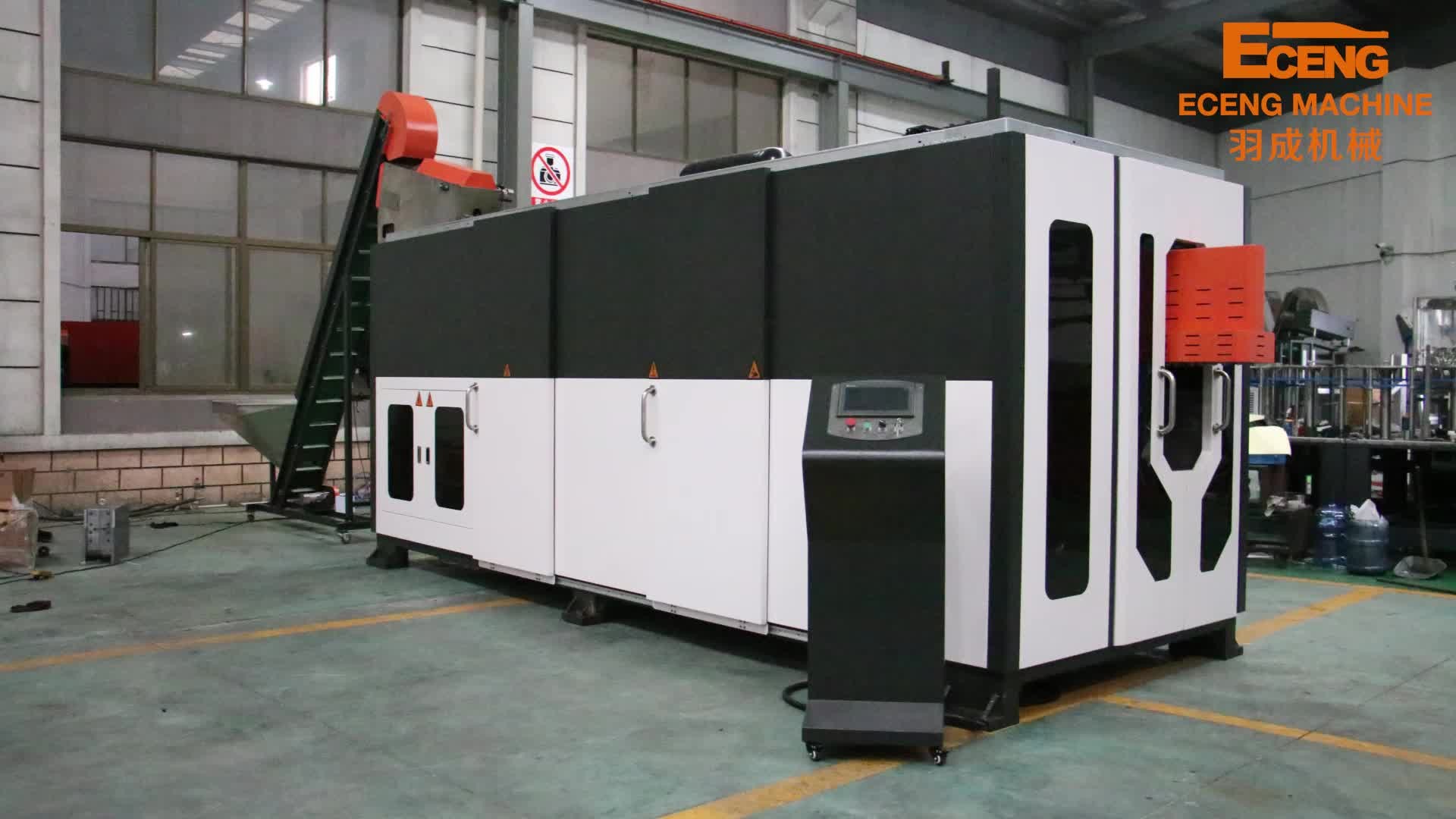

high speed automatic plastic blow moulding machine good price made in China
Oil PET Plastic Bottle Blowing Machine/Blower Machinery Of ECENG New Model

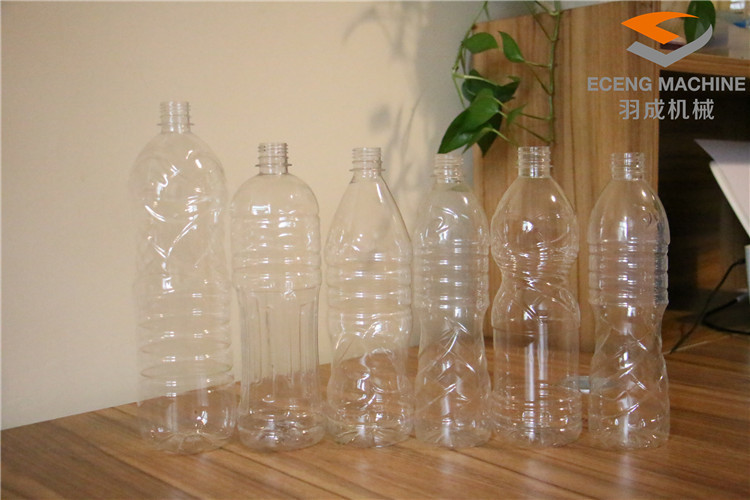

Q series linear bottle blowing machines are used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles.Eceng Machinery's Q series linear bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.Ensure the uniformity and consistency of each preform stretching.At the same time,bottle blowing machine has a fast stretching speed and precise position.
Q series linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. servo transmission system, high positioning accuracy, fast speed, good stability and reliability.
4. suitable for flexible production of small quantity and various bottle shape,wide range of applications,meet customer needs.
5. increase energy using efficiency,increase productivity per unit of time.
6. manual and automatic methods of operation, human-machine interface control, simple operation.
7. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
8. safety self-locking device in each mechanical action,when a certain process fails, the program will automatically switch to a safe state.
9. heat and noise are significantly reduced compared with YCQ series.
10. less than 0.2% scrap rate for finished bottle .
| Item | K4 | K6 | K8 |
| Cavity | 4 | 6 | 8 |
| Theory output | 6000-8500BPH | 9000-12000 | 12000-16000 |
| Max.volume | 2L | 2L | 2L |
| Bottle mouth maximum overall diameter | 28-38mm | 28-38mm | 28-38mm |
| Bottle biggest diameter | 100mm | 100mm | 100mm |
| Bottle maximum height | 330mm | 330mm | 330mm |
| Light tube quantity | 16pcs | 32pcs | 32pcs |
| Light tube power | 1.25KW | 1.25KW | 1.5KW |
| Maximum heating power | 20KW | 40KW | 48KW |
| All electric machine installation | 29KW | 49KW | 65KW |
| Actual consumption | 30%-60% | 30%-60% | 30%-60% |
| Work pressure | 5-6kg/c | 5-6kg/c | 5-6kg/c |
| Blow bottle pressure | 25-45kg/c | 25-45kg/c | 25-45kg/c |
| Higher -pressure gas consumption | 6000Ltr/min | 8000Ltr/min | 12000Ltr/min |
| Work pressure | 5-6 kg/c | 5-6 kg/c | 5-6 kg/c |
| Temperature range | 10ºC | 10ºC | 10ºC |
| Consumption | 8000kcal/hr | 8000kcal/hr | 12000kcal/hr |
| Forzen water flow | 30L/min | 88L/min | 88L/min |
| Size of the machine | 3.6*1.6*1.9(m) | 4.8x1.6x1.9 | 5.78x1.6x1.9 |
| Weight of the machine | 4.3ton | 6.1ton | 7.45ton |
Q series linear bottle blowing machine adopt servo control system,with stable and reliable structure,high speed,stable, simple maintenance,flexible and convenient mold matching etc,which can meet needs of continuous production.Use microcomputer touch screen controls and adjusts temperature, make temperature adjustment of blow molding different bottle type simple.Servo transmission system,high positioning accuracy,fast speed,good stability and reliability, no need air source,energy saving,low maintenance cost.
Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.
New clamping system,upgraded on the basis of the original ones,increase mould clamping speed and output,greatly reduce mold clamping noise.

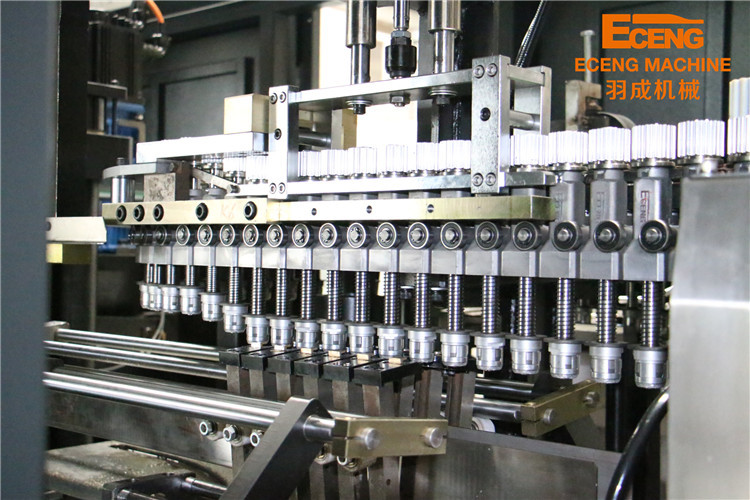

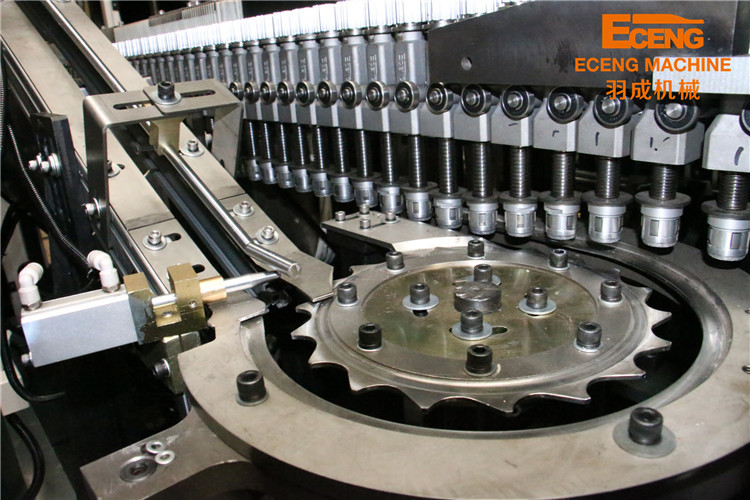

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.
Q series bottle blowing machine adopts advanced microcomputer PLC control system, stable performance; servo transmission system, high positioning accuracy, fast speed, stable and reliable.
Contact Supplier
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
