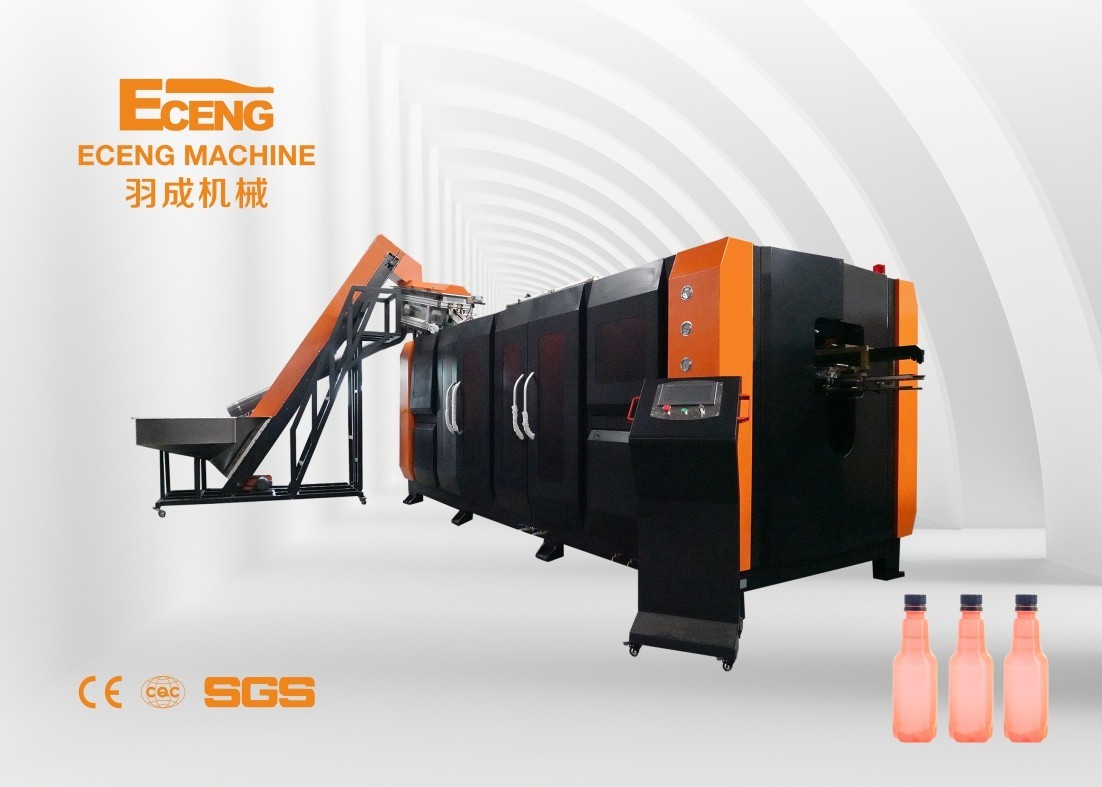

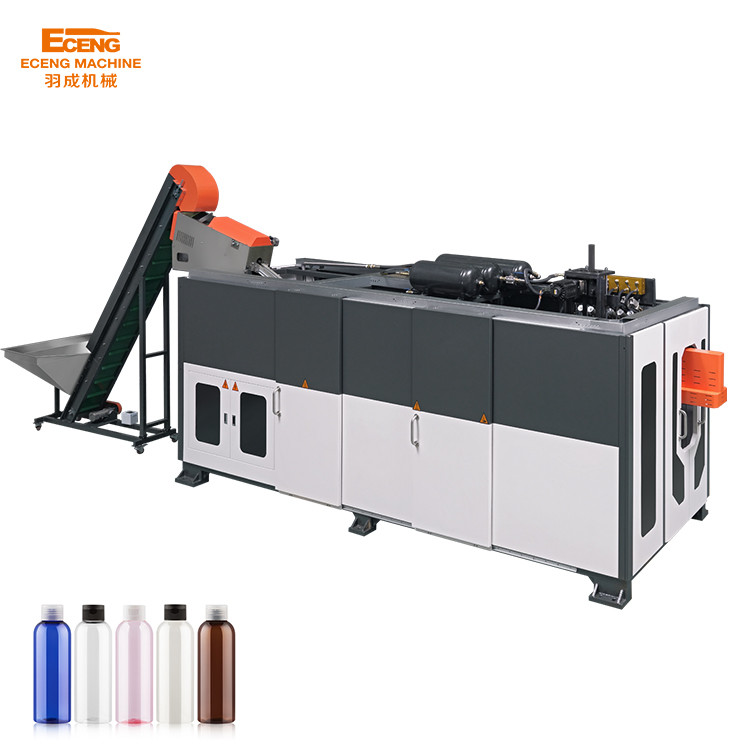

2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making

2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making

2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making
2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making
2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making
Product Details:
Place of Origin: Jiangsu, China
Brand Name: eceng
Certification: CE/ISO
Model Number: k6
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: packed by wooden pallet or as customer request
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Plastic Processed: PET, PE, PE/PP, LDPE, HDPE Max.Bottle Height(mm): 330 Mm
Bottle Volume(ml): 2000 Ml Blow Moulding Type: Stretch Blow Moulding
Dimension(L*W*H): 5.5*1.8*1.9 Hollow Part Volume: 2L
Bottle Volume: 100ml -2L VOLTAGE: 380V, 50HZ, 3PHASE
Highlight:

extrusion blow molding machine 6 cavity

,

2l extrusion blow molding machine

,

6 cavity pet bottle making machine

K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 1500 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.Automatic pet Plastic Liquid Soap Bottle Extrusion Blow Molding Making Machine Price.

specification
Model K6




Bottle type specification
Cavity
6
Max.volume
2L
Bottle mouth maximum overall diameter
28-30mm
Bottle biggest diameter
100mm
Bottle maximum height
330mm


Capacity specification
Theory output
9000~12000BPH
Bottle type volume
500ML
Bottle type weight
17g
Bottle type
Round



Power specification
Light tube quantity
32pcs
Light tube power
1.25KW
Maximum heating power
40KW
All electric machine installation
49KW
Actual consumption
30%--60%


Air pressure specification
Work pressure
5-6kg/cm2
Blow bottle pressure
25-45kg/cm2
Higher -pressure gas consumption
8000Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2
Temperature range
10℃
Consumption
8000kcal/hr
Forzen water flow
120L/min

Machine specification
Machine size
5.5x1.8x1.9
Machine weight
6.1ton





2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 0


2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 1



2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 3
2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 5

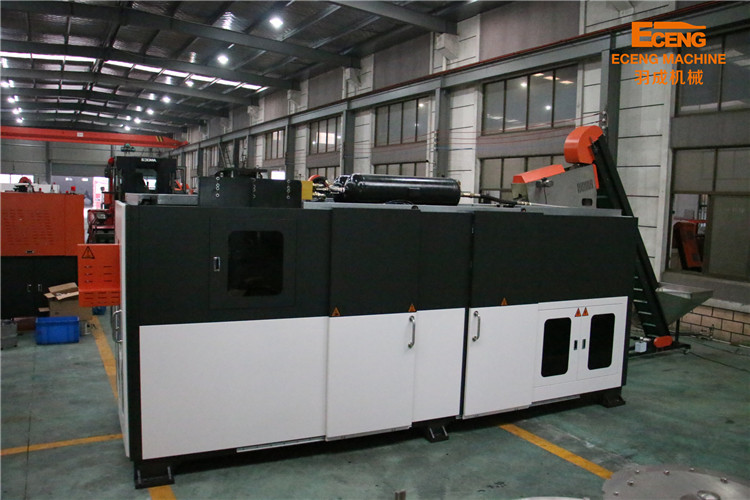

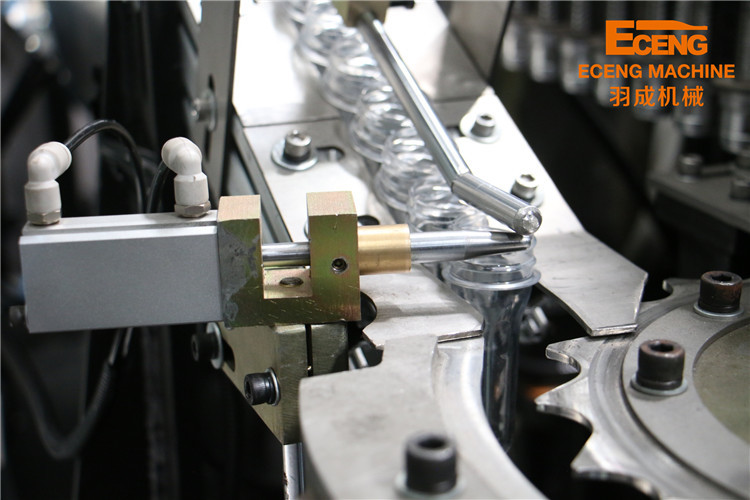

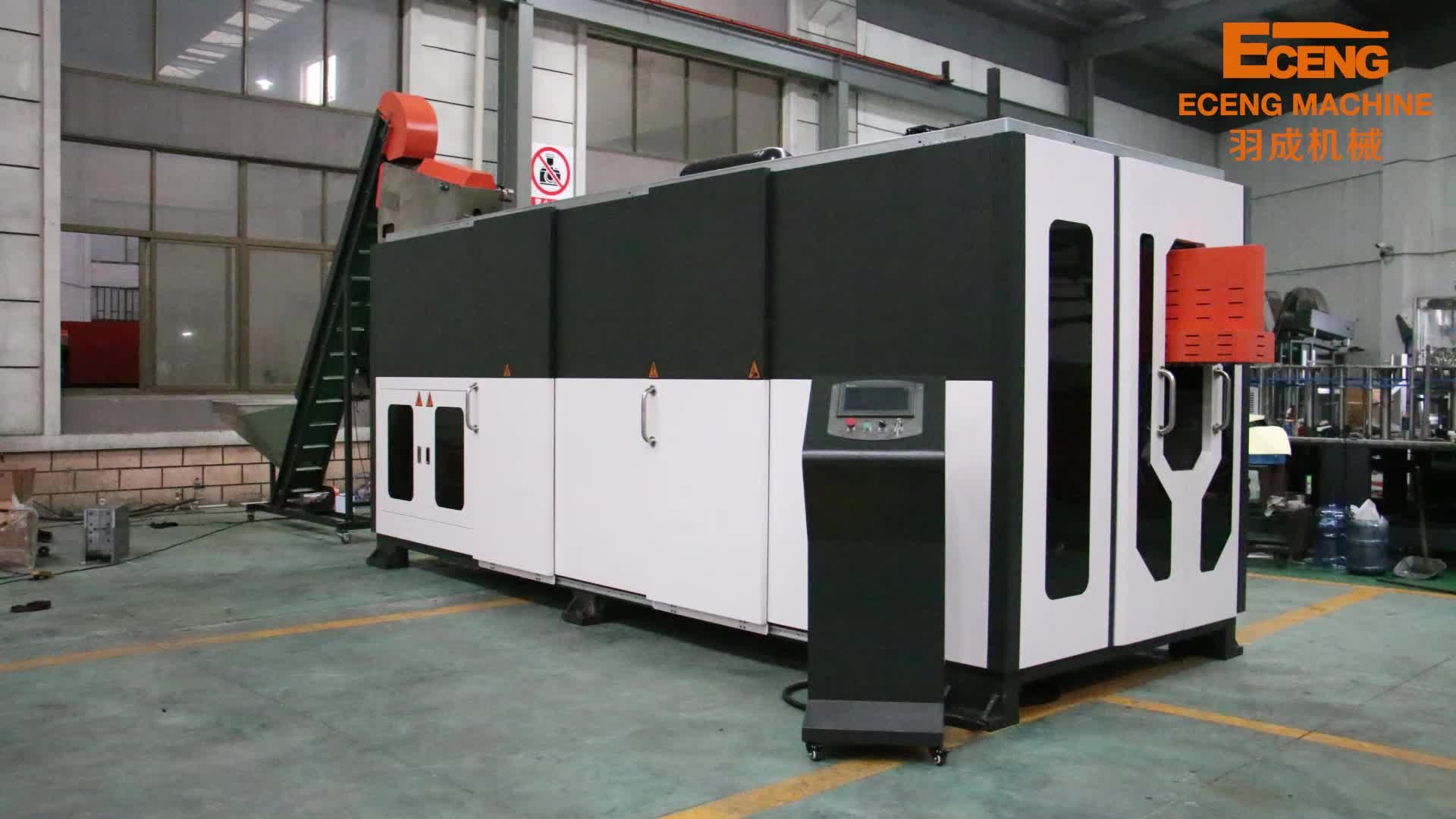

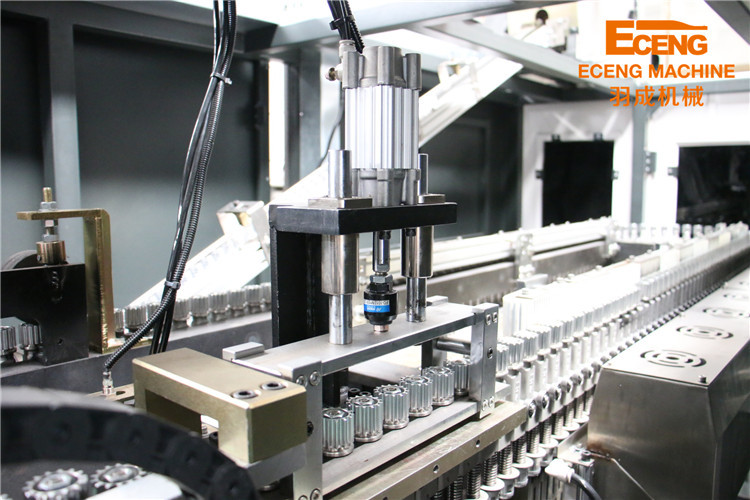

Detailed Images
2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 7
2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 9
2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 11
K linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.
Kseries linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 13

Bottle design.

Our designers can design bottle styles according to your requirements.
2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 15

Professional planning.

Since we built your line, our engineering experts can analyse equipment and processes to determine how to strengthen performance.
2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 17

Service Online.

Engineers will be online 24 hours to answer your questions
blowing mould
2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 19
2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 21
our advantage
1. Resonable price
2. Good after service
3. experienced skilled workers and professional engineers
4. Good quality ,excellent service ,long life mould
5. on time delivery time
6.our engineers can be online for 24 hours to serve you
Recommend Products
2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 23

jar bottle 4 cavity blowing machine

suitable bottle:100-5000ml

2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 25

full automatic 2 cavity blowing machine.

suitable bottle:100-2000ml

2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 27

full automatic 4 cavity blowing machine.

suitable bottle:100-2000ml
2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 29

full automatic 1 cavity servo motor blow molding machine .

suitable bottle:3-5gallon
2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 31

full servo 4 cavity motor blow molding machine.

suitable bottle:3000-6000ml
2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 33

semi automatic 4 cavity blow molding machine.

suitable bottle:100-2000ml
Company Introduction
2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 35
2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 37
2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 39
Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,located in Zhangjiagang city,only 120km away from Shanghai.We are professional manufacturer of PET bottle blowing machines and plastic molds. We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 20,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging. Our products has covered all over China and exported to more than 100 countries,including Southest Asia,Middle East,South America,Africa etc.We’d like to provide high quality solution to clients with our enthusiasm and rich experience.We sincerely hope to establish business relationship with friends all over the world.
Packing&Shipping
2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 41
2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 43
Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
After Sales Service
1.Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could  master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5.well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7.Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.

2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 46
2l Extrusion Blow Molding Machine 6 Cavity PET Bottle Making 48
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
