Eceng High Speed Water Bottle Blowing Machine Stretch Blow Molding 380V 50HZ

Eceng High Speed Water Bottle Blowing Machine Stretch Blow Molding 380V 50HZ

  • High Light

    Eceng High speed Water Bottle Blowing Machine

    ,

    stretch blow molding machine 380V 50HZ

    ,

    Eceng High speed stretch blow molding machine

  • Plastic Processed
    PET
  • Max.Bottle Height(mm)
    330 Mm
  • Neck Diameter(mm)
    38 Mm
  • Max.Bottle Diameter(mm)
    100 Mm
  • Bottle Volume(ml)
    2000 Ml
  • Condition
    New
  • Application
    Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Voltage
    380V,50HZ
  • Dimension(L*W*H)
    5.5*1.8*1.9m
  • Hollow Part Volume
    2L
  • High Pressure Valve Brand
    SMC
  • Rotary Cylinder Brand
    SMC
  • PLC Brand
    DELTA
  • Power (kW)
    49
  • Weight (KG)
    6100 KG
  • Automation
    Automatic
  • Warranty
    1 Year, One Year For Free
  • Key Selling Points
    Automatic
  • Applicable Industries
    Food & Beverage Factory
  • Marketing Type
    Hot Product 2019
  • Machinery Test Report
    Provided
  • Video Outgoing-inspection
    Provided
  • Warranty Of Core Components
    1 Year
  • Color
    Black And White
  • Warranty
    1 Year
  • Output
    10000
  • Size Of The Machine
    5.5*1.8*1.9
  • Weight
    6.1tons
  • Power(W)
    50KW
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE ISO
  • Model Number
    K6
  • Minimum Order Quantity
    1set
  • Price
    $39,800.00/Sets >=1 Sets
  • Packaging Details
    standard export wooden case or according to your requirements
  • Delivery Time
    60days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    500 Set/Sets per Year

Eceng High Speed Water Bottle Blowing Machine Stretch Blow Molding 380V 50HZ

High speed fully electric automatic servo motor beverage Bottle Blowing Machine

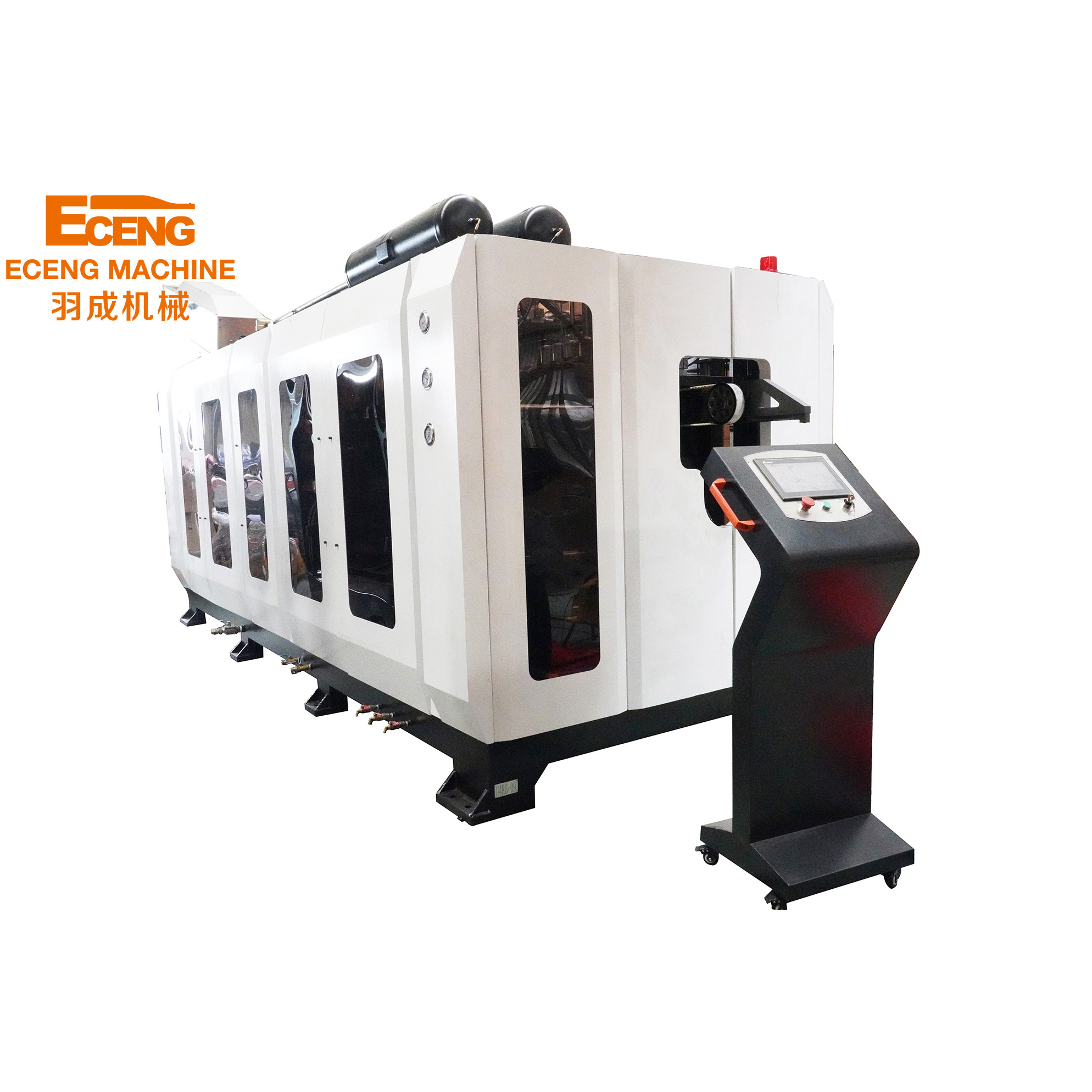

Product Photo

Eceng High Speed Water Bottle Blowing Machine Stretch Blow Molding 380V 50HZ 0

Main Features

k series linear bottle blowing machines are used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles.Eceng Machinery's K series linear bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.Ensure the uniformity and consistency of each preform stretching.At the same time,bottle blowing machine has a fast stretching speed and precise position.

k series linear bottle blowing machine features:

1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.

2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.

3. servo transmission system, high positioning accuracy, fast speed, good stability and reliability.

4. suitable for flexible production of small quantity and various bottle shape,wide range of applications,meet customer needs.

5. increase energy using efficiency,increase productivity per unit of time.

6. manual and automatic methods of operation, human-machine interface control, simple operation.

7. servo transmission system, high positioning accuracy, fast speed stability and good reliability.

8. safety self-locking device in each mechanical action,when a certain process fails, the program will automatically switch to a safe state.

9. heat and noise are significantly reduced compared with YCQ series.

10. less than 0.2% scrap rate for finished bottle .

Product Parameters

                               Model                                                                 K6

Bottle type specification



Cavity

6

Max.volume

2L

Bottle mouth maximum overall diameter

28-30mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm

Capacity specification



Theory output

9000~12000BPH

Bottle type volume

500ML

Bottle type weight

17g

Bottle type

Round

Power specification

Light tube quantity

32pcs

Light tube power

1.25KW

Maximum heating power

40KW

All electric machine installation

49KW

Actual consumption

30%--60%

Air pressure specification



Work pressure

5-6kg/cm2

Blow bottle pressure

25-45kg/cm2

Higher -pressure gas consumption

8000Ltr/min

Air pressure specification



Work pressure

5-6 kg/cm2

Temperature range

10℃

Consumption

8000kcal/hr

Forzen water flow

120L/min

Machine specification

Machine size

5.5x1.8x1.9

Machine weight

6.1ton

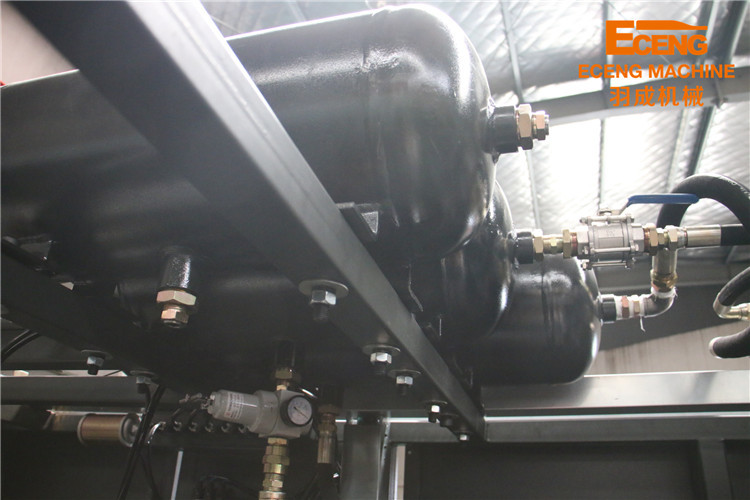

Product Details

Eceng High Speed Water Bottle Blowing Machine Stretch Blow Molding 380V 50HZ 2Eceng High Speed Water Bottle Blowing Machine Stretch Blow Molding 380V 50HZ 4

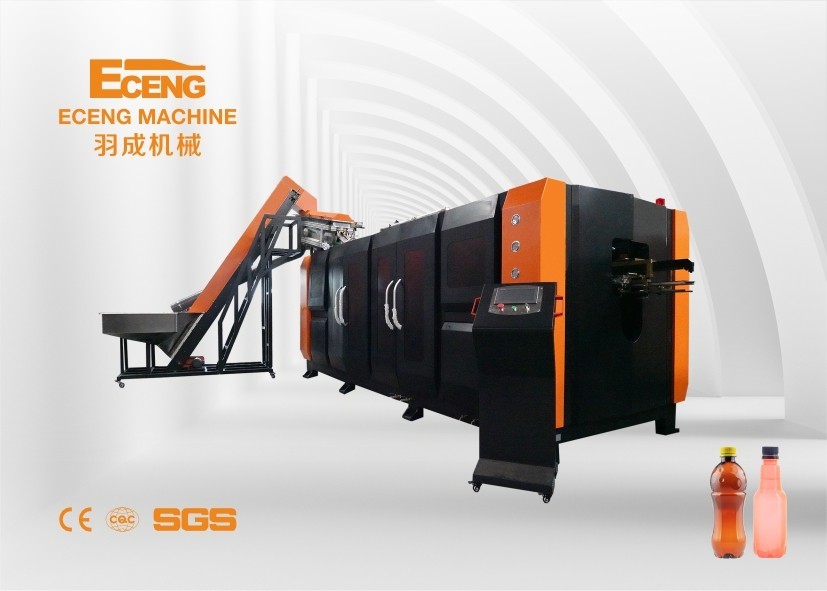

1, Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

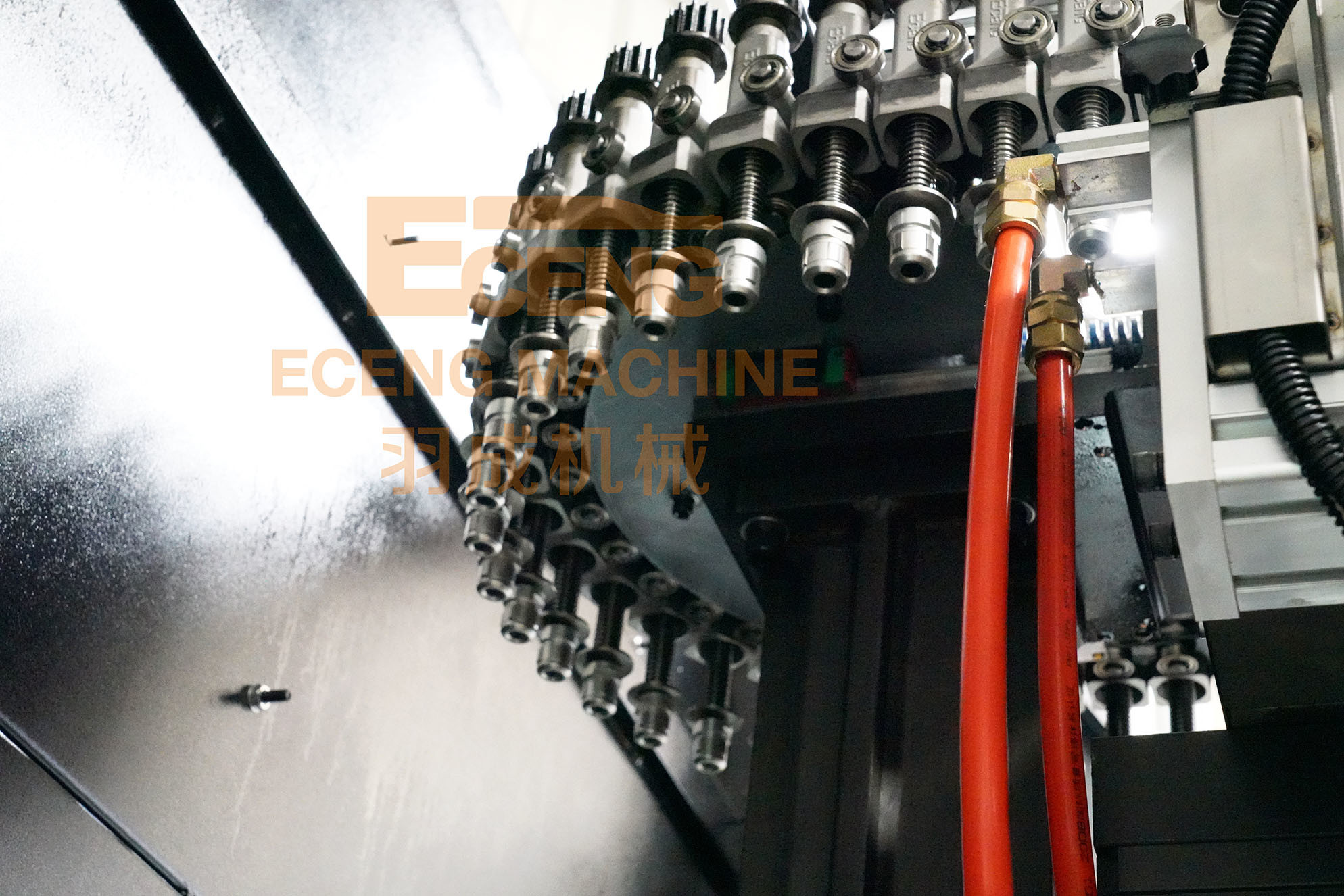

2, New clamping system,upgraded on the basis of the original ones,increase mould clamping speed and output,greatly reduce mold clamping noise.

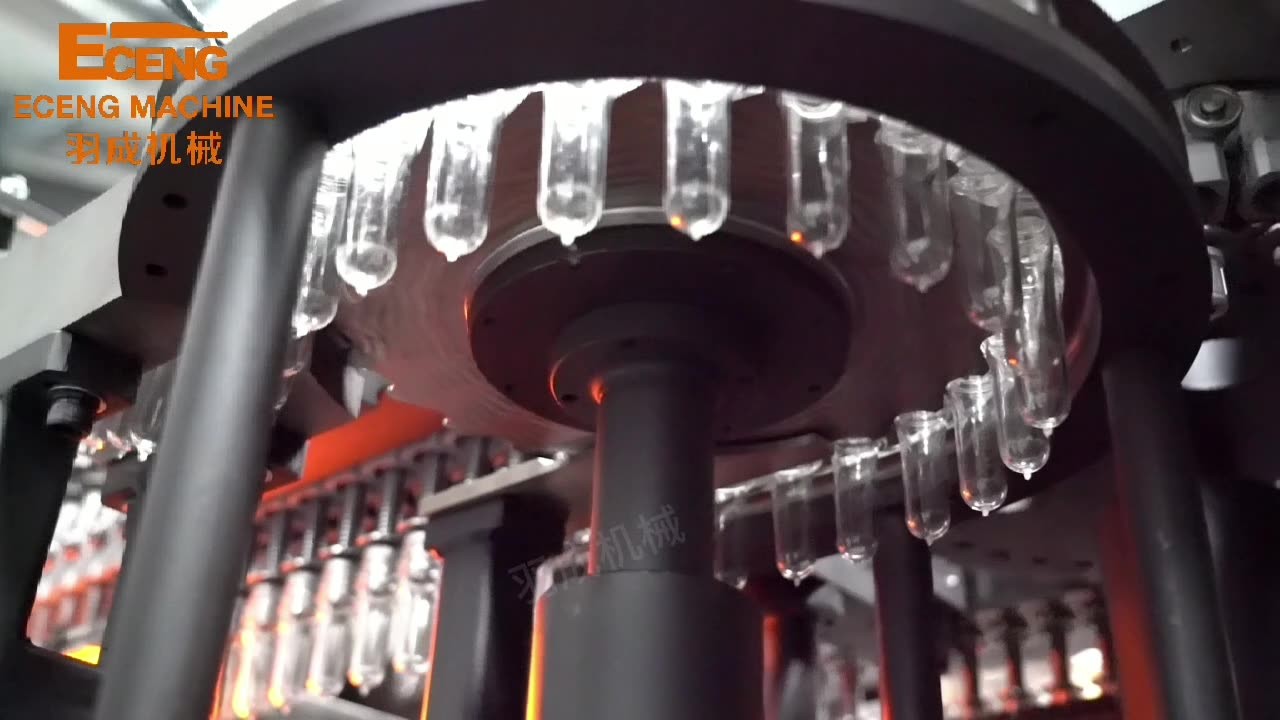

3, Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

4, k series bottle blowing machine adopts advanced microcomputer PLC control system, stable performance; servo transmission system, high positioning accuracy, fast speed, stable and reliable.
