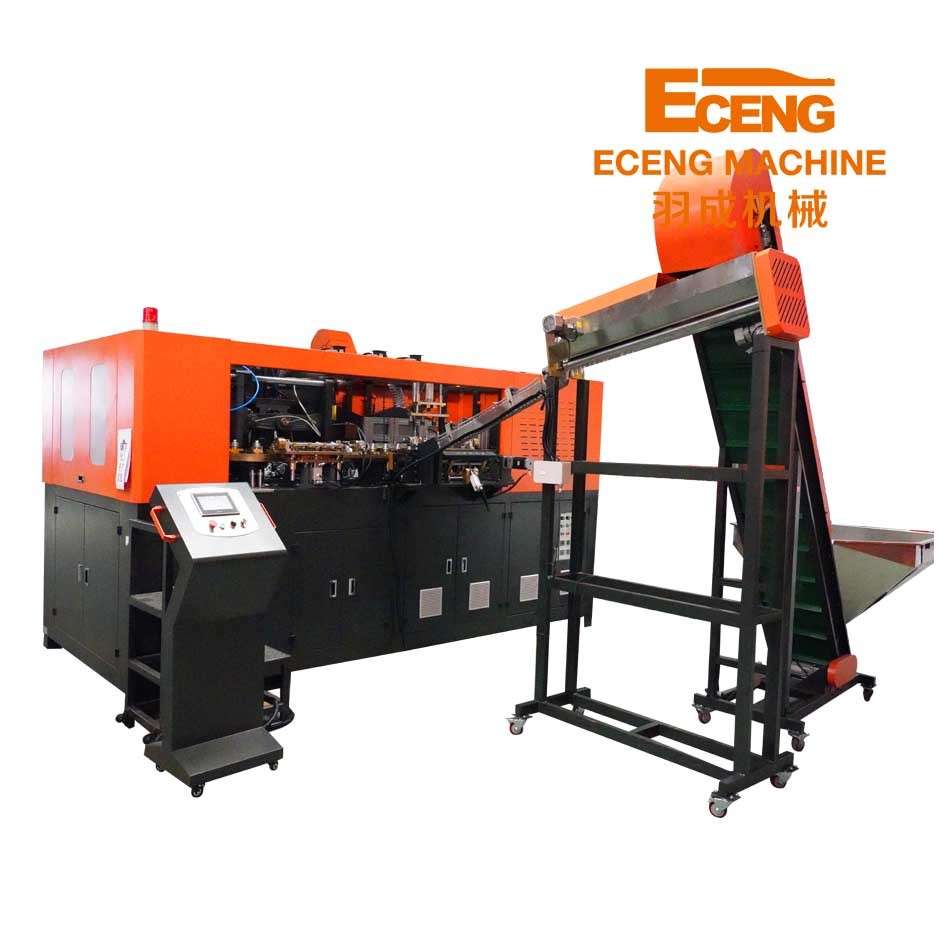

2000ml 4 Cavity PET Blowing Machine

2000ml 4 Cavity PET Blowing Machine

2000ml 4 Cavity PET Blowing Machine
2000ml 4 Cavity PET Blowing Machine
2000ml 4 Cavity PET Blowing Machine
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE SGS ISO
Model Number: Q6000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $26,800.00/Sets 1-1 Sets
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 10sets per month
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Bottle Volume(ml): 2000 Ml
Blow Moulding Type: Stretch Blow Moulding Hollow Part Volume: 2l
Warranty: 1 Year Automatic: Yes
Output: 6000bph Port: Shanghai
High Light:

2000ml 4 Cavity PET Blowing Machine

,

Eceng pet stretch blow molding machine

,

4 Cavity pet stretch blow molding machine

Eceng 4-cavity 2000ml PET bottle fully automatic stretch blow blowing molding making machin
specification



Model Q6000

Bottle type specification



Cavity 4
Max.volume 2L
Bottle mouth maximum overall diameter 28-38mm
Bottle biggest diameter 105mm
Bottle maximum height 330mm
Production specification Theoretical output 6000BPH
Bottle type capacity 500ML
Bottle type weight 17g
Bottle type circular
Power specification Light tube quantity 32pcs
Light tube power 1.5KW
Maximum heating power 48KW
All electric machine installation 52KW
Actual consumption 40%--70%

Air pressure specification



Work pressure 7-9kg/cm2
Low-pressure gas consumption 1000L/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 3000Ltr/min

Air pressure specification



Work pressure 5-6 kg/cm2
Temperature range 10℃
Consumption 8000kcal/hr
Forzen water flow 138L/min

Machine specification



Machine size 4.2x1.6x1.9
Machine weight 4.5ton
Product Description
Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

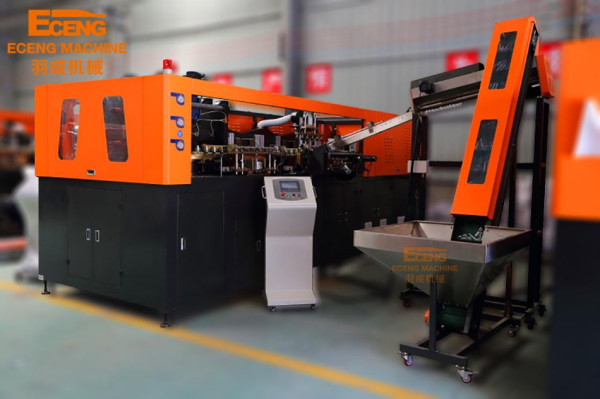

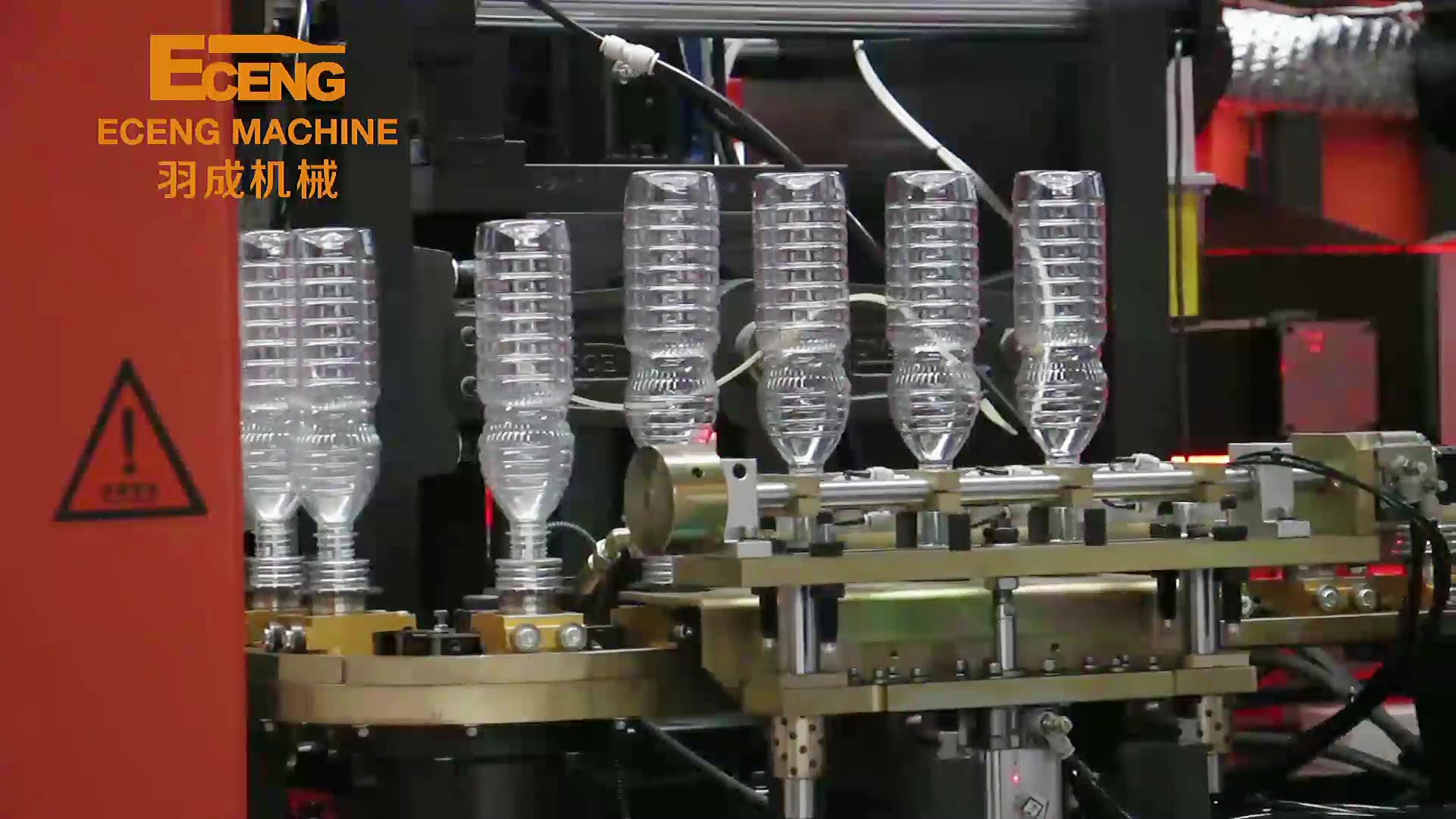

Detailed Images

Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Q series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .

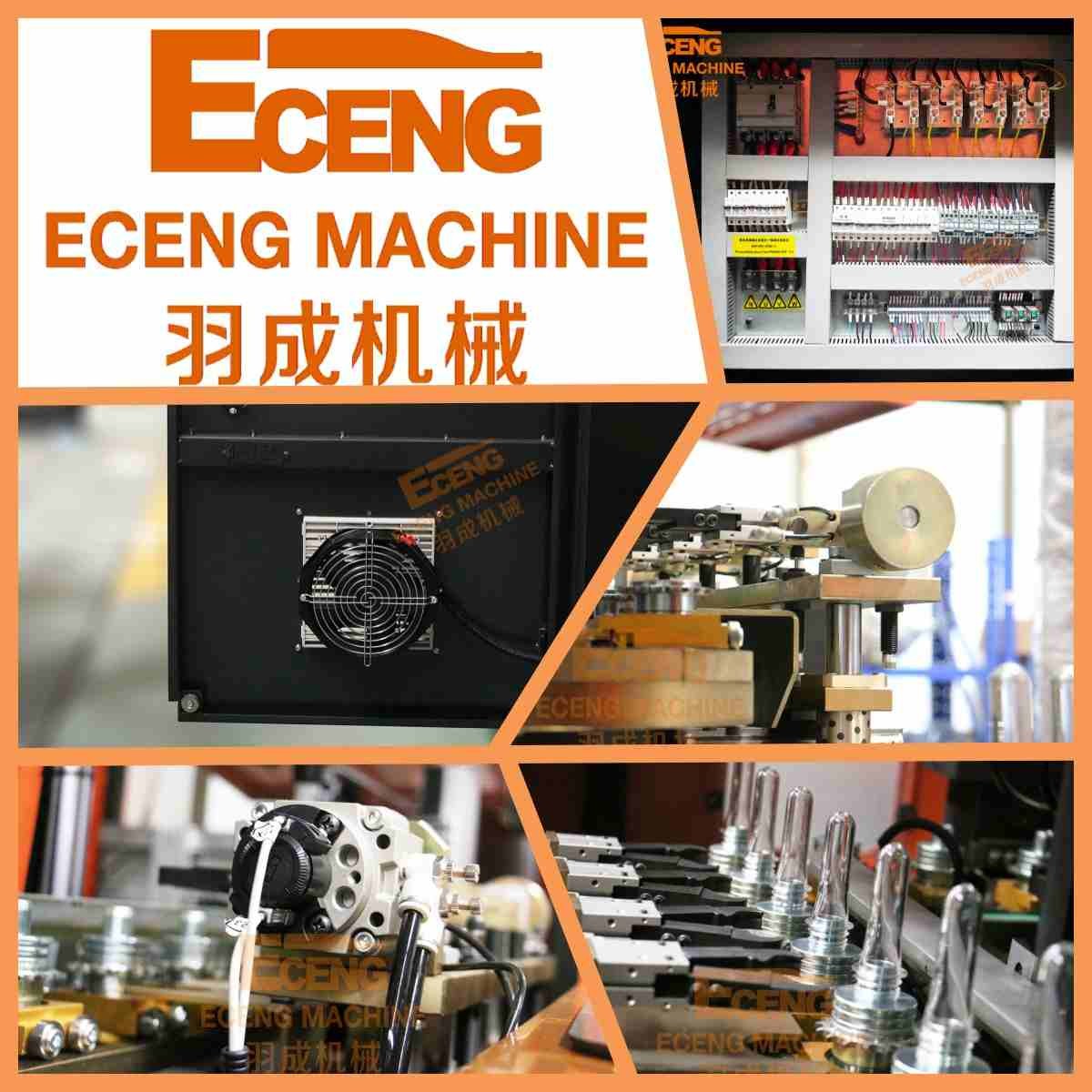

2000ml 4 Cavity PET Blowing Machine 2
our advantage
1. Resonable price
2. Good after service
3. experienced skilled workers and professional engineers
4. Good quality ,excellent service ,long life mould
5. on time delivery time
6.our engineers can be online for 24 hours to serve you


Company Introduction
Packing&Shipping

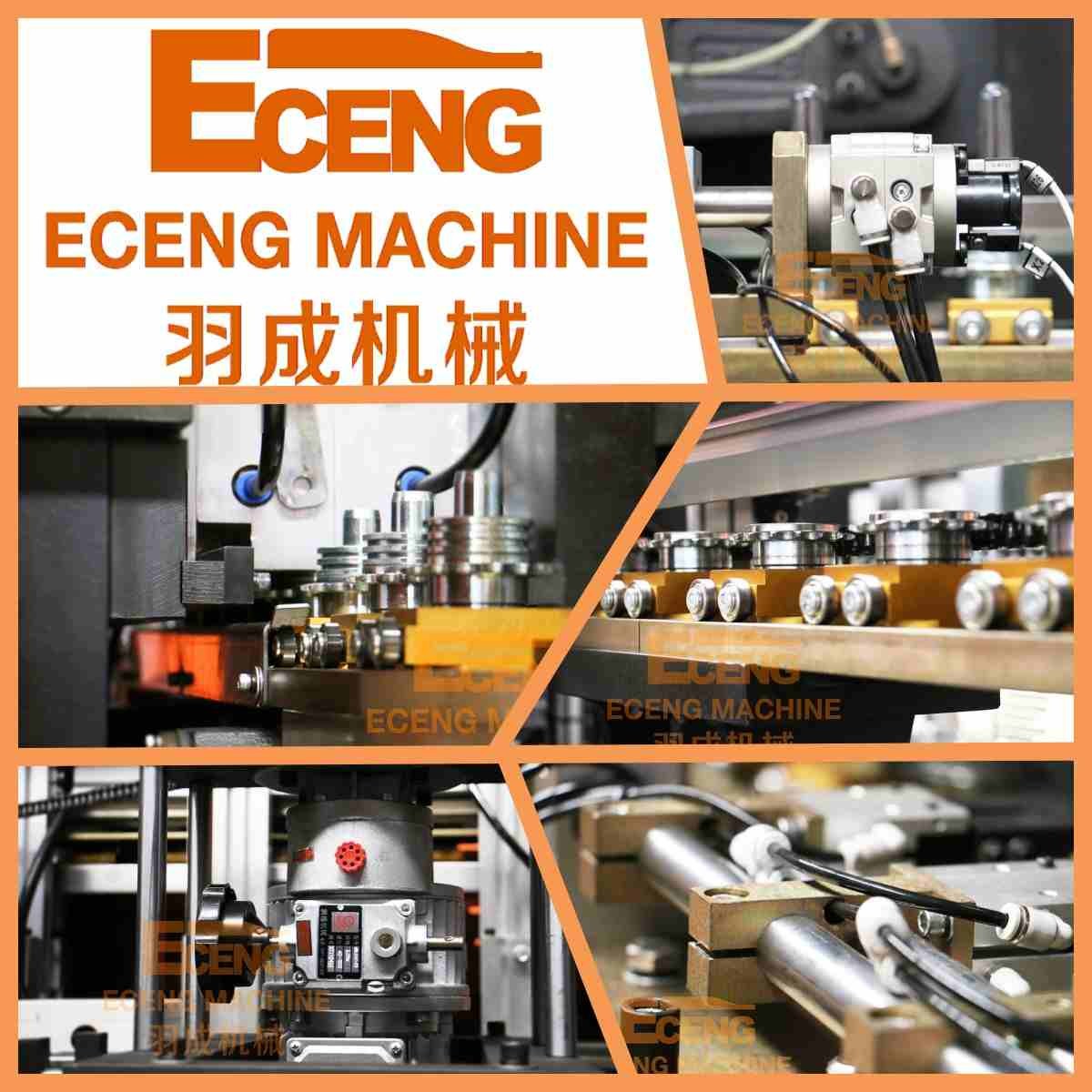

2000ml 4 Cavity PET Blowing Machine 5
After Sales Service
1.Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5.well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7.Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.

2000ml 4 Cavity PET Blowing Machine 8

FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
