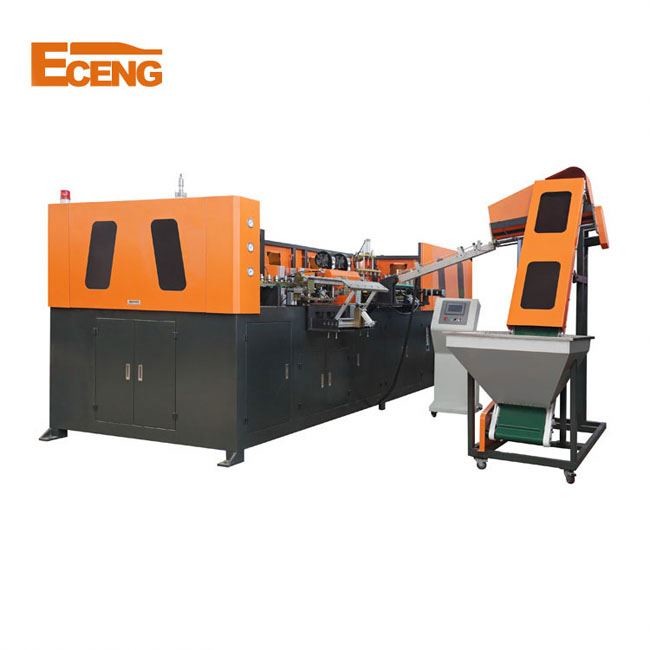

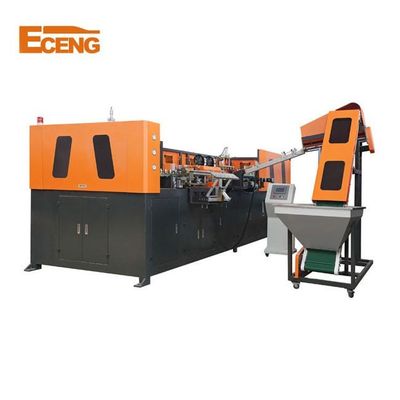

PE PP PET 500ml Water Bottle Blow Molding Machine 3 Phase 220V

PE PP PET 500ml Water Bottle Blow Molding Machine 3 Phase 220V

  • High Light

    500ml water bottle blow molding machine

    ,

    water bottle blow molding machine 3 phase 220V

    ,

    blow molding machine 3 phase 220V

  • Plastic Processed
    PET, PE, PE/PP, FRPP/PVC, LDPE, HDPE, PP
  • Max.Bottle Height(mm)
    330 Mm
  • Neck Diameter(mm)
    28 Mm
  • Max.Bottle Diameter(mm)
    100 Mm
  • Bottle Volume(ml)
    2000 Ml
  • Condition
    New
  • Application
    Bottle, Plastic PET Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Voltage
    380V/50HZ, 3phase 380V/220V/415V 50HZ
  • Dimension(L*W*H)
    8.45*1.6*1.9(m)
  • Hollow Part Volume
    2L
  • Rotary Cylinder Brand
    SMC
  • Weight (KG)
    4500 KG
  • Automation
    Automatic
  • Warranty
    1 Year, One Year
  • Key Selling Points
    Competitive Price
  • Applicable Industries
    Food & Beverage Factory
  • Marketing Type
    Hot Product 2019
  • Machinery Test Report
    Provided
  • Video Outgoing-inspection
    Provided
  • Warranty Of Core Components
    1 Year
  • Automatic
    Yes
  • Color
    Blue/orange
  • Location
    Zhangjiagang City
  • Capacity
    6000BPH
  • Weight
    5Ton
  • Power
    51KW
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE SGS ISO
  • Minimum Order Quantity
    1set
  • Price
    $20,000.00 - $60,000.00/Sets
  • Packaging Details
    Wooden package
  • Delivery Time
    45days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    10 Set/Sets per Month

PE PP PET 500ml Water Bottle Blow Molding Machine 3 Phase 220V

Eceng energy saving 500ml water bottle making machine with long service lifePE PP PET 500ml Water Bottle Blow Molding Machine 3 Phase 220V 0
specification
Item

Q6000




Bottle type specification
Cavity
4

Theory output
5000~6000

Max.volume
2L

Bottle mouth maximum overall diameter
28-38mm

Bottle biggest diameter
105mm

Bottle maximum height
330mm



Power specification
Light tube quantity
32pcs

Light tube power
1.5KW

Maximum heating power
48KW

All electric machine installation
52KW

Actual consumption
40%--70%



Air pressure specification
Work pressure
7-9kg/cm2

Low-pressure gas consumption
1000L/min

Blow bottle pressure
25-35kg/cm2

Higher -pressure gas consumption
3000Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
8000kcal/hr

Frozen water flow
138L/min

Machine specification
Machine size
4.1x1.6x1.9

Machine weight
3.9ton
Product Description
PE PP PET 500ml Water Bottle Blow Molding Machine 3 Phase 220V 2
Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
PE PP PET 500ml Water Bottle Blow Molding Machine 3 Phase 220V 4
Our Advantage
1. Resonable price 2. Good after service 3. experienced skilled workers and professional engineers 4. Good quality ,excellent service ,long life mould 5. on time delivery time
PE PP PET 500ml Water Bottle Blow Molding Machine 3 Phase 220V 6
Want to know more message , contact us with out hesitate ! Inquiry us now !

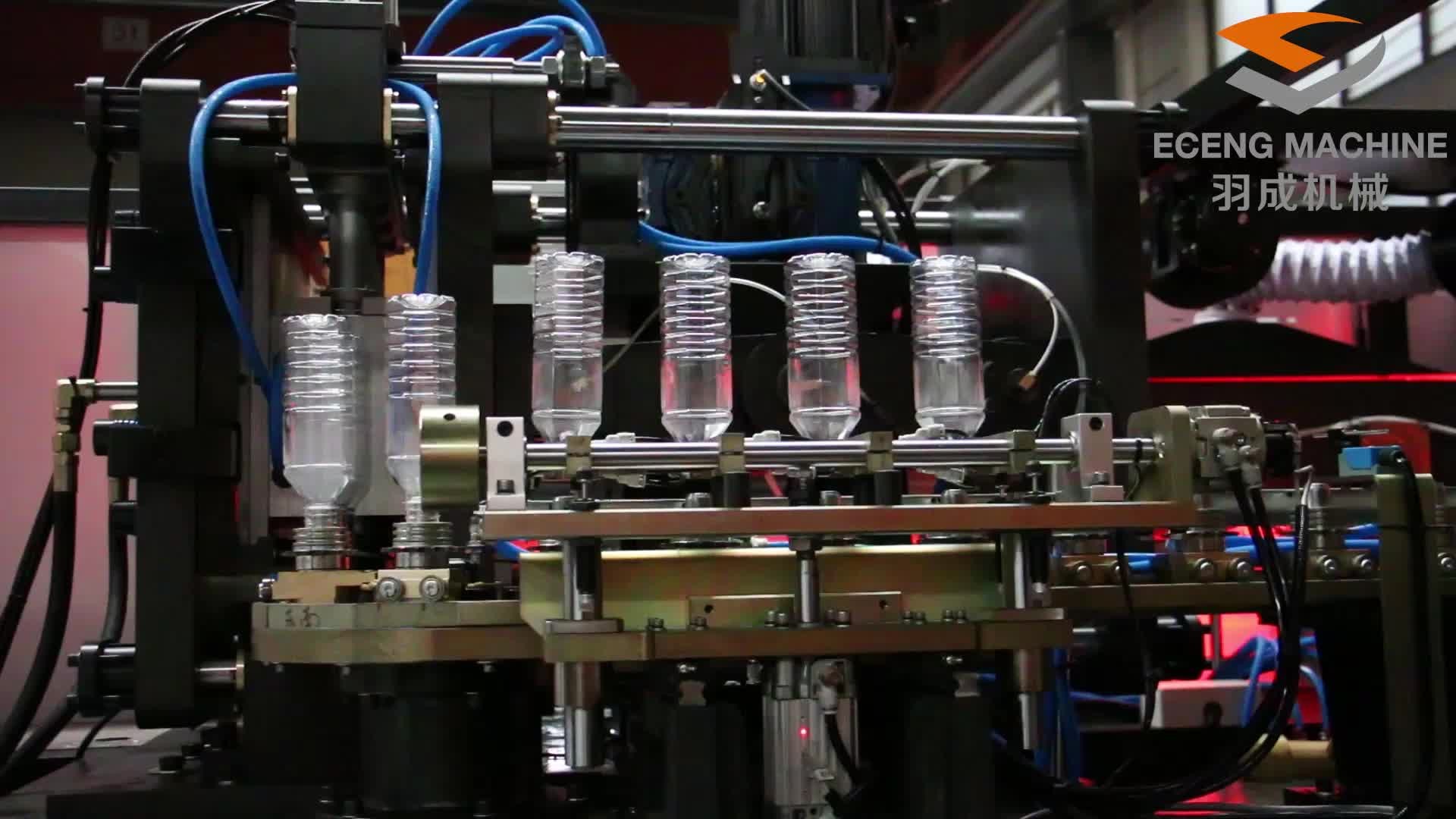

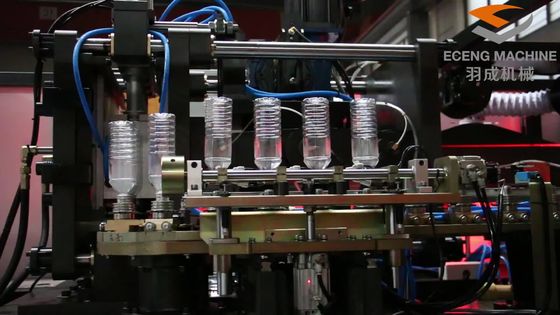

Detailed Images
PE PP PET 500ml Water Bottle Blow Molding Machine 3 Phase 220V 8
PE PP PET 500ml Water Bottle Blow Molding Machine 3 Phase 220V 10
PE PP PET 500ml Water Bottle Blow Molding Machine 3 Phase 220V 12
Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Q series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .
PE PP PET 500ml Water Bottle Blow Molding Machine 3 Phase 220V 14
Company Introduction
PE PP PET 500ml Water Bottle Blow Molding Machine 3 Phase 220V 16
Packing&Shipping
PE PP PET 500ml Water Bottle Blow Molding Machine 3 Phase 220V 18

packing

Conventional packaging: inside is wrapped with PE film outside is wooden box
PE PP PET 500ml Water Bottle Blow Molding Machine 3 Phase 220V 20

delivery

Conventional packaging: inside is wrapped with PE film outside is wooden box
After Sales Service
1. Installation, debug We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line. 2. Training Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures. 3.the sample service 1'We can send you the video of the running machine. 2'You are welcome to come to visit our factory,and see the machine running. 4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years. 5.We provide one year warranty 6.well-trained & experienced staff are to answer all your inquiries in English and Chinese 7 .12 Months guarantee and life-long technical support. 8.Your business relationship with us will be confidential to any third party. 9. Good after-sale service offered, please get back to us if you got any questions.
PE PP PET 500ml Water Bottle Blow Molding Machine 3 Phase 220V 22
PE PP PET 500ml Water Bottle Blow Molding Machine 3 Phase 220V 24
PE PP PET 500ml Water Bottle Blow Molding Machine 3 Phase 220V 26
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
