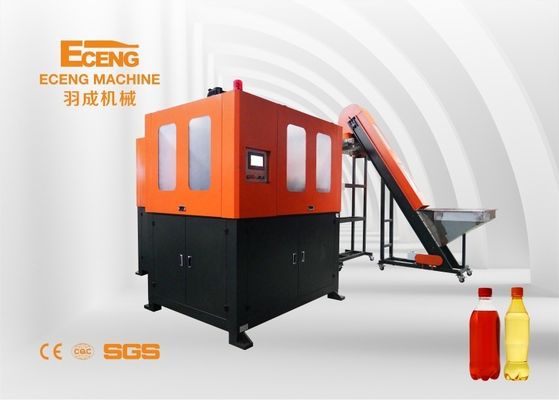

PLC Controlled Fully Automatic PET Bottle Blowing Machine 2.25*1.6*1.7m

PLC Controlled Fully Automatic PET Bottle Blowing Machine 2.25*1.6*1.7m

  • PLC Controlled Fully Automatic PET Bottle Blowing Machine 2.25*1.6*1.7m
  • PLC Controlled Fully Automatic PET Bottle Blowing Machine 2.25*1.6*1.7m
  • PLC Controlled Fully Automatic PET Bottle Blowing Machine 2.25*1.6*1.7m
  • PLC Controlled Fully Automatic PET Bottle Blowing Machine 2.25*1.6*1.7m
  • PLC Controlled Fully Automatic PET Bottle Blowing Machine 2.25*1.6*1.7m
  • PLC Controlled Fully Automatic PET Bottle Blowing Machine 2.25*1.6*1.7m
  • PLC Controlled Fully Automatic PET Bottle Blowing Machine 2.25*1.6*1.7m
PLC Controlled Fully Automatic PET Bottle Blowing Machine 2.25*1.6*1.7m
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: q3000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $10,000.00 - $16,000.00/Sets
Packaging Details: standard export wooden case or according to your requirements of YCQ-Series PLC controlled Fully automatic pet bottle blowing machine price
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Set/Sets per Month
Contact Now
Detailed Product Description
Plastic Processed: PET, PC, PE, PE/PP, FRPP/PVC, LDPE, PP Max.Bottle Height(mm): 330 Mm
Neck Diameter(mm): 28 Mm Max.Bottle Diameter(mm): 100 Mm
Bottle Volume(ml): 2000 Ml Condition: New
Application: Bottle Blow Moulding Type: Stretch Blow Moulding
Voltage: 380V,50HZ Dimension(L*W*H): 2.25*1.6*1.7m
Power (kW): 26 Weight (KG): 2500 KG
Automation: Automatic Warranty: 1 Year
Key Selling Points: Easy To Operate Applicable Industries: Food & Beverage Factory
Marketing Type: Hot Product 2019 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Automatic: Yes Power(W): 50KW
Color: Orange Output: 3000bph
Size Of The Machine: 2.6*1.6*1.7 Weight Of The Machine: 2500kg
Production Capacity (BPH): 3000 Port: Shanghai
High Light:

PLC fully automatic pet bottle blowing machine

,

PLC controlled pet blowing machine

,

pet blowing machine 2.25*1.6*1.7m

PLC controlled Fully automatic pet bottle blowing machine price
PLC Controlled Fully Automatic PET Bottle Blowing Machine 2.25*1.6*1.7m 0
specification
Item

Q3000




Bottle type specification
Cavity
2

Theory output
3500

Max.volume
2L

Bottle mouth maximum overall diameter
80mm

Bottle biggest diameter
100mm

Bottle maximum height
330mm



Power specification
Light tube quantity
32pcs

Light tube power
0.75KW

Maximum heating power
24KW

All electric machine installation
27KW

Actual consumption
19KW


Air pressure specification
Work pressure
7-9kg/cm2

Low-pressure gas consumption
1000L/min

Blow bottle pressure
25-35kg/cm2

Higher -pressure gas consumption
1500Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
5000kcal/hr

Frozen water flow
30L/min

Machine specification
Machine size
2.25x1.6x1.7

Machine weight
2.5ton
PLC Controlled Fully Automatic PET Bottle Blowing Machine 2.25*1.6*1.7m 2
Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
PLC Controlled Fully Automatic PET Bottle Blowing Machine 2.25*1.6*1.7m 4

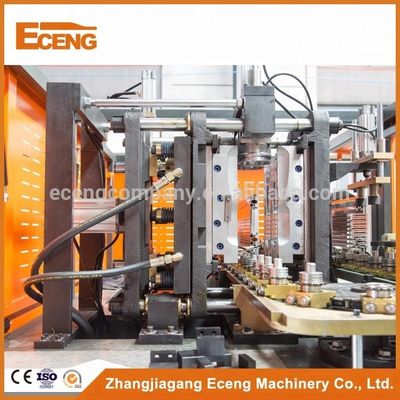

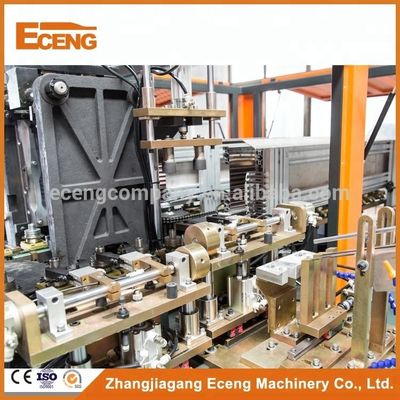

Detailed Images
PLC Controlled Fully Automatic PET Bottle Blowing Machine 2.25*1.6*1.7m 6
PLC Controlled Fully Automatic PET Bottle Blowing Machine 2.25*1.6*1.7m 8
PLC Controlled Fully Automatic PET Bottle Blowing Machine 2.25*1.6*1.7m 10
Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Q series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .
PLC Controlled Fully Automatic PET Bottle Blowing Machine 2.25*1.6*1.7m 12
PLC Controlled Fully Automatic PET Bottle Blowing Machine 2.25*1.6*1.7m 14

Company Introduction
PLC Controlled Fully Automatic PET Bottle Blowing Machine 2.25*1.6*1.7m 16
Packing&Shipping
PLC Controlled Fully Automatic PET Bottle Blowing Machine 2.25*1.6*1.7m 18
After Sales Service
1.Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5.well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7.Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.
PLC Controlled Fully Automatic PET Bottle Blowing Machine 2.25*1.6*1.7m 20
PLC Controlled Fully Automatic PET Bottle Blowing Machine 2.25*1.6*1.7m 22
PLC Controlled Fully Automatic PET Bottle Blowing Machine 2.25*1.6*1.7m 24
Recommend Products
PLC Controlled Fully Automatic PET Bottle Blowing Machine 2.25*1.6*1.7m 26
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
