PC PVC Plastic Bottle Automatic PET Blowing Machine 27kw 9kg/Cm2

PC PVC Plastic Bottle Automatic PET Blowing Machine 27kw 9kg/Cm2

  • High Light

    plastic bottle blowing machine 9kg/cm2

    ,

    PC PVC Automatic PET Blowing Machine 27kw

    ,

    plastic bottle blowing machine 2500kg

  • Plastic Processed
    PET, PC, PVC, PE, PE/PP, LDPE, HDPE, PP
  • Blow Moulding Type
    Stretch Blow Moulding
  • Voltage
    380V,50HZ
  • Dimension(L*W*H)
    2.25*1.6*1.7m
  • PLC Brand
    XINJIE
  • Weight (KG)
    2500 KG
  • Automation
    Automatic
  • Key Selling Points
    Automatic
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE ISO
  • Model Number
    YCQ-2L-2
  • Minimum Order Quantity
    1set
  • Price
    $5,500.00 - $35,000.00/Sets
  • Packaging Details
    standard export wooden case or according to your requirements
  • Delivery Time
    30days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    500 Set/Sets per Year

PC PVC Plastic Bottle Automatic PET Blowing Machine 27kw 9kg/Cm2

Eceng YCQ-2L-2 bottle blower low consumption professional manufacturer plastic pet drink bottle molding machine



PC PVC Plastic Bottle Automatic PET Blowing Machine 27kw 9kg/Cm2 1





PC PVC Plastic Bottle Automatic PET Blowing Machine 27kw 9kg/Cm2 2

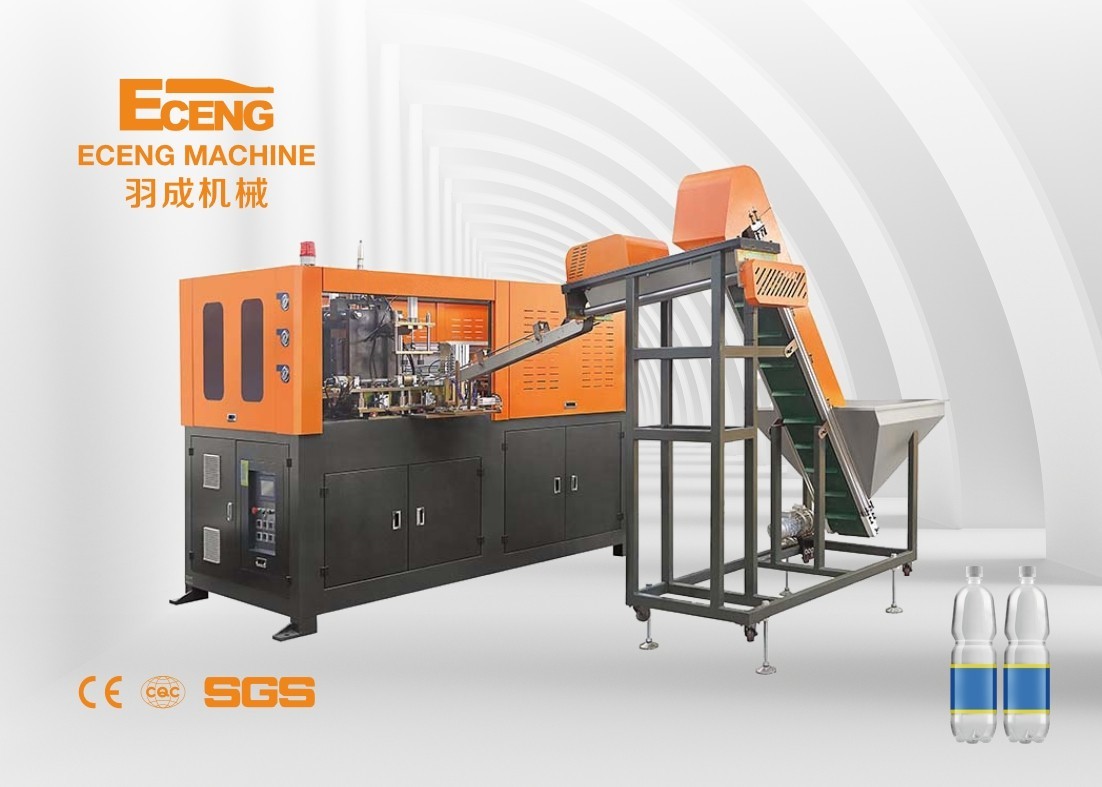

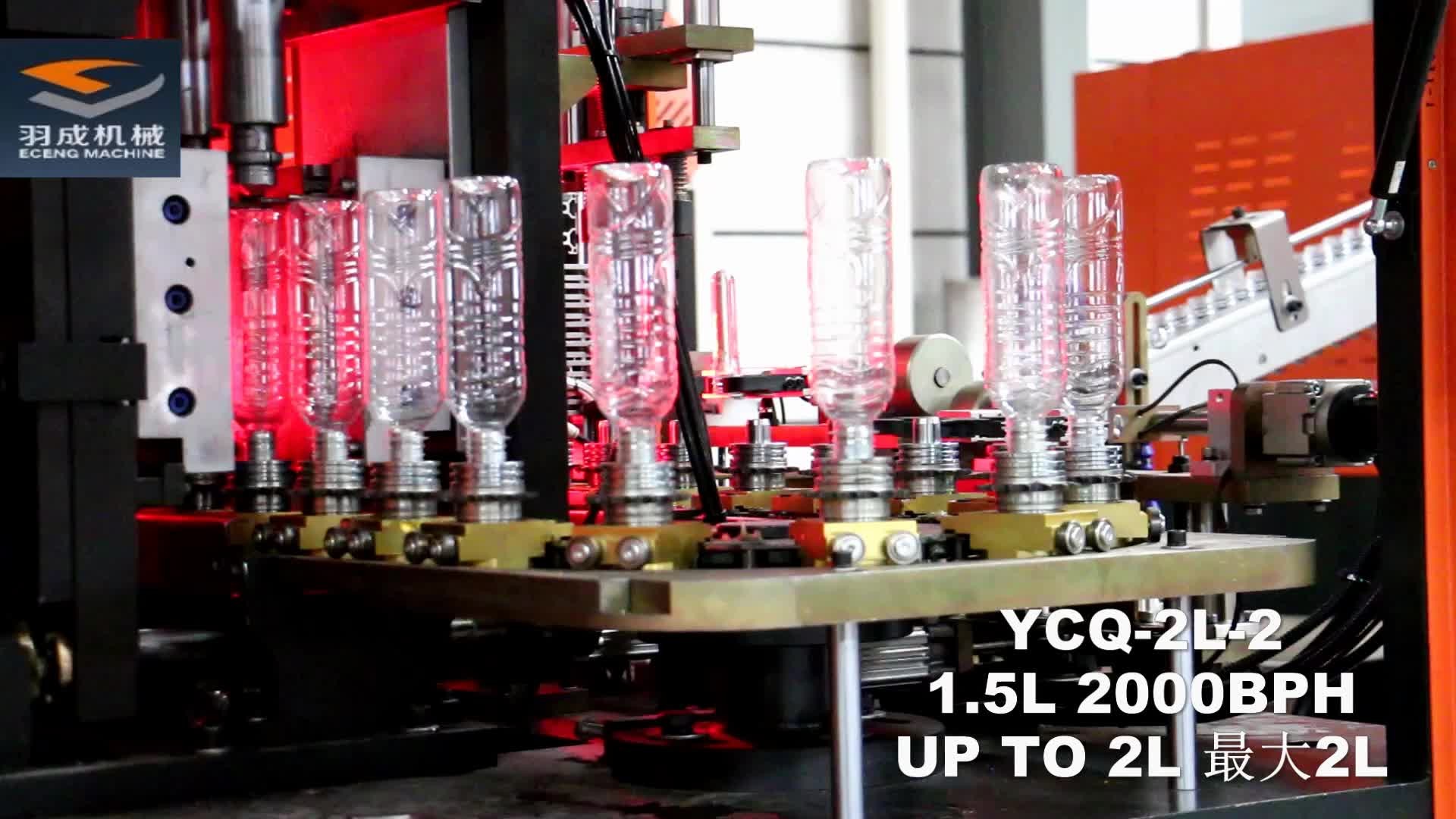

YCQ series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 6 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

Feature:

A. Advanced PLC control system, stable and excellent performance.

B. Conveyor belt automatically feeds preforms.

C.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously inthe  infrared pre-heater.

D. High adaptability,preform absorbs heat by adjusting the distance between lamp and reflector.With automatic constant temperature device,temperature is kept within a certain range.

E. Safety locks are provided during each mechanical action to protect operator's safety.

F. Use cylinder instead of hydraulic cylinder, low pollution, low noise.

G. Use different air pressure for blowing and machine operation,energy saving and environmental protection.

H. Equipped with high pressure and double-crank linkage clamping, providing high clamping force.

I. Two ways of operating: automatic and manual.

J. Safe, reliable, unique valve position design makes blowing process easier to control.

K. Low-cost, high-efficiency, easy-to-operate, easy-to-maintain, advanced automatic process flow.

L. Avoid bottle contamination.

M. Protection of low temperature cooling system.

N. Easy to install and start.

O. Low scrap rate.

PC PVC Plastic Bottle Automatic PET Blowing Machine 27kw 9kg/Cm2 4



Item

YCQ-2L-2

Bottle type specification

Cavity

2

Theory output

2400-2700

Max.volume

2L

Bottle mouth maximum overall diameter

80mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm

Power specifications

Light tube quantity

32pcs

Maximum heating power

24KW

All electric machine installation

27KW

Actual consumption

8.1KW

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1000L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

1500Ltr/min

Forzen water specification

Work pressure

5-6 kg/cm2

Temperature range

10°C

Consumption

5000kcal/hr

Forzen water flow

30L/min

Machine specification

Size of the machine

2.25x1.6x1.7

Weight of the machine

2.5ton

PC PVC Plastic Bottle Automatic PET Blowing Machine 27kw 9kg/Cm2 6

PC PVC Plastic Bottle Automatic PET Blowing Machine 27kw 9kg/Cm2 8

PC PVC Plastic Bottle Automatic PET Blowing Machine 27kw 9kg/Cm2 9

Fully automatic,low investment,high efficiency,easy operation, simple maintenance and safety.

 PC PVC Plastic Bottle Automatic PET Blowing Machine 27kw 9kg/Cm2 10

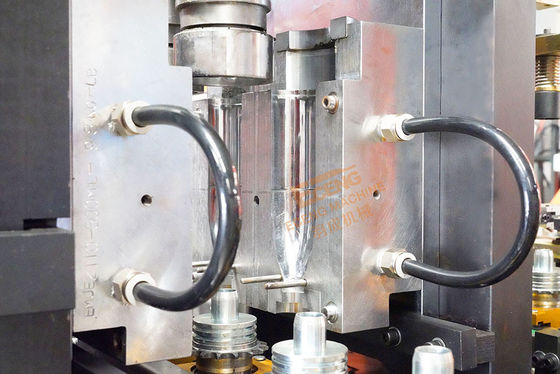

Servo transmission system,high positioning accuracy, fast speed and stability, good reliability.Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement;Adopt high pressure and double crank arm link locking,strong clamping force.

 PC PVC Plastic Bottle Automatic PET Blowing Machine 27kw 9kg/Cm2 12

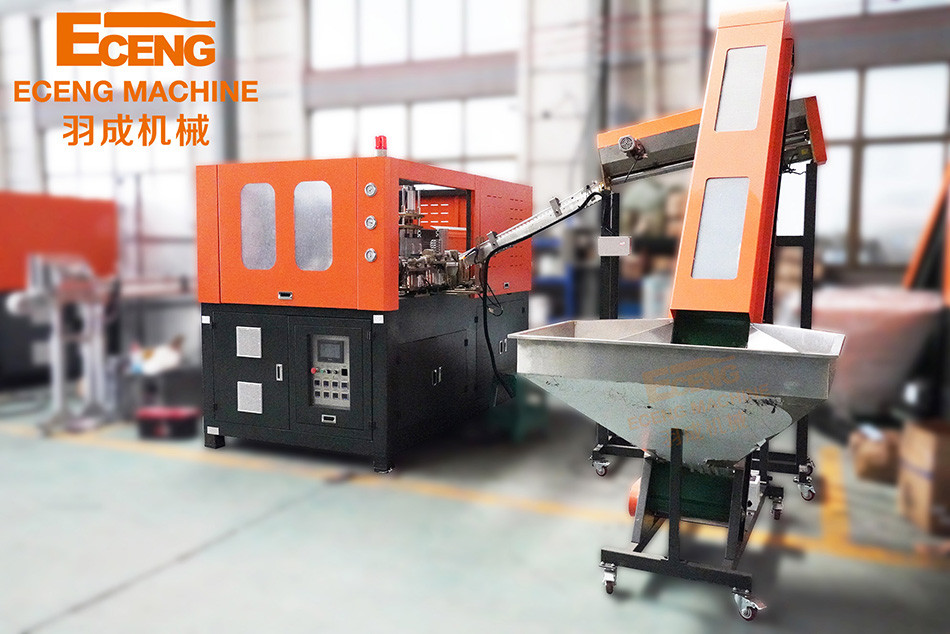

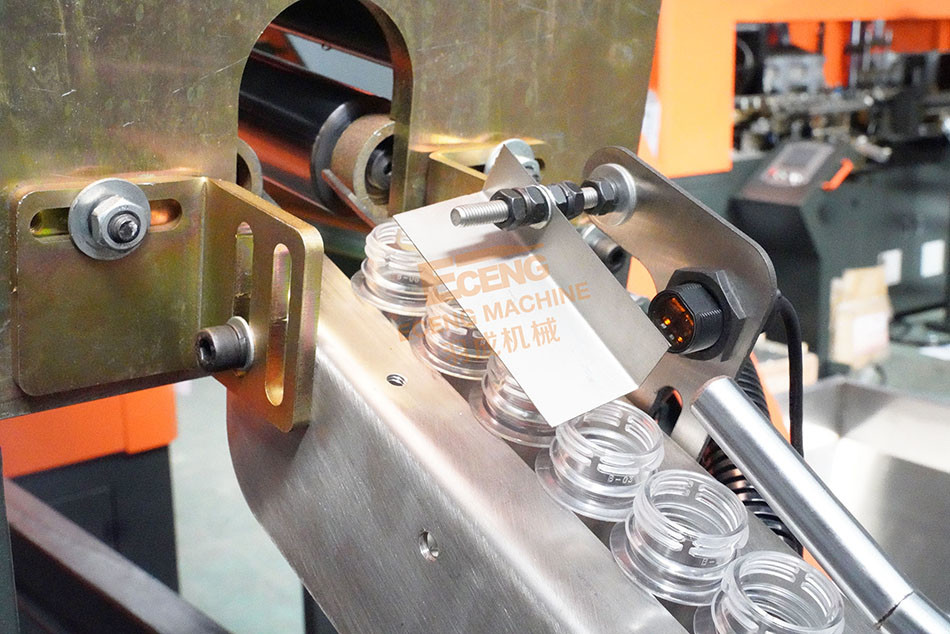

Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

PC PVC Plastic Bottle Automatic PET Blowing Machine 27kw 9kg/Cm2 14

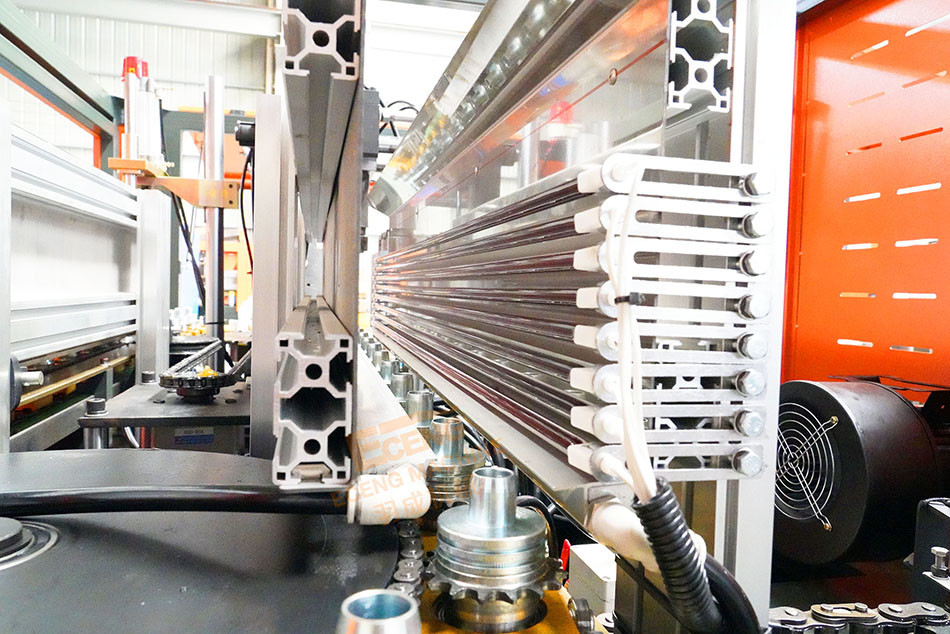

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

 PC PVC Plastic Bottle Automatic PET Blowing Machine 27kw 9kg/Cm2 16

YCQ linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.

 PC PVC Plastic Bottle Automatic PET Blowing Machine 27kw 9kg/Cm2 18

PC PVC Plastic Bottle Automatic PET Blowing Machine 27kw 9kg/Cm2 20



PC PVC Plastic Bottle Automatic PET Blowing Machine 27kw 9kg/Cm2 22PC PVC Plastic Bottle Automatic PET Blowing Machine 27kw 9kg/Cm2 24

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
