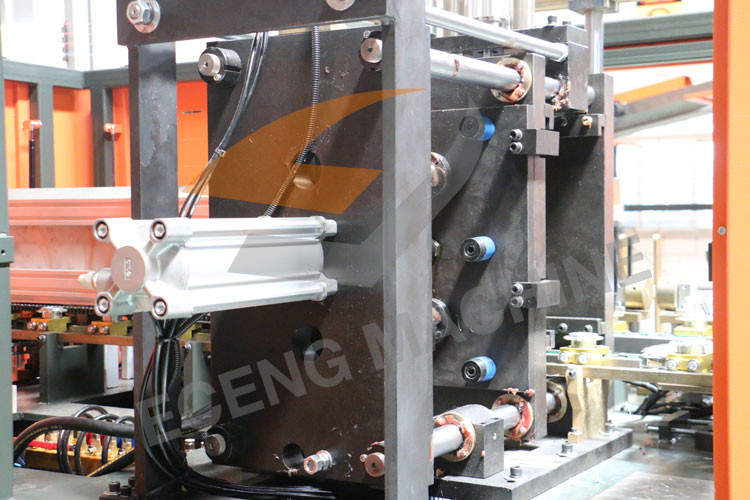

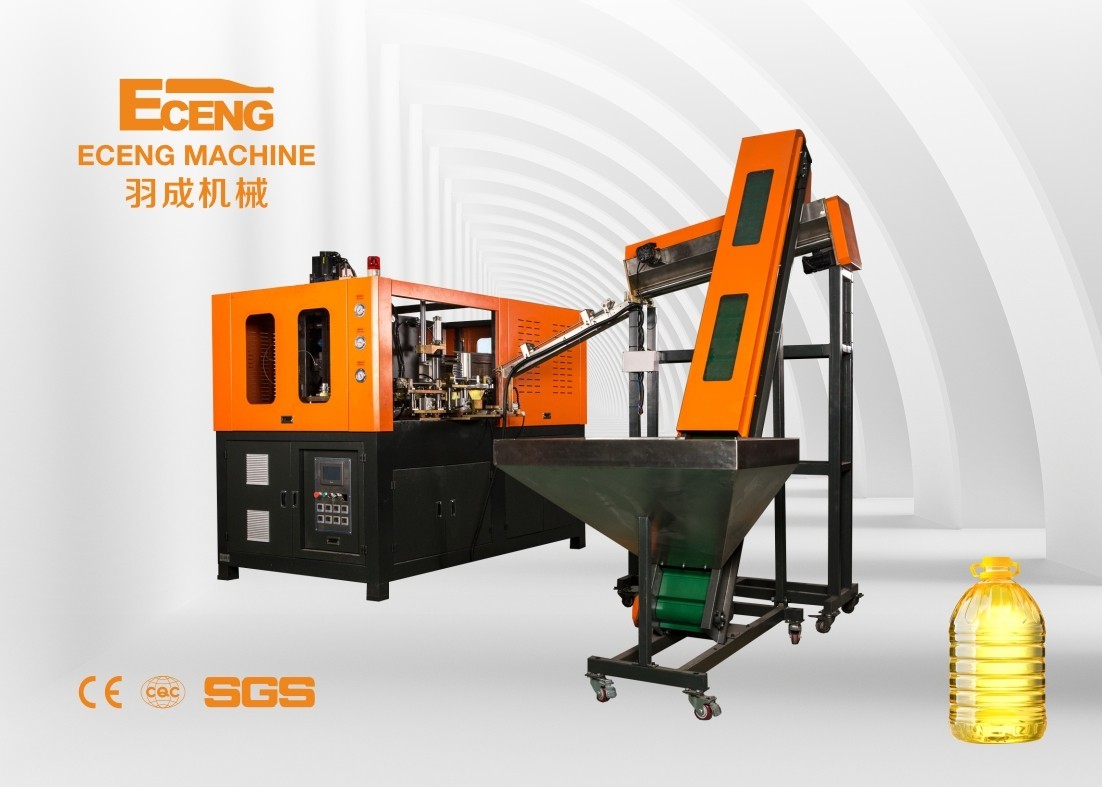

MITSUBISHI PLC Control PET Water Bottle Blow Molding Machine 3 Phase 380V

MITSUBISHI PLC Control PET Water Bottle Blow Molding Machine 3 Phase 380V

MITSUBISHI PLC Control PET Water Bottle Blow Molding Machine 3 Phase 380V
MITSUBISHI PLC Control PET Water Bottle Blow Molding Machine 3 Phase 380V
MITSUBISHI PLC Control PET Water Bottle Blow Molding Machine 3 Phase 380V
Product Details:
Place of Origin: China
Brand Name: Eceng
Certification: CE
Model Number: YCQ-5L-1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $10,000.00 - $17,000.00/Sets
Packaging Details: packing with wooden pallet or film package
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Set/Sets per Month 10
Contact Now
Detailed Product Description
Plastic Processed: PET Condition: New
Application: Bottle Blow Moulding Type: Stretch Blow Moulding
Year: 2019 Voltage: 3 Phase 380V 50hz
Dimension(L*W*H): 2.6*1.5*1.7 Hollow Part Volume: 5L
High Pressure Valve Brand: MAC Rotary Cylinder Brand: SMC
PLC Brand: MITSUBISHI Power (kW): 26
Weight (KG): 2500 Automation: Automatic
Warranty: 1 Year Key Selling Points: Automatic
Color: Orange Necessary Auxiliary Devices: Air Compressor,chiller,cold Dryer,filter
Quality Guarantee: 1 Year Replacement Assembly Parts: Provide For Free
Model Type: Bottle Blow Molding Machine Cavity: 1
Port: Shanghai / Ningbo
High Light:

MITSUBISHI PLC water bottle blow molding machine

,

water bottle blow molding machine 3 phase 380V

,

MITSUBISHI PLC pet bottle moulding machine

Automatic PET Plastic Water Bottle Blow Moulding Machines To Make Plastic Bottle
MITSUBISHI PLC Control PET Water Bottle Blow Molding Machine 3 Phase 380V 0
specification
Item

YCQ-5L-1




Bottle type specification
Cavity
1

Theory output
700-900

Max.volume
5L

Bottle mouth maximum overall DIdiameter
150mm

Bottle biggest diameter
180mm

Bottle maximum height
400mm



Power specifications
Light tube quantity
32pcs

Light tube power
1.5KW

Maximum heating power
48KW

All electric machine installation
51KW

Actual consumption
35.7KW


Air pressure specification
Work pressure
7-9kg/cm2

Low-pressure gas consumption
1600L/min

Blow bottle pressure
25-35kg/cm2

Higher -pressure gas consumption
3400Ltr/min


Forzen water specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
6000kcal/hr

Forzen water flow
50L/min

Machine specification
Size of the machine
2.5x1.6x1.7

Weight of the machine
2.5ton
Product Description
MITSUBISHI PLC Control PET Water Bottle Blow Molding Machine 3 Phase 380V 2

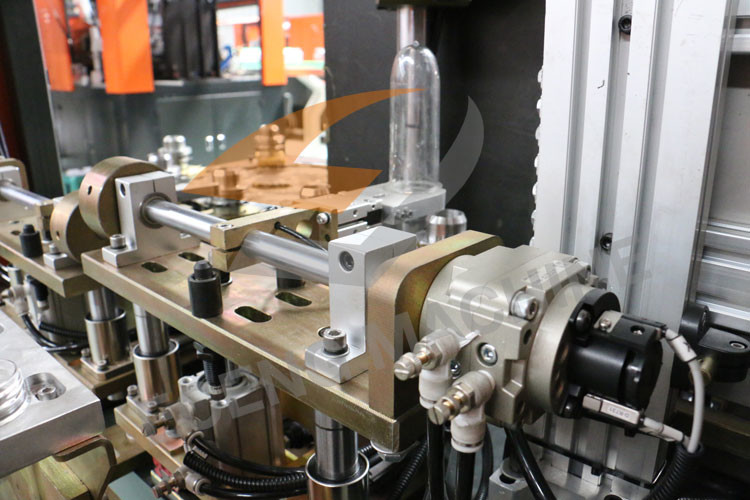

pet blowing machine for 5l YCQseries linear bottle blowing machines are used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles.Eceng Machinery's YCQseries linear bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.Ensure the uniformity and consistency of each preform stretching.At the same time,bottle blowing machine has a fast stretching speed and precise position.

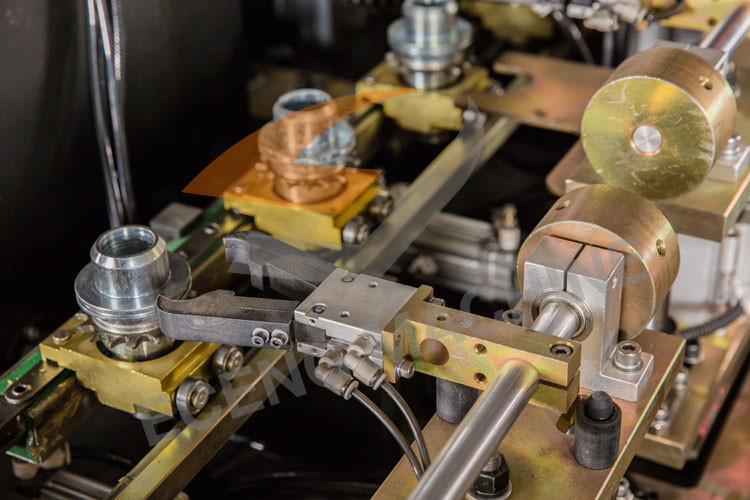

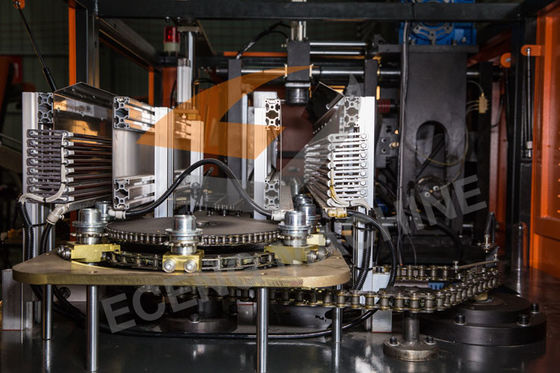

Detailed Images
MITSUBISHI PLC Control PET Water Bottle Blow Molding Machine 3 Phase 380V 4
MITSUBISHI PLC Control PET Water Bottle Blow Molding Machine 3 Phase 380V 6
MITSUBISHI PLC Control PET Water Bottle Blow Molding Machine 3 Phase 380V 8

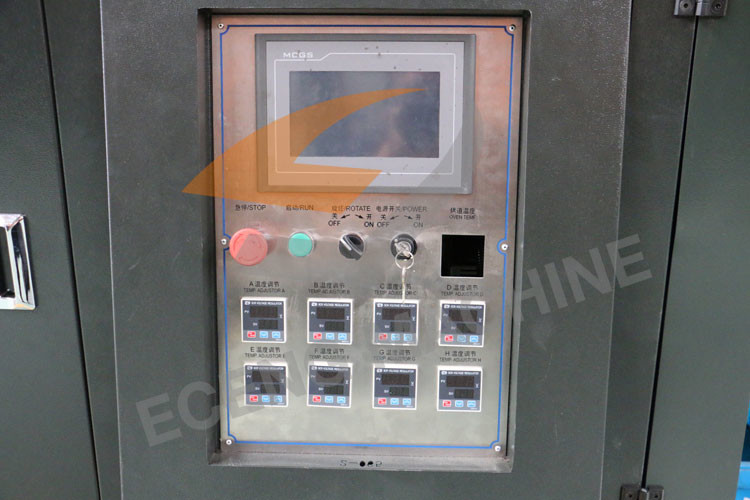

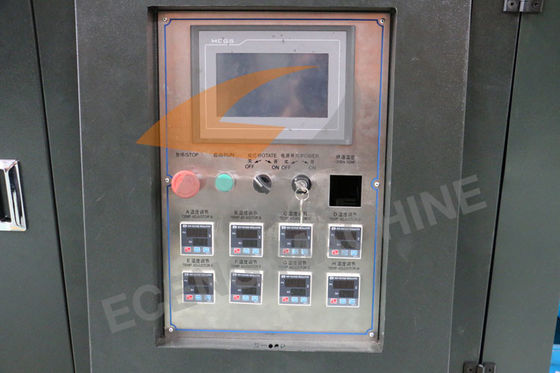

YCQ linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. YCQ series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .
Company Introduction
MITSUBISHI PLC Control PET Water Bottle Blow Molding Machine 3 Phase 380V 10
Packing&Shipping
MITSUBISHI PLC Control PET Water Bottle Blow Molding Machine 3 Phase 380V 12
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
