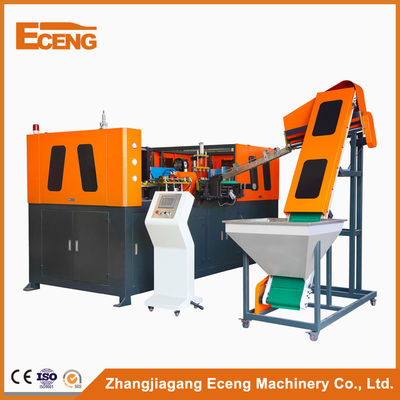

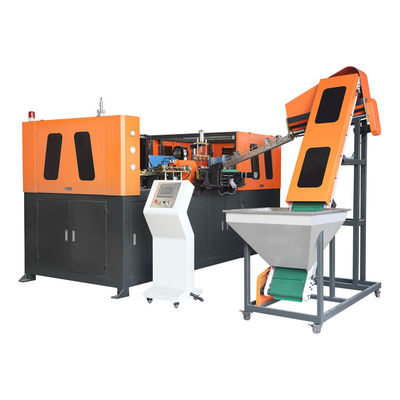

PET 4 Cavity Mineral Water Bottle Making Machine 4.5*1.6*1.9m

PET 4 Cavity Mineral Water Bottle Making Machine 4.5*1.6*1.9m

PET 4 Cavity Mineral Water Bottle Making Machine 4.5*1.6*1.9m
PET 4 Cavity Mineral Water Bottle Making Machine 4.5*1.6*1.9m
PET 4 Cavity Mineral Water Bottle Making Machine 4.5*1.6*1.9m
Product Details:
Place of Origin: Jiangsu, China
Brand Name: ECENG
Certification: CE ISO
Model Number: Q6000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $10,000.00 - $60,000.00/Sets
Packaging Details: Packed with wooden case,or to be decided by customer.
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 Set/Sets per Month pet bottle making machine price
Contact Now
Detailed Product Description
Plastic Processed: PET Max.Bottle Height(mm): 330 Mm
Neck Diameter(mm): 28 Mm Max.Bottle Diameter(mm): 100 Mm
Bottle Volume(ml): 2000 Ml Condition: New
Application: Bottle Blow Moulding Type: Stretch Blow Moulding
Voltage: According To Customer's Request Dimension(L*W*H): 4.5*1.6*1.9m
Hollow Part Volume: 2l Weight (KG): 4500 KG
Automation: Automatic Warranty: One Year
Key Selling Points: Easy To Operate Applicable Industries: Food & Beverage Factory
Marketing Type: Hot Product 2019 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Automatic: Yes Bottle Material: PET
Heating Method: Electric Cycle Heating Service: Full Technical Training
Name: Plastic Pet Bottle Making Machine Type: Pet Bottle Making Machine Price
Production Capacity (BPH): 6000 Port: Shanghai/Ningbo
High Light:

PET mineral water bottle making machine

,

4 Cavity mineral water bottle making machine

,

plastic bottle maker machine 4.5*1.6*1.9m

Automatic PET mineral plastic water bottle making machinery price
PET 4 Cavity Mineral Water Bottle Making Machine 4.5*1.6*1.9m 0
specification
Item

Q6000




Bottle type specification
Cavity
4

Theory output
5000~6000

Max.volume
2L

Bottle mouth maximum overall diameter
28-38mm

Bottle biggest diameter
105mm

Bottle maximum height
330mm



Power specification
Light tube quantity
32pcs

Light tube power
1.5KW

Maximum heating power
48KW

All electric machine installation
52KW

Actual consumption
40%--70%



Air pressure specification
Work pressure
7-9kg/cm2

Low-pressure gas consumption
1000L/min

Blow bottle pressure
25-35kg/cm2

Higher -pressure gas consumption
3000Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
8000kcal/hr

Frozen water flow
138L/min

Machine specification
Machine size
4.1x1.6x1.9

Machine weight
3.9ton
PET 4 Cavity Mineral Water Bottle Making Machine 4.5*1.6*1.9m 2

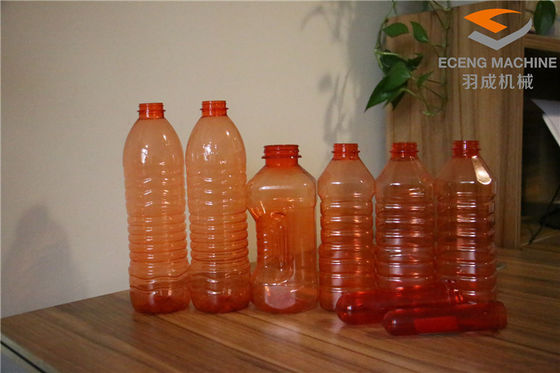

Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
PET 4 Cavity Mineral Water Bottle Making Machine 4.5*1.6*1.9m 4
Our Advantage
1. Resonable price 2. Good after service 3. experienced skilled workers and professional engineers 4. Good quality ,excellent service ,long life mould 5. on time delivery time
PET 4 Cavity Mineral Water Bottle Making Machine 4.5*1.6*1.9m 6
Want to know more message , contact us with out hesitate ! Inquiry us now !
Detailed Images
PET 4 Cavity Mineral Water Bottle Making Machine 4.5*1.6*1.9m 8
PET 4 Cavity Mineral Water Bottle Making Machine 4.5*1.6*1.9m 10
PET 4 Cavity Mineral Water Bottle Making Machine 4.5*1.6*1.9m 12

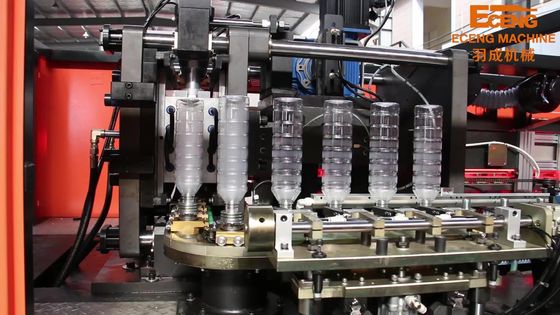

Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Q series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .
PET 4 Cavity Mineral Water Bottle Making Machine 4.5*1.6*1.9m 14
Company Introduction
PET 4 Cavity Mineral Water Bottle Making Machine 4.5*1.6*1.9m 16
Packing&Shipping
PET 4 Cavity Mineral Water Bottle Making Machine 4.5*1.6*1.9m 18

packing

Conventional packaging: inside is wrapped with PE film outside is wooden box
PET 4 Cavity Mineral Water Bottle Making Machine 4.5*1.6*1.9m 20

delivery

Conventional packaging: inside is wrapped with PE film outside is wooden box
After Sales Service
1. Installation, debug We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line. 2. Training Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures. 3.the sample service 1'We can send you the video of the running machine. 2'You are welcome to come to visit our factory,and see the machine running. 4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years. 5.We provide one year warranty 6.well-trained & experienced staff are to answer all your inquiries in English and Chinese 7 .12 Months guarantee and life-long technical support. 8.Your business relationship with us will be confidential to any third party. 9. Good after-sale service offered, please get back to us if you got any questions.
PET 4 Cavity Mineral Water Bottle Making Machine 4.5*1.6*1.9m 22
PET 4 Cavity Mineral Water Bottle Making Machine 4.5*1.6*1.9m 24

FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
