Blow your bottle, Shape your dream

|
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE ISO SGS |
| Model Number: | YCQ-2L-2 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | To be packed in strong new wooden cases,suitable for long distance ocean |
| Delivery Time: | 35days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Set/Sets per Year |
| Plastic Processed: | PET | Condition: | New |
|---|---|---|---|
| Application: | Bottle | Blow Moulding Type: | Injection Blow Moulding |
| Voltage: | 380V/50HZ | Dimension(L*W*H): | 2.25mx1.6mx1.7m |
| Warranty: | 12 Months | Weight: | 2000kg |
| Power: | 27kw | Automatic: | Yes |
| Cavity: | 2 | Theory Output: | 2200BPH |
| Max.volume: | 2L | Bottle Mouth Maximum: | 100mm |
| Bottle Maximum Height: | 100mm | Bottle Biggest Diameter: | 330mm |
| Port: | Shanghai | ||
| High Light: | 2200BPH jerry can blow molding machine,jerry can blow molding machine 380V/50HZ,2200BPH plastic blow molding machine |
||

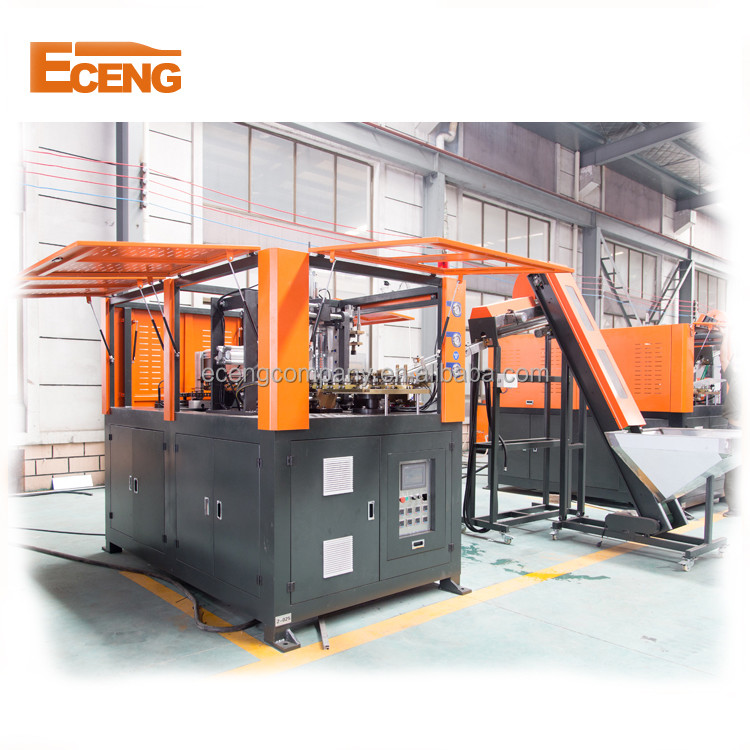

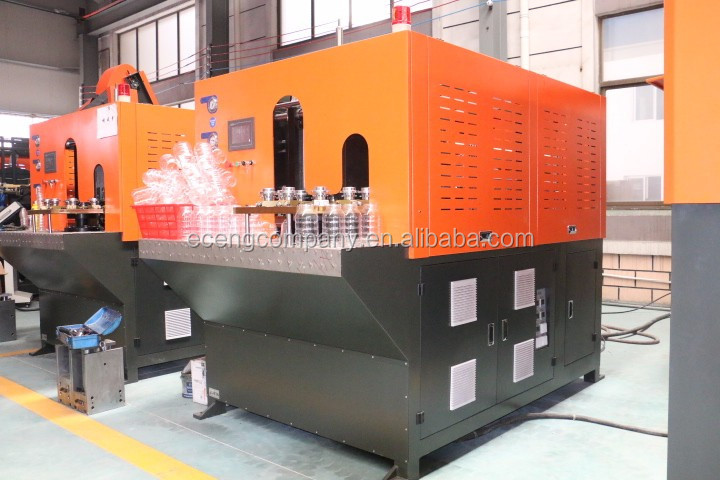

fully auto plastic jerry can production blow molding machine wide neck mouth
Machine Model: YCQ-2L-2
Mahine video for plastic jerry can production blow molding machine
Machine Featuers------Bottle molding machine
1. Utilization of automatic central lubrication.
2. Compact space design for convenience of mold-conversion,repairing and maintenance.
3. Minimized transfer pitch for increasing heating efficiency and saving energy.
4. Swift exchange design for preform mandrels.
5. Optimized air flow in the oven for stable heating process.
6. Easy to adjust,exchange and access heating oven;Protection for preform thread against heating.
7. Intact rotating robot grip with linear guider for right access,rapid motion;reducing adjustment and maintenance time.
8. Electronic inspector for ejecting faulty preform and bottles.
9. Fast,safe,and accurate cam-controlled blowing wheel for providing the best bottles.
10. Precise control of blowing technique to produce less-weighted bottle.
11. Smart design for quick conversion of blow mold.
12. Through finite element analysis to optimize modular design for reducing machine wearing and moving inertia.
13. Operating machine through touch panel; program protected by code lock

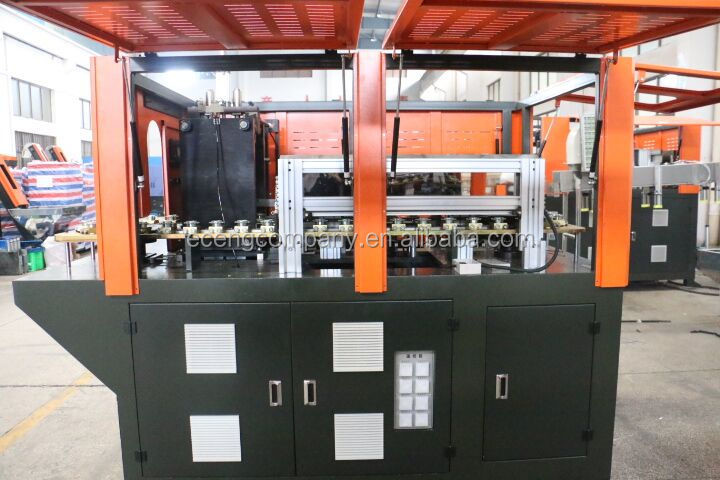

Machine parts for plastic jerry can production blow molding machine
Technical Parameter------bottle molding machine
|
Item |
YCQ-2L-2 |
|
|
Bottle type specification |
Cavity |
2 |
|
Theory output |
2000-2500 |
|
|
Max.volume |
2L |
|
|
Bottle mouth maximum overall diameter |
80mm |
|
|
Bottle biggest diameter |
100mm |
|
|
Bottle maximum height |
330mm |
|
|
Power specifications |
Light tube quantity |
32pcs |
|
Maximum heating power |
24KW |
|
|
All electric machine installation |
27KW |
|
|
Actual consumption |
8.1KW |
|
|
Air pressure specification |
Work pressure |
7-9kg/cm2 |
|
Low-pressure gas consumption |
1000L/min |
|
|
Blow bottle pressure |
25-35kg/cm2 |
|
|
Higher -pressure gas consumption |
1500Ltr/min |
|
|
Forzen water specification |
Work pressure |
5-6 kg/cm2 |
|
Temperature range |
10°C |
|
|
Consumption |
5000kcal/hr |
|
|
Forzen water flow |
30L/min |
|
|
Machine specification |
Size of the machine |
2.25x1.6x1.7 |
|
Weight of the machine |
2.5ton |
|
| PAYMENT |
We accept deposit by T/T,Western Union or Paypal. For any question,please contact us as soon as possible. |
| SHIPPING |
7-15 days after receipt of payment(depend on order quantity). Important shipping particular will be sent to you by E-mail after delivery of the goods. |
| Q:Your company is a transactional company or an industrial manufacture factory? |
| A:We are an industrial manufacture factory which locates in Zhangjiagang city. |
| Q:All of your products are made by yourself or compacted via purchasing the others? |
| A:We have independent technical team who focus on making machines,all the products are made by our technical team. |
| Q:What is the ability of your factory? |
| A:About 80 lines per year. |
| Q:Do you have any other services about your products? |
| A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system. |
| Q:How do you make the quotation for clients? |
| A:The price depends on quality and performance but the clients should be satisfied first. |
