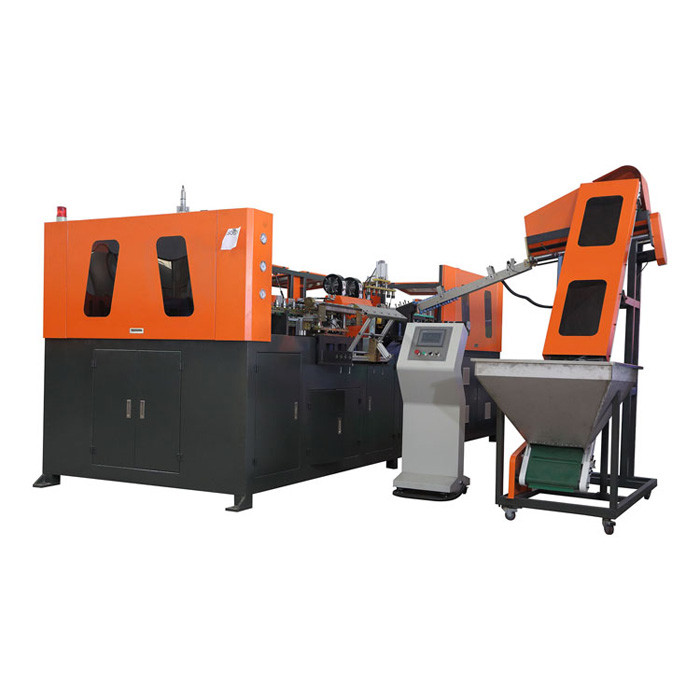

51KW Water Bottle Blowing Machine Stretch Blow Moulding 3 Phase 220V

51KW Water Bottle Blowing Machine Stretch Blow Moulding 3 Phase 220V

  • High Light

    51KW Water Bottle Blowing Machine

    ,

    stretch blow moulding machine 3 phase 220V

    ,

    51KW stretch blow moulding machine

  • Plastic Processed
    PET
  • Condition
    New
  • Application
    Bottle, Plastic PET Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Voltage
    380V/50HZ, 3phase 380V/220V/415V 50HZ
  • Dimension(L*W*H)
    8.45*1.6*1.9(m)
  • Warranty
    One Year
  • Weight
    5Ton
  • Power
    51KW
  • Automatic
    Yes
  • Color
    Blue/orange
  • PLC
    Mitsubishi
  • Cylinder
    SMC
  • High Pressure Valve
    Mac/parker
  • Low Pressure Valve
    SMC
  • Location
    Zhangjiagang City
  • Air Switch,relay,breaker
    Scheneider
  • Capacity
    6000BPH
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE ISO SGS
  • Model Number
    Q9000
  • Minimum Order Quantity
    1set
  • Price
    $20,000.00 - $60,000.00/Sets
  • Packaging Details
    Wooden package
  • Delivery Time
    45days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    10 Set/Sets per Month

51KW Water Bottle Blowing Machine Stretch Blow Moulding 3 Phase 220V


2021 New blow job machine

2021 New blow job machine homeopathic

 Pet bottle blowing machine



51KW Water Bottle Blowing Machine Stretch Blow Moulding 3 Phase 220V 1

1. YCQ PET Bottle Blowing Machine Description:

1. Stable performance with Advanced PLC

2. Conveying performs automatically with conveyor.

3. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.

4. High adjustability to enable the preheater to preheat performs in shapes by adjusting the light tube and the length of the reflecting board in the preheating area,and  eternal temperature in the preheater with an automatic thermostatic apparatus.

5. Optimization of the oven,suction and convulsion devices,cool the preform surface.Waterway,air duct directly through the device,double protect the screw neck

6. Each mechanical action has safety self-locking device,whe a process fails, the program will automatically switch to the security status.

7. Servo device for the material transfer and bottle perform distribution, fast,reliable,and high stability.

8. Using high pressure and hyperbolic arm connecting rod clamping,strong clamping force,speed and distance of clamp open are adjustable.

9. Safe,reliable,and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.

10 .Along with remotemaintenance systems,remote inspection maintenance,solve the troubles for you.

11. Low rejection rete: less than 0.2 percent.



2.YCQ Series PET Bottle Blowing Machine Advantages:



1) Servo driving and cam linking blowing section:

The unique cam linking system integrates movement of mold-opening, mold-locking and bottom mold-elevating in one movement, equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity.




2)Small performs distance heating system



Heater distance in the heating oven is reduced to 38mm, compared with the conventional heating oven it saves more than 30% electricity consumption.



Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature of the heating zone.





3)Efficient and soft perform inlet system

By rotary and soft preform inlet system, the speed of prefom feeding is ensured meanwhile, the preform neck is well protected.




3.Samples photos(preform and PET bottles):


4.Configuration of pet bottle blowing machine:

.51KW Water Bottle Blowing Machine Stretch Blow Moulding 3 Phase 220V 8

5. YCQ Optional items:

1) Exploded bottles ejection unit

During the blowing process, if the bottle burst, bad bottles can be automatically removed. This prevents the bad bottles from entering the filling machine.

2) HP air recovery system

After the bottle blowing, high-pressure air can be recycled and used again for the pre-blowing and machine physical movement.

3) Oven and preform temperature detection system

Detection system detects temperature of oven and the temperature of performs. When the preform temperature does not reach the set blowing temperature, blowing workstation will alarm, not blown.

6.Technical Parameter:



Note: the parameter above is based on the 17 grams of 500mL PET bottles. If the bottle conditions change, the corresponding parameter will change also. With the development and innovation of technology, the data above may be changed or improved, so it is for reference only. For precise and detailed data, please consult our technical department.



7.Letters Patent of YCQ pet bottle blowing machine:

51KW Water Bottle Blowing Machine Stretch Blow Moulding 3 Phase 220V 10 !

Packaging & Shipping

well-known for its fine quality for plastic bottle blowing machine

pet bottle blowing machine loading to Container


Our Services

well-known for its fine quality for plastic bottle blowing machine

After sales service

1> Find our products through www.encengcompany.com Alibaba,GlobalMarket,Made in China,Globalsources,Tradekey.



2>After one year , we can help you to maintain the machine and the accessories are provided only one the cost price.



3>Every 3 year , we can help to overhaul the machine freely(labor).



4>Free production technology and process configuration.



5> We can help you to design the product line , workshop and provide turn-key project.

6>Installation: Experts’ team to buyer’s country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $60/day during the engineer’s journey.
7>Warranty: One year from the date from the date of Installation or acceptance of the Plant whichever comes first.
Free Spare Parts : Digital instrument, Sealing, Stretching cylinder seal ring, Mould-adjustment wrench, Furnace temperature table, Furnace heating tube and other relative vulnerable part .
