6 Cavity PET Plastic Container Manufacturing Machine 7000 PCS/HR

6 Cavity PET Plastic Container Manufacturing Machine 7000 PCS/HR

  • High Light

    6 cavity plastic container manufacturing machine

    ,

    plastic container manufacturing machine 7000 PCS/HR

    ,

    pet blowing machine 7000 PCS/HR

  • Plastic Processed
    PET
  • Max.Bottle Height(mm)
    330 Mm
  • Neck Diameter(mm)
    28 Mm
  • Max.Bottle Diameter(mm)
    100 Mm
  • Bottle Volume(ml)
    2000 Ml
  • Condition
    New
  • Application
    Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Voltage
    380V,50HZ
  • Dimension(L*W*H)
    5.4*1.6*1.7m
  • Hollow Part Volume
    2L
  • Rotary Cylinder Brand
    FESTO
  • Weight (KG)
    3750 KG
  • Automation
    Automatic
  • Warranty
    1 Year
  • Key Selling Points
    Automatic
  • Showroom Location
    India, Nigeria, Malaysia
  • Applicable Industries
    Food & Beverage Factory
  • Marketing Type
    Hot Product 2019
  • Machinery Test Report
    Provided
  • Video Outgoing-inspection
    Provided
  • Warranty Of Core Components
    1 Year
  • Automatic
    Yes
  • Color
    Blue And Orange
  • Output
    5000-6000
  • Size Of The Machine
    5.3x1.6x1.9
  • Weight Of The Machine
    3750kg
  • Local Service Location
    Thailand, Egypt, Brazil
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE ISO
  • Model Number
    Q9000
  • Minimum Order Quantity
    1set
  • Price
    $10,000.00 - $35,000.00/Sets
  • Packaging Details
    standard export wooden case or according to your requirements
  • Delivery Time
    45days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    500 Set/Sets per Year

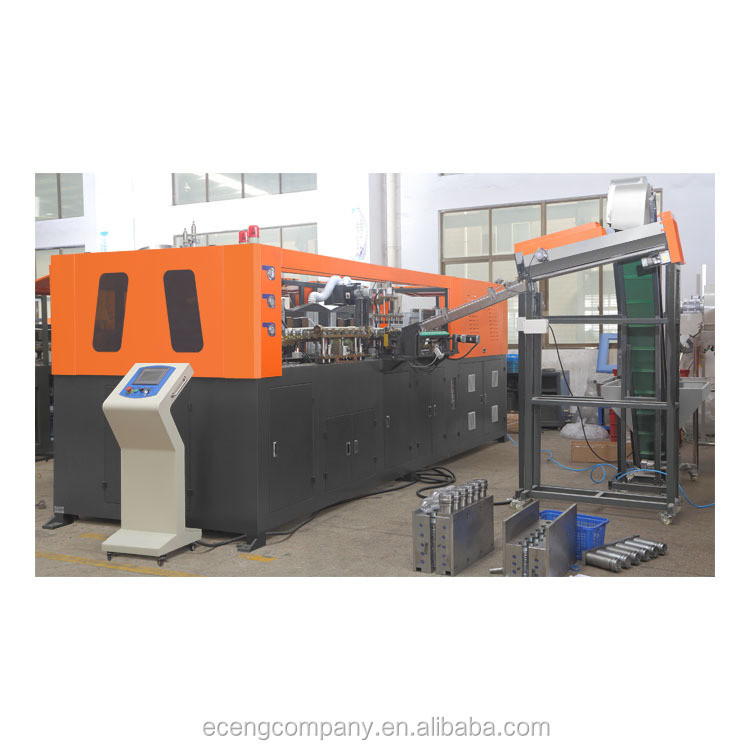

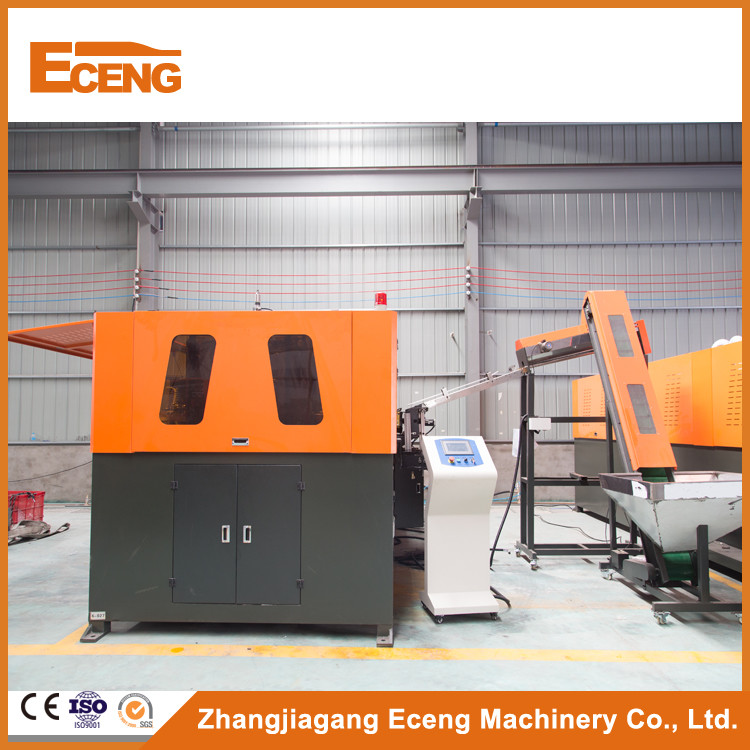

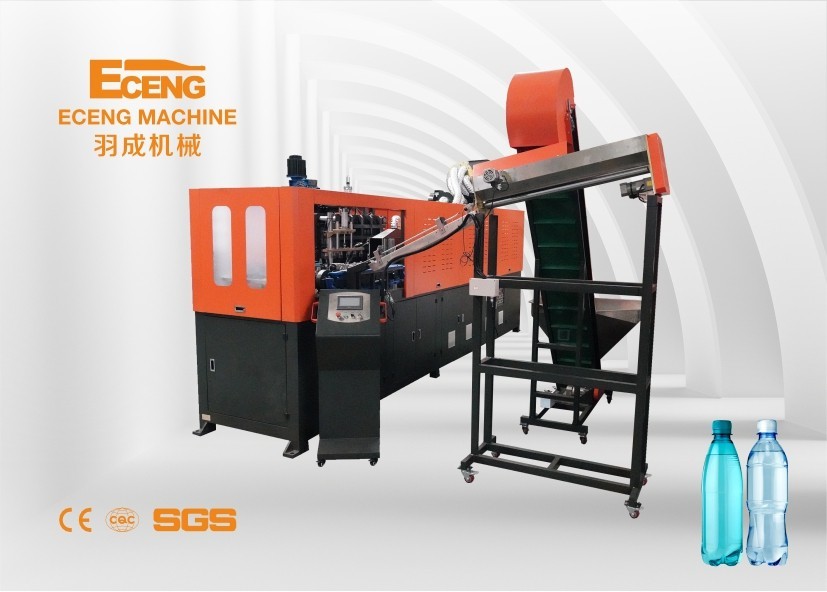

6 Cavity PET Plastic Container Manufacturing Machine 7000 PCS/HR

chinese supplier fully automatic pet bottle manufacturing machine price equipment high output



6 Cavity PET Plastic Container Manufacturing Machine 7000 PCS/HR 0



6 Cavity PET Plastic Container Manufacturing Machine 7000 PCS/HR 1

6 Cavity PET Plastic Container Manufacturing Machine 7000 PCS/HR 3



     What is technical parameter of our pet bottle manufacturing machine price?







item

Q9000



Bottle type specification









cavity

6

theory output (PCS/HR)

7000-8000

Max. volume (L)

2L

Bottle mouth maximum overall diameter (mm)

28-38mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm



Power specifications





Light tube quantity

32pcs

Light tube power

1.25kw

Maximum heating power

40kw

All electric machine installation

43kw



Air pressure specification





Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600Ltr/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

4000 Ltr/min



Frozen water specification





Work pressure

5-6 kg/cm2

Temperature range

10°C

Consumption

8000kcal/hr

Frozen water flow

88Ltr/min

Machine specification



Size of the machine

6.5x1.5x1.9 (m)

Weight of the machine

4ton



     What is the feature for our pet bottle manufacturing machine price?



A. Stable performance with advanced PLC.

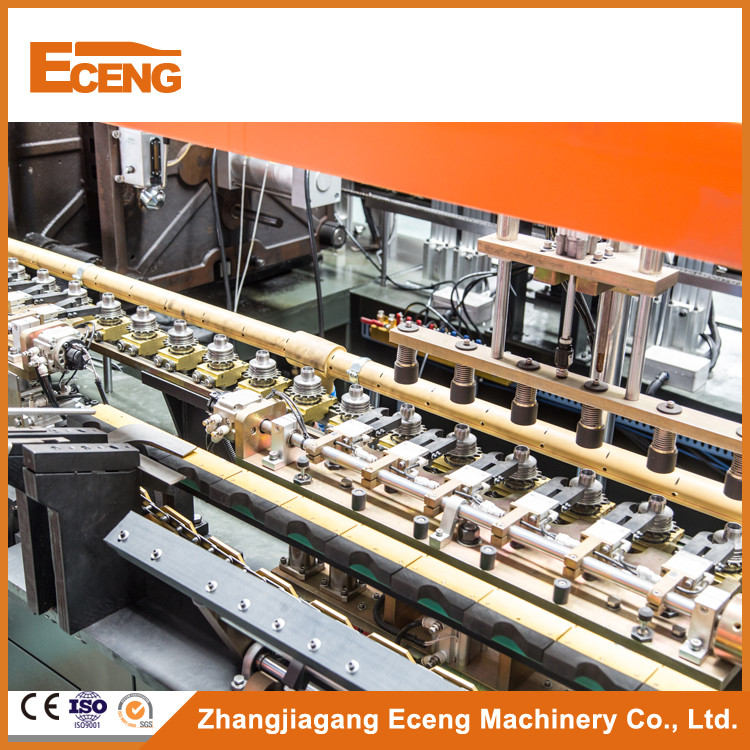

B. Conveying preforms automatically with conveyor.



C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.



D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.



E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.



F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.



G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.



H. Strong clamping force with high pressure and double crank links to lock the mold.



I. Two ways of operating: automatic and manual.



J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.



K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.



L. Contamination is avoided for the bottle body.



M. Ideal effect of the chilling with the chilling system.



N. Easy installation and starting



O. Low rejection rate: less than 0.3percent.



     What is the parts of our pet bottle manufacturing machine price?



machine parts name Brand Original place
Pneumatic components PARKER AND FESTO USA AND GERMANY
turning cylinder FESTO Germany
high pressure air blowing valve FESTO Germany
low pressure work valve PARKER USA
PLC controller MITSUBISHI JAPAN
full computer screen WINWIEW506L TAIWAN
high pressure muffler HENGLI CHINA
Photoelectric switch OMRON JAPAN
Switching power OMRON AND ZHENGTAI JAPAN and CHINA
circuit breaker ZHENTAI CHINA
Air switch OMRON JAPAN
relay OMRON JAPAN
finger cylinder JINGQI TAIWAN
