49kw Mineral Water Bottle Blowing Machine

49kw Mineral Water Bottle Blowing Machine

49kw Mineral Water Bottle Blowing Machine
49kw Mineral Water Bottle Blowing Machine
49kw Mineral Water Bottle Blowing Machine
Product Details:
Place of Origin: Jiangsu, China
Brand Name: eceng
Certification: CE SGS ISO
Model Number: YCQ-2L-4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $33,000.00 - $34,000.00/Sets
Packaging Details: wooden package
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8 Set/Sets per Month 6
Contact Now
Detailed Product Description
Plastic Processed: PET Bottle Volume(ml): 2000 Ml
Condition: New Application: Bottle
Voltage: According To Customer's Request Dimension(L*W*H): 4.5x1.6x1.9 (m)
Hollow Part Volume: 2l High Pressure Valve Brand: MAC
Rotary Cylinder Brand: SMC Warranty: 1 Year
Key Selling Points: Automatic Showroom Location: Thailand, Egypt, Chile, Nigeria
Warranty Of Core Components: 1 Year
High Light:

49kw mineral water bottle blowing machine


100ml-2L mineral water bottle blowing machine


100ml-2L plastic bottle machine


mineral water plant making machine for plastic bottle


49kw Mineral Water Bottle Blowing Machine 2

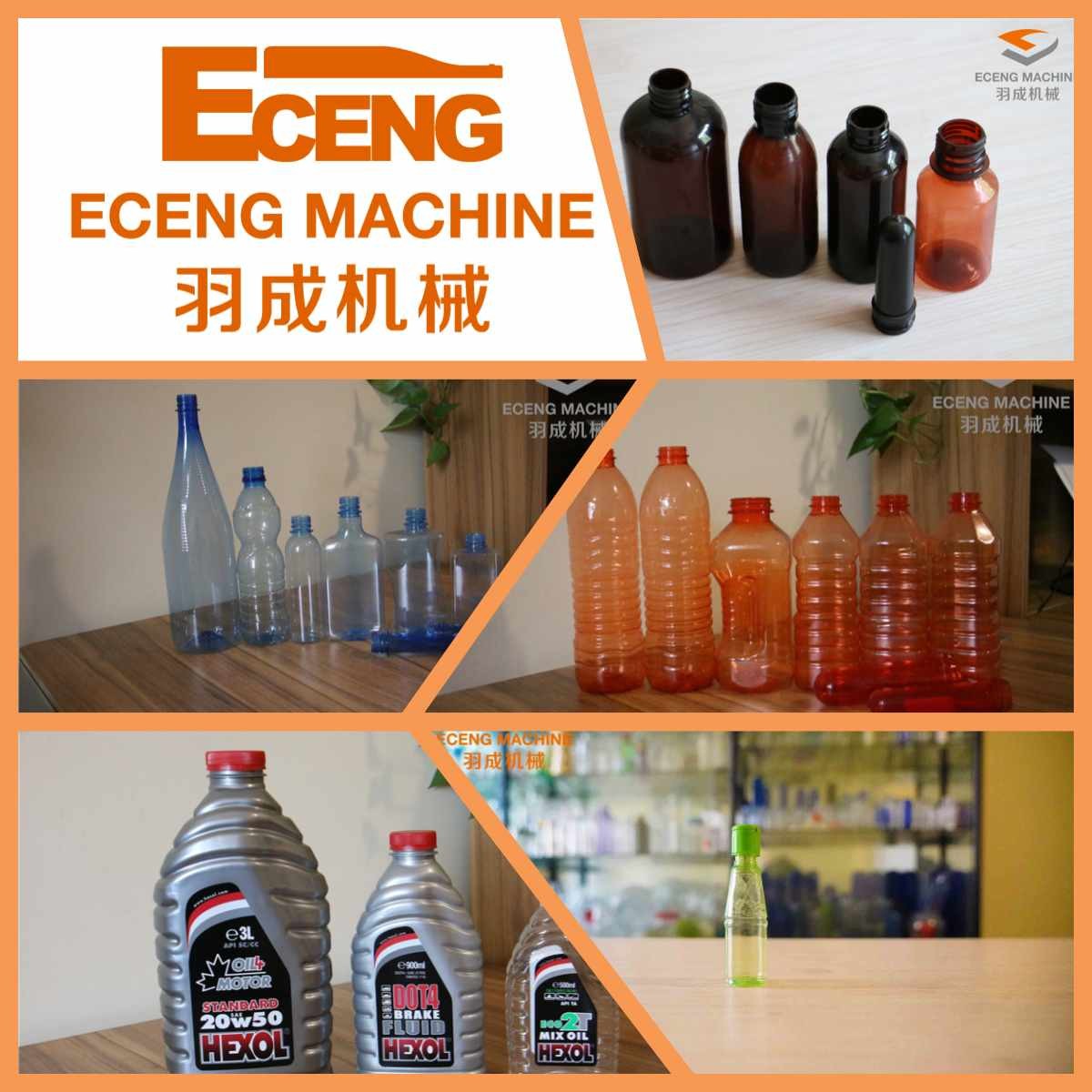

YCQ series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 6 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.


A. Advanced PLC control system, stable and excellent performance.

B. Conveyor belt automatically feeds preforms.

C.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously inthe  infrared pre-heater.

D. High adaptability,preform absorbs heat by adjusting the distance between lamp and reflector.With automatic constant temperature device,temperature is kept within a certain range.

E. Safety locks are provided during each mechanical action to protect operator's safety.

F. Use cylinder instead of hydraulic cylinder, low pollution, low noise.

G. Use different air pressure for blowing and machine operation,energy saving and environmental protection.

H. Equipped with high pressure and double-crank linkage clamping, providing high clamping force.

I. Two ways of operating: automatic and manual.

J. Safe, reliable, unique valve position design makes blowing process easier to control.

K. Low-cost, high-efficiency, easy-to-operate, easy-to-maintain, advanced automatic process flow.

L. Avoid bottle contamination.

M. Protection of low temperature cooling system.

N. Easy to install and start.

O. Low scrap rate.

49kw Mineral Water Bottle Blowing Machine 4



Bottle type specification



Theory output




Bottle mouth maximum overall diameter


Bottle biggest diameter


Bottle maximum height


Power specifications

Light tube quantity


Maximum heating power


All electric machine installation


Actual consumption


Air pressure specification

Work pressure


Low-pressure gas consumption


Blow bottle pressure


Higher -pressure gas consumption

3000 Ltr/min

Forzen water specification

Work pressure

5-6 kg/cm2

Temperature range




Forzen water flow


Machine specification

Size of the machine


Weight of the machine


49kw Mineral Water Bottle Blowing Machine 6


Fully automatic,low investment,high efficiency,easy operation, simple maintenance and safety.


Servo transmission system,high positioning accuracy, fast speed and stability, good reliability.Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement;Adopt high pressure and double crank arm link locking,strong clamping force.


Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.


Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

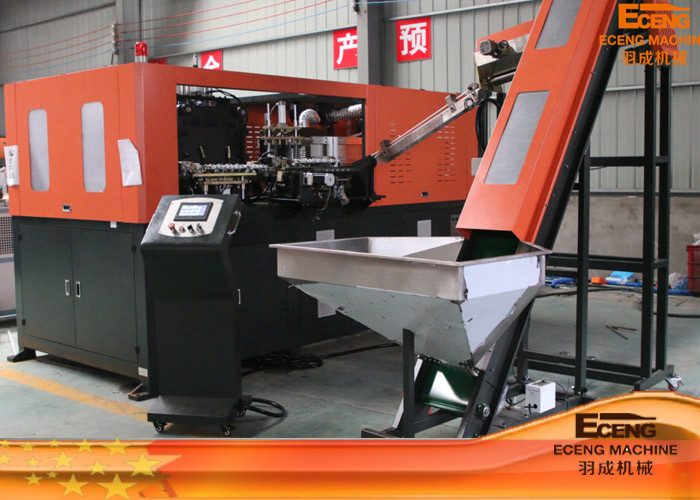

YCQ linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.

49kw Mineral Water Bottle Blowing Machine 12




Standard Installation service
When you finish the Preparation conditions, our fast and professional aftersales service engineer team will go to your factory to install the machine, give you the operating manual, and train your employee until they can operate the machine well.

The sample service
1. We can send you the video of the running machine.
2. You are welcome to come to visit our factory, and see the machine running.


What we can do more

If thre are any damaged spare parts or accessories, we will replace them by DHL express immediately Free of Charge


Well-trained & experienced staff are to answer all your inquiries in English and Chinese

Download software, we can update your program by Internet


49kw Mineral Water Bottle Blowing Machine 14


Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
