Blow your bottle, Shape your dream

|
| Place of Origin: | Jiangsu, China |
| Brand Name: | ECENG |
| Certification: | CE/ISO |
| Model Number: | YCQ-2L-2 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | pet blowing machine to make 2L 2Cavity plastic bottle is packed with wooden case or as customer request. |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 15 Set/Sets per Month pet blowing machine 2L 2 Cavity |
| Bottle Volume(ml): | 2000 Ml | Application: | Bottle |
|---|---|---|---|
| Blow Moulding Type: | Stretch Blow Moulding | Weight (KG): | 2500 KG |
| Automation: | Automatic | Cavity: | 2 |
| Capacity: | 2000 Bph | Blow Mold: | Yes |
| Port: | Shanghai/Ningbo | ||
| High Light: | 5000kcal/hr 2 cavity pet blowing machine,2 cavity pet blowing machine 2.5*1.1*2m,5000kcal/hr 2l blow molding machine |
||

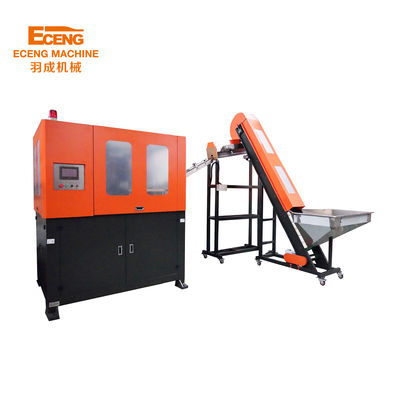

pet blowing machine to make 2L 2Cavity plastic bottle
Model: YCQ-2L-2
| What is the details of pet blowing machine to make 2L 2Cavity plastic bottle? |
Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
| What is technical parameter of our pet blowing machine to make 2L 2Cavity plastic bottle? |
|
Item
|
YCQ-2L-2
|
|
|
Bottle type specification
|
Cavity
|
2
|
|
Theory output
|
2000-2200
|
|
|
Max.volume
|
2L
|
|
|
Bottle mouth maximum overall diameter
|
80mm
|
|
|
Bottle biggest diameter
|
100mm
|
|
|
Bottle maximum height
|
330mm
|
|
|
Power specifications
|
Light tube quantity
|
32pcs
|
|
Light tube power
|
0.75KW
|
|
|
Maximum heating power
|
24KW
|
|
|
All electric machine installation
|
27KW
|
|
|
Actual consumption
|
8.1KW
|
|
|
Air pressure specification
|
Work pressure
|
7-9kg/cm2
|
|
Low-pressure gas consumption
|
1000L/min
|
|
|
Blow bottle pressure
|
25-35kg/cm2
|
|
|
Higher -pressure gas consumption
|
1500Ltr/min
|
|
|
Forzen water specification
|
Work pressure
|
5-6 kg/cm2
|
|
Temperature range
|
10°C
|
|
|
Consumption
|
5000kcal/hr
|
|
|
Forzen water flow
|
30L/min
|
|
|
Machine specification
|
Size of the machine
|
2.25x1.6x1.7
|
|
Weight of the machine
|
2.5ton
|
|
| What is the feature for our pet blowing machine to make 2L 2Cavity plastic bottle? |
1.Stable performance with Advanced PLC
2.Conveying performs automatically with conveyor.

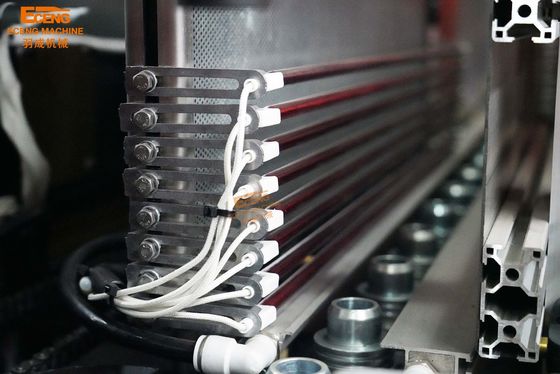

3.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
4.High adjustability to enable the preheater to preheat performs in shapes by adjusting the light tube and the length of the reflecting board in the preheating area,and eternal temperature in the preheater with an automatic thermostatic apparatus.
5.Optimization of the oven,suction and convulsion devices,cool the preform surface.Waterway,air duct directly through the device,double protect the screw neck
6.Each mechanical action has safety self-locking device,whe a process fails, the program will automatically switch to the security status.
7.Servo device for the material transfer and bottle perform distribution, fast,reliable,and high stability.
8.Using high pressure and hyperbolic arm connecting rod clamping,strong clamping force,speed and distance of clamp open are adjustable.
9.Safe,reliable,and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
10.Along with remotemaintenance systems,remote inspection maintenance,solve the troubles for you.
11.Low rejection rete: less than 0.2 percent.
| Finished products for pet blowing machine to make 2L 2Cavity plastic bottle |
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
