PET Mineral Water Bottle Blowing Machine

PET Mineral Water Bottle Blowing Machine

  • High Light

    PET mineral water bottle blowing machine

    ,

    preform blowing machine 4500KG

    ,

    6000BPH preform blowing machine

  • Plastic Processed
    PET
  • Max.Bottle Height(mm)
    330 Mm
  • Neck Diameter(mm)
    38 Mm
  • Max.Bottle Diameter(mm)
    100 Mm
  • Bottle Volume(ml)
    2000 Ml
  • Condition
    New
  • Application
    Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Year
    2019
  • Voltage
    According To Customer's Request
  • Dimension(L*W*H)
    4.5x1.6x1.9 (m)
  • Hollow Part Volume
    Max 2l
  • Weight (KG)
    4500 KG
  • Automation
    Automatic
  • Warranty
    1 Year, One Year
  • Key Selling Points
    High Productivity
  • Applicable Industries
    Food & Beverage Shops
  • Automatic
    Yes
  • Color
    Blue
  • Weight
    3500kg
  • Power(W)
    43kw
  • Cavity
    4
  • Production Capacity (BPH)
    6000 BPH
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    eceng
  • Certification
    CE ISO SGS
  • Model Number
    q6000
  • Minimum Order Quantity
    1set
  • Price
    $35,000.00/Sets 1-1 Sets
  • Packaging Details
    wooden package for mineral water bottle blowing machine
  • Delivery Time
    45days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    8 Set/Sets per Month

PET Mineral Water Bottle Blowing Machine

best selling mineral water bottle blowing machine for pet bottles in china
PET Mineral Water Bottle Blowing Machine 0
specification
Item

Q6000




Bottle type specification
Cavity
4

Theory output
5000~6000

Max.volume
2L

Bottle mouth maximum overall diameter
28-38mm

Bottle biggest diameter
105mm

Bottle maximum height
330mm



Power specification
Light tube quantity
32pcs

Light tube power
1.5KW

Maximum heating power
48KW

All electric machine installation
52KW

Actual consumption
40%--70%



Air pressure specification
Work pressure
7-9kg/cm2

Low-pressure gas consumption
1000L/min

Blow bottle pressure
25-35kg/cm2

Higher -pressure gas consumption
3000Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
8000kcal/hr

Frozen water flow
138L/min

Machine specification
Machine size
4.1x1.6x1.9

Machine weight
3.9ton
PET Mineral Water Bottle Blowing Machine 2
Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
PET Mineral Water Bottle Blowing Machine 4
Our Advantage
1. Resonable price 2. Good after service 3. experienced skilled workers and professional engineers 4. Good quality ,excellent service ,long life mould 5. on time delivery time 6.Our engineers can be online for 24 hours to serve you

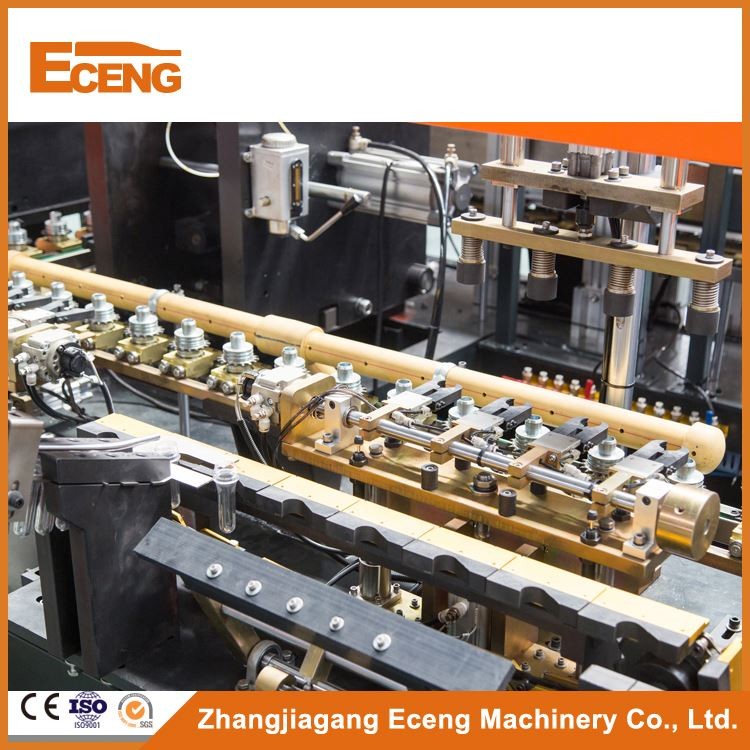

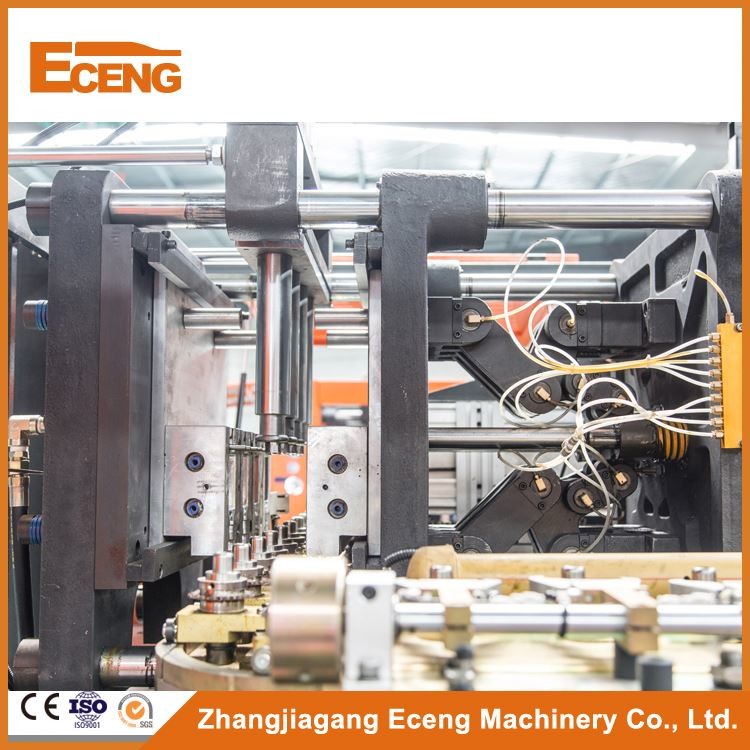

Detailed Images
PET Mineral Water Bottle Blowing Machine 6
PET Mineral Water Bottle Blowing Machine 8
PET Mineral Water Bottle Blowing Machine 10

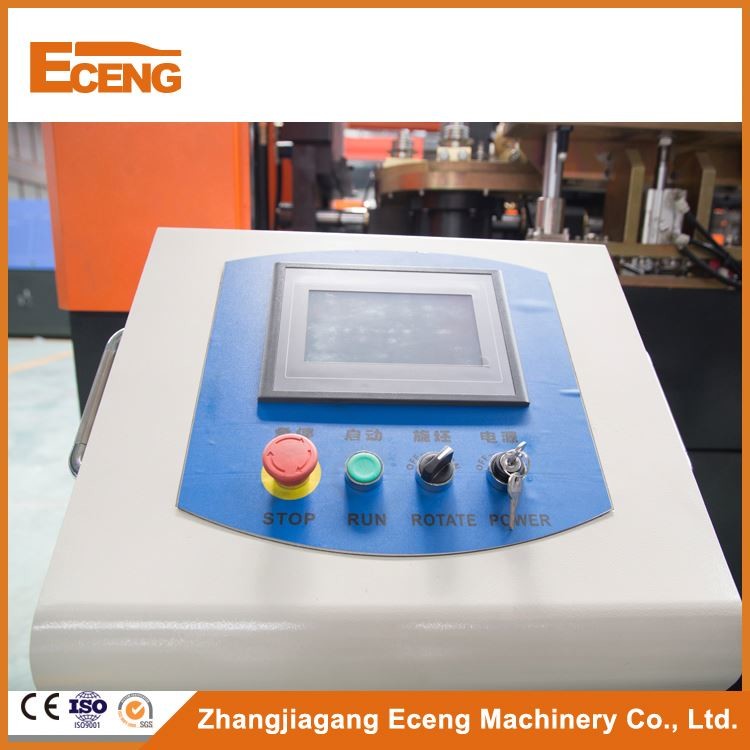

Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Q series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .
Company Introduction
PET Mineral Water Bottle Blowing Machine 12
Packing&Shipping
PET Mineral Water Bottle Blowing Machine 14
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
