100ml 500ml 1000ml Automatic PET Blowing Machine 3600bpn To 4200Bpn

100ml 500ml 1000ml Automatic PET Blowing Machine 3600bpn To 4200Bpn

  • High Light

    100ml 500ml 1000ml Automatic PET Blowing Machine

    ,

    1 litre blow moulding machine 4200 bpn

    ,

    1 litre blow moulding machine 3600bpn

  • Plastic Processed
    PET
  • Condition
    New
  • Application
    Bottle, Palstic Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Voltage
    Customer
  • Dimension(L*W*H)
    4.0*1.6*1.9m
  • Hollow Part Volume
    2l
  • Power (kW)
    45
  • Weight (KG)
    4500
  • Automation
    Automatic
  • Warranty
    1 Year
  • Key Selling Points
    Easy To Operate
  • Applicable Industries
    Food & Beverage Factory
  • Automatic
    Yes
  • Weight
    3ton
  • Color
    Blue
  • Cavity
    3
  • Output
    3600-4200
  • Volume
    2L
  • Low Pressure Gas Consumption
    1600Ltr/min
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE,ISO,SGS
  • Model Number
    YCQ-2L-2
  • Minimum Order Quantity
    1set
  • Price
    $35,000.00/Sets 1-1 Sets
  • Packaging Details
    Wooden package
  • Delivery Time
    30days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    10 Set/Sets per Month

100ml 500ml 1000ml Automatic PET Blowing Machine 3600bpn To 4200Bpn

Automatic carbon fiber molding machine / 100ml-500ml-1000ml100ml 500ml 1000ml Automatic PET Blowing Machine 3600bpn To 4200Bpn 0

 100ml 500ml 1000ml Automatic PET Blowing Machine 3600bpn To 4200Bpn 2

100ml 500ml 1000ml Automatic PET Blowing Machine 3600bpn To 4200Bpn 4

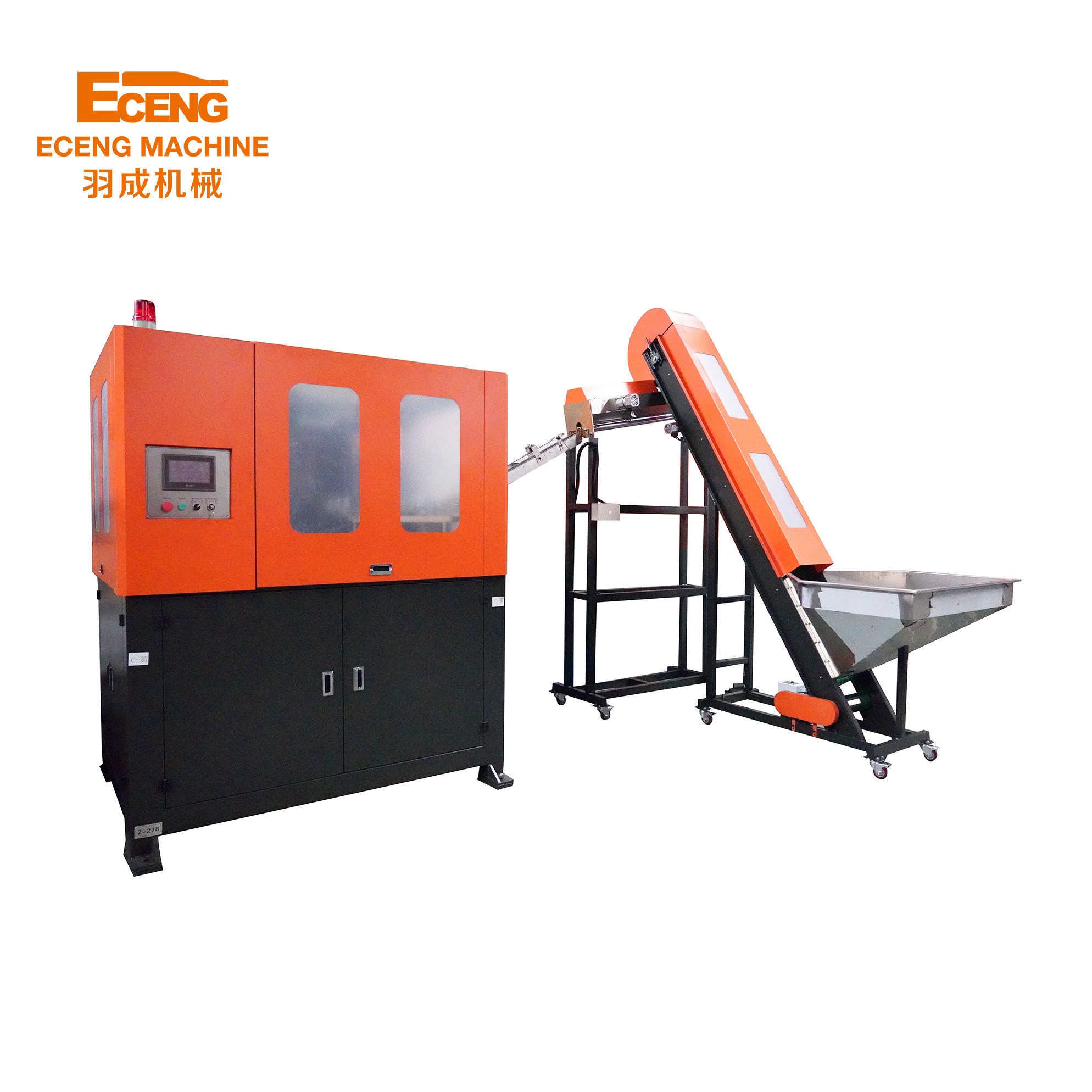

YCQ series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 6 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

Feature:

A. Advanced PLC control system, stable and excellent performance.

B. Conveyor belt automatically feeds preforms.

C.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously inthe  infrared pre-heater.

D. High adaptability,preform absorbs heat by adjusting the distance between lamp and reflector.With automatic constant temperature device,temperature is kept within a certain range.

E. Safety locks are provided during each mechanical action to protect operator's safety.

F. Use cylinder instead of hydraulic cylinder, low pollution, low noise.

G. Use different air pressure for blowing and machine operation,energy saving and environmental protection.

H. Equipped with high pressure and double-crank linkage clamping, providing high clamping force.

I. Two ways of operating: automatic and manual.

J. Safe, reliable, unique valve position design makes blowing process easier to control.

K. Low-cost, high-efficiency, easy-to-operate, easy-to-maintain, advanced automatic process flow.

L. Avoid bottle contamination.

M. Protection of low temperature cooling system.

N. Easy to install and start.

O. Low scrap rate.

100ml 500ml 1000ml Automatic PET Blowing Machine 3600bpn To 4200Bpn 6



Item

YCQ-2L-2

Bottle type specification

Cavity

2

Theory output

2000-2500

Max.volume

2L

Bottle mouth maximum overall diameter

80mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm

Power specifications

Light tube quantity

32pcs

Maximum heating power

24KW

All electric machine installation

27KW

Actual consumption

8.1KW

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1000L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

1500Ltr/min

Forzen water specification

Work pressure

5-6 kg/cm2

Temperature range

10°C

Consumption

5000kcal/hr

Forzen water flow

30L/min

Machine specification

Size of the machine

2.25x1.6x1.7

Weight of the machine

2.5ton

100ml 500ml 1000ml Automatic PET Blowing Machine 3600bpn To 4200Bpn 8



Fully automatic,low investment,high efficiency,easy operation, simple maintenance and safety.

 100ml 500ml 1000ml Automatic PET Blowing Machine 3600bpn To 4200Bpn 10

Servo transmission system,high positioning accuracy, fast speed and stability, good reliability.Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement;Adopt high pressure and double crank arm link locking,strong clamping force.

 100ml 500ml 1000ml Automatic PET Blowing Machine 3600bpn To 4200Bpn 12

Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

100ml 500ml 1000ml Automatic PET Blowing Machine 3600bpn To 4200Bpn 14



Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

 100ml 500ml 1000ml Automatic PET Blowing Machine 3600bpn To 4200Bpn 16

YCQ linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.

 100ml 500ml 1000ml Automatic PET Blowing Machine 3600bpn To 4200Bpn 18

100ml 500ml 1000ml Automatic PET Blowing Machine 3600bpn To 4200Bpn 20



100ml 500ml 1000ml Automatic PET Blowing Machine 3600bpn To 4200Bpn 22100ml 500ml 1000ml Automatic PET Blowing Machine 3600bpn To 4200Bpn 24

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
