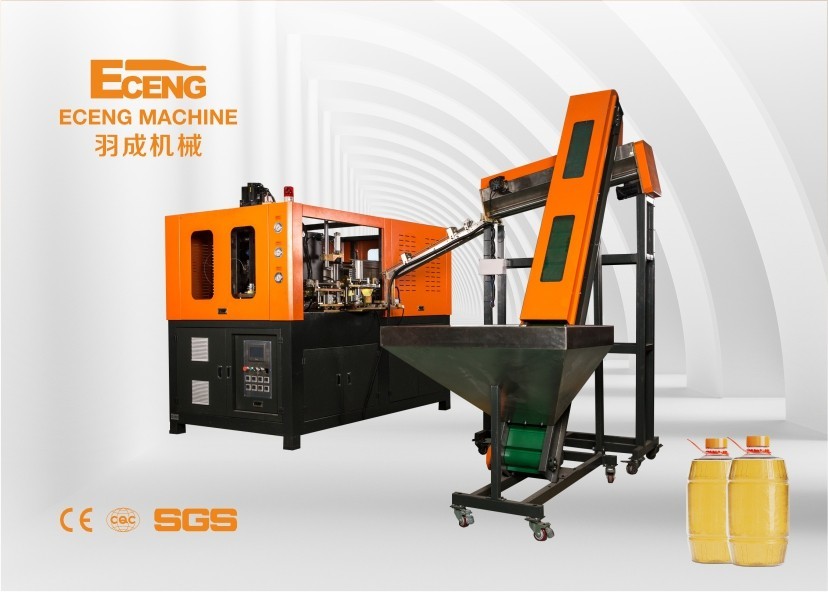

Automatic Eceng PET Stretch Blow Moulding Machine 3 Phase 220V

Automatic Eceng PET Stretch Blow Moulding Machine 3 Phase 220V

  • Automatic Eceng PET Stretch Blow Moulding Machine 3 Phase 220V
  • Automatic Eceng PET Stretch Blow Moulding Machine 3 Phase 220V
  • Automatic Eceng PET Stretch Blow Moulding Machine 3 Phase 220V
  • Automatic Eceng PET Stretch Blow Moulding Machine 3 Phase 220V
  • Automatic Eceng PET Stretch Blow Moulding Machine 3 Phase 220V
  • Automatic Eceng PET Stretch Blow Moulding Machine 3 Phase 220V
Automatic Eceng PET Stretch Blow Moulding Machine 3 Phase 220V
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE&ISO
Model Number: YCQ-5L-1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $40,000.00/Sets 1-1 Sets
Packaging Details: Wooden package
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Plastic Processed: PET Condition: New
Application: Bottle, Plastic Bottle Blow Moulding Type: Stretch Blow Moulding
Voltage: 3phase 380V/220V Automation: Automatic
Warranty: 1 Year Applicable Industries: Food & Beverage Shops
Warranty Of Core Components: 1 Year Port: Shanghai
High Light:

Eceng pet stretch blow moulding machine

,

pet stretch blow moulding machine 3 phase 220V

,

automatic pet blow molding machine 3 phase 220V

bottle making machine / bottle stretch blowing machine YCQ-5L-1

Eceng fully automatic High Speed automatic PET Bottle Blow Molding Machine to pure water bottle

Automatic Eceng PET Stretch Blow Moulding Machine 3 Phase 220V 0Automatic Eceng PET Stretch Blow Moulding Machine 3 Phase 220V 2Automatic Eceng PET Stretch Blow Moulding Machine 3 Phase 220V 4



technical parametre-- 5L pet bottle machine







Item

YCQ-5L-1E

Bottle type specification

Cavity

1

Theory output

700-800

Max.volume

5L

Bottle mouth maximum overall DIdiameter

150mm

Bottle biggest diameter

180mm

Bottle maximum height

400mm

Power specifications

Light tube quantity

32pcs

Light tube power

1KW

Maximum heating power

32KW

All electric machine installation

35KW

Actual consumption

24.5KW

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1200L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

2000-2500Ltr/min

Forzen water specification

Work pressure

5-6 kg/cm2

Temperature range

10℃

Consumption

4000kcal/hr

Forzen water flow

30L/min

Machine specification

Size of the machine

2.4x1.5x1.7

Weight of the machine

2ton







related introduction-- 5L pet bottle machine



1). Stable performance with advanced PLC.



2). Automatic preform conveyer to save human cost.

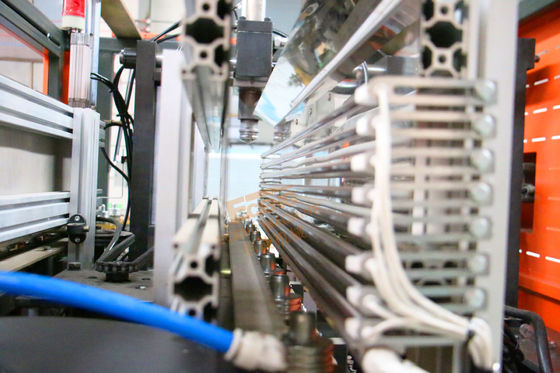

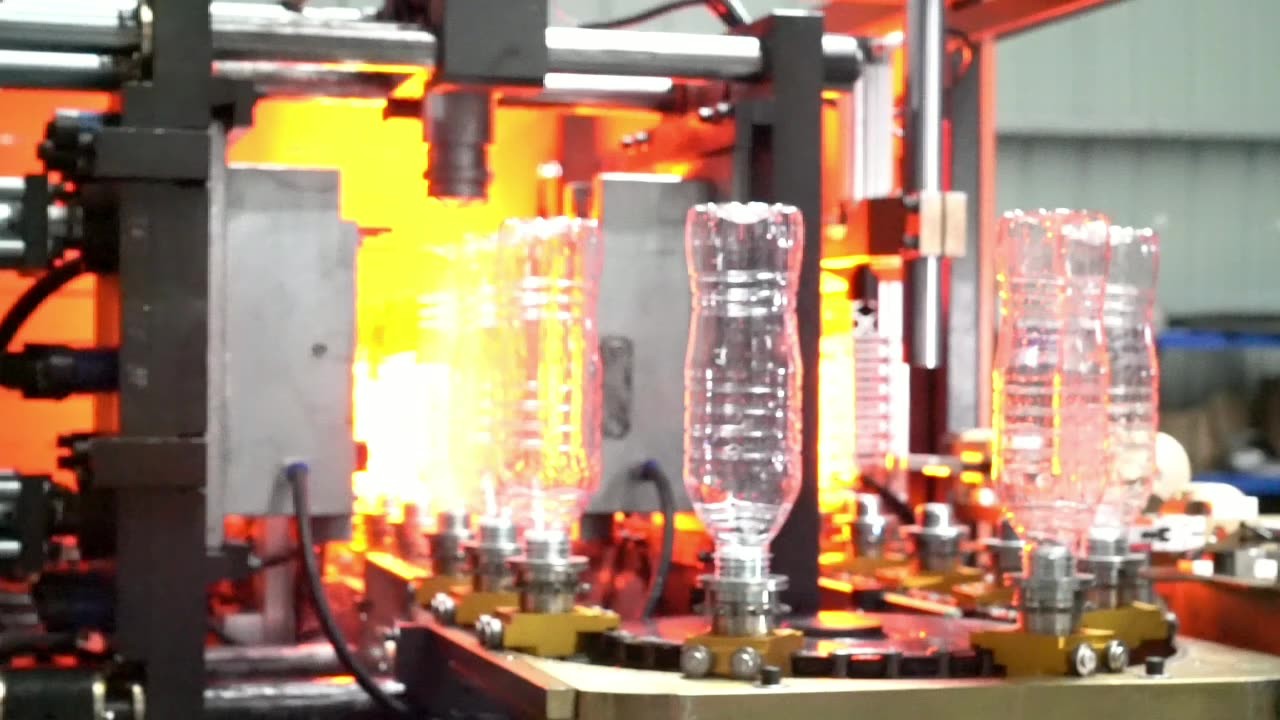

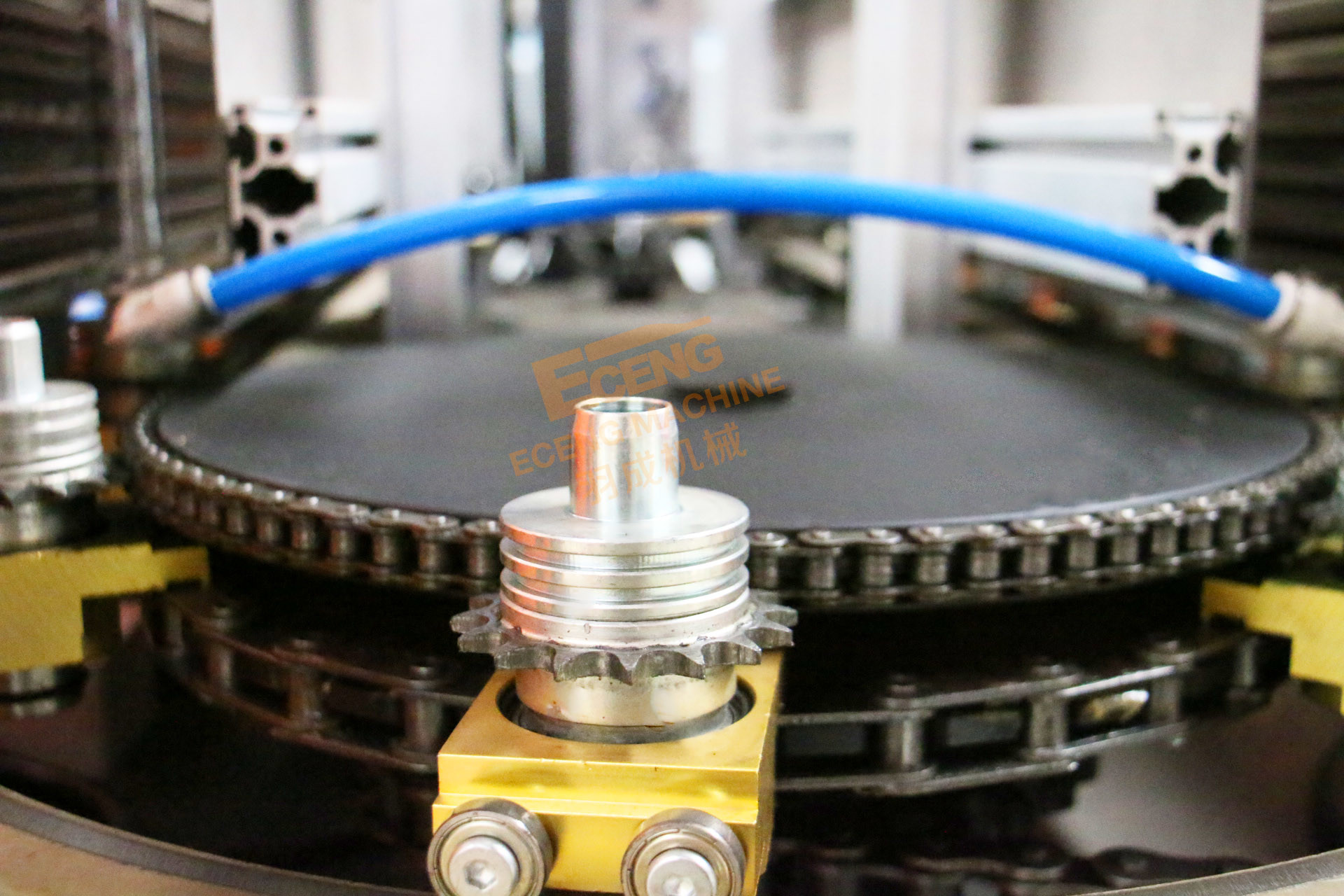

3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.



4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.



5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.

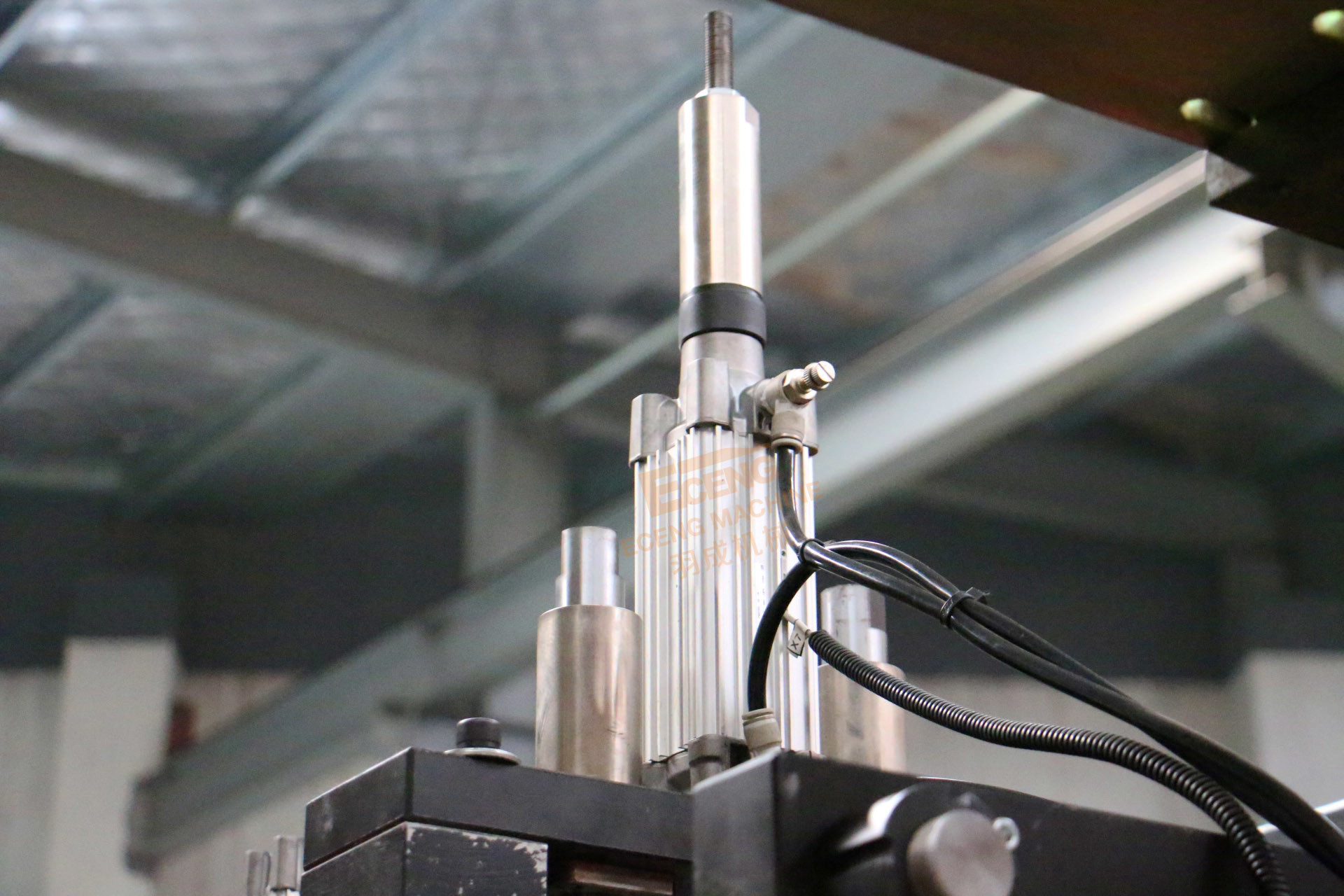

6). Introduce the FESTO air cylinder to avoid contamination and noise.



7). Satisfaction with different atmosphShirley pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.



8). Strong clamping force with high pressure and double crank links to lock the mould.



9). Two ways of operating: automatic and manual.



10). Safe,reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.



11). Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.



12). Ideal cooling system make the finished bottles without any flaws.



13). Easy for you to install,test and start up.



14). Low rejection rate: less than 0.2 percent.

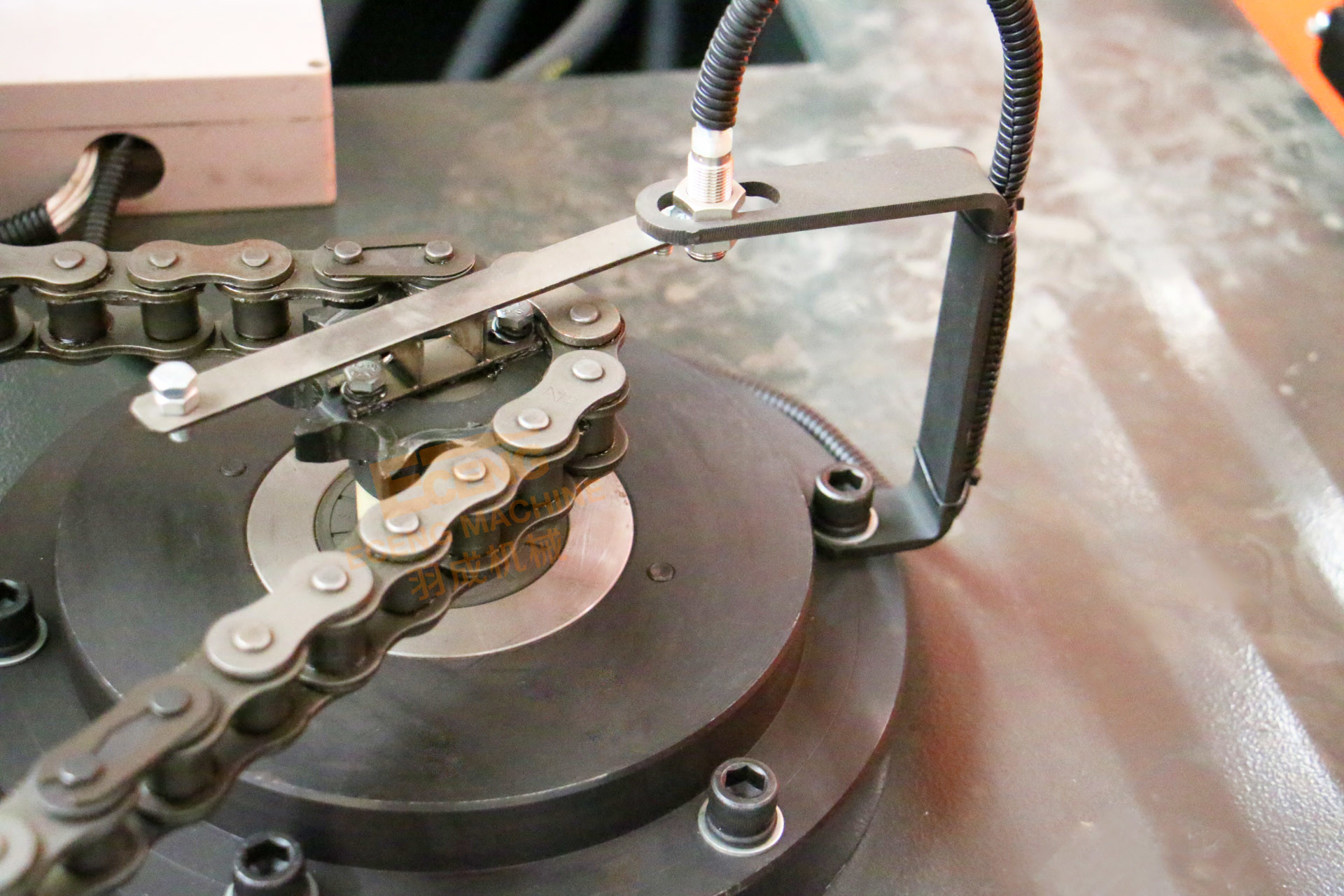

photo show--  5L pet bottla machine







Automatic Eceng PET Stretch Blow Moulding Machine 3 Phase 220V 6

company introduction



Our company, Zhangjiagang Eceng Machinery Co., Ltd. we are a special manufacturer of PET bottle blowing machine,blow molding machine and mould, We have been engaged in moulds for years, and have gained a well-known reputation from our customers who spread all over the world.



our workshop--  5L pet bottle machine
