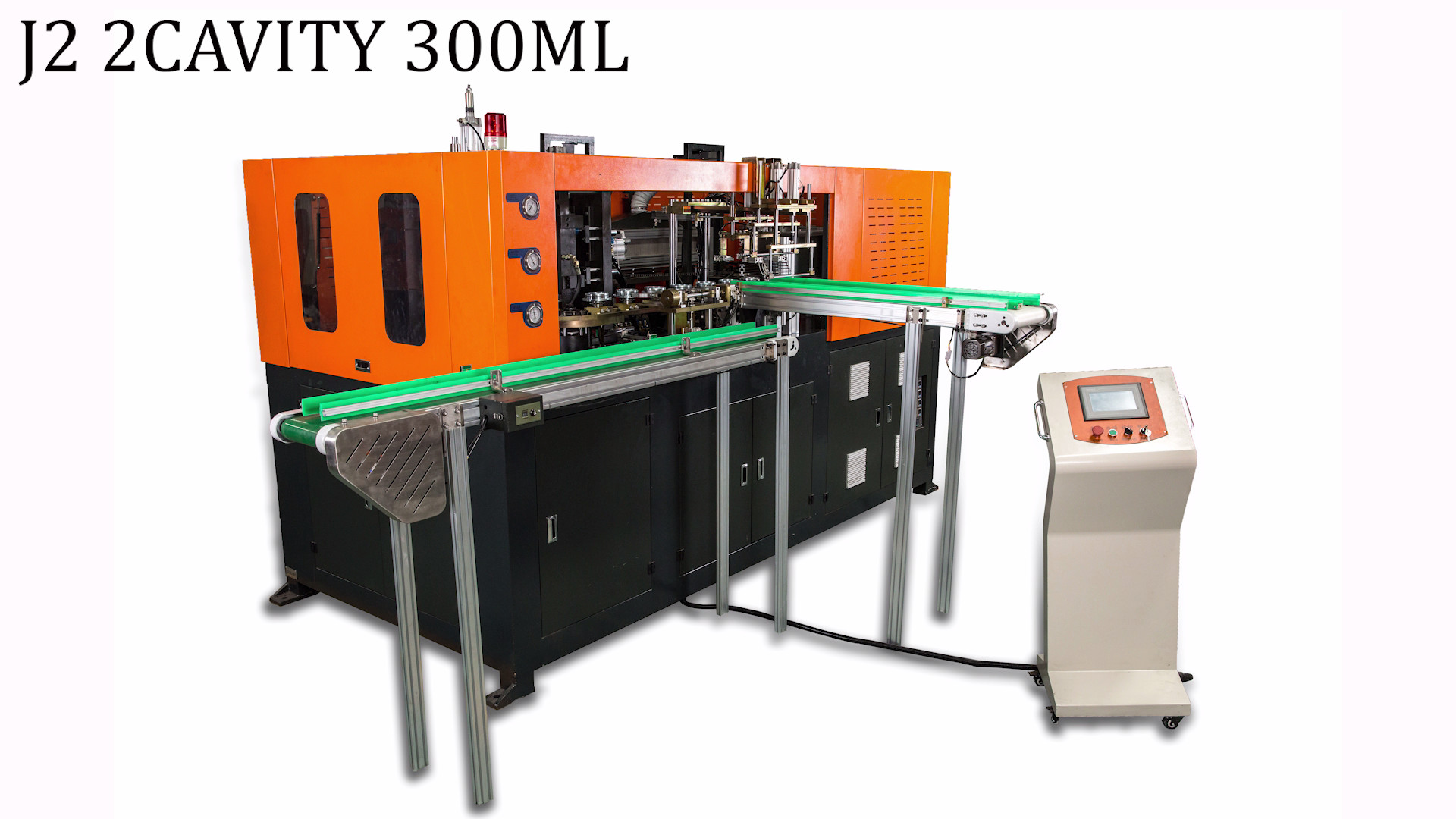

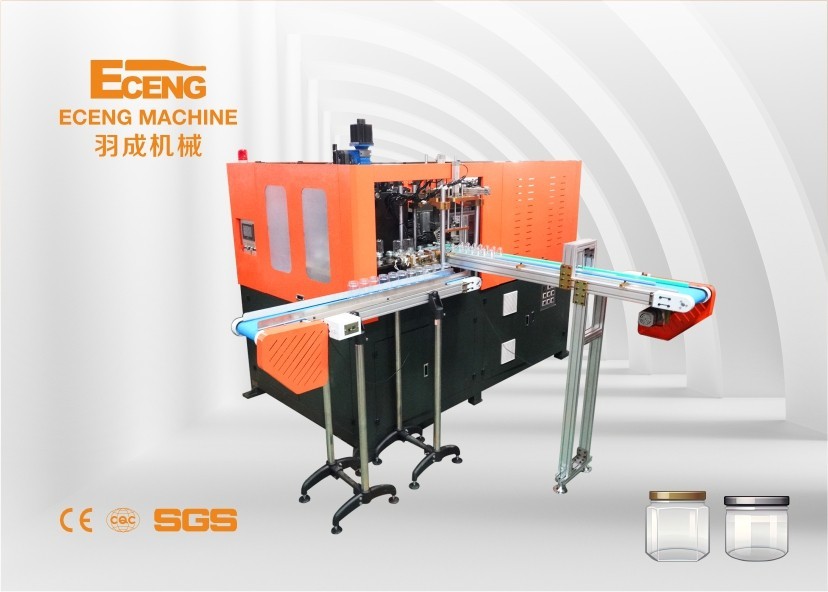

2 Cavity Pet Jar Stretch Blow Molding Machine / Wide Jar Bottle

2 Cavity Pet Jar Stretch Blow Molding Machine / Wide Jar Bottle

2 Cavity Pet Jar Stretch Blow Molding Machine / Wide Jar Bottle
2 Cavity Pet Jar Stretch Blow Molding Machine / Wide Jar Bottle
2 Cavity Pet Jar Stretch Blow Molding Machine / Wide Jar Bottle
Product Details:
Place of Origin: China
Brand Name: eceng
Certification: ce iso
Model Number: J2
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $30,000.00/Sets 1-1 Sets
Packaging Details: wooden package or as your request
Delivery Time: 10sets per month
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8 Set/Sets per Month 6
Contact Now
Detailed Product Description
Plastic Processed: PET Condition: New
Application: Bottle Blow Moulding Type: Stretch Blow Moulding
Voltage: According To Customer's Request Dimension(L*W*H): 4.5x1.6x1.9 (m)
Automation: Automatic Warranty: 1 Year
Warranty Of Core Components: 1 Year Weight: 3.5ton
Power(W): 43kw Automatic: Yes
Color: Blue And Black Production Capacity (BPH): 1300 BPH
Port: Shanghai
High Light:

2 Cavity Stretch Blow Molding Machine

,

1300 BPH Stretch Blow Molding Machine

,

Wide Jar Bottle Blow Molding Machine

J linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. J series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .2 Cavity Pet Jar Stretch Blow Molding Machine / Wide Jar Bottle 0
specification
Item

J2



      Bottle type        specification
Cavity
2

Theory output
1200-1300

Max.volume
5L

Bottle mouth maximum overall DIdiameter
150mm

Bottle biggest diameter
180mm

Bottle maximum height
400mm


Power specifications
Light tube quantity
32pcs

Light tube power
1.5KW

Maximum heating power
48KW

All electric machine installation
51KW

Actual consumption
35.7KW


Air pressure specification
Work pressure
7-9kg/cm2

Low-pressure gas consumption
1600L/min

Blow bottle pressure
25-35kg/cm2

Higher -pressure gas consumption
3400Ltr/min


Forzen water specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
6000kcal/hr

Forzen water flow
50L/min
Machine specification
Size of the machine
4.7x1.6x1.9

Weight of the machine
3ton

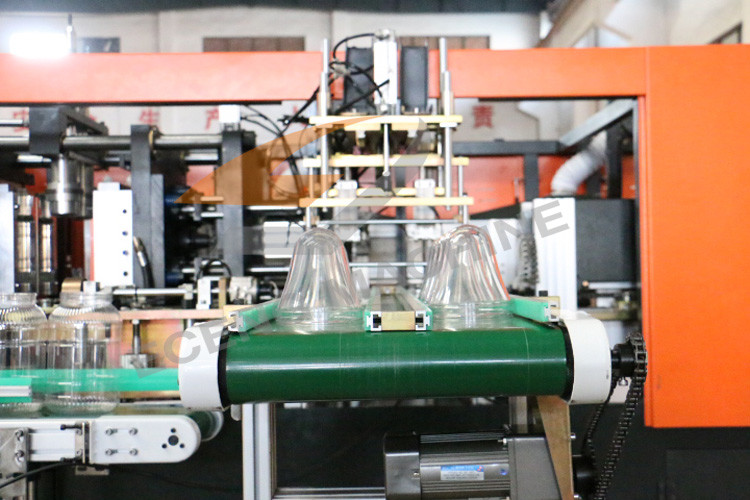

2 Cavity Pet Jar Stretch Blow Molding Machine / Wide Jar Bottle 2
Automatic China PET jar blowing machine J2 is specialized euipment designed for wide neck PET jars.It is high automatically,wide versatility and easy operation.It is especially suitable for the production of neck 50-180mm.J series bottle making machine is precisely positioned and adopts advanced microcomputer PLC control system,which is more stable
Packing&Shipping
2 Cavity Pet Jar Stretch Blow Molding Machine / Wide Jar Bottle 6
After Sales Service
1. Installation, debug We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line. 2. Training Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures. 3. Quality guarantee We promise that our goods quality, specification and function all meet the demand of contract. One year warranty,during warranty period,All parts and components except those damaged by non-human factors are guaranteed free of charge (vulnerable parts are not included). In addition, the seller provides free spare parts and accessories for shipment with the machine. During warranty period ,the equipment is damaged due to incorrect operation bythe buyer,we provide maintenance solutions,the buyer will cover the loss and cost.during warranty period we provide technical service,which is usually solved by telephone,etc.if not,provide door-to-door service.

Exhibition
2 Cavity Pet Jar Stretch Blow Molding Machine / Wide Jar Bottle 10
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
