Good Quality 3L 5L Automatic Pet Blow Making Machine Plastic Jar Blowing Machines

Good Quality 3L 5L Automatic Pet Blow Making Machine Plastic Jar Blowing Machines

Good Quality 3L 5L Automatic Pet Blow Making Machine Plastic Jar Blowing Machines
Good Quality 3L 5L Automatic Pet Blow Making Machine Plastic Jar Blowing Machines
Good Quality 3L 5L Automatic Pet Blow Making Machine Plastic Jar Blowing Machines
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE SGS ISO
Model Number: J5L1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $26,800.00/Sets 1-1 Sets
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Bottle Volume(ml): 5000 Ml
Condition: New Blow Moulding Type: Stretch Blow Moulding
Dimension(L*W*H): 2.25*1.6*1.7m Automation: Automatic
Warranty: 1 Year Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure Vessel

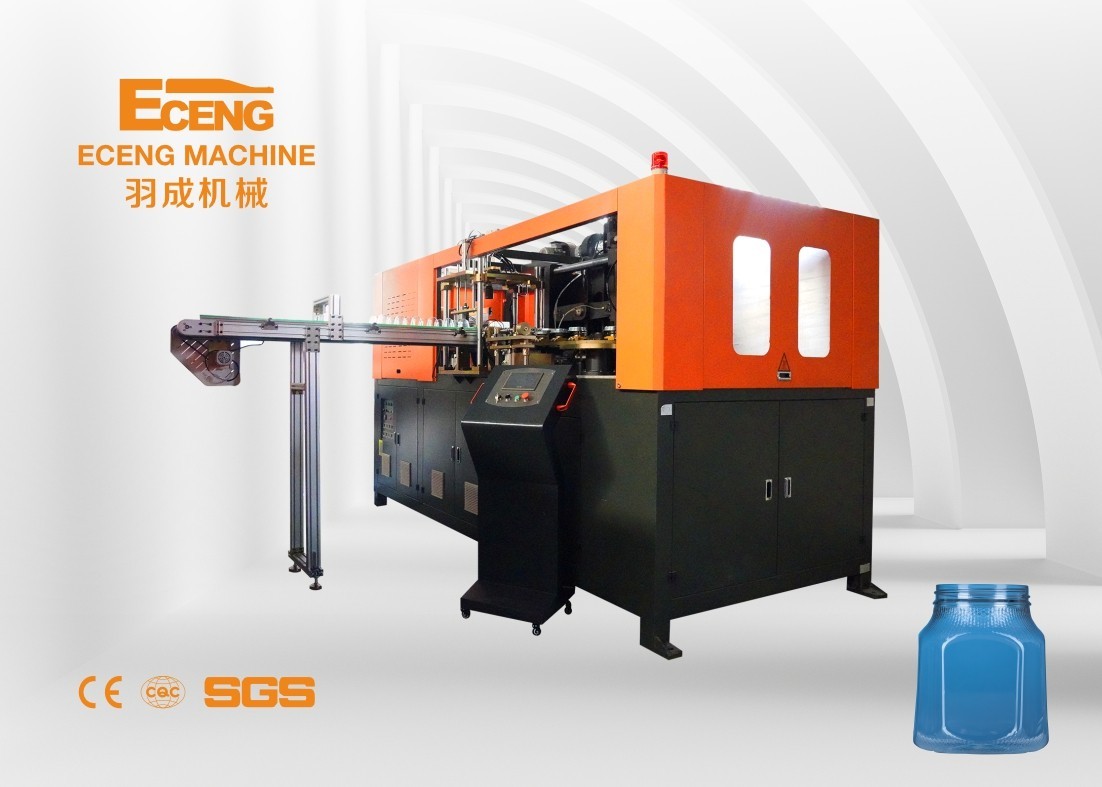

Good Quality 3L 5L Automatic Pet Blow Making Machine Plastic Jar Blowing Machines

Good Quality 3L 5L Automatic Pet Blow Making Machine Plastic Jar Blowing Machines 0

Your Solution for Wide Mouth Bottles!

Experience exceptional quality and efficiency with Eceng J5L1 - the perfect machine for producing wide mouth bottles. This single cavity, 3L, and 5L automatic PET blow making machine is ideal for various products like candies, dried fruits, coffee, nuts, honey, pharmaceuticals, tea, and chocolate sauce.With precise manufacturing and superior packaging quality, Eceng J5L1 ensures your products stand out in the market. Don't miss the opportunity to seize promising market prospects with Eceng J5L1!



Good Quality 3L 5L Automatic Pet Blow Making Machine Plastic Jar Blowing Machines 1

Item J5L1
Bottle type specification Cavity 1
Theory output 700-800
Max.volume 5L
Bottle mouth maximum overall DIdiameter 150mm
Bottle biggest diameter 180mm
Bottle maximum height 400mm
Power specifications Light tube quantity 32pcs
Light tube power 1KW
Maximum heating power 32KW
All electric machine installation 27KW
Actual consumption 19KW
Air pressure specification Work pressure 7-9kg/cm2
Low-pressure gas consumption 1000L/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 1500Ltr/min
Forzen water specification Work pressure 7-9 kg/cm2
Temperature range 10℃
Consumption 2000-2500kcal/hr
Forzen water flow 30L/min
Machine specification Size of the machine 2.4x1.5x1.7
Weight of the machine 2ton

Automatic China PET jar blowing machine J5L1 is specialized euipment designed for wide neck PET jars.It is high automatically,wide versatility and easy operation.
1.Blowing 0.5-5L PET Jar bottle.
2.Durable PLC micro computer controlling system controls time can be accurate to 0.01 seconds.
3.Special recycling installation for high pressure air reduces the energy consumption.
4.The far-infrared heater uses a way of conversion self-rotating heating and the rail revolution makes the heating even,quick and reliable.
5.Every heating lamp has independent temperature control device to get ideal preform heating effect .
6.Particular pre-heater design makes preform close while heating.Change space shorten heating tunnel and reduce energy consumption according to the bottle size while blowing .
7.Simple installation and starting.

Good Quality 3L 5L Automatic Pet Blow Making Machine Plastic Jar Blowing Machines 2

J linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.

J series linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.

6. less than 0.2% scrap rate for finished bottle.

Fully Automatic Water Beverages Bottle Blowing Machine K8 8 Cavitys 16

Good Quality 3L 5L Automatic Pet Blow Making Machine Plastic Jar Blowing Machines 4

Good Quality 3L 5L Automatic Pet Blow Making Machine Plastic Jar Blowing Machines 5



Good Quality 3L 5L Automatic Pet Blow Making Machine Plastic Jar Blowing Machines 6

Good Quality 3L 5L Automatic Pet Blow Making Machine Plastic Jar Blowing Machines 7

Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 36,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging.
So far Eceng machinery have provided more than 2050 sets machines for more than 170 countries in the world.Our equipments are highly estimated by the clients, and are well known at home and abroad.We sincerely hope to establish business relationship with friends all over the world.
Good Quality 3L 5L Automatic Pet Blow Making Machine Plastic Jar Blowing Machines 8Good Quality 3L 5L Automatic Pet Blow Making Machine Plastic Jar Blowing Machines 9

our advantage:1. Resonable price;2. Good after service;3. experienced skilled workers and professional engineers;4. Good quality ,excellent service ,long life mould;5. on time delivery time;6.our engineers can be online for 24 hours to serve you.



Good Quality 3L 5L Automatic Pet Blow Making Machine Plastic Jar Blowing Machines 10

Good Quality 3L 5L Automatic Pet Blow Making Machine Plastic Jar Blowing Machines 11

Good Quality 3L 5L Automatic Pet Blow Making Machine Plastic Jar Blowing Machines 12

FAQ

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
