Plastic Honey Bottle PET Jar Blow Molding Machine 5L Volume

Minimum Order Quantity : 1set Price : $45,000.00/Sets 1-1 Sets
Packaging Details : standard export wooden case or according to your requirements Delivery Time : 45days
Payment Terms : L/C, T/T, Western Union Supply Ability : 10 Set/Sets per Month
Place of Origin: China Brand Name: eceng
Certification: CE ISO SGS, CE Model Number: J2

Detail Information

Plastic Processed: PET Condition: New
Application: Bottle Blow Moulding Type: Stretch Blow Moulding
Voltage: 380V,50HZ Dimension(L*W*H): 4.5x1.6x1.9 (m)
Hollow Part Volume: 1l-3l High Pressure Valve Brand: SMC
Rotary Cylinder Brand: SMC PLC Brand: XINJIE
Power (kW): 48 Weight (KG): 3000
Automation: Automatic Warranty: 1 Year
Key Selling Points: Automatic Applicable Industries: Food & Beverage Factory
Cavity: 2 Color: Orange
Port: Shanghai
High Light:

honey bottle PET Jar Blow Molding Machine


plastic bottle molding machine 5L


plastic bottle molding machine 5L

Product Description

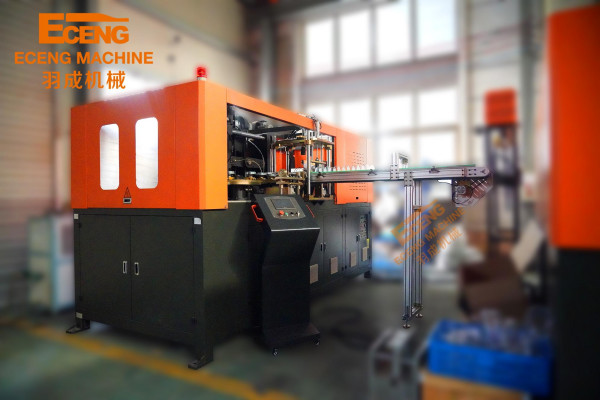

new generation jar honey bottle PET plastic bottle blowing machinePlastic Honey Bottle PET Jar Blow Molding Machine 5L Volume 0

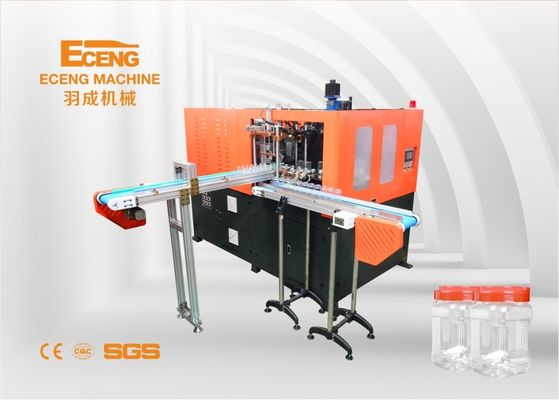

 Plastic Honey Bottle PET Jar Blow Molding Machine 5L Volume 2

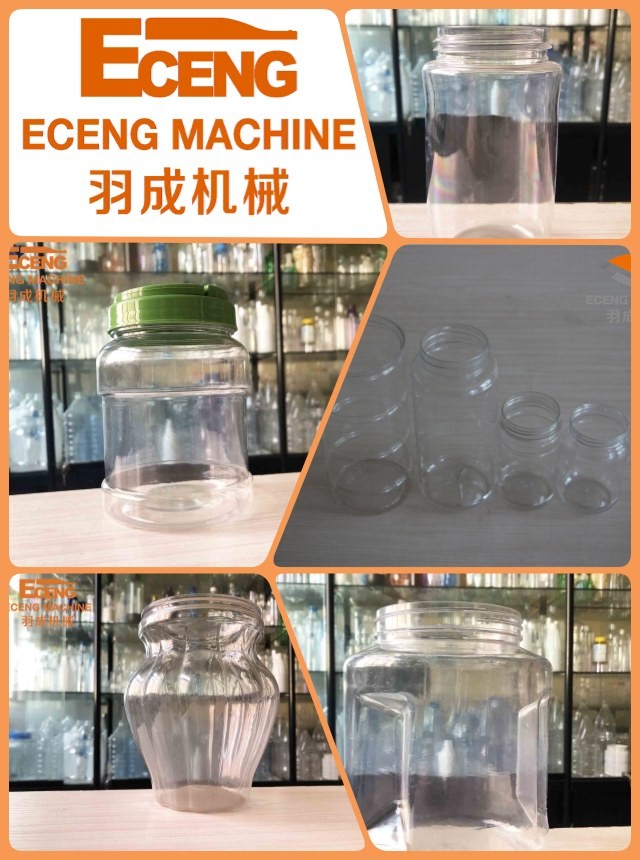

Plastic Honey Bottle PET Jar Blow Molding Machine 5L Volume 4

J series blow moulding machine is a specialized equipment designed for large-diameter PET bottles,with features of high automation,wide versatility,and easy operation.It is especially suitable for the production and processing of large-diameter 50-180mm.J series bottle making machine is precisely positioned and adopts advanced microcomputer PLC control system, which can be more stable.


1.Strong versatility,suitable for 50-180mm diameter,high automatic degree,suitable for preform loading of jar bottle,automatically unloading the bottle.

2.One worker can control two to three machines,high output,can be equipped with all-electric stretching and mould clamping.

3.High heat penetration and preform rotation by itself,making preform subject to even heat during preheating process.

4.Safe, reliable and unique valve position design makes blowing process easier to control

5.Safety locking device in every mechanical action to protect operator's safety.

6.Advanced automatic process flow with low cost,high efficiency,easy operation and easy maintenance.

7.With both automatic and manual operation method.

8.Use different air pressure for blowing and machine operation, energy saving and environmental protection.

9.Easy to install and start, low scrap rate.

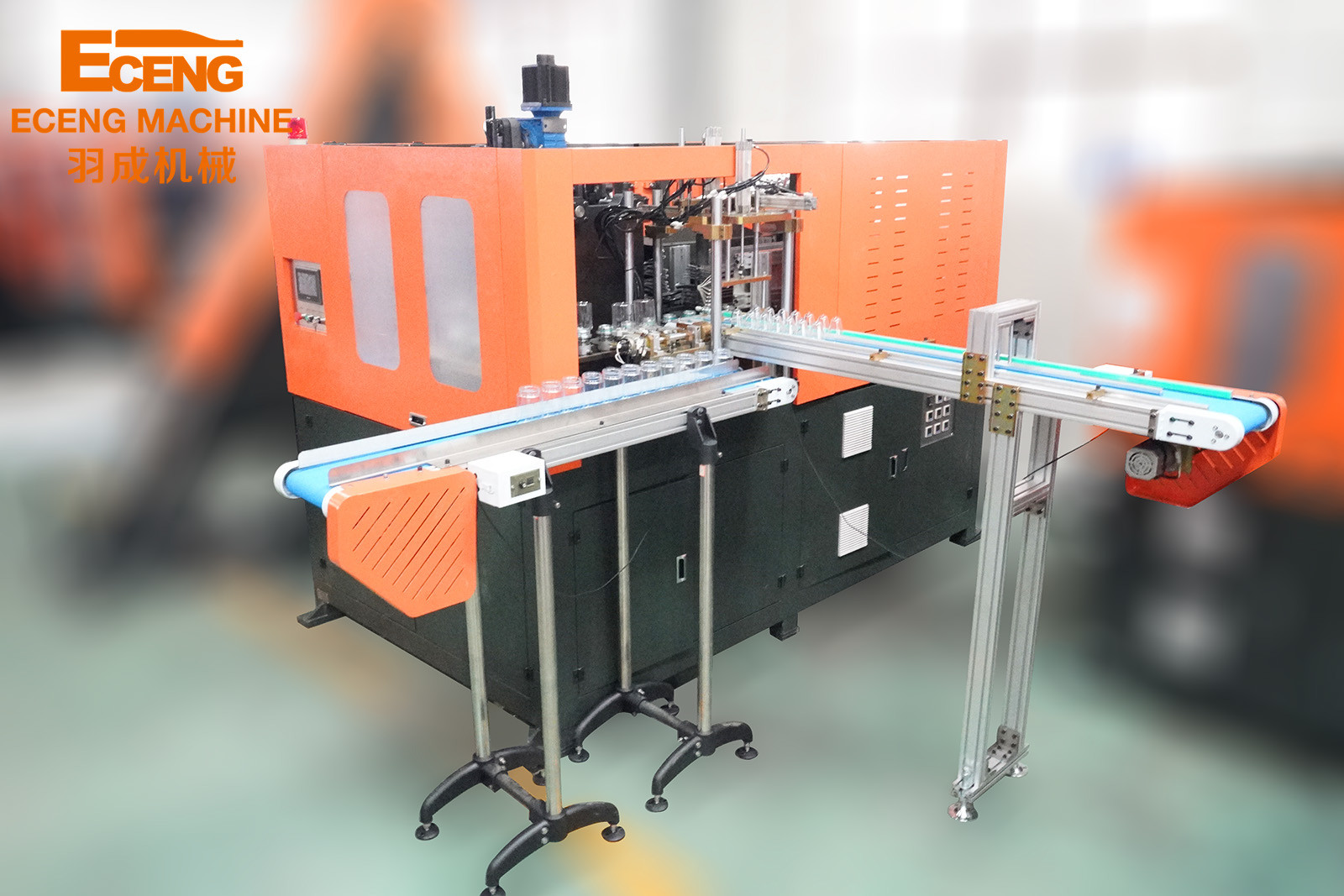

Plastic Honey Bottle PET Jar Blow Molding Machine 5L Volume 6




Bottle type specification



Theory output




Bottle mouth maximum overall DIdiameter


Bottle biggest diameter


Bottle maximum height


Power specifications

Light tube quantity


Light tube power


Maximum heating power


All electric machine installation


Actual consumption


Air pressure specification

Work pressure


Low-pressure gas consumption


Blow bottle pressure


Higher -pressure gas consumption


Forzen water specification

Work pressure

5-6 kg/cm2

Temperature range




Forzen water flow


Machine specification

Size of the machine


Weight of the machine

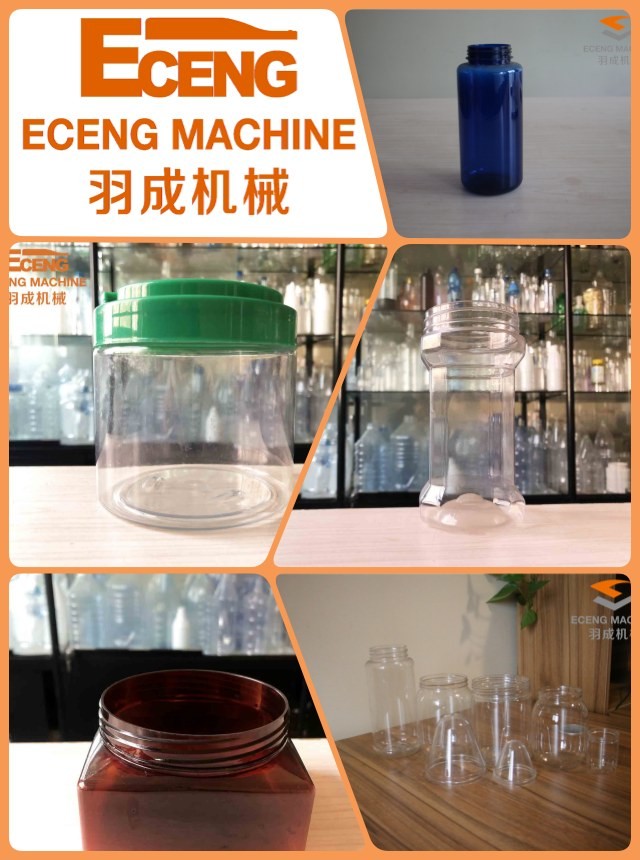

Plastic Honey Bottle PET Jar Blow Molding Machine 5L Volume 8

Edible oil PET bottle blowing machine is a two-step automatic blowing equipment specially developed for blowing 5 liters of edible oil bottles, which can meet customers' demands for large-capacity, high-speed, fully automated production.


Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.


Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.


J linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.

Plastic Honey Bottle PET Jar Blow Molding Machine 5L Volume 10


Plastic Honey Bottle PET Jar Blow Molding Machine 5L Volume 12Plastic Honey Bottle PET Jar Blow Molding Machine 5L Volume 14

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
