Blow your bottle, Shape your dream

|
| Place of Origin: | China |
| Brand Name: | eceng |
| Certification: | CE ISO |
| Model Number: | j2 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | standard export wooden case or according to your requirements |
| Delivery Time: | 45days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 Set/Sets per Month |
| Plastic Processed: | PET | Max.Bottle Height(mm): | 400 Mm |
|---|---|---|---|
| Neck Diameter(mm): | 150 Mm | Max.Bottle Diameter(mm): | 180 Mm |
| Bottle Volume(ml): | 5000 Ml | Blow Moulding Type: | Stretch Blow Moulding |
| Voltage: | 380V,50HZ | Dimension(L*W*H): | 4.5x1.6x1.9 (m) |
| Applicable Industries: | Food & Beverage Factory | ||
| Highlight: | 48kw PET Jar Blow Molding Machine,48kw automatic pet blowing machine,automatic pet blowing machine bottle mouth 150mm |
||

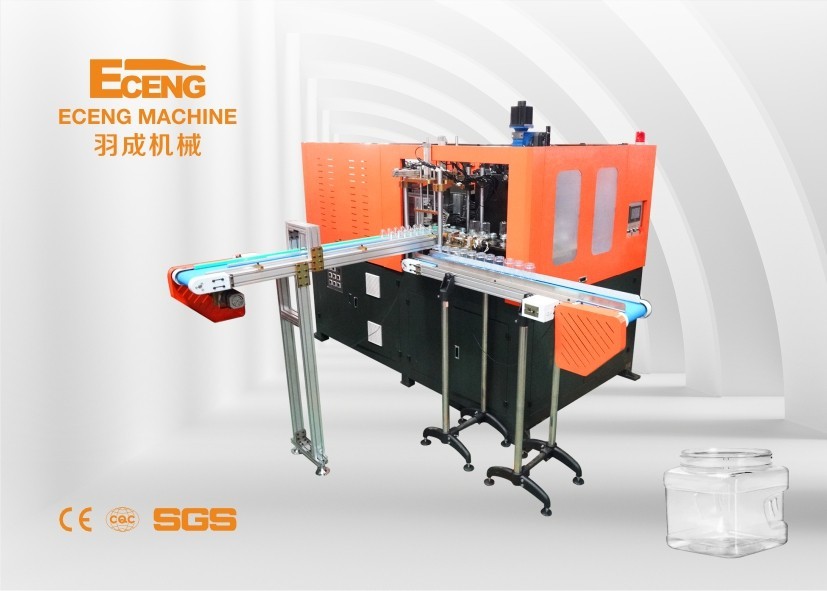

Product Photo
Main Features
Automatic China PET jar blowing machine J2 is specialized euipment designed for wide neck PET jars.It is high automatically,wide versatility and easy operation.It is especially suitable for the production of neck 50-180mm.J series bottle making machine is precisely positioned and adopts advanced microcomputer PLC control system,which is more stable.
One worker can control two or three machines.Labor cost saved.
1.Strong versatility,suitable for 50-180mm diameter,high automatic degree,suitable for preform loading of jar bottle,automatically unloading the bottle.
2.One worker can control two to three machines,high output,can be equipped with all-electric stretching and mould clamping.
3.High heat penetration and preform rotation by itself,making preform subject to even heat during preheating process.
4.Safe, reliable and unique valve position design makes blowing process easier to control
5.Safety locking device in every mechanical action to protect operator's safety.
6.Advanced automatic process flow with low cost,high efficiency,easy operation and easy maintenance.
7.With both automatic and manual operation method.
8.Use different air pressure for blowing and machine operation, energy saving and environmental protection.
9.Easy to install and start, low scrap rate.
Product Parameters
|
Item |
J2 |
|
|
Bottle type specification |
Cavity |
2 |
|
Theory output |
1200-1300 |
|
|
Max.volume |
5L |
|
|
Bottle mouth maximum overall DIdiameter |
150mm |
|
|
Bottle biggest diameter |
180mm |
|
|
Bottle maximum height |
400mm |
|
|
Power specifications |
Light tube quantity |
32pcs |
|
Light tube power |
1.5KW |
|
|
Maximum heating power |
48KW |
|
|
All electric machine installation |
51KW |
|
|
Actual consumption |
35.7KW |
|
|
Air pressure specification |
Work pressure |
7-9kg/cm2 |
|
Low-pressure gas consumption |
1600L/min |
|
|
Blow bottle pressure |
25-35kg/cm2 |
|
|
Higher -pressure gas consumption |
3400Ltr/min |
|
|
Forzen water specification |
Work pressure |
5-6 kg/cm2 |
|
Temperature range |
10℃ |
|
|
Consumption |
6000kcal/hr |
|
|
Forzen water flow |
50L/min |
|
|
Machine specification |
Size of the machine |
4.7x1.6x1.9 |
|
Weight of the machine |
3ton |
|
Product Details
1,Edible oil PET bottle blowing machine is a two-step automatic blowing equipment specially developed for blowing 5 liters of edible oil bottles, which can meet customers' demands for large-capacity, high-speed, fully automated production.
2,Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

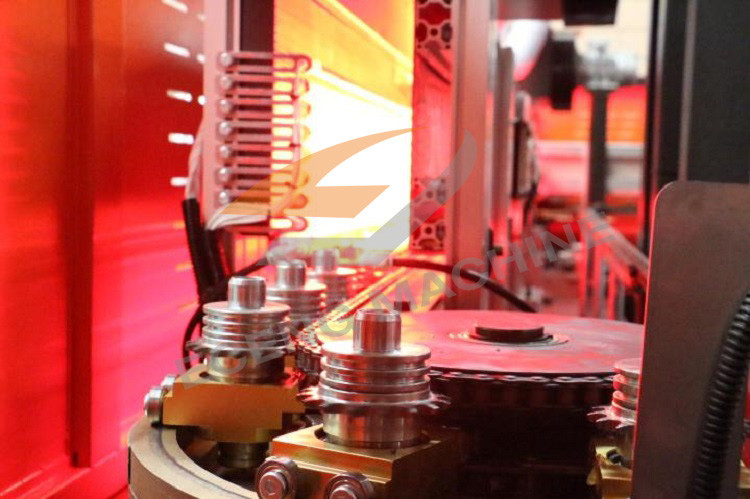

3,Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.
4,J linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.
