Plastic Bottle Stretch Blowing Molding Machine High Speed Semi Auto PET Slender

Plastic Bottle Stretch Blowing Molding Machine High Speed Semi Auto PET Slender

  • High Light

    Plastic Bottle Stretch Blowing Molding Machine

    ,

    PET Slender Stretch Blowing Molding Machine

    ,

    100KN Stretch Blowing Molding Machine

  • Plastic Processed
    PET
  • Condition
    New
  • Application
    Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Voltage
    380V, 50HZ, 3PHASE
  • Hollow Part Volume
    2l
  • Weight (KG)
    650 KG
  • Automation
    Semi-automatic
  • Key Selling Points
    Easy To Operate
  • Machinery Test Report
    Provided
  • Video Outgoing-inspection
    Provided
  • Warranty Of Core Components
    1 Year
  • Automatic
    Yes
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE,ISO
  • Model Number
    YC-2L-4
  • Minimum Order Quantity
    1 SET
  • Price
    $6,000.00 - $8,000.00/Sets
  • Packaging Details
    Wooden package
  • Delivery Time
    10sets per month
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    20 Set/Sets per Month

Plastic Bottle Stretch Blowing Molding Machine High Speed Semi Auto PET Slender

Eceng High Speed Semi automatic PET Slender plastic bottle making stretch Blow Blowing molding machine price

Plastic Bottle Stretch Blowing Molding Machine High Speed Semi Auto PET Slender 0Plastic Bottle Stretch Blowing Molding Machine High Speed Semi Auto PET Slender 2Plastic Bottle Stretch Blowing Molding Machine High Speed Semi Auto PET Slender 4



Plastic Bottle Stretch Blowing Molding Machine High Speed Semi Auto PET Slender 6

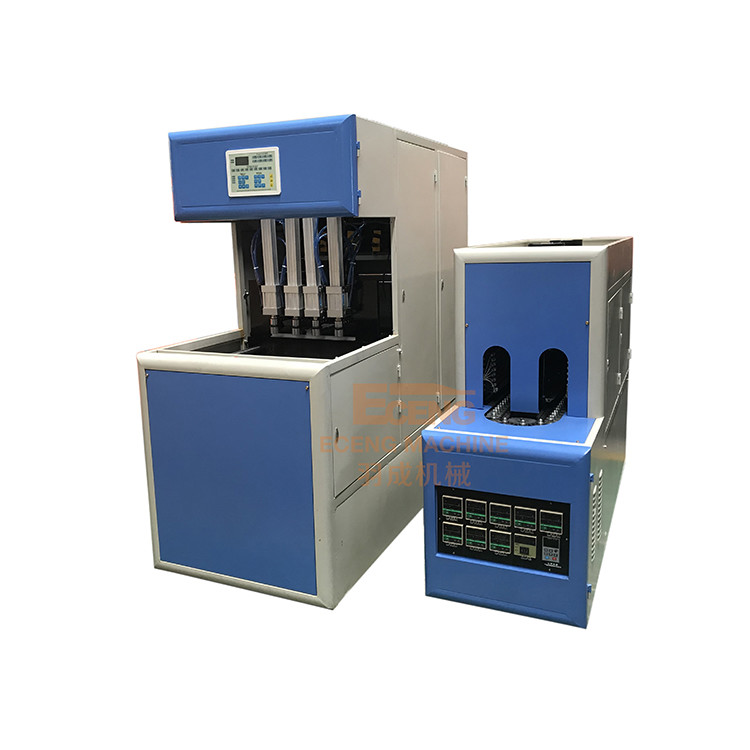

YC series Plastic making Top quality useful semi automatic pet blowing machinery is controlled by microcomputer. The plastic blowing machine can control the technical parameters more accurately.With the upper and lower system,emergency stop system,independent counter device,count the output accurately.With infrared lamp heating device,penetrating power, preform rotation heating, heating evenly and quickly.YC series semi-automatic plastic bottle blowing machine is suitable for blowing plastic PET bottles such as carbonated beverage bottles,mineral water bottles, cosmetic bottles and hot filling bottles etc.

Plastic Bottle Stretch Blowing Molding Machine High Speed Semi Auto PET Slender 8





Main machine  (blower + oven)

Item

YC-2L-4

Product Spec

Max. product volume(L/cav)

2L

Max. preform neck size(mm)

100

Max. product diameter(mm)

180

Max. product height (mm)

300

Cavities

4

Blow molding part

Die force (KN)

100

Die stroke (mm)

270

Max. mould size(mm)

390*345

Mould thickness

Adjustable

Mould spacing(mm)

Adjustable

Max. pulling stroke(mm)

400

Operation pressure(Mpa)

0.8-1.0

Operation air pressure consumption

(1tr/min)

200

Blow pressure(Mpa)

1.2-2.8

Blow air pressure consumption (1tr/min)

300

Output(pcs/h)

2600-2800(500ml bottle)

Machine size(LxWxH)(m)

1.46*0.58*1.8

Machine weight(KG)

650

Oven

Temperature grade(rate)

8

Heating time(S)

90-200

Voltage(V)

220 or as your request

Frequency(HZ)

50/60

Total power(KW)

16

Oven Size (LxWxH)

1.35*0.55*1.15

Oven weight (KG)

300





YC series semi-automatic bottle blowing machine is controlled by microcomputer,control the technical parameters more accurately.PET bottle blowing machine is simple and safe to operate.It only requires one person and does not require special training.YC series PET blow molding machine is suitable for blow molding of plastic packaging bottles such as carbonated beverage bottles, mineral water bottles, hot filling bottles and cosmetic bottles. It is suitable for the production of small beverage companies and daily chemical product companies.

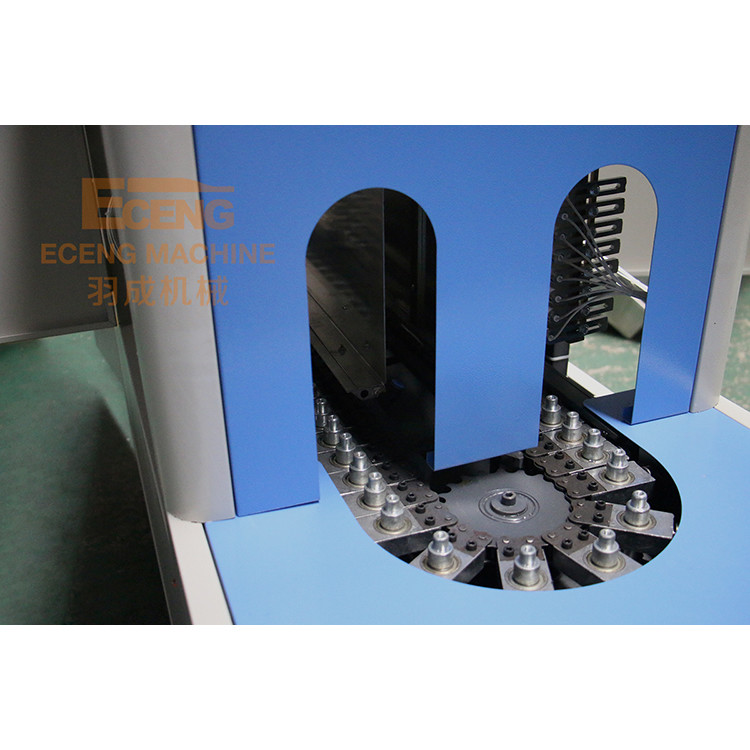

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

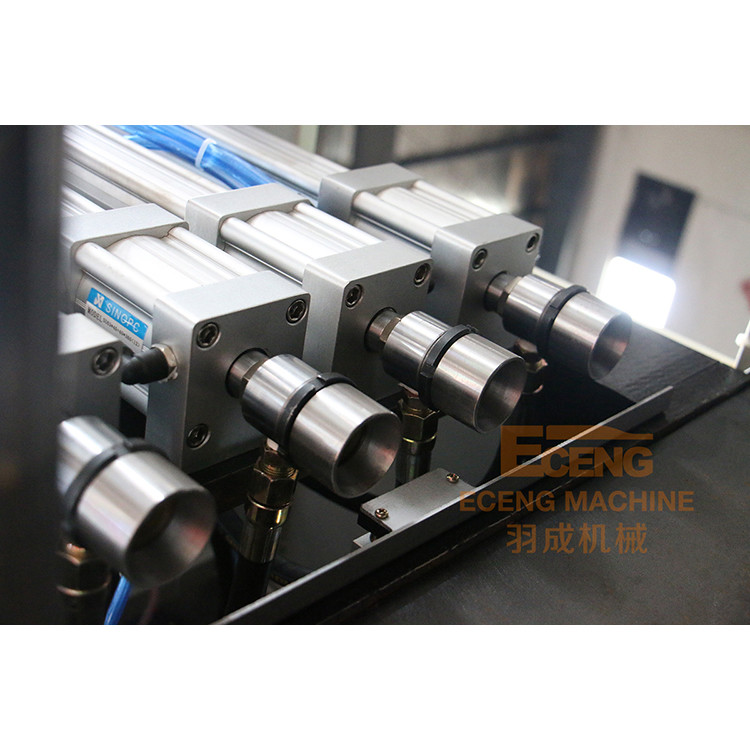

Specially designed high rigidity composite mold structure, wide applicability, suitable for various types of mold thickness, easy to adjust and save energy, less air demand, precision polished spindle, equipped with photoelectric sensor, low noise,rapid response, long working hours , stable performance,ensure stable operation.

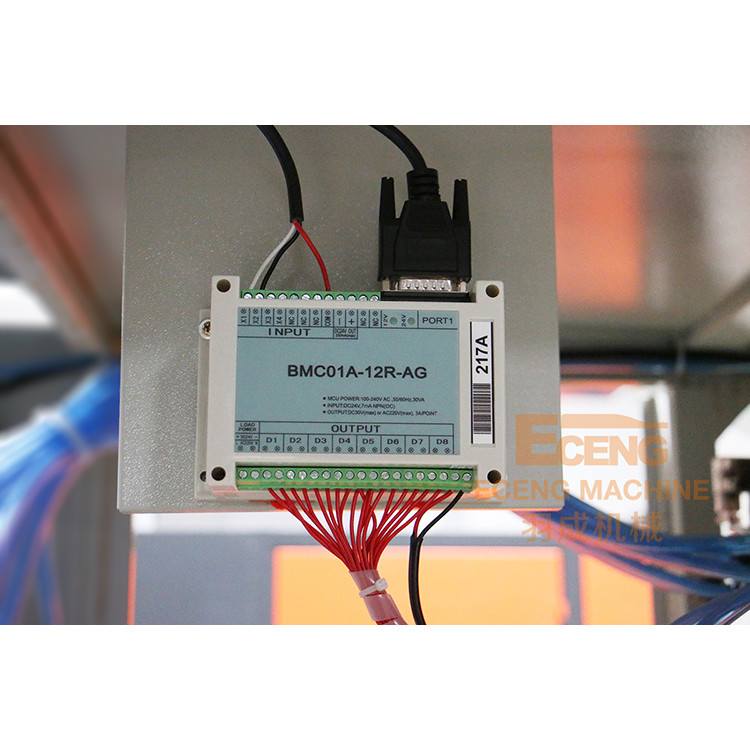

YC linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.






Plastic Bottle Stretch Blowing Molding Machine High Speed Semi Auto PET Slender 11Plastic Bottle Stretch Blowing Molding Machine High Speed Semi Auto PET Slender 13
