PET Food Can Blow Moulding Machine Stretch Plastic Bottles 2L Semi Automatic

PET Food Can Blow Moulding Machine Stretch Plastic Bottles 2L Semi Automatic

  • PET Food Can Blow Moulding Machine Stretch Plastic Bottles 2L Semi Automatic
  • PET Food Can Blow Moulding Machine Stretch Plastic Bottles 2L Semi Automatic
  • PET Food Can Blow Moulding Machine Stretch Plastic Bottles 2L Semi Automatic
  • PET Food Can Blow Moulding Machine Stretch Plastic Bottles 2L Semi Automatic
  • PET Food Can Blow Moulding Machine Stretch Plastic Bottles 2L Semi Automatic
  • PET Food Can Blow Moulding Machine Stretch Plastic Bottles 2L Semi Automatic
  • PET Food Can Blow Moulding Machine Stretch Plastic Bottles 2L Semi Automatic
PET Food Can Blow Moulding Machine Stretch Plastic Bottles 2L Semi Automatic
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE,ISO
Model Number: YC-2L-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $3,000.00 - $4,000.00/Sets
Packaging Details: Wooden package
Delivery Time: 10sets per month
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Set/Sets per Month
Contact Now
Detailed Product Description
Plastic Processed: PET Bottle Volume(ml): 2000 Ml
Condition: New Application: Bottle
Hollow Part Volume: 2l Automation: Semi-automatic
Key Selling Points: Easy To Operate Warranty Of Core Components: 1 Year
Color: Orange Name: Semi Automatic Pet Bottle Blowing Machine
Power(W): 16KW Weight: 650Kg
Port: Shanghai
High Light:

PET Food Can Blow Moulding Machine

,

Stretch Plastic Bottles Blow Moulding Machine

,

2L Bottles Blow Moulding Machine

Product Description

Eceng Semi automatic PET Bottle Food can Blow moulding Machine Stretch BLower plastic bottles blowing machinery 2L

PET Food Can Blow Moulding Machine Stretch Plastic Bottles 2L Semi Automatic 0

YC series Plastic making Top quality useful semi automatic pet blowing machinery is controlled by microcomputer. The plastic blowing machine can control the technical parameters more accurately.With the upper and lower system,emergency stop system,independent counter device,count the output accurately.With infrared lamp heating device,penetrating power, preform rotation heating, heating evenly and quickly.YC series semi-automatic plastic bottle blowing machine is suitable for blowing plastic PET bottles such as carbonated beverage bottles,mineral water bottles, cosmetic bottles and hot filling bottles etc.

PET Food Can Blow Moulding Machine Stretch Plastic Bottles 2L Semi Automatic 2





Main machine  (blower + oven)

Item

YC-2L-2

Product Spec

Max. product volume(L/cav)

2L

Max. preform neck size(mm)

100

Max. product diameter(mm)

180

Max. product height (mm)

300

Cavities

2

Blow molding part

Die force (KN)

100

Die stroke (mm)

270

Max. mould size(mm)

390*345

Mould thickness

Adjustable

Mould spacing(mm)

Adjustable

Max. pulling stroke(mm)

400

Operation pressure(Mpa)

0.8-1.0

Operation air pressure consumption

(1tr/min)

200

Blow pressure(Mpa)

1.2-2.8

Blow air pressure consumption (1tr/min)

300

Output(pcs/h)

800

Machine size(LxWxH)(m)

1.46*0.58*1.8

Machine weight(KG)

650

Oven

Temperature grade(rate)

8

Heating time(S)

90-200

Voltage(V)

220 or as your request

Frequency(HZ)

50/60

Total power(KW)

16

Oven Size (LxWxH)

1.35*0.55*1.15

Oven weight (KG)

300



PET Food Can Blow Moulding Machine Stretch Plastic Bottles 2L Semi Automatic 4PET Food Can Blow Moulding Machine Stretch Plastic Bottles 2L Semi Automatic 6

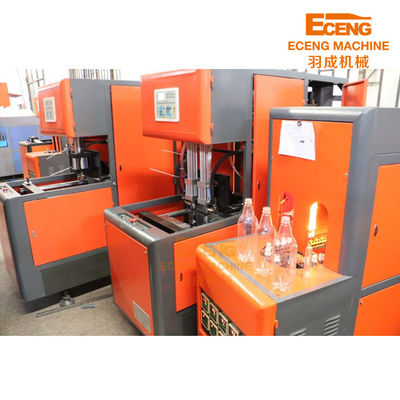

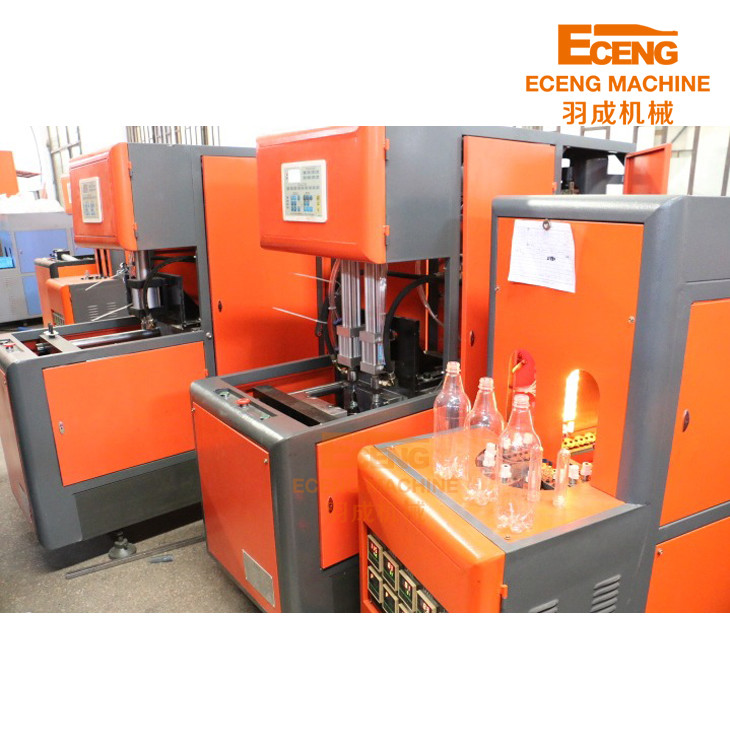

YC series semi-automatic bottle blowing machine is controlled by microcomputer,control the technical parameters more accurately.PET bottle blowing machine is simple and safe to operate.It only requires one person and does not require special training.YC series PET blow molding machine is suitable for blow molding of plastic packaging bottles such as carbonated beverage bottles, mineral water bottles, hot filling bottles and cosmetic bottles. It is suitable for the production of small beverage companies and daily chemical product companies.

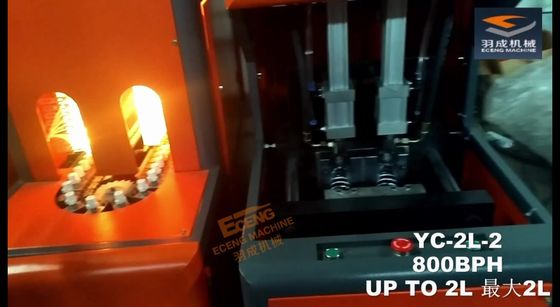

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

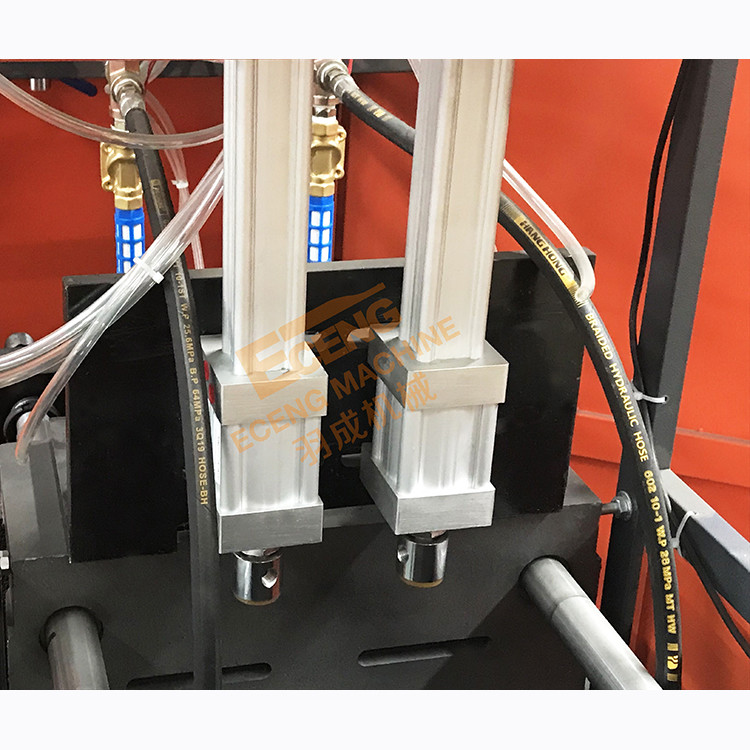

Specially designed high rigidity composite mold structure, wide applicability, suitable for various types of mold thickness, easy to adjust and save energy, less air demand, precision polished spindle, equipped with photoelectric sensor, low noise,rapid response, long working hours , stable performance,ensure stable operation.

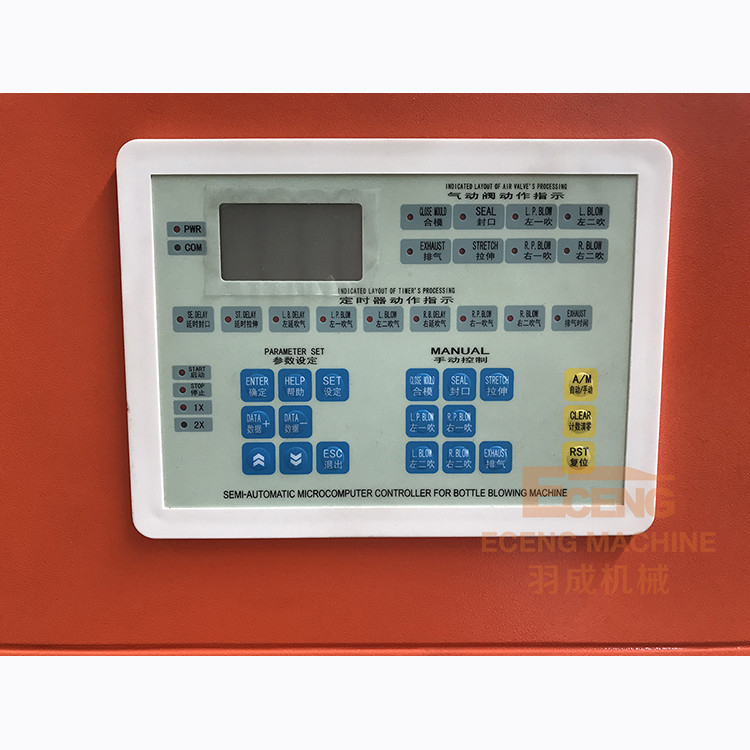

YC linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.






PET Food Can Blow Moulding Machine Stretch Plastic Bottles 2L Semi Automatic 9PET Food Can Blow Moulding Machine Stretch Plastic Bottles 2L Semi Automatic 11

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied firstly
