16KW Semi Auto Bottle Blowing Machine 200ml 500ml 1 Litre Blow Moulding

16KW Semi Auto Bottle Blowing Machine 200ml 500ml 1 Litre Blow Moulding

  • High Light

    16KW Semi Auto Bottle Blowing Machine

    ,

    200ml 500ml 1 litre blow moulding machine

    ,

    16KW 1 litre blow moulding machine

  • Plastic Processed
    PET
  • Max.Bottle Height(mm)
    400 Mm
  • Neck Diameter(mm)
    150 Mm
  • Max.Bottle Diameter(mm)
    200 Mm
  • Bottle Volume(ml)
    5000 Ml
  • Condition
    New
  • Application
    Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Voltage
    380V, 50HZ, 3PHASE
  • Dimension(L*W*H)
    1.56*0.7*1.9(m)
  • Hollow Part Volume
    5L
  • Weight (KG)
    700 KG
  • Automation
    Semi-automatic
  • Warranty
    1 Year, One Year
  • Key Selling Points
    Easy To Operate
  • Applicable Industries
    Food & Beverage Factory
  • Marketing Type
    Hot Product 2019
  • Machinery Test Report
    Provided
  • Video Outgoing-inspection
    Provided
  • Warranty Of Core Components
    1 Year
  • Automatic
    Yes
  • Color
    Yellow
  • Power(W)
    16KW
  • Weight
    1030Kg
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE,ISO
  • Model Number
    YC-5L-1
  • Minimum Order Quantity
    1set
  • Price
    $6,000.00 - $8,000.00/Sets
  • Packaging Details
    Wooden package
  • Delivery Time
    10days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    20 Set/Sets per Month

16KW Semi Auto Bottle Blowing Machine 200ml 500ml 1 Litre Blow Moulding

Eceng low price 50ml 100ml 200ml 500ml 1L 2L 5L semi automatic pet water bottle making stretch blowing blow moulding mac

Eceng Plastic Yogurt Bottle Cold Drink Making Semi-Automatic Pet Blowing Machine 5L

 16KW Semi Auto Bottle Blowing Machine 200ml 500ml 1 Litre Blow Moulding 016KW Semi Auto Bottle Blowing Machine 200ml 500ml 1 Litre Blow Moulding 216KW Semi Auto Bottle Blowing Machine 200ml 500ml 1 Litre Blow Moulding 4

16KW Semi Auto Bottle Blowing Machine 200ml 500ml 1 Litre Blow Moulding 6

Semi automatic 5L liter pet water bottle  bottol makeing making blowing machine

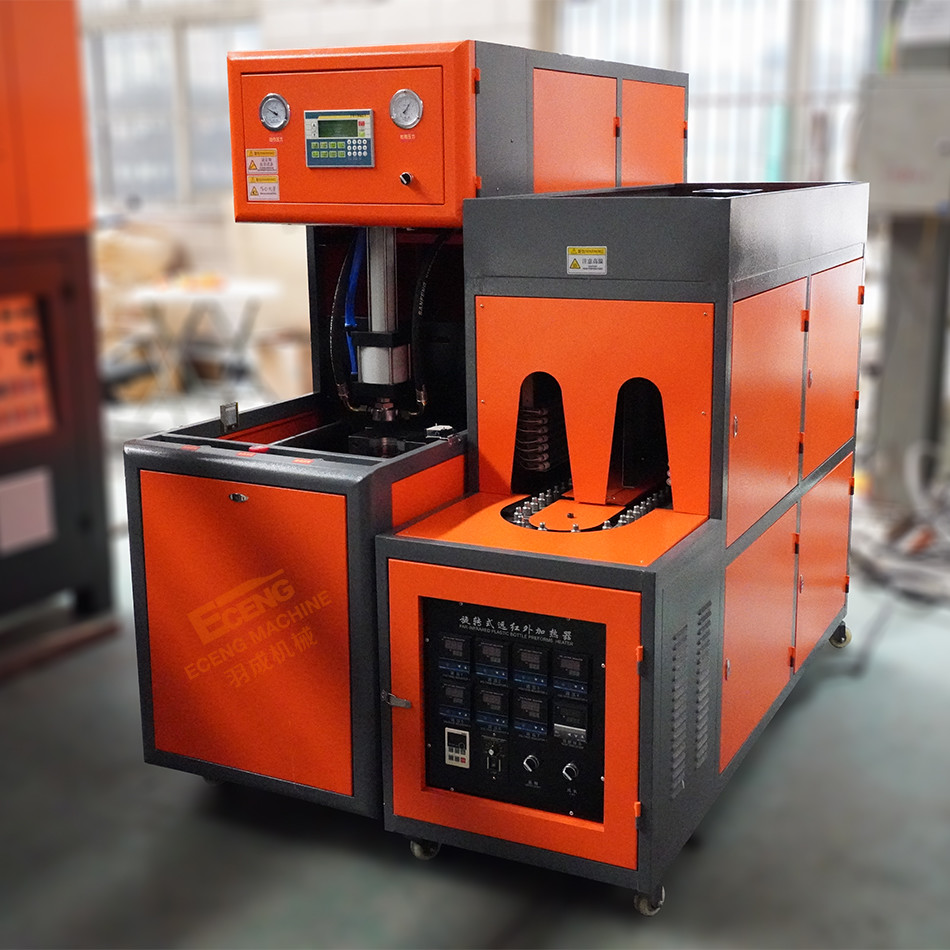

YC series Plastic making Top quality useful semi automatic pet blowing machinery is controlled by microcomputer. The plastic blowing machine can control the technical parameters more accurately.With the upper and lower system,emergency stop system,independent counter device,count the output accurately.With infrared lamp heating device,penetrating power, preform rotation heating, heating evenly and quickly.YC series semi-automatic plastic bottle blowing machine is suitable for blowing plastic PET bottles such as carbonated beverage bottles,mineral water bottles, cosmetic bottles and hot filling bottles etc.

16KW Semi Auto Bottle Blowing Machine 200ml 500ml 1 Litre Blow Moulding 8





Main machine  (blower + oven)

Item

YC-5L-1

Product Spec

Max. product volume(L/cav)

5L

Max. preform neck size(mm)

150

Max. product diameter(mm)

200

Max. product height (mm)

400

Cavities

1

Blow molding part

Die force (KN)

120

Die stroke (mm)

320

Max. mould size(mm)

390*350

Mould thickness

Adjustable

Mould spacing(mm)

Adjustable

Max. pulling stroke(mm)

500

Operation pressure(Mpa)

0.8-1.0

Operation air pressure consumption

(1tr/min)

350

Blow pressure(Mpa)

1.2-2.8

Blow air pressure consumption (1tr/min)

300

Output(pcs/h)

350(5L bottle)

Machine size(LxWxH)(m)

1.56*0.7*1.9

Machine weight(KG)

700

Oven

Temperature grade(rate)

8

Heating time(S)

90-200

Voltage(V)

220 or as your request

Frequency(HZ)

50/60

Total power(KW)

16

Oven Size (LxWxH)

1.45*0.65*1.15

Oven weight (KG)

330

16KW Semi Auto Bottle Blowing Machine 200ml 500ml 1 Litre Blow Moulding 10

16KW Semi Auto Bottle Blowing Machine 200ml 500ml 1 Litre Blow Moulding 12

YC series semi-automatic bottle blowing machine is controlled by microcomputer,control the technical parameters more accurately.PET bottle blowing machine is simple and safe to operate.It only requires one person and does not require special training.YC series PET blow molding machine is suitable for blow molding of plastic packaging bottles such as carbonated beverage bottles, mineral water bottles, hot filling bottles and cosmetic bottles. It is suitable for the production of small beverage companies and daily chemical product companies.

 16KW Semi Auto Bottle Blowing Machine 200ml 500ml 1 Litre Blow Moulding 14

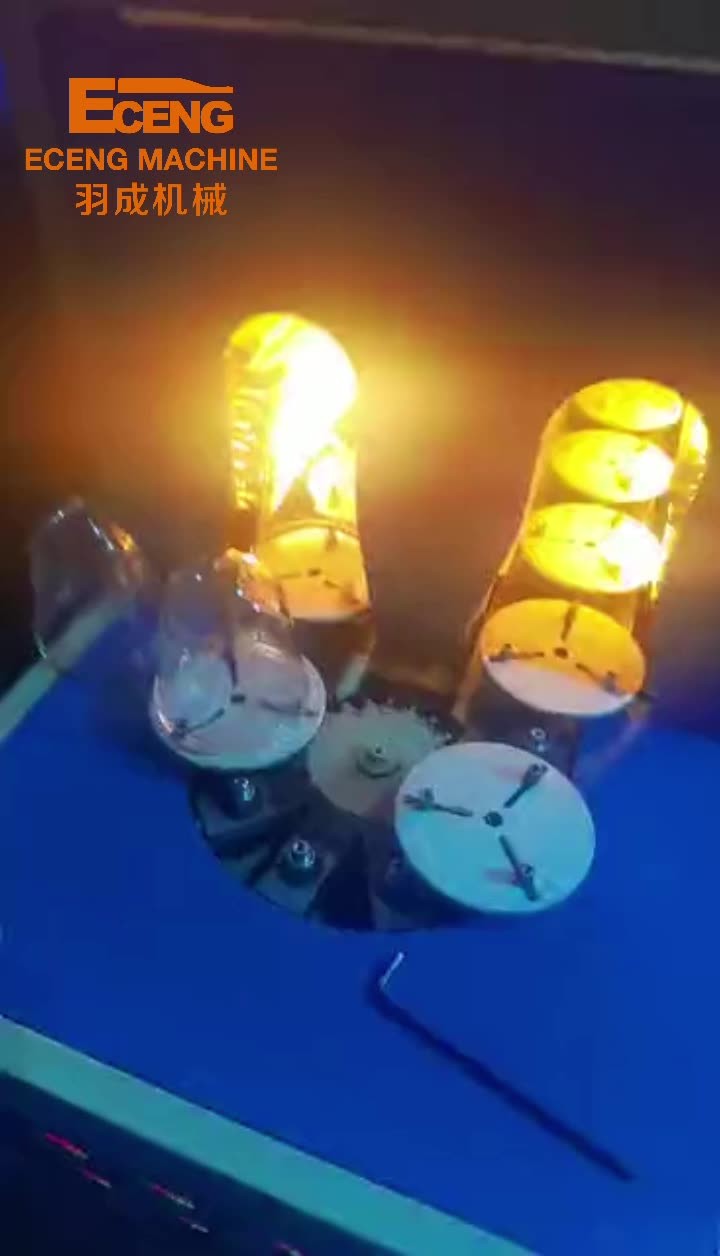

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

 16KW Semi Auto Bottle Blowing Machine 200ml 500ml 1 Litre Blow Moulding 16

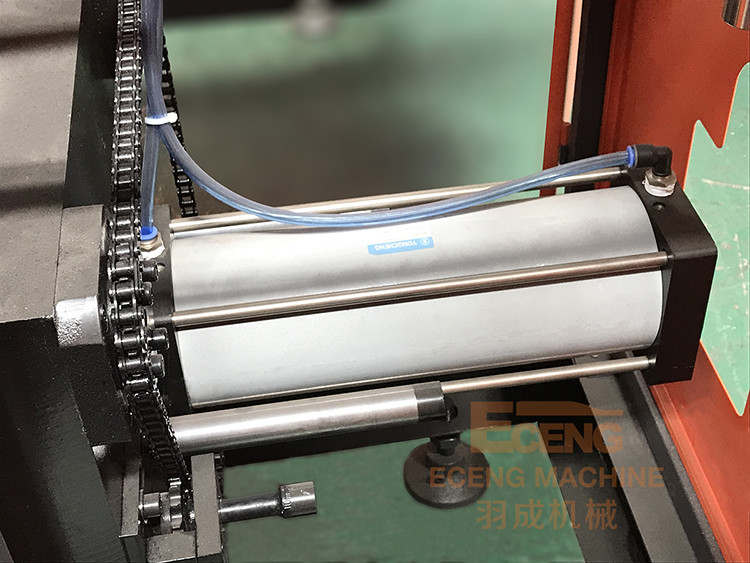

Specially designed high rigidity composite mold structure, wide applicability, suitable for various types of mold thickness, easy to adjust and save energy, less air demand, precision polished spindle, equipped with photoelectric sensor, low noise,rapid response, long working hours , stable performance,ensure stable operation.

 16KW Semi Auto Bottle Blowing Machine 200ml 500ml 1 Litre Blow Moulding 18

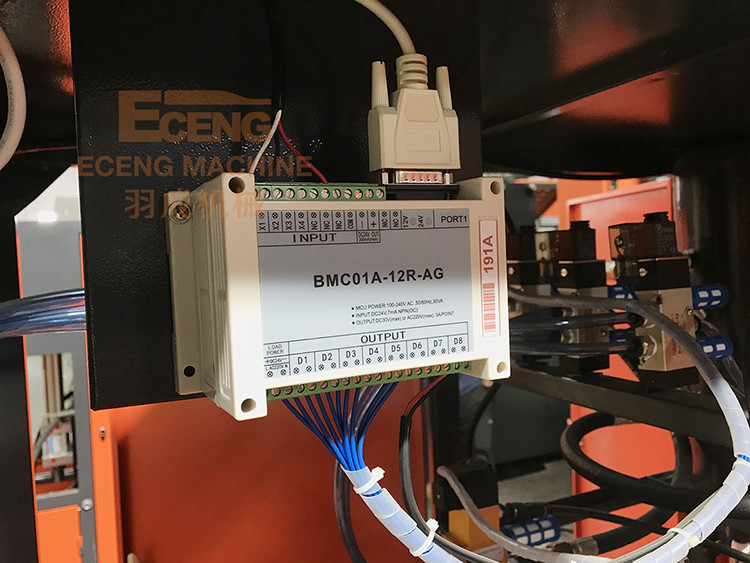

YC linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.



16KW Semi Auto Bottle Blowing Machine 200ml 500ml 1 Litre Blow Moulding 20



16KW Semi Auto Bottle Blowing Machine 200ml 500ml 1 Litre Blow Moulding 2216KW Semi Auto Bottle Blowing Machine 200ml 500ml 1 Litre Blow Moulding 24

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
