Eceng 3 Phase Semi Auto Bottle Blowing Machine Yogurt Bottle 5l Blow Molding

Eceng 3 Phase Semi Auto Bottle Blowing Machine Yogurt Bottle 5l Blow Molding

  • Eceng 3 Phase Semi Auto Bottle Blowing Machine Yogurt Bottle 5l Blow Molding
  • Eceng 3 Phase Semi Auto Bottle Blowing Machine Yogurt Bottle 5l Blow Molding
  • Eceng 3 Phase Semi Auto Bottle Blowing Machine Yogurt Bottle 5l Blow Molding
  • Eceng 3 Phase Semi Auto Bottle Blowing Machine Yogurt Bottle 5l Blow Molding
  • Eceng 3 Phase Semi Auto Bottle Blowing Machine Yogurt Bottle 5l Blow Molding
  • Eceng 3 Phase Semi Auto Bottle Blowing Machine Yogurt Bottle 5l Blow Molding
  • Eceng 3 Phase Semi Auto Bottle Blowing Machine Yogurt Bottle 5l Blow Molding
Eceng 3 Phase Semi Auto Bottle Blowing Machine Yogurt Bottle 5l Blow Molding
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE,ISO
Model Number: YC-5L-1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $6,000.00 - $8,000.00/Sets
Packaging Details: Wooden package
Delivery Time: 10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Set/Sets per Month
Contact Now
Detailed Product Description
Bottle Volume(ml): 5000 Ml Blow Moulding Type: Stretch Blow Moulding
Voltage: 380V, 50HZ, 3PHASE Dimension(L*W*H): 1.56*0.7*1.9(m)
Weight (KG): 700 KG Automation: Semi-automatic
Warranty: 1 Year, One Year Name: Semi Automatic Pet Bottle Blowing Machine
High Light:

Eceng 3 PHASE Semi Auto Bottle Blowing Machine

,

Yogurt Bottle 5l blow molding machine

,

Eceng 3 PHASE 5l blow molding machine

Eceng Plastic Yogurt Bottle Cold Drink Making Semi-Automatic Pet Blowing Machine 5L

Eceng 3 Phase Semi Auto Bottle Blowing Machine Yogurt Bottle 5l Blow Molding 0

Semi automatic 5L liter pet water bottle bottol makeing making blowing machine

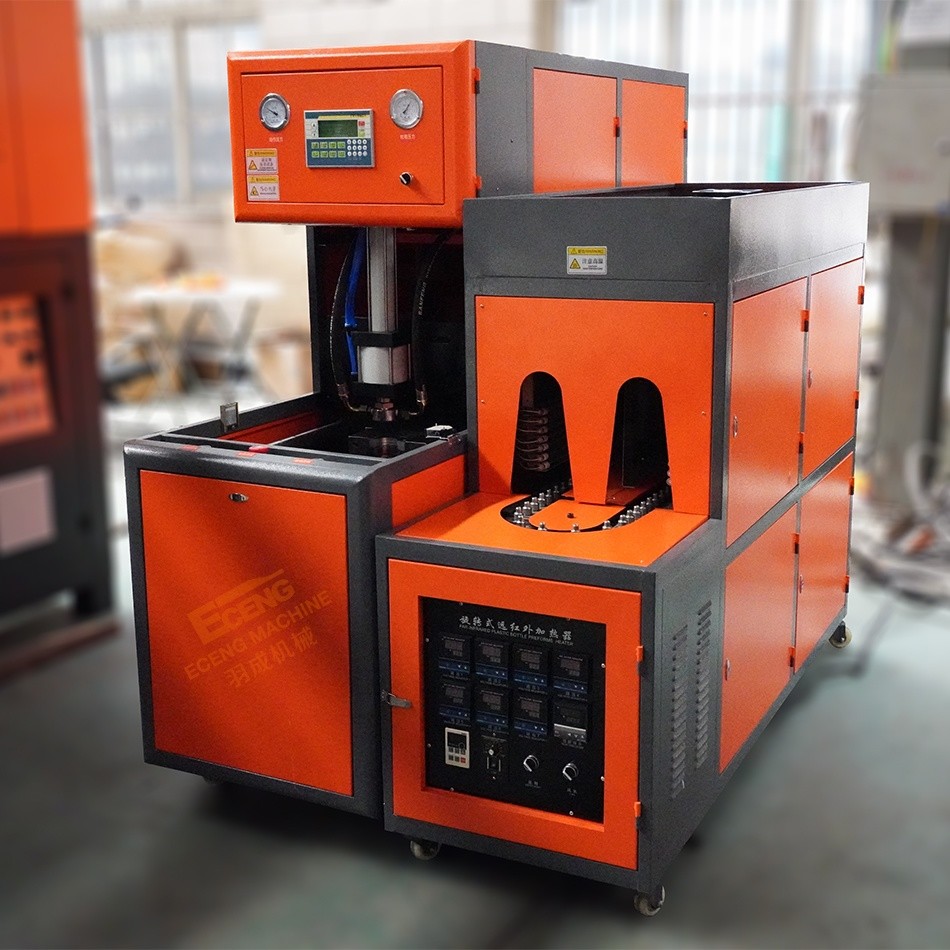

YC series Plastic making Top quality useful semi automatic pet blowing machinery is controlled by microcomputer. The plastic blowing machine can control the technical parameters more accurately.With the upper and lower system,emergency stop system,independent counter device,count the output accurately.With infrared lamp heating device,penetrating power, preform rotation heating, heating evenly and quickly.YC series semi-automatic plastic bottle blowing machine is suitable for blowing plastic PET bottles such as carbonated beverage bottles,mineral water bottles, cosmetic bottles and hot filling bottles etc.

Eceng 3 Phase Semi Auto Bottle Blowing Machine Yogurt Bottle 5l Blow Molding 1





Main machine (blower + oven)

Item YC-5L-1
Product Spec Max. product volume(L/cav) 5L
Max. preform neck size(mm) 150
Max. product diameter(mm) 200
Max. product height (mm) 400
Cavities 1
Blow molding part Die force (KN) 120
Die stroke (mm) 320
Max. mould size(mm) 390*350
Mould thickness Adjustable
Mould spacing(mm) Adjustable
Max. pulling stroke(mm) 500
Operation pressure(Mpa) 0.8-1.0

Operation air pressure consumption

(1tr/min)

350
Blow pressure(Mpa) 1.2-2.8
Blow air pressure consumption (1tr/min) 300
Output(pcs/h) 350(5L bottle)
Machine size(LxWxH)(m) 1.56*0.7*1.9
Machine weight(KG) 700
Oven Temperature grade(rate) 8
Heating time(S) 90-200
Voltage(V) 220 or as your request
Frequency(HZ) 50/60
Total power(KW) 16
Oven Size (LxWxH) 1.45*0.65*1.15
Oven weight (KG) 330

Eceng 3 Phase Semi Auto Bottle Blowing Machine Yogurt Bottle 5l Blow Molding 2

YC series semi-automatic bottle blowing machine is controlled by microcomputer,control the technical parameters more accurately.PET bottle blowing machine is simple and safe to operate.It only requires one person and does not require special training.YC series PET blow molding machine is suitable for blow molding of plastic packaging bottles such as carbonated beverage bottles, mineral water bottles, hot filling bottles and cosmetic bottles. It is suitable for the production of small beverage companies and daily chemical product companies.

Eceng 3 Phase Semi Auto Bottle Blowing Machine Yogurt Bottle 5l Blow Molding 3

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

Eceng 3 Phase Semi Auto Bottle Blowing Machine Yogurt Bottle 5l Blow Molding 4

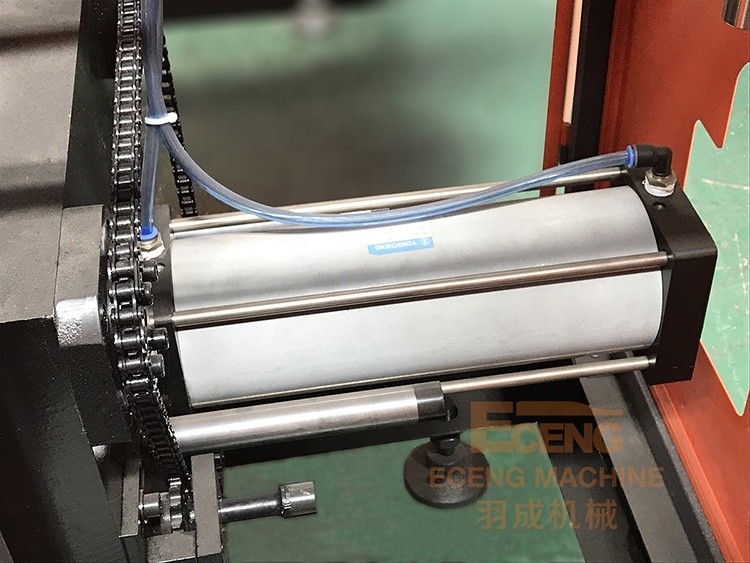

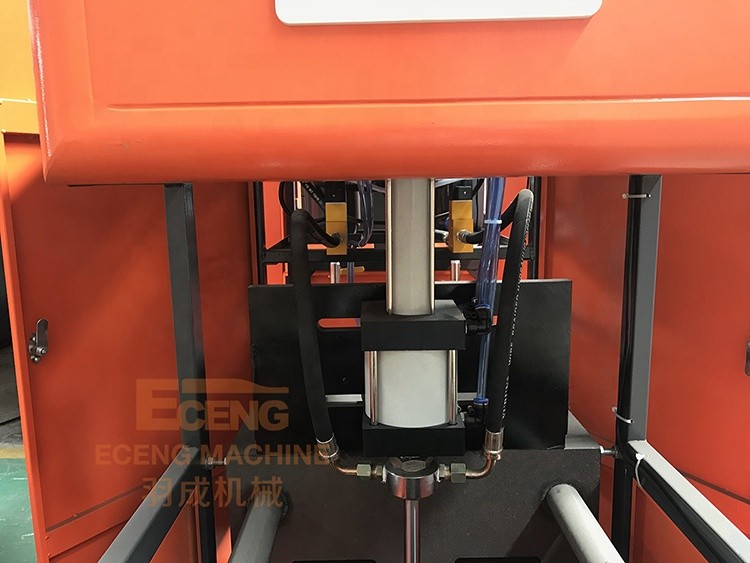

Specially designed high rigidity composite mold structure, wide applicability, suitable for various types of mold thickness, easy to adjust and save energy, less air demand, precision polished spindle, equipped with photoelectric sensor, low noise,rapid response, long working hours , stable performance,ensure stable operation.

Eceng 3 Phase Semi Auto Bottle Blowing Machine Yogurt Bottle 5l Blow Molding 5

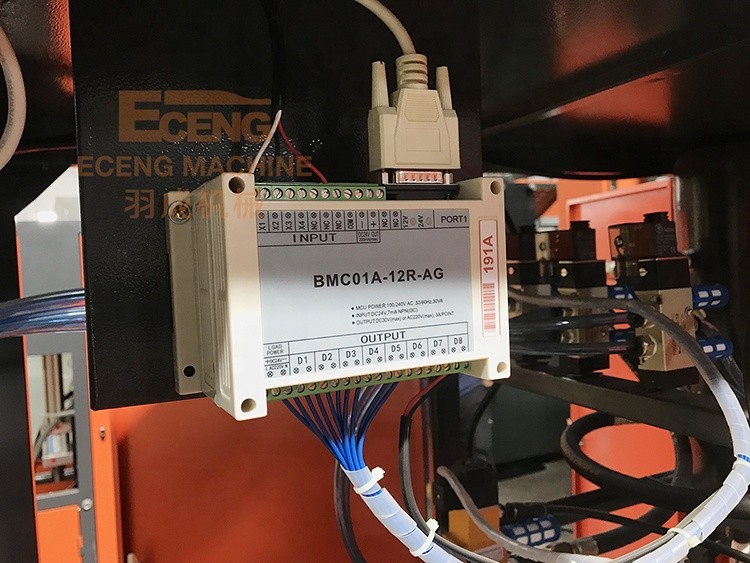

YC linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.



 Eceng 3 Phase Semi Auto Bottle Blowing Machine Yogurt Bottle 5l Blow Molding 6Eceng 3 Phase Semi Auto Bottle Blowing Machine Yogurt Bottle 5l Blow Molding 8Eceng 3 Phase Semi Auto Bottle Blowing Machine Yogurt Bottle 5l Blow Molding 10



Eceng 3 Phase Semi Auto Bottle Blowing Machine Yogurt Bottle 5l Blow Molding 12



Eceng 3 Phase Semi Auto Bottle Blowing Machine Yogurt Bottle 5l Blow Molding 14Eceng 3 Phase Semi Auto Bottle Blowing Machine Yogurt Bottle 5l Blow Molding 16

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
