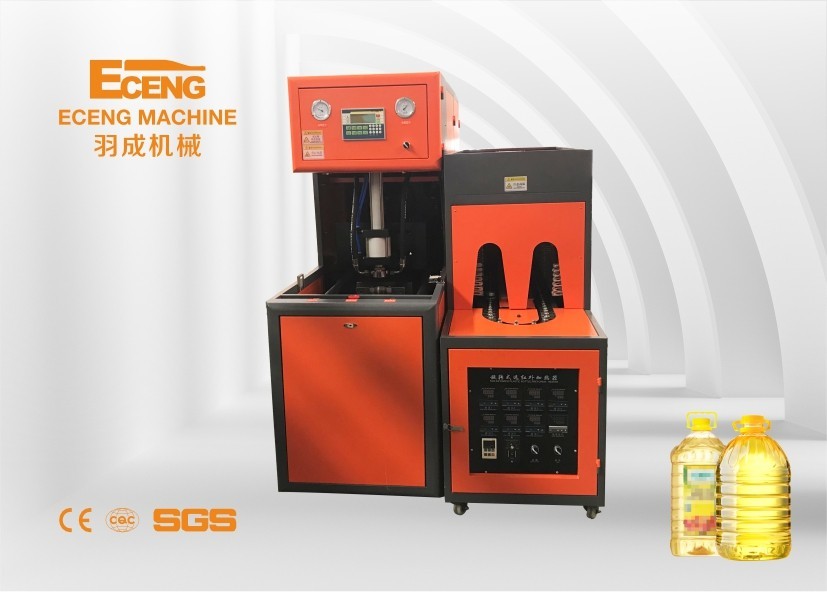

5 Gallon Semi Automatic PET Stretch Blow Moulding Machine 2800 Pcs/H

5 Gallon Semi Automatic PET Stretch Blow Moulding Machine 2800 Pcs/H

  • 5 Gallon Semi Automatic PET Stretch Blow Moulding Machine 2800 Pcs/H
  • 5 Gallon Semi Automatic PET Stretch Blow Moulding Machine 2800 Pcs/H
5 Gallon Semi Automatic PET Stretch Blow Moulding Machine 2800 Pcs/H
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE,ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $8,000.00/Sets 1-1 Sets
Packaging Details: Wooden package
Delivery Time: 10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Set/Sets per Month
Contact Now
Detailed Product Description
Blow Moulding Type: Stretch Blow Moulding Voltage: 380V, 50HZ, 3PHASE
Dimension(L*W*H): 1.45*0.65*1.15(m) Hollow Part Volume: 2l
Weight (KG): 650 KG Automation: Semi-automatic
Warranty: 1 Year, One Year Applicable Industries: Food & Beverage Factory
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Name: Semi Automatic Pet Bottle Blowing Machine
High Light:

5 gallon semi automatic pet stretch blow moulding machine

,

5 gallon pet bottle blow molding machine

,

pet bottle blow molding machine 2800 pcs/h

20L 5 gallon Semi automatic plastic PET bottle blowing machine machines
Product Description

5 Gallon Semi Automatic PET Stretch Blow Moulding Machine 2800 Pcs/H 0

20L 5 gallon Semi automatic plastic PET bottle blowing machine machines

YC series Plastic making Top quality useful semi automatic pet blowing machinery is controlled by microcomputer. The plastic blowing machine can control the technical parameters more accurately.With the upper and lower system,emergency stop system,independent counter device,count the output accurately.With infrared lamp heating device,penetrating power, preform rotation heating, heating evenly and quickly.YC series semi-automatic plastic bottle blowing machine is suitable for blowing plastic PET bottles such as carbonated beverage bottles,mineral water bottles, cosmetic bottles and hot filling bottles etc.

5 Gallon Semi Automatic PET Stretch Blow Moulding Machine 2800 Pcs/H 2





Main machine  (blower + oven)

Item

YC-5L-1

Product Spec

Max. product volume(L/cav)

5L

Max. preform neck size(mm)

100

Max. product diameter(mm)

180

Max. product height (mm)

300

Cavities

4

Blow molding part

Die force (KN)

100

Die stroke (mm)

270

Max. mould size(mm)

390*345

Mould thickness

Adjustable

Mould spacing(mm)

Adjustable

Max. pulling stroke(mm)

400

Operation pressure(Mpa)

0.8-1.0

Operation air pressure consumption

(1tr/min)

200

Blow pressure(Mpa)

1.2-2.8

Blow air pressure consumption (1tr/min)

300

Output(pcs/h)

2600-2800(500ml bottle)

Machine size(LxWxH)(m)

1.46*0.58*1.8

Machine weight(KG)

650

Oven

Temperature grade(rate)

8

Heating time(S)

90-200

Voltage(V)

220 or as your request

Frequency(HZ)

50/60

Total power(KW)

16

Oven Size (LxWxH)

1.35*0.55*1.15

Oven weight (KG)

300

5 Gallon Semi Automatic PET Stretch Blow Moulding Machine 2800 Pcs/H 4

5 Gallon Semi Automatic PET Stretch Blow Moulding Machine 2800 Pcs/H 6

YC series semi-automatic bottle blowing machine is controlled by microcomputer,control the technical parameters more accurately.PET bottle blowing machine is simple and safe to operate.It only requires one person and does not require special training.YC series PET blow molding machine is suitable for blow molding of plastic packaging bottles such as carbonated beverage bottles, mineral water bottles, hot filling bottles and cosmetic bottles. It is suitable for the production of small beverage companies and daily chemical product companies.

 5 Gallon Semi Automatic PET Stretch Blow Moulding Machine 2800 Pcs/H 8

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.



Specially designed high rigidity composite mold structure, wide applicability, suitable for various types of mold thickness, easy to adjust and save energy, less air demand, precision polished spindle, equipped with photoelectric sensor, low noise,rapid response, long working hours , stable performance,ensure stable operation.

 5 Gallon Semi Automatic PET Stretch Blow Moulding Machine 2800 Pcs/H 10

YC linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.



5 Gallon Semi Automatic PET Stretch Blow Moulding Machine 2800 Pcs/H 12



5 Gallon Semi Automatic PET Stretch Blow Moulding Machine 2800 Pcs/H 145 Gallon Semi Automatic PET Stretch Blow Moulding Machine 2800 Pcs/H 16

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
