High Speed Semi Automatic Stretch Blow Molding Machine 16KW PET Bottle

High Speed Semi Automatic Stretch Blow Molding Machine 16KW PET Bottle

  • High Light

    Semi Auto Bottle Stretch Blowing Machine

    ,

    16KW Semi Auto PET Blowing Machine

    ,

    300mm PET Blowing Molding Machine

  • Plastic Processed
    PET
  • Condition
    New
  • Application
    Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Hollow Part Volume
    2l
  • Automation
    Semi-automatic
  • Warranty
    1 Year, One Year
  • Key Selling Points
    Easy To Operate
  • Warranty Of Core Components
    1 Year
  • Color
    Orange
  • Name
    Semi Automatic Pet Bottle Blowing Machine
  • Power(W)
    16KW
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE,ISO
  • Model Number
    YC-2L-2
  • Minimum Order Quantity
    1set
  • Price
    $8,000.00/Sets 1-1 Sets
  • Packaging Details
    Wooden package
  • Delivery Time
    10days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    20 Set/Sets per Month

High Speed Semi Automatic Stretch Blow Molding Machine 16KW PET Bottle

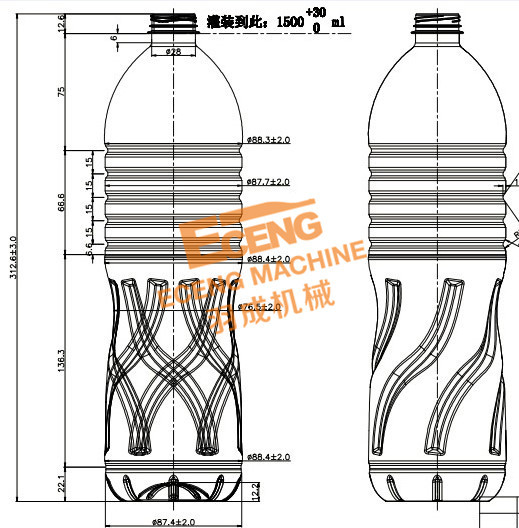

High Speed Semi Automatic Stretch Blow Molding Machine 16KW PET Bottle 0
Product Description


Universal semiautomatic blowing machine for PET bottles 0.1-2l with output 1500-2000BPH. Universal and flexible, ideal solution with low investment cost.
1.Quick-change for another bottle Format 2.Handy and simple operation mode 3.setup on LCD display 4.15 and 25 bars main blow pressure 5.IR lamps for deep preforms heating 6.Orginal pneumatic scheme 7.Start-up and maintenance-friendly 8.Multiple bottle formats & volumes 9.Space-saving overall dimensions

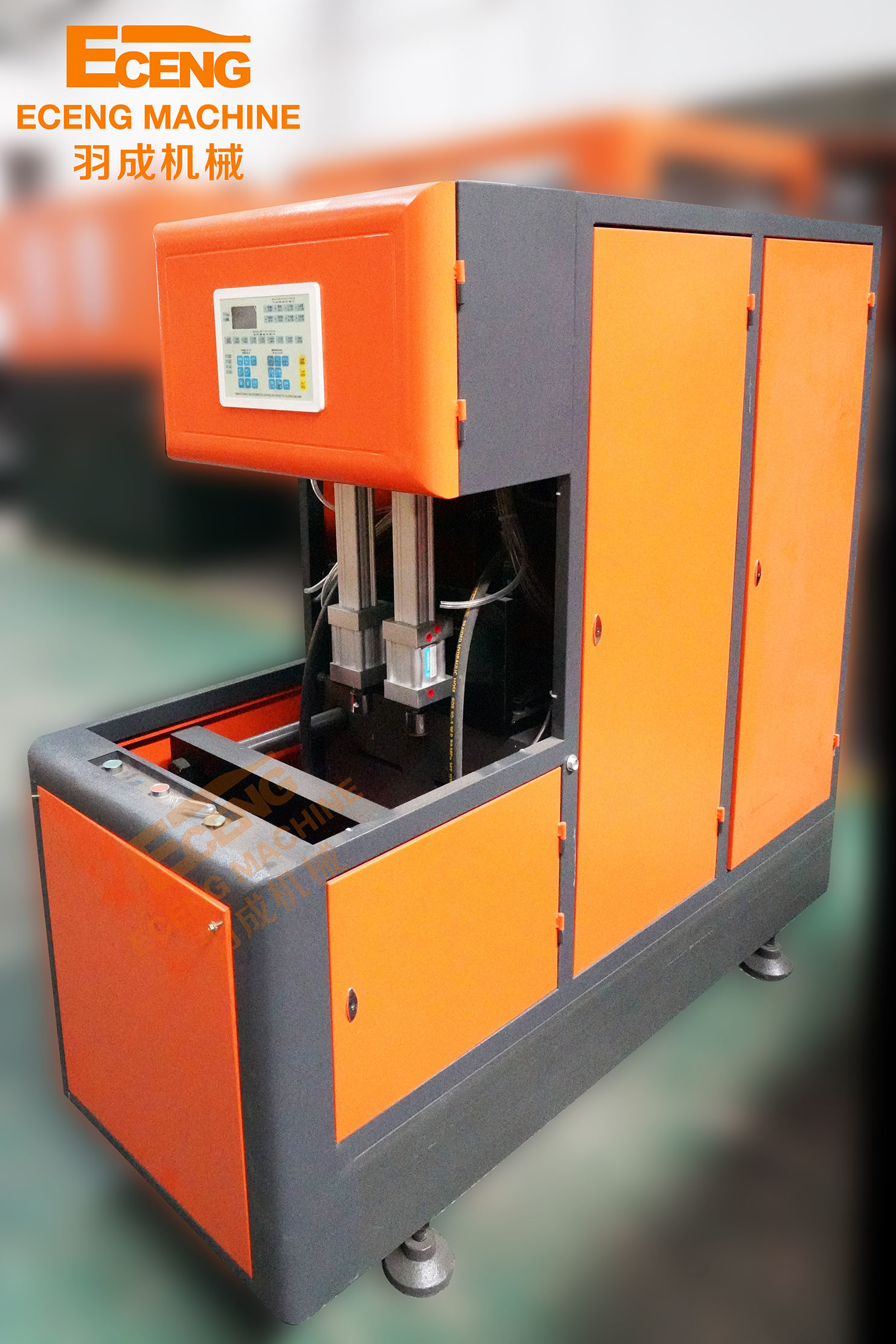

High Speed Semi Automatic Stretch Blow Molding Machine 16KW PET Bottle 2





Main machine  (blower + oven)

Item

YC-5L-1

Product Spec

Max. product volume(L/cav)

5L

Max. preform neck size(mm)

100

Max. product diameter(mm)

180

Max. product height (mm)

300

Cavities

4

Blow molding part

Die force (KN)

100

Die stroke (mm)

270

Max. mould size(mm)

390*345

Mould thickness

Adjustable

Mould spacing(mm)

Adjustable

Max. pulling stroke(mm)

400

Operation pressure(Mpa)

0.8-1.0

Operation air pressure consumption

(1tr/min)

200

Blow pressure(Mpa)

1.2-2.8

Blow air pressure consumption (1tr/min)

300

Output(pcs/h)

2600-2800(500ml bottle)

Machine size(LxWxH)(m)

1.46*0.58*1.8

Machine weight(KG)

650

Oven

Temperature grade(rate)

8

Heating time(S)

90-200

Voltage(V)

220 or as your request

Frequency(HZ)

50/60

Total power(KW)

16

Oven Size (LxWxH)

1.35*0.55*1.15

Oven weight (KG)

300

High Speed Semi Automatic Stretch Blow Molding Machine 16KW PET Bottle 4

High Speed Semi Automatic Stretch Blow Molding Machine 16KW PET Bottle 6

YC series semi-automatic bottle blowing machine is controlled by microcomputer,control the technical parameters more accurately.PET bottle blowing machine is simple and safe to operate.It only requires one person and does not require special training.YC series PET blow molding machine is suitable for blow molding of plastic packaging bottles such as carbonated beverage bottles, mineral water bottles, hot filling bottles and cosmetic bottles. It is suitable for the production of small beverage companies and daily chemical product companies.

 High Speed Semi Automatic Stretch Blow Molding Machine 16KW PET Bottle 8

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.



Specially designed high rigidity composite mold structure, wide applicability, suitable for various types of mold thickness, easy to adjust and save energy, less air demand, precision polished spindle, equipped with photoelectric sensor, low noise,rapid response, long working hours , stable performance,ensure stable operation.

 High Speed Semi Automatic Stretch Blow Molding Machine 16KW PET Bottle 10

YC linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.






High Speed Semi Automatic Stretch Blow Molding Machine 16KW PET Bottle 13

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
