Blow your bottle, Shape your dream
 |
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE ISO |
| Model Number: | K12 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $25,000.00 - $40,000.00/Sets |
| Packaging Details: | standard export wooden case or according to your requirements |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Set/Sets per Year |
| Plastic Processed: | PET | Condition: | New |
|---|---|---|---|
| Application: | Bottle | Blow Moulding Type: | Stretch Blow Moulding |
| Voltage: | 380V,50HZ | Dimension(L*W*H): | 7.57*1.6*1.9m |
| Hollow Part Volume: | 750ml | PLC Brand: | DELTA |
| Power (kW): | 56 | Automation: | Automatic |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Applicable Industries: | Manufacturing Plant | Warranty Of Core Components: | 1 Year |
| Size Of The Machine: | 7.57*1.6*1.9 | Weight: | 11.6tons |
| High Light: | Automatic Stretch Bottle Blow Molding Machine,300ml Bottle Blow Molding Machine,PET Preform Blow Molding Machine |
||

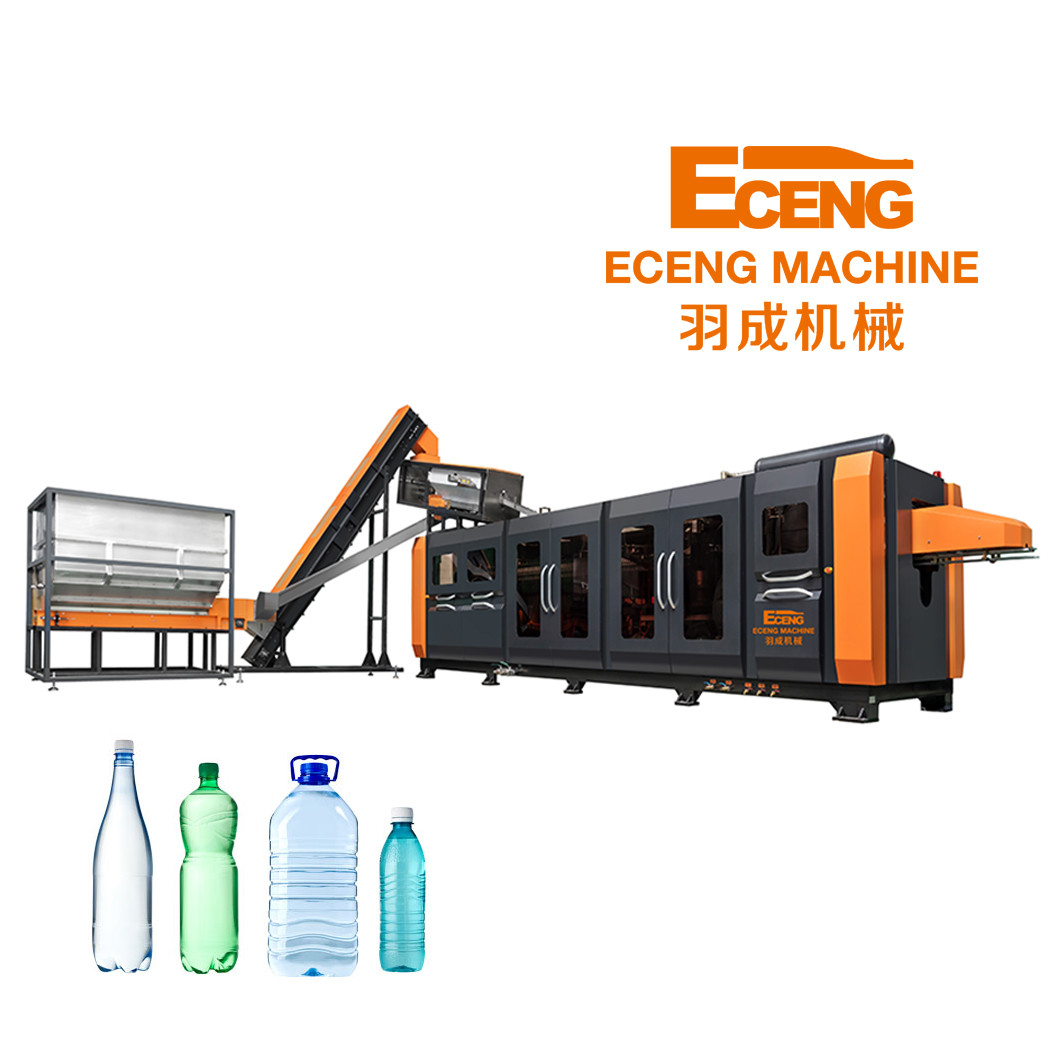

24000bph fully automatic 12 Cavity PET bottle blowing machine
Product Photo
k series linear bottle blowing machines are used in the production of PET water bottles, carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
Main Features
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. servo transmission system, high positioning accuracy, fast speed, good stability and reliability.
4. suitable for flexible production of small quantity and various bottle shape,wide range of applications,meet customer needs.
5. increase energy using efficiency,increase productivity per unit of time.
6. manual and automatic methods of operation, human-machine interface control, simple operation.
7. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
8. safety self-locking device in each mechanical action,when a certain process fails, the program will automatically switch to a safe state.
9. heat and noise are significantly reduced compared with YCQ series.
10. less than 0.2% scrap rate for finished bottle .
Product Parameters
|
Model K12 |
||
|
Bottle type specification
|
Cavity |
12 |
|
Max.volume |
0.75L |
|
|
Bottle mouth maximum overall diameter |
28-30mm |
|
|
Bottle biggest diameter |
75mm |
|
|
Bottle maximum height |
180mm |
|
|
Capacity specification
|
Theory output |
24000BPH |
|
Bottle type volume |
200ML |
|
|
Bottle type weight |
12g |
|
|
Bottle type |
Round |
|
|
Power specification |
Light tube quantity |
32pcs |
|
Light tube power |
1.75KW |
|
|
Maximum heating power |
56KW |
|
|
All electric machine installation |
71KW |
|
|
Actual consumption |
30%--60% |
|
|
Air pressure specification
|
Work pressure |
5-6kg/cm2 |
|
Blow bottle pressure |
25-45kg/cm2 |
|
|
Higher -pressure gas consumption |
8000Ltr/min |
|
|
Air pressure specification
|
Work pressure |
5-6 kg/cm2 |
|
Temperature range |
10℃ |
|
|
Consumption |
24000kcal/hr |
|
|
Forzen water flow |
220L/min |
|
|
Machine specification |
Machine size |
7.57x1.6x1.9 |
|
Machine weight |
11.6ton |
|
1,Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

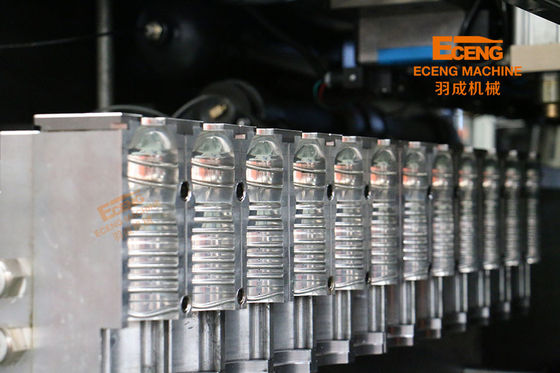

2,New clamping system,upgraded on the basis of the original ones,increase mould clamping speed and output,greatly reduce mold clamping noise.
3,Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.
4,k series bottle blowing machine adopts advanced microcomputer PLC control system, stable performance; servo transmission system, high positioning accuracy, fast speed, stable and reliable.
Want to know more message , contact us with out hesitate ! Send us now !
