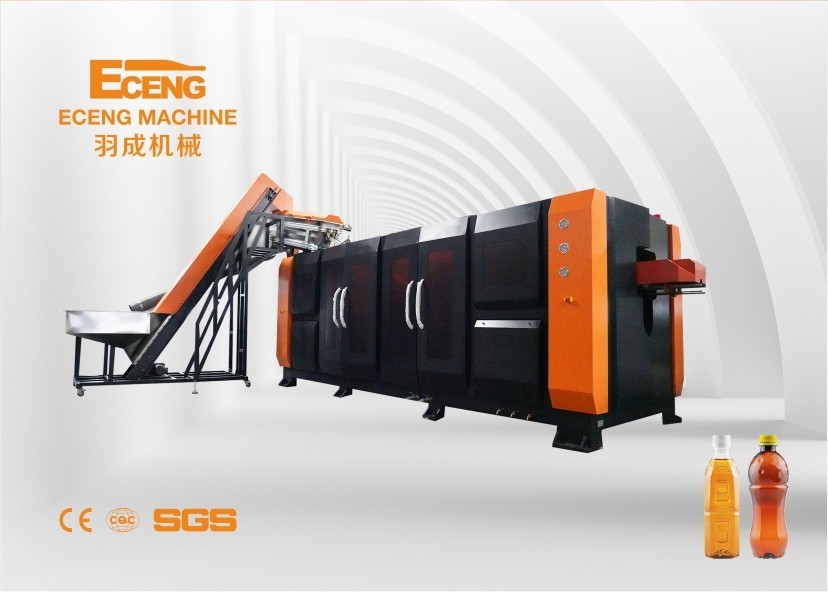

Eceng Plastic Automatic Blow Molding Machine Pet Bottle Shampoo Making

Eceng Plastic Automatic Blow Molding Machine Pet Bottle Shampoo Making

Eceng Plastic Automatic Blow Molding Machine Pet Bottle Shampoo Making
Eceng Plastic Automatic Blow Molding Machine Pet Bottle Shampoo Making
Eceng Plastic Automatic Blow Molding Machine Pet Bottle Shampoo Making
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE SGS ISO
Model Number: K6
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $35,000.00/Sets >=1 Sets
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8 Set/Sets per Month
Contact Now
Detailed Product Description
Plastic Processed: PET Max.Bottle Height(mm): 330 Mm
Neck Diameter(mm): 28 Mm Max.Bottle Diameter(mm): 100 Mm
Condition: New Blow Moulding Type: Stretch Blow Moulding
Warranty: 1 Year, One Year For Free
High Light:

Eceng Plastic Automatic Blow Molding Machine

,

330 mm Bottle Blow Molding Machine

,

Shampoo Making Stretch Blow Moulding Machine

Eceng Plastic Automatic Blow Molding Machine Pet Bottle Shampoo Making

Eceng Plastic Automatic Blow Molding Machine Pet Bottle Shampoo Making 0

K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 3200 bottles per hour,max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

Eceng Plastic Automatic Blow Molding Machine Pet Bottle Shampoo Making 1



Model Eceng K6

Bottle type specification



Cavity 6
Max.volume 200ml-2000ml
Bottle mouth maximum overall diameter 25-29mm NECK
Bottle biggest diameter 100mm
Bottle maximum height 330mm

Capacity specification



Theory output 12000-14000BPH
Bottle type volume 600ML
Bottle type weight 13.5g
Bottle type Round
Power specification Light tube quantity 32pcs
Light tube power 1.25KW
Maximum heating power 40KW
All electric machine installation 49KW
Actual consumption 30%--60%

Air pressure specification



Work pressure 5-6kg/cm2
Blow bottle pressure 25-45kg/cm2
Higher -pressure gas consumption 8000Ltr/min
Forzen water specification Work pressure 5-6 kg/cm2
Temperature range 10℃
Consumption 8000kcal/hr
Forzen water flow 120L/min
Machine specification Machine size 5.5x1.8x1.9
Machine weight 6.1ton



Eceng Plastic Automatic Blow Molding Machine Pet Bottle Shampoo Making 2

K linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. J series linear bottle blowing machine features:

1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.

2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.

3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.

4. manual and automatic methods of operation, human-machine interface control, simple operation.

5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.

6. less than 0.2% scrap rate for finished bottle .

Eceng Plastic Automatic Blow Molding Machine Pet Bottle Shampoo Making 3

Eceng Plastic Automatic Blow Molding Machine Pet Bottle Shampoo Making 4

Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 36,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging.
So far Eceng machinery have provided more than 2050 sets machines for more than 170 countries in the world.Our equipments are highly estimated by the clients, and are well known at home and abroad.We sincerely hope to establish business relationship with friends all over the world.

Eceng Plastic Automatic Blow Molding Machine Pet Bottle Shampoo Making 5

Eceng Plastic Automatic Blow Molding Machine Pet Bottle Shampoo Making 6

Eceng Plastic Automatic Blow Molding Machine Pet Bottle Shampoo Making 7

Eceng Plastic Automatic Blow Molding Machine Pet Bottle Shampoo Making 8
Eceng Plastic Automatic Blow Molding Machine Pet Bottle Shampoo Making 9

Eceng Plastic Automatic Blow Molding Machine Pet Bottle Shampoo Making 10

FAQ

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
