1500BPH Water Bottle Blowing Machine PET 5L 2 Cavitu

1500BPH Water Bottle Blowing Machine PET 5L 2 Cavitu

  • High Light

    1500 BPH Water Bottle Blowing Machine

    ,

    5L Water Bottle Blowing Machine

    ,

    PET Water Bottle Blowing Machine

  • Plastic Processed
    PET
  • Hollow Part Volume
    5L
  • Power (kW)
    48
  • Weight (KG)
    3000 KG
  • Automation
    Automatic
  • Warranty
    1 Year
  • Key Selling Points
    Automatic
  • Warranty Of Core Components
    1 Year
  • Cavity
    2
  • Output
    1500BPH
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE&ISO
  • Model Number
    YCQ-5L-2
  • Minimum Order Quantity
    1set
  • Price
    $40,000.00/Sets 1-1 Sets
  • Packaging Details
    Wooden package
  • Delivery Time
    30days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    10 Set/Sets per Month

1500BPH Water Bottle Blowing Machine PET 5L 2 Cavitu

bottle making machine / bottle stretch blowing machine YCQ-5L-2

Eceng Professional Manufacture Plastic Bottle Blowing Molding Machine water bottle making machine

1500BPH Water Bottle Blowing Machine PET 5L 2 Cavitu 0

 1500BPH Water Bottle Blowing Machine PET 5L 2 Cavitu 2


technical parametre-- 5L pet bottle machine



Eceng Professional Manufacture Plastic Bottle Blowing Molding Machine water bottle making machine



Item

YCQ-5L-2E

Bottle type specification

Cavity

2

Theory output

1500

Max.volume

5L

Bottle mouth maximum overall DIdiameter

150mm

Bottle biggest diameter

180mm

Bottle maximum height

400mm

Power specifications

Light tube quantity

32pcs

Light tube power

1.5KW

Maximum heating power

48KW

All electric machine installation

51KW

Actual consumption

35.7KW

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

3400Ltr/min

Forzen water specification

Work pressure

5-6 kg/cm2

Temperature range

10℃

Consumption

6000kcal/hr

Forzen water flow

50L/min

Machine specification

Size of the machine

4.7x1.6x1.9

Weight of the machine

3ton







related introduction-- 5L pet bottle machine



1). Stable performance with advanced PLC.



2). Automatic preform conveyer to save human cost.



3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.



4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.



5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.



6). Introduce the FESTO air cylinder to avoid contamination and noise.



7). Satisfaction with different atmosphShirley pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.



8). Strong clamping force with high pressure and double crank links to lock the mould.



9). Two ways of operating: automatic and manual.



10). Safe,reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.



11). Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.



12). Ideal cooling system make the finished bottles without any flaws.



13). Easy for you to install,test and start up.



14). Low rejection rate: less than 0.2 percent.

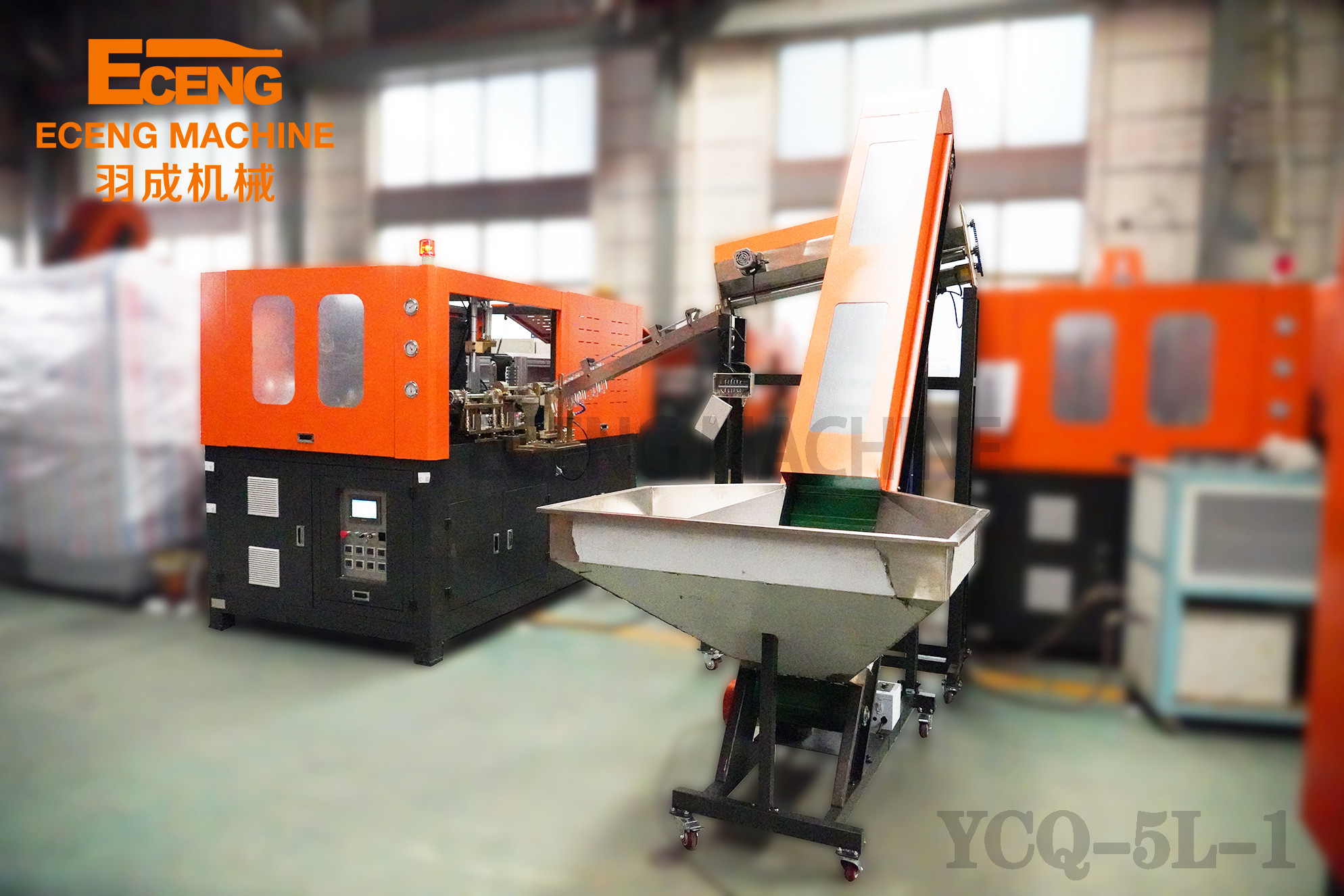

photo show--  5L pet bottla machine







1500BPH Water Bottle Blowing Machine PET 5L 2 Cavitu 5

company introduction



Our company, Zhangjiagang Eceng Machinery Co., Ltd. we are a special manufacturer of PET bottle blowing machine,blow molding machine and mould, We have been engaged in moulds for years, and have gained a well-known reputation from our customers who spread all over the world.
