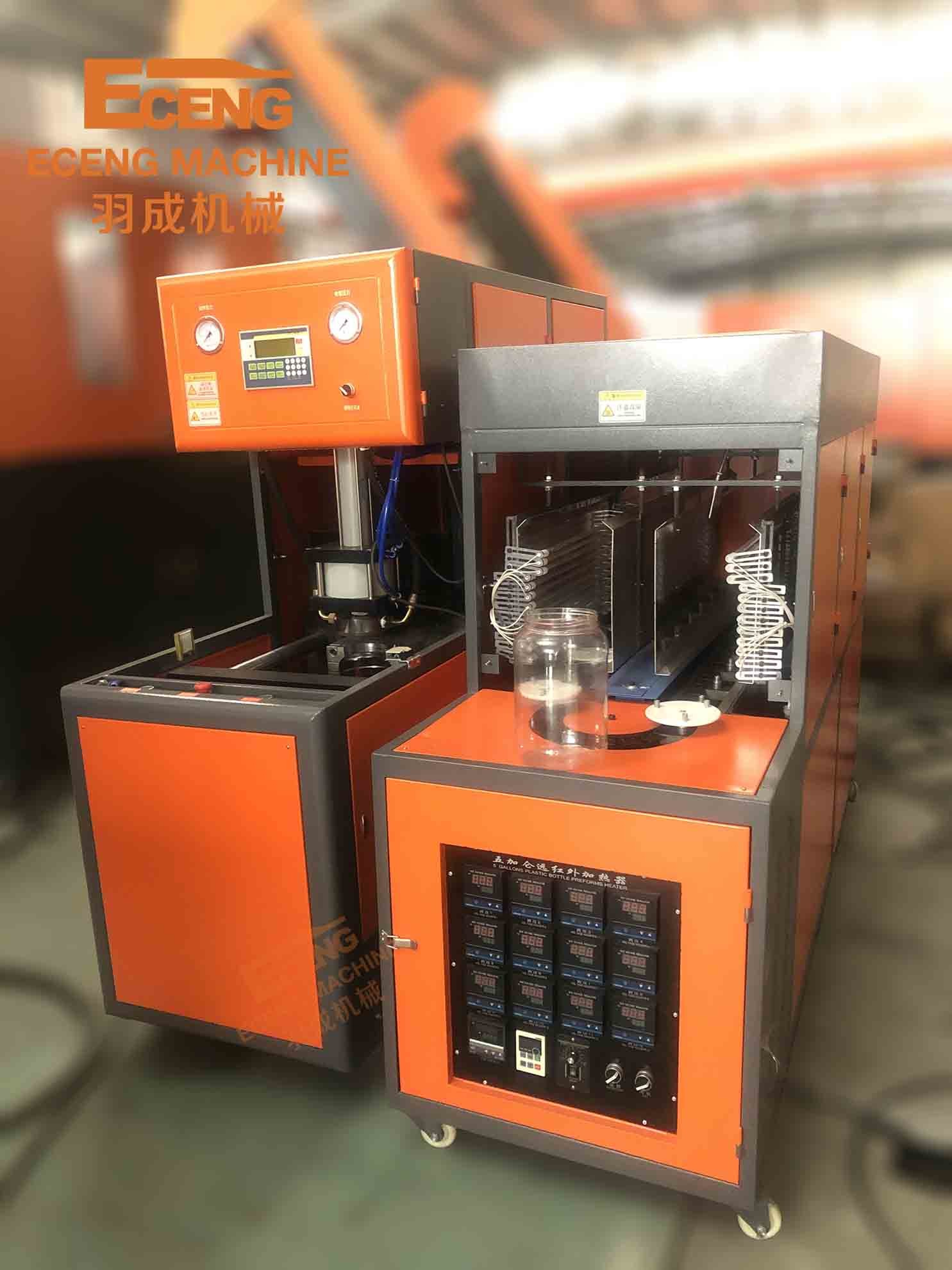

10L Semi Auto Bottle Blowing Machine PET Stretch

10L Semi Auto Bottle Blowing Machine PET Stretch

  • 10L Semi Auto Bottle Blowing Machine PET Stretch
10L Semi Auto Bottle Blowing Machine PET Stretch
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE,ISO
Model Number: YC-10L-1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $8,000.00/Sets 1-1 Sets
Packaging Details: Wooden package
Delivery Time: 10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Set/Sets per Month
Contact Now
Detailed Product Description
Plastic Processed: PET Hollow Part Volume: 10L
Automation: Semi-automatic Warranty: 1 Year, One Year
Color: Orange Port: Shanghai
High Light:

10L Bottle Blowing Machine Semi Auto

,

PET Stretch Bottle Blowing Machine

,

mineral bottles PET Stretch Blowing Machine

Eceng Hot Selling Professional Semi-Automatic Pet Stretch Blow Molding Machine10L Semi Auto Bottle Blowing Machine PET Stretch 010L Semi Auto Bottle Blowing Machine PET Stretch 1

Eceng Hot Selling Professional Semi-Automatic Pet Stretch Blow Molding Machine

YC series Plastic making Top quality useful semi automatic pet blowing machinery is controlled by microcomputer. The plastic blowing machine can control the technical parameters more accurately.With the upper and lower system,emergency stop system,independent counter device,count the output accurately.With infrared lamp heating device,penetrating power, preform rotation heating, heating evenly and quickly.YC series semi-automatic plastic bottle blowing machine is suitable for blowing plastic PET bottles such as carbonated beverage bottles,mineral water bottles, cosmetic bottles and hot filling bottles etc.

10L Semi Auto Bottle Blowing Machine PET Stretch 3





Main machine  (blower + oven)

Item

YC-10L-1

Product Spec

Max. product volume(L/cav)

10L

Max. preform neck size(mm)

180

Max. product diameter(mm)

300

Max. product height (mm)

480

Cavities

1

Blow molding part

Die force (KN)

150

Die stroke (mm)

340

Max. mould size(mm)

380*450

Mould thickness

Adjustable

Mould spacing(mm)

Adjustable

Max. pulling stroke(mm)

500

Operation pressure(Mpa)

0.8-1.0

Operation air pressure consumption

(1tr/min)

560

Blow pressure(Mpa)

1.2-2.8

Blow air pressure consumption (1tr/min)

650

Output(pcs/h)

200-250

Machine size(LxWxH)(m)

2.3*0.77*1.96

Machine weight(KG)

1000

Oven

Temperature grade(rate)

8

Heating time(S)

90-200

Voltage(V)

220 or as your request

Frequency(HZ)

50/60

Total power(KW)

15-40

Oven Size (LxWxH)

2.37*0.68*1.65

Oven weight (KG)

380





YC series semi-automatic bottle blowing machine is controlled by microcomputer,control the technical parameters more accurately.PET bottle blowing machine is simple and safe to operate.It only requires one person and does not require special training.YC series PET blow molding machine is suitable for blow molding of plastic packaging bottles such as carbonated beverage bottles, mineral water bottles, hot filling bottles and cosmetic bottles. It is suitable for the production of small beverage companies and daily chemical product companies.



Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.



Specially designed high rigidity composite mold structure, wide applicability, suitable for various types of mold thickness, easy to adjust and save energy, less air demand, precision polished spindle, equipped with photoelectric sensor, low noise,rapid response, long working hours , stable performance,ensure stable operation.



YC linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.






10L Semi Auto Bottle Blowing Machine PET Stretch 6

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
