Home ProductsWater Bottle Blowing Machine

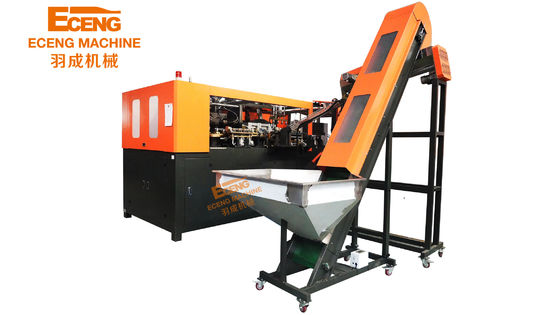

6000pcs Stretch Blow Bottle Molding Plastic Machine 4cavities High Speed

6000pcs Stretch Blow Bottle Molding Plastic Machine 4cavities High Speed

6000pcs Stretch Blow Bottle Molding Plastic Machine 4cavities High Speed
6000pcs Stretch Blow Bottle Molding Plastic Machine 4cavities High Speed
6000pcs Stretch Blow Bottle Molding Plastic Machine 4cavities High Speed
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE&ISO
Model Number: Q6000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $20,000.00/Sets >=1 Sets
Packaging Details: 8 cavities 8000 bph plastic bottle pet blow moulding machine is adopted wooden pallet packing or decided by customer.
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Plastic Processed: PET Warranty: 1 Year
Color: Orange Delivery Time: 45 Working Days
Bottle Diameter: 105mm Bottle Material: PET
Port: Shanghai
High Light:

Stretch Blow Bottle Molding Machine

,

6000pcs Blow Bottle Molding Machine

,

4cavities Blow Bottle Molding Machine

Eceng Factory price good quality Automatic Juice drink bottle of 450ml Plastic Bottle Making Machine
6000pcs Stretch Blow Bottle Molding Plastic Machine 4cavities High Speed 0
specification
Item

Q4500




Bottle type specification
Cavity
3

Theory output
4500bph

Max.volume
2L

Bottle mouth maximum overall diameter
38mm

Bottle biggest diameter
105mm

Bottle maximum height
330mm



Power specification
Light tube quantity
18pcs

Light tube power
1.5KW

Maximum heating power
24KW

All electric machine installation
27KW

Actual consumption
19KW



Air pressure specification
Work pressure
7-9kg/cm2

Low-pressure gas consumption
1000L/min

Blow bottle pressure
25-35kg/cm2

Higher -pressure gas consumption
1500Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
5000kcal/hr

Frozen water flow
30L/min

Machine specification
Machine size
2.6x1.8x2.45

Machine weight
2.5ton
6000pcs Stretch Blow Bottle Molding Plastic Machine 4cavities High Speed 2



Eceng 600ML plastic sport drink bottle blow moulding machine bottles moulding machines
Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
6000pcs Stretch Blow Bottle Molding Plastic Machine 4cavities High Speed 5
Our Advantage
1. Resonable price 2. Good after service 3. experienced skilled workers and professional engineers 4. Good quality ,excellent service ,long life mould 5. on time delivery time
6000pcs Stretch Blow Bottle Molding Plastic Machine 4cavities High Speed 7
Want to know more message , contact us with out hesitate ! Inquiry us now !

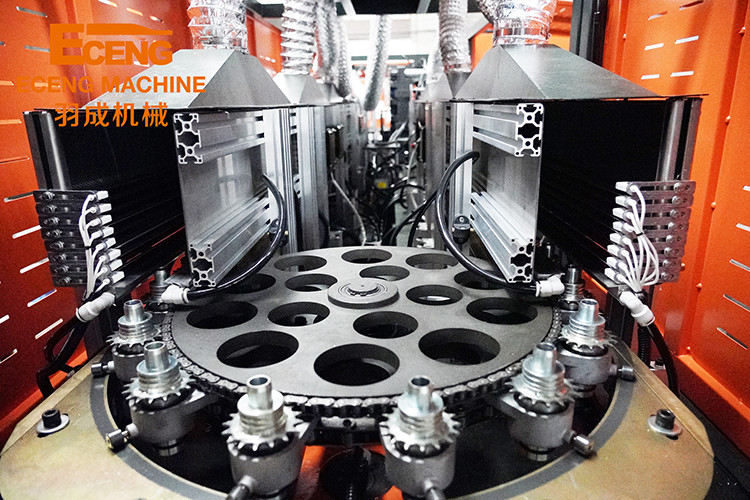

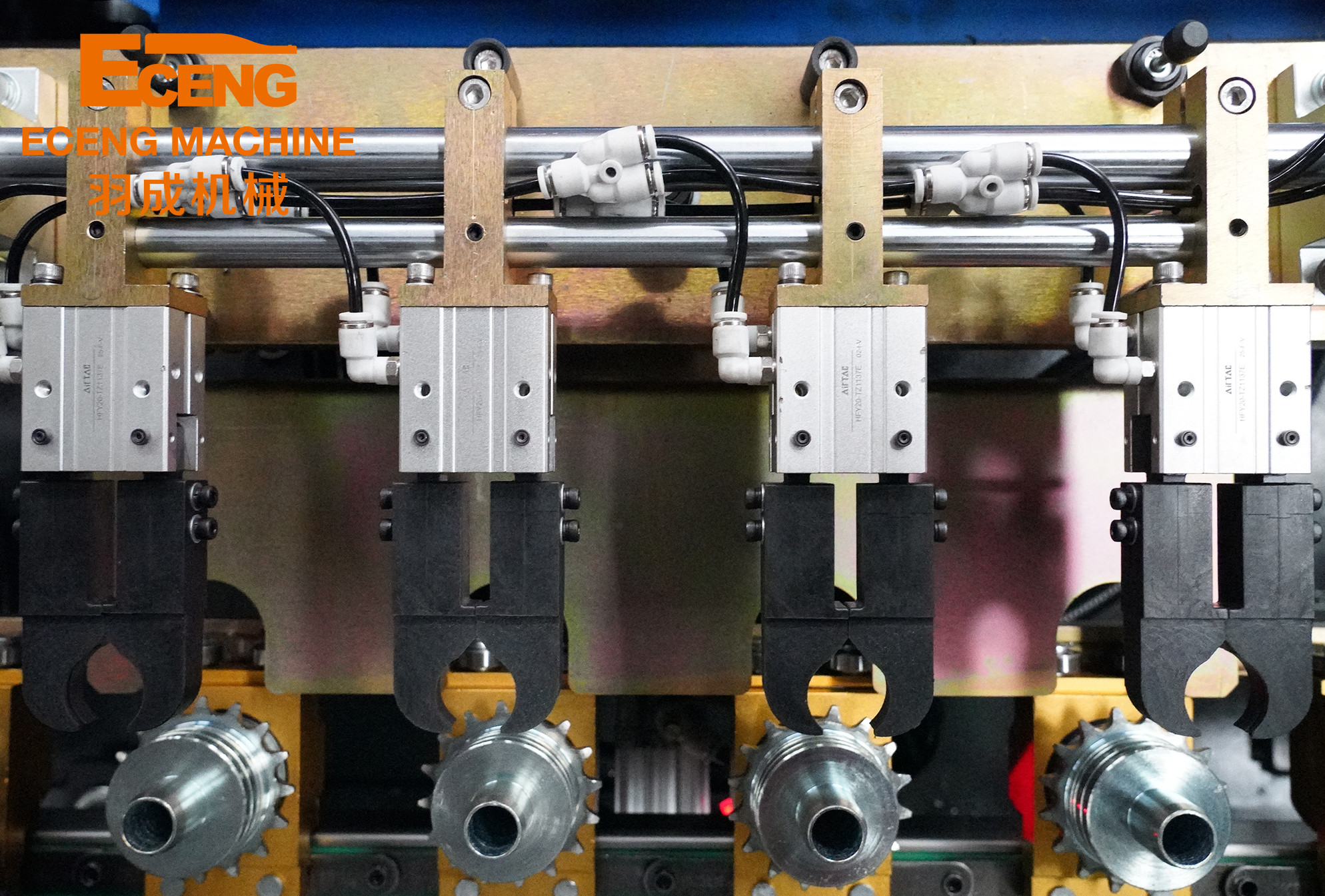

Detailed Images
6000pcs Stretch Blow Bottle Molding Plastic Machine 4cavities High Speed 9

,
Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Q series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .
6000pcs Stretch Blow Bottle Molding Plastic Machine 4cavities High Speed 13
Company Introduction
6000pcs Stretch Blow Bottle Molding Plastic Machine 4cavities High Speed 15
Packing&Shipping
6000pcs Stretch Blow Bottle Molding Plastic Machine 4cavities High Speed 17

packing

Conventional packaging: inside is wrapped with PE film outside is wooden box
6000pcs Stretch Blow Bottle Molding Plastic Machine 4cavities High Speed 19

delivery

Conventional packaging: inside is wrapped with PE film outside is wooden box
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
