Plastic Moulding PET Blowing Machine Bottle Stretch Fully Automatic 2 Cavity Small

Plastic Moulding PET Blowing Machine Bottle Stretch Fully Automatic 2 Cavity Small

Plastic Moulding PET Blowing Machine Bottle Stretch Fully Automatic 2 Cavity Small
Plastic Moulding PET Blowing Machine Bottle Stretch Fully Automatic 2 Cavity Small
Plastic Moulding PET Blowing Machine Bottle Stretch Fully Automatic 2 Cavity Small
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO SGS
Model Number: YCQ-2L-2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: To be packed in strong new wooden cases,suitable for long distance ocean
Delivery Time: 35days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Set/Sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Condition: New
Application: Bottle Voltage: 380V/50HZ
Dimension(L*W*H): 2.25mx1.6mx1.7m Cavity: 2
Theory Output: 2200BPH Max.volume: 2L
Port: Shanghai
High Light:

Plastic Moulding PET Stretch Blowing Machine

,

2 Cavity Small PET Blowing Machine

,

2200 BPH PET Blowing Moulding Machine

fully auto plastic jerry can production blow molding machine wide neck mouth

Machine Model: YCQ-2L-2

Plastic Moulding PET Blowing Machine Bottle Stretch Fully Automatic 2 Cavity Small 0

Mahine video for plastic jerry can production blow molding machine

Machine Featuers------Bottle molding machine

1. Utilization of automatic central lubrication.
2. Compact space design for convenience of mold-conversion,repairing and maintenance.
3. Minimized transfer pitch for increasing heating efficiency and saving energy.
4. Swift exchange design for preform mandrels.
5. Optimized air flow in the oven for stable heating process.
6. Easy to adjust,exchange and access heating oven;Protection for preform thread against heating.
7. Intact rotating robot grip with linear guider for right access,rapid motion;reducing adjustment and maintenance time.
8. Electronic inspector for ejecting faulty preform and bottles.
9. Fast,safe,and accurate cam-controlled blowing wheel for providing the best bottles.
10. Precise control of blowing technique to produce less-weighted bottle.
11. Smart design for quick conversion of blow mold.
12. Through finite element analysis to optimize modular design for reducing machine wearing and moving inertia.
13. Operating machine through touch panel; program protected by code lock

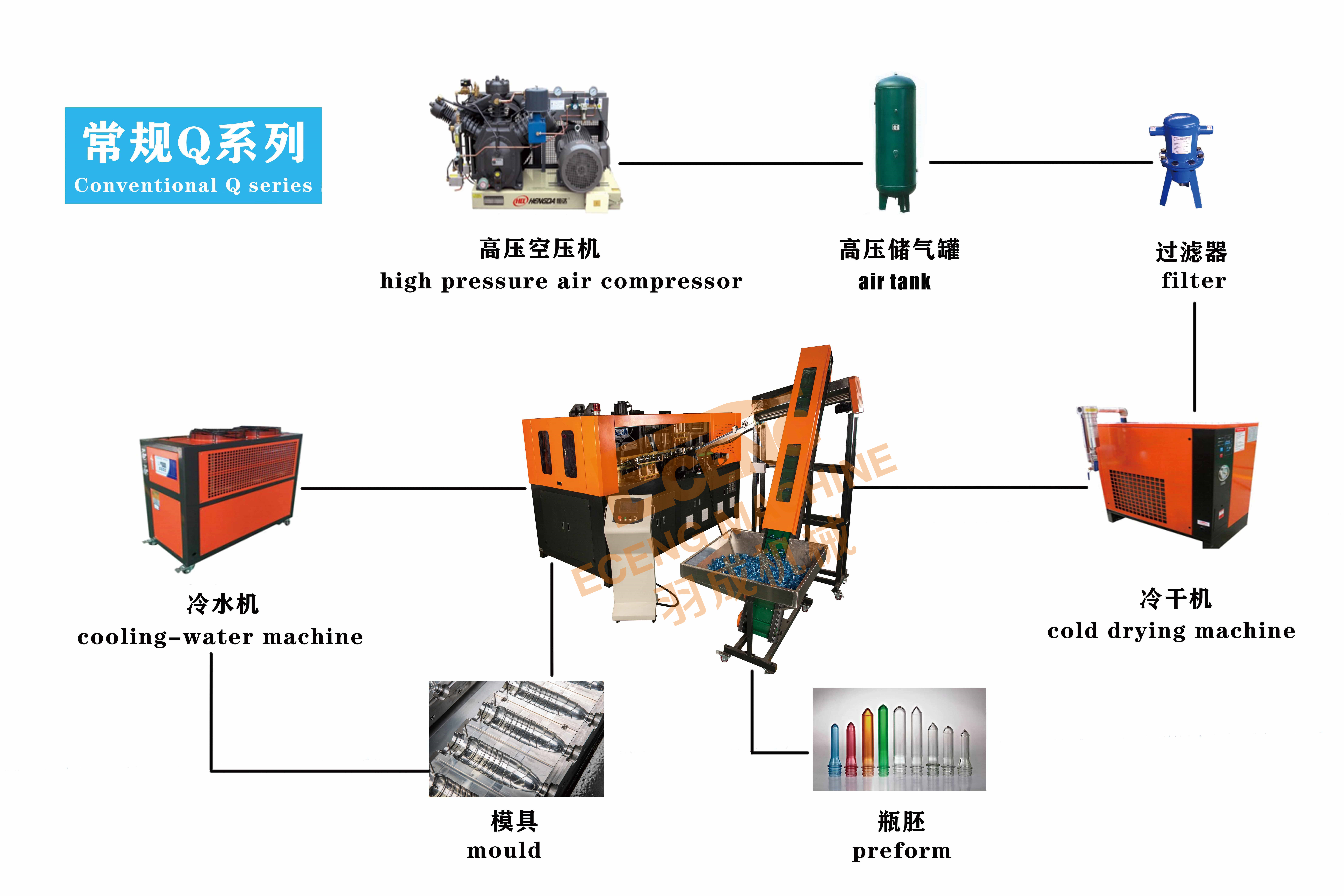

Machine parts for plastic jerry can production blow molding machine

Technical Parameter------bottle molding machine



Item

YCQ-2L-2

Bottle type specification

Cavity

2

Theory output

2000-2500

Max.volume

2L

Bottle mouth maximum overall diameter

80mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm

Power specifications

Light tube quantity

32pcs

Maximum heating power

24KW

All electric machine installation

27KW

Actual consumption

8.1KW

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1000L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

1500Ltr/min

Forzen water specification

Work pressure

5-6 kg/cm2

Temperature range

10°C

Consumption

5000kcal/hr

Forzen water flow

30L/min

Machine specification

Size of the machine

2.25x1.6x1.7

Weight of the machine

2.5ton
