1500BPH Pet Bottle Blowing Machine Fully Automatic 2 Cavity 48kW

1500BPH Pet Bottle Blowing Machine Fully Automatic 2 Cavity 48kW

1500BPH Pet Bottle Blowing Machine Fully Automatic 2 Cavity 48kW
1500BPH Pet Bottle Blowing Machine Fully Automatic 2 Cavity 48kW
1500BPH Pet Bottle Blowing Machine Fully Automatic 2 Cavity 48kW
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE&ISO
Model Number: Q5L-2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $35,000.00/Sets 1-1 Sets
Packaging Details: Wooden package
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Bottle Making Machine: Water Bottle Blowing Machine Hollow Part Volume: 5L
Power (kW): 48 Weight (KG): 3000 KG
Automation: Automatic Warranty: 1 Year
Key Selling Points: Automatic Warranty Of Core Components: 1 Year
Cavity: 2 Output: 1500BPH
High Light:

1500BPH pet bottle blowing machine

,

2cavity automatic pet bottle blowing machine

,

48kW pet bottle blowing machine

Eceng Professional Manufacture Plastic Bottle Blowing Molding Machine water bottle making machine.

bottle making machine / bottle stretch blowing machine Q5L-2

Features of main body:
1. Full automatic running with theoretical output capacity up to 9600 bottles per hour for 0.7L volume using four-cavity blow mold.
2. Patented loading system carries the preform automatically with less moving parts.
3. Suitable to produce 0.1 ~ 2.5L Standard neck PET container.
4. Advanced PLC control system with a use-friendly control panel.
5. Built-in memory of the PLC saves all the sets of numbers required to produce different size bottles.
6. Multiple Reliable sensor systems monitors the machine's automatic function.
7. Equipped with special designed air storage unit.
8. Powerful heating unit with precision controller and convenient adjusting mechanism.
9. Cooling system that provides a perfect cooling result.
10. Compact design that saves space.
11. Simple installation & startup operation.

technical parametre-- 5L pet bottle machine



Item Q5L-2
Bottle type specification Cavity 2
Theory output 1500
Max.volume 5L
Bottle mouth maximum overall DIdiameter 150mm
Bottle biggest diameter 180mm
Bottle maximum height 360mm
Power specifications Light tube quantity 40pcs
Light tube power 2.5KW
Maximum heating power 48KW
All electric machine installation 51KW
Actual consumption 35.7KW
Air pressure specification Work pressure 7-9kg/cm2
Low-pressure gas consumption 1600L/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 1600Ltr/min
Forzen water specification Work pressure 25-35 kg/cm2
Temperature range 10℃
Consumption 6000kcal/hr
Forzen water flow 50L/min
Machine specification Size of the machine 4.12x1.8x2.25
Weight of the machine 3ton



1500BPH Pet Bottle Blowing Machine Fully Automatic 2 Cavity 48kW 0

 1500BPH Pet Bottle Blowing Machine Fully Automatic 2 Cavity 48kW 2




related introduction-- 5L pet bottle machine



1). Stable performance with advanced PLC.



2). Automatic preform conveyer to save human cost.



3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.



4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.



5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.



6). Introduce the FESTO air cylinder to avoid contamination and noise.



7). Satisfaction with different atmosphShirley pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.



8). Strong clamping force with high pressure and double crank links to lock the mould.



9). Two ways of operating: automatic and manual.



10). Safe,reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.



11). Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.



12). Ideal cooling system make the finished bottles without any flaws.



13). Easy for you to install,test and start up.



14). Low rejection rate: less than 0.2 percent.

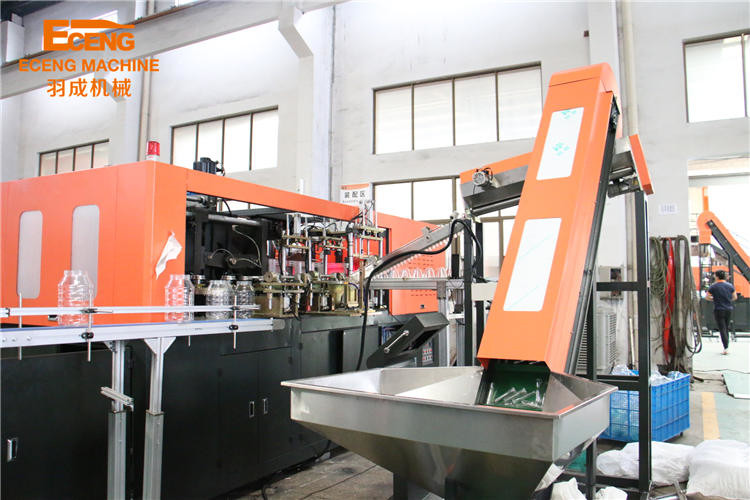

photo show--  5L pet bottla machine

1500BPH Pet Bottle Blowing Machine Fully Automatic 2 Cavity 48kW 5

company introduction



Our company, Zhangjiagang Eceng Machinery Co., Ltd. we are a special manufacturer of PET bottle blowing machine,blow molding machine and mould, We have been engaged in moulds for years, and have gained a well-known reputation from our customers who spread all over the world.
