Single Cavity Full Automatic Blow Molding Machine 800BPH For 5L Mineral Water Barrel

Single cavity full automatic blow molding machine YCQ-5L-1 capacity 800BPH for 5L mineral water barrel.

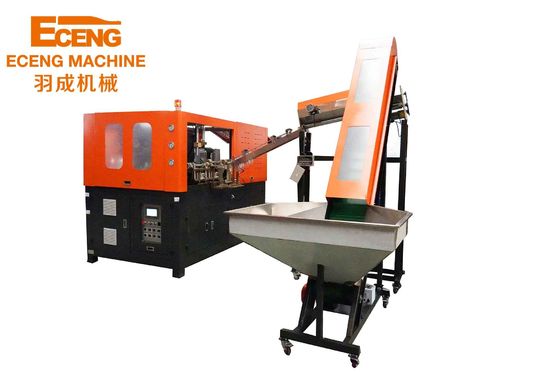

Product Photo

Main Features

YCQ series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 6 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

A. Advanced PLC control system, stable and excellent performance.

B. Conveyor belt automatically feeds preforms.

C.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously inthe  infrared pre-heater.

D. High adaptability,preform absorbs heat by adjusting the distance between lamp and reflector.With automatic constant temperature device,temperature is kept within a certain range.

E. Safety locks are provided during each mechanical action to protect operator's safety.

F. Use cylinder instead of hydraulic cylinder, low pollution, low noise.

G. Use different air pressure for blowing and machine operation,energy saving and environmental protection.

H. Equipped with high pressure and double-crank linkage clamping, providing high clamping force.

I. Two ways of operating: automatic and manual.

J. Safe, reliable, unique valve position design makes blowing process easier to control.

K. Low-cost, high-efficiency, easy-to-operate, easy-to-maintain, advanced automatic process flow.

L. Avoid bottle contamination.

M. Protection of low temperature cooling system.

N. Easy to install and start.

O. Low scrap rate.

Product Parameters

5L automatic preform pet plastic bottle blowing blow molding machine high speed blow molding machine High speed pet bottle molding machine high speed bottle making machine is a stable two-step blow-down stretch automatic blowing machine. It can be usedfrom 1 cavity to4 cavity with a speed of 900 bottles per hour (5000 ml plastic bottles),max volume2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

Product Details

1,Fully automatic,low investment,high efficiency,easy operation, simple maintenance and safety.

2,Servo transmission system,high positioning accuracy, fast speed and stability, good reliability.Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement;Adopt high pressure and double crank arm link locking,strong clamping force.

3,Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

4,Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

5,YCQ linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.
