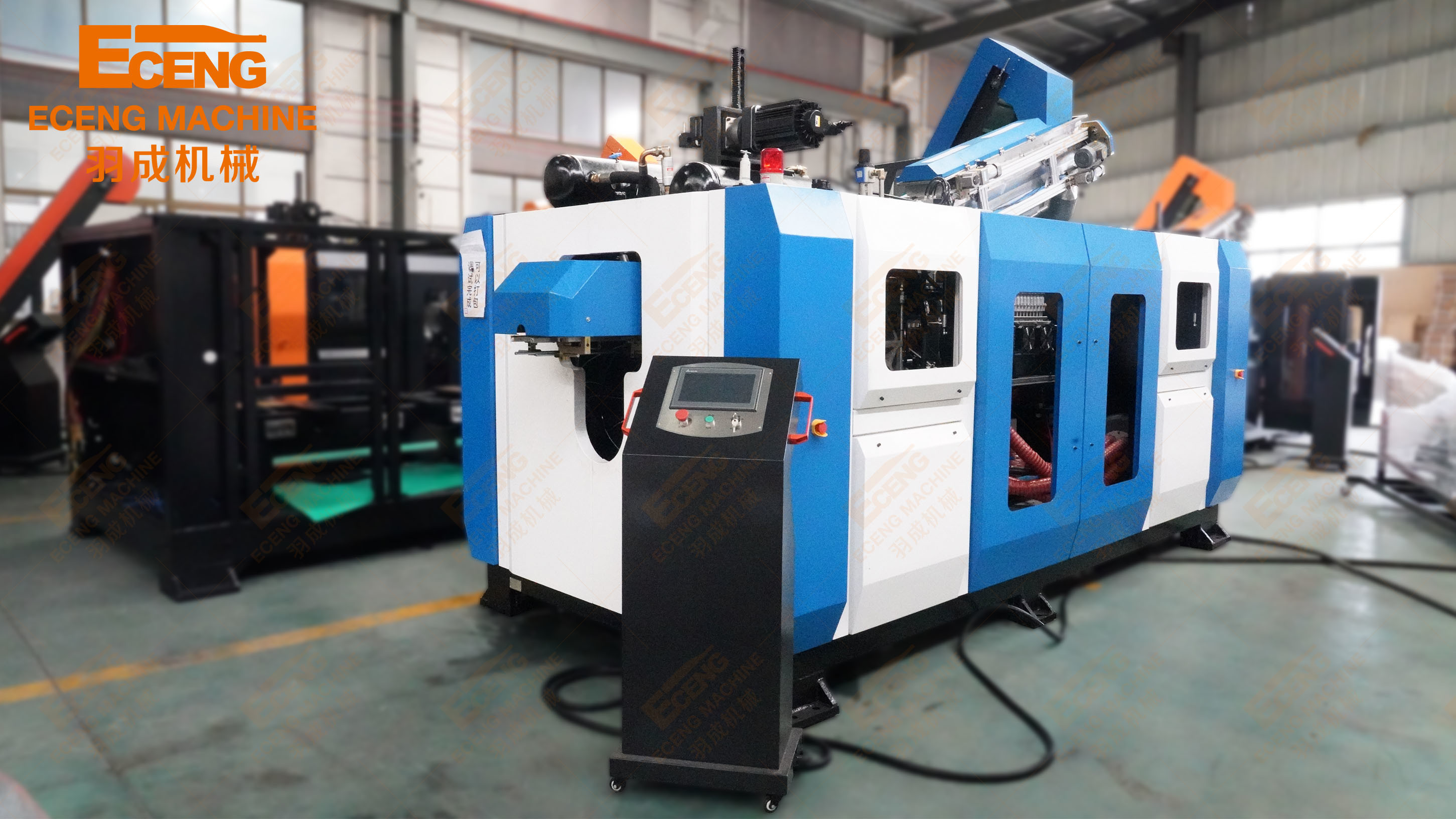

High speed automatic bottle blowing machine K4 max single mold speed can reached 2500BPH.
Bottle blowing machine is a kind of equipment which can make plastic granules into hollow containers by blow
molding process. It is mainly used in beverage and food industry.
Eceng bottle blowing machine Advantages:
1. Excellent Mechanical Strength, impact-resisting, and non-craking.
2. Bottle mouth and thread are of precise measurement.
3. Plastic Medicine Bottle's safe thread can be molding directly.
4. The size and weight of the product can calculate and design clearly and meet the requirement of the design
without any deviation.
5. The surface of the bottle mouth, neck and the body is good luster and smoothness, the standard of bottle body
is unity.
6. The joint seam on the bottle body is smooth, no scrap rubber.
Eceng machine K4:
| model |
k4 |
| Bottle type specification |
Cavity |
4 |
| Theory output |
8000-10000 |
| Max.volume |
200ml-2000ml |
| Bottle mouth maximum overall diameter |
25-29mm |
| Bottle biggest diameter |
100mm |
| Bottle maximum height |
330mm |
| Power specifications |
Light tube quantity |
16pcs |
| Maximum heating power |
20KW |
| All electric machine installation |
29KW |
| Actual consumption |
30%-60% |
| Air pressure specification |
Work pressure |
5-6kg/cm2 |
| Low-pressure gas consumption |
6000L/min |
| Blow bottle pressure |
25-45kg/cm2 |
| Higher -pressure gas consumption |
6000Ltr/min |
| Forzen water specification |
Work pressure |
5-6 kg/cm2 |
| Temperature range |
10°C |
| Consumption |
8000kcal/hr |
| Forzen water flow |
120L/min |
| Machine specification |
Size of the machine |
3.6x1.6x1.9 |
| Weight of the machine |
4.3ton |
Eceng K4 High Speed 500ml 1L 2L plastic pet drum Blow Molding Machines Oil Bottle Blowing making Machine(max volume: 2L)
K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 1500 bottles per hour (750 ml plastic bottles),plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
Kseries linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,located in Zhangjiagang city,only 120km away from Shanghai.We are professional manufacturer of PET bottle blowing machines and plastic molds. We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 20,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging. Our products has covered all over China and exported to more than 100 countries,including Southest Asia,Middle East,South America,Africa etc.We’d like to provide high quality solution to clients with our enthusiasm and rich experience.We sincerely hope to establish business relationship with friends all over the world.
Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
