Blow your bottle, Shape your dream

|
| Place of Origin: | Jiangsu, China |
| Brand Name: | eceng |
| Certification: | CE/ISO |
| Model Number: | k8 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | packed by wooden pallet or as customer request |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 15 Set/Sets per Month |
| Plastic Processed: | PET | Condition: | New |
|---|---|---|---|
| Power (kW): | 65 | Warranty: | 1 Year |
| Warranty Of Core Components: | 1 Year | Automatic: | YES |
| Step: | 2 | Service: | Full Technical Training |
| Port: | Shanghai/Ningbo | ||
| High Light: | Pet automatic blow molding machine,16000 BPH Pet blow molding machine,Eight Cavitys Pet blow molding machine |
||
Eight cavitys 16000 BPH high output plastic bottle maker / Pet automatic blow molding machine.

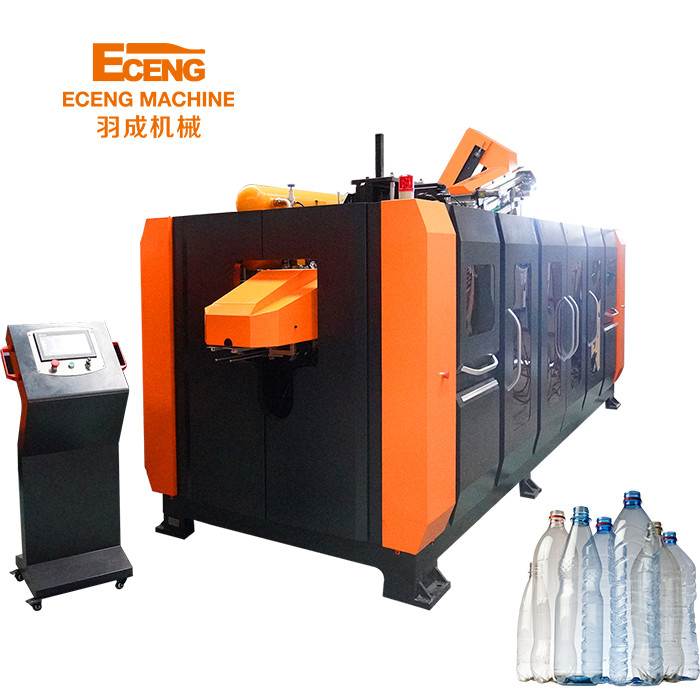

Eceng K series full servo PET stretch blow molding machine
Capacity:2500 bottles/hour/cavity
Max volume:2000ml
Application:Water bottle / Beverage bottle / Juice Bottle / Oil Bottle / Cosmetic bottle
Main features:
1.Adopts 2 pcs servo motors to drive the two cranks to control the clamping system which can shorten the mold-clamping time and improve productivity.
2.Servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.
3.Perfect heating system design decrease power consumption. Special oven design helps power saving and easy maintain.
4.Spindle chain small pitch saving more then 50% power compare with other machine.
5.Total 6 pcs servo motors,more precision and easy to adjust.
Application:Water bottle / Beverage bottle / Juice Bottle / Oil Bottle / Cosmetic bottle
| Item | K4 | K6 | K8 |
| Cavity | 4 | 6 | 8 |
| Theory output | 6000-8500BPH | 9000-12000 | 12000-16000 |
| Max.volume | 2L | 2L | 2L |
| Bottle mouth maximum overall diameter | 28-38mm | 28-38mm | 28-38mm |
| Bottle biggest diameter | 100mm | 100mm | 100mm |
| Bottle maximum height | 330mm | 330mm | 330mm |
| Light tube quantity | 16pcs | 32pcs | 32pcs |
| Light tube power | 1.25KW | 1.25KW | 1.5KW |
| Maximum heating power | 20KW | 40KW | 48KW |
| All electric machine installation | 29KW | 49KW | 65KW |
| Actual consumption | 30%-60% | 30%-60% | 30%-60% |
| Work pressure | 5-6kg/c | 5-6kg/c | 5-6kg/c |
| Blow bottle pressure | 25-45kg/c | 25-45kg/c | 25-45kg/c |
| Higher -pressure gas consumption | 6000Ltr/min | 8000Ltr/min | 12000Ltr/min |
| Work pressure | 5-6 kg/c | 5-6 kg/c | 5-6 kg/c |
| Temperature range | 10ºC | 10ºC | 10ºC |
| Consumption | 8000kcal/hr | 8000kcal/hr | 12000kcal/hr |
| Forzen water flow | 30L/min | 88L/min | 88L/min |
| Size of the machine | 3.6*1.6*1.9(m) | 4.8x1.6x1.9 | 5.78x1.6x1.9 |
| Weight of the machine | 4.3ton | 6.1ton | 7.45ton |
k series linear bottle blowing machine adopt servo control system,with stable and reliable structure,high speed,stable, simple maintenance,flexible and convenient mold matching etc,which can meet needs of continuous production.Use microcomputer touch screen controls and adjusts temperature, make temperature adjustment of blow molding different bottle type simple.Servo transmission system,high positioning accuracy,fast speed,good stability and reliability, no need air source,energy saving,low maintenance cost.
Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

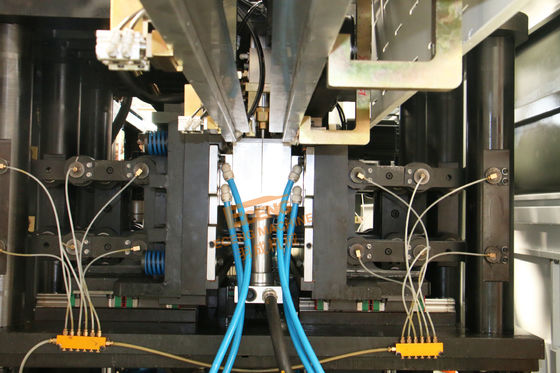

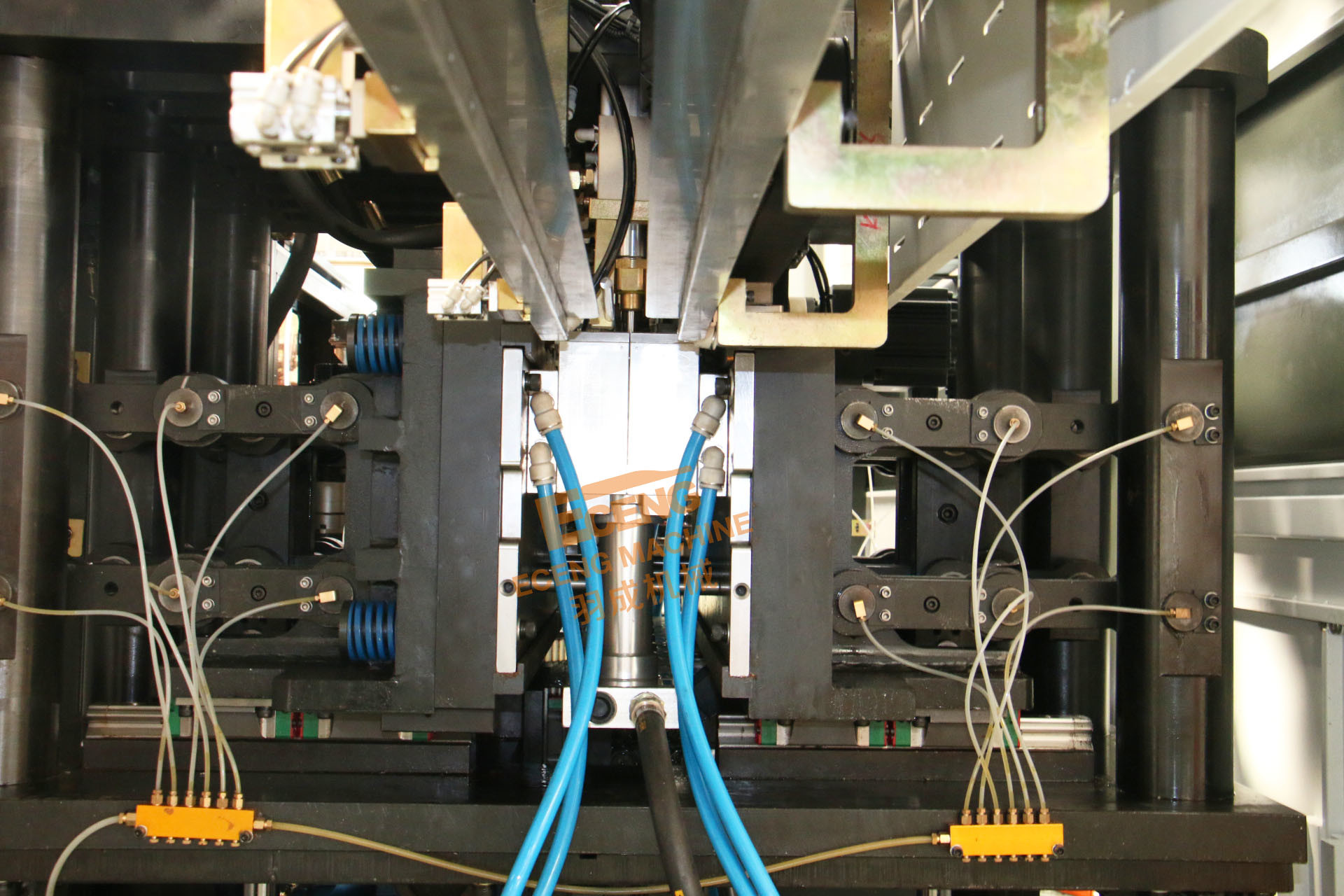

New clamping system,upgraded on the basis of the original ones,increase mould clamping speed and output,greatly reduce mold clamping noise.

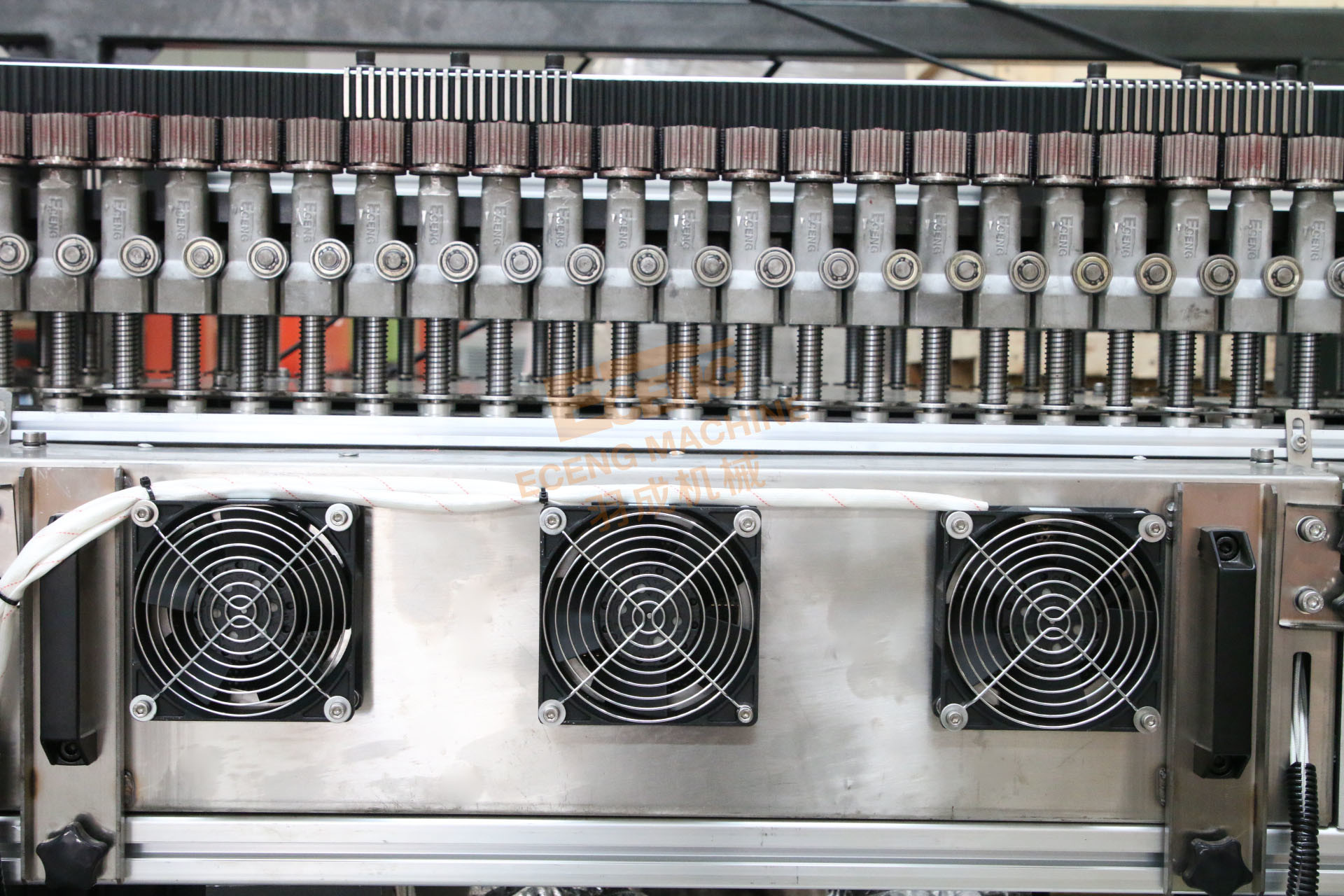

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.
k series bottle blowing machine adopts advanced microcomputer PLC control system, stable performance; servo transmission system, high positioning accuracy, fast speed, stable and reliable.
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
