Full Electrical Pet Bottle Blowing Molding Machine Output 26000BPH 12Cavity

Full Electrical Pet Bottle Blowing Molding Machine Output 26000BPH 12Cavity

Full Electrical Pet Bottle Blowing Molding Machine Output 26000BPH 12Cavity
Full Electrical Pet Bottle Blowing Molding Machine Output 26000BPH 12Cavity
Full Electrical Pet Bottle Blowing Molding Machine Output 26000BPH 12Cavity
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: K12
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $25,000.00 - $40,000.00/Sets
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Application: Bottle
Blow Moulding Type: Stretch Blow Moulding Automation: Automatic
Key Selling Points: Automatic Blow Molding Machine Warranty Of Core Components: 1 Year
Applicable Industries: Manufacturing Plant Model Number: K12
High Light:

Pet Bottle Blow Molding Machine Automatic

,

26000 BPH Bottle Blow Molding Machine

,

12Cavity Bottle Blow Molding Machine

200 300 500 750ml bottle water plastic pet blowing machine machine

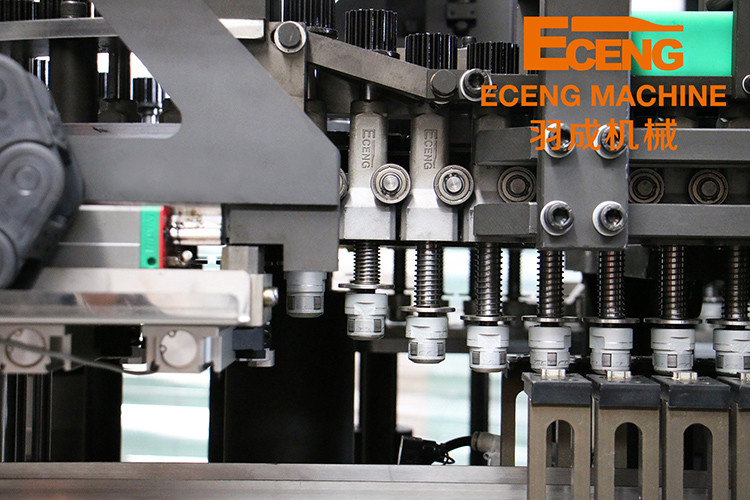

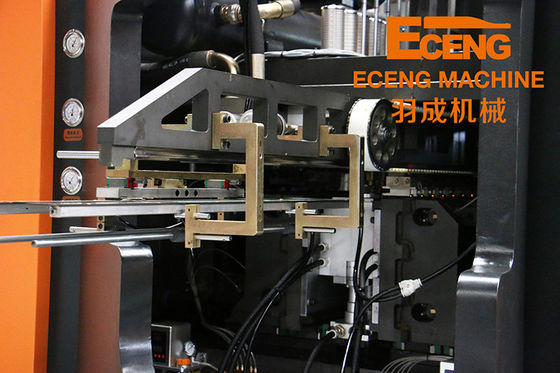

Eceng K series stretch blow moulding machine adopt 6servo motors. Main chain system, stretch system, 2pcs servo motors for clamping mould system, Variable pitch system, preform feeding and bottle taking system.

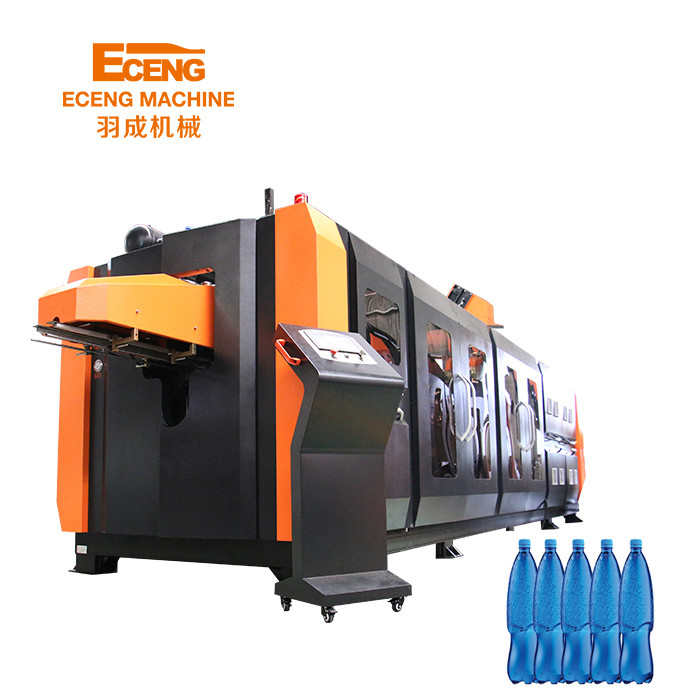

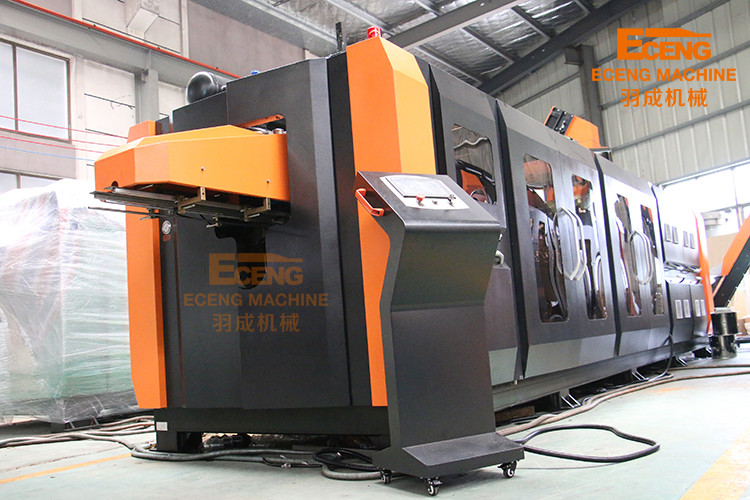

Eceng K12 is fully automatic PET bottle blowing machine, bottle making machine up to 750ml for small bottles. The machine is fully automatic, efficient and stable, requires minimal human intervention, and can produce a large number of bottles in a very short time. Production capacity is as high as 22000~26000BPH. Can be widely used in food, beverage, cosmetics, pharmaceuticals and other industries of small bottle production. In addition to high efficiency, in the production facilities also relatively small, and easy to operate and maintain, suitable for large and medium-sized enterprises.


Main Features

1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.

2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.

3. servo transmission system, high positioning accuracy, fast speed, good stability and reliability.

4. suitable for flexible production of small quantity and various bottle shape,wide range of applications,meet customer needs.

5. increase energy using efficiency,increase productivity per unit of time.

6. manual and automatic methods of operation, human-machine interface control, simple operation.

7. servo transmission system, high positioning accuracy, fast speed stability and good reliability.

8. safety self-locking device in each mechanical action,when a certain process fails, the program will automatically switch to a safe state.

9. heat and noise are significantly reduced compared with YCQ series.

10. less than 0.2% scrap rate for finished bottle .

Product Parameters

Model K12

Bottle type specification



Cavity 12
Max.volume 200ml-750ml
Bottle mouth maximum overall diameter 25-29mm NECK
Bottle biggest diameter 75mm
Bottle maximum height 180mm

Capacity specification



Theory output 22000~26000BPH
Bottle type volume 600ML
Bottle type weight 13.5g
Bottle type Round
Power specification Light tube quantity 32pcs
Light tube power 1.75KW
Maximum heating power 56KW
All electric machine installation 71KW
Actual consumption 30%--60%

Air pressure specification



Work pressure 5-6kg/cm2
Blow bottle pressure 25-45kg/cm2
Higher -pressure gas consumption 24000Ltr/min
Forzen water specification Work pressure 5-6 kg/cm2
Temperature range 10℃
Consumption 12000kcal/hr
Temperature range 10℃
Forzen water flow 180L/min
Machine specification Machine size 9.0x2.0x2.3
Machine weight 10.0ton


1, Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

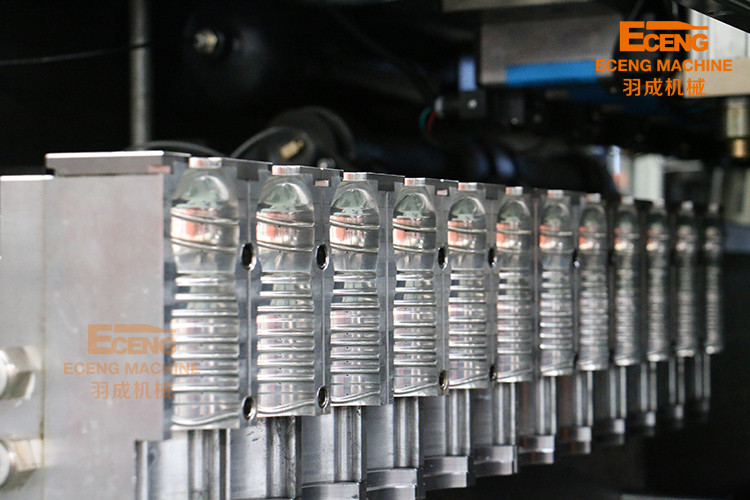

2, New clamping system,upgraded on the basis of the original ones,increase mould clamping speed and output,greatly reduce mold clamping noise.

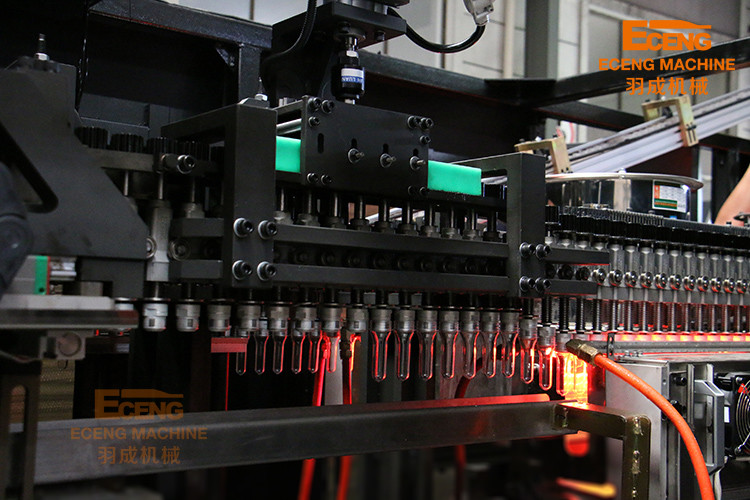

3, Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

4, k series bottle blowing machine adopts advanced microcomputer PLC control system, stable performance; servo transmission system, high positioning accuracy, fast speed, stable and reliable.

Full Electrical Pet Bottle Blowing Molding Machine Output 26000BPH 12Cavity 2Full Electrical Pet Bottle Blowing Molding Machine Output 26000BPH 12Cavity 3
