Blow your bottle, Shape your dream

|
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE |
| Model Number: | Q-5L-1 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | packing with wooden pallet or film package suits for high quality 1L-5L automatic blowing molding machine made in zhangjiagang |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 Set/Sets per Month 10 |
| Plastic Processed: | PET | Blow Moulding Type: | Stretch Blow Moulding |
|---|---|---|---|
| Hollow Part Volume: | 5L | Automation: | Automatic |
| Warranty: | 1 Year | Applicable Industries: | Manufacturing Plant |
| Model Type: | Bottle Blow Molding Machine | Cavity: | 1 |
| Highlight: | Stretch Oil Bottle Blow Moulding Machine,900BPH Oil Bottle Blow Moulding Machine,5L Oil Bottle Blow Moulding Machine |
||
900BPH 1 Cavity 5L oil bottle blowing machine Q5L1 for good price

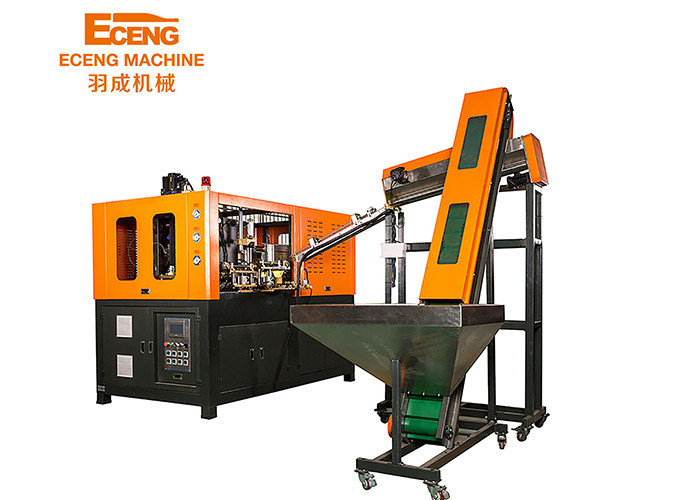

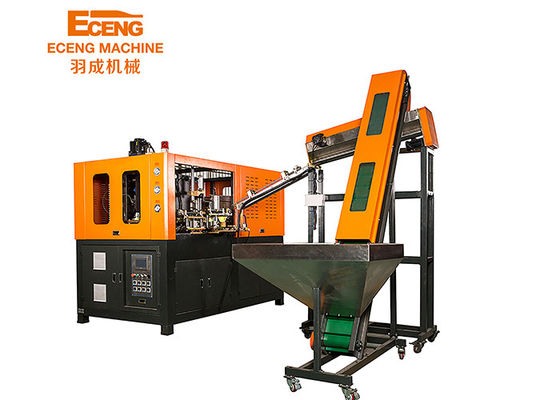

Product Photo
Main Features
The 5L oil bottle blowing machine is a specialized piece of equipment used in the manufacturing of plastic bottles for the packaging of oil. This machine is designed to produce high-quality bottles that are durable and can withstand the rigors of transportation and storage. In this article, we will discuss the features and benefits of the 5L oil bottle blowing machine.
Features: The 5L oil bottle blowing machine is a fully automatic machine that is capable of producing up to 1200 bottles per hour. It is equipped with a high-quality servo motor that ensures precise control over the production process. The machine is also equipped with a touch screen control panel that allows operators to easily adjust the settings and monitor the production process.
The machine is designed to produce bottles with a capacity of up to 5 liters. It is capable of producing bottles with a variety of shapes and sizes, including round, square, and rectangular shapes. The machine is also equipped with a preform loading system that ensures a consistent supply of preforms to the machine.
Product Parameters
|
Item |
Q-5L-1 |
|
|
Bottle type specification |
Cavity |
1 |
|
Theory output |
700-900 |
|
|
Max.volume |
5L |
|
|
Bottle mouth maximum overall DIdiameter |
150mm |
|
|
Bottle biggest diameter |
180mm |
|
|
Bottle maximum height |
400mm |
|
|
Power specifications |
Light tube quantity |
32pcs |
|
Light tube power |
1.5KW |
|
|
Maximum heating power |
48KW |
|
|
All electric machine installation |
51KW |
|
|
Actual consumption |
35.7KW |
|
|
Air pressure specification |
Work pressure |
7-9kg/cm2 |
|
Low-pressure gas consumption |
1600L/min |
|
|
Blow bottle pressure |
25-35kg/cm2 |
|
|
Higher -pressure gas consumption |
3400Ltr/min |
|
|
Forzen water specification |
Work pressure |
5-6 kg/cm2 |
|
Temperature range |
10℃ |
|
|
Consumption |
6000kcal/hr |
|
|
Forzen water flow |
50L/min |
|
|
Machine specification |
Size of the machine |
2.5x1.6x1.7 |
|
Weight of the machine |
2.5ton |
|
Product Details
1,Fully automatic,low investment,high efficiency,easy operation, simple maintenance and safety.
2,Servo transmission system,high positioning accuracy, fast speed and stability, good reliability.Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement;Adopt high pressure and double crank arm link locking,strong clamping force.
3,Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.
4,Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.
