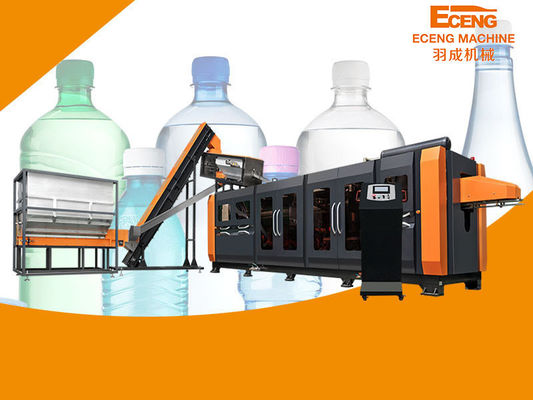

Mineral Drinking Water Bottle Making Blowing Machine 330 Mm Fully Automatic 5000 Ml

Mineral Drinking Water Bottle Making Blowing Machine 330 Mm Fully Automatic 5000 Ml

Mineral Drinking Water Bottle Making Blowing Machine 330 Mm Fully Automatic 5000 Ml
Mineral Drinking Water Bottle Making Blowing Machine 330 Mm Fully Automatic 5000 Ml
Mineral Drinking Water Bottle Making Blowing Machine 330 Mm Fully Automatic 5000 Ml
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE SGS ISO
Model Number: water bottle blowing machine
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $26,800.00/Sets 1-1 Sets
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Max.Bottle Height(mm): 330 Mm
Neck Diameter(mm): 28 Mm Max.Bottle Diameter(mm): 105 Mm
Bottle Volume(ml): 5000 Ml Condition: New
Application: Bottle Blow Moulding Type: Stretch Blow Moulding
High Light:

Fully Automatic Water Bottle Blowing Machine

,

5000ml Water Bottle Making Blowing Machine

,

330Mm Mineral Water Blowing Machine

Eceng  Fully automatic mineral drinking water bottle making machine

Item K4 K6 K8 K10 K12
Bottle type specification Cavity 4 6 8 10 12
Theory output 8000-10000BPH 12000-15000BPH 16000-20000BPH 20000-25000BPH 24000-30000BPH
Max.volume 2L 2L 2L 0.75L 0.75L
Bottle mouth maximum overall diameter 28-38mm 28-38mm 28-38mm 28-38mm 28-38mm
Bottle biggest diameter 100mm 100mm 100mm 75mm 75mm
Bottle maximun height 330mm 330mm 330mm 180mm 180mm
Power specification Light tube quantity 16pcs 32pcs 32pcs 32pcs 32pcs
Light tube power 1.25KW 1.25KW 1.5KW 1.5KW 1.75KW
Maximum heating pwoer 20KW 40KW 48KW 48WK 56KW
All electric machine installtion 29KW 49KW 65KW 65KW 71KW
Actual consumption 30%-60% 30%-60% 30%-60% 30%-60% 30%-60%
Air pressure specification Work pressure 5-6kg/cm² 5-6kg/cm² 5-6kg/cm² 5-6kg/cm² 5-6kg/cm²
Blow bottle pressure 25-45kg/cm² 25-45kg/cm² 25-45kg/cm² 25-45kg/cm² 25-45kg/cm²
Higher-pressure ges consumption 6000Ltr/min 8000Ltr/min 12000Ltr/min 18000Ltr/min 24000Ltr/min
Forzen water specification Work pressure 5-6 kg/cm² 5-6 kg/cm² 5-6 kg/cm² 5-6 kg/cm² 5-6 kg/cm²
Temperature range 10℃ 10℃ 10℃ 10℃ 10℃
Consumption 8000kcal/hr 8000kcal/hr 12000kcal/hr 12000kcal/hr 12000kcal/hr
Forzen water flow 88L/min 120L/min 150L/min 180L/min 220L/min
Machine specification Size of the machine 3.6×1.6×1.9 4.8×1.8×1.9 5.78×1.6×1.9 6.82×1.6×1.9 7.57×1.6×1.9
Weight of the machine 4.3ton 6.1ton 7.45ton 8.2ton 11.6ton

Product Description
K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 1500 bottles per cavity In one hour(750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
Mineral Drinking Water Bottle Making Blowing Machine 330 Mm Fully Automatic 5000 Ml 1

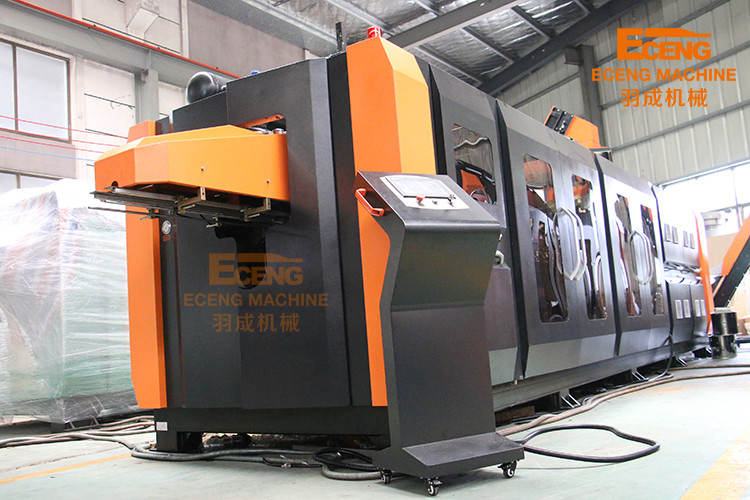

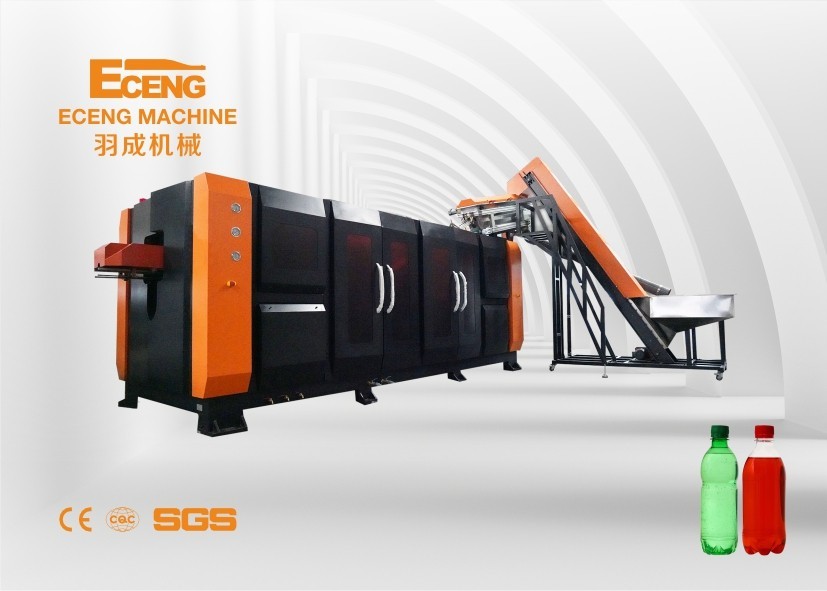

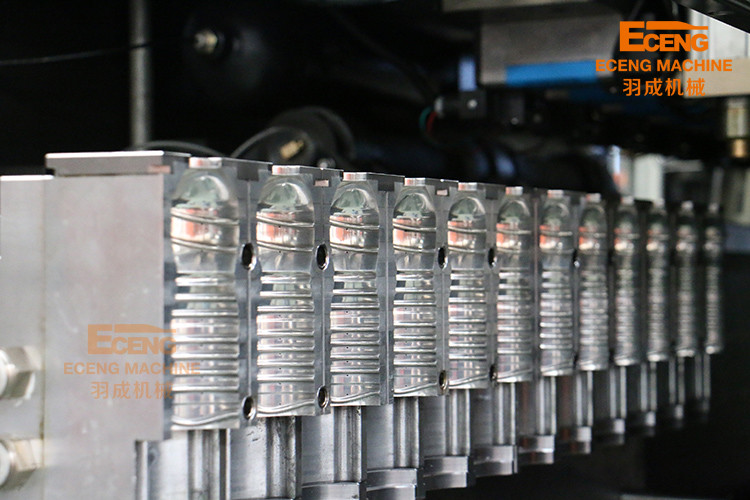

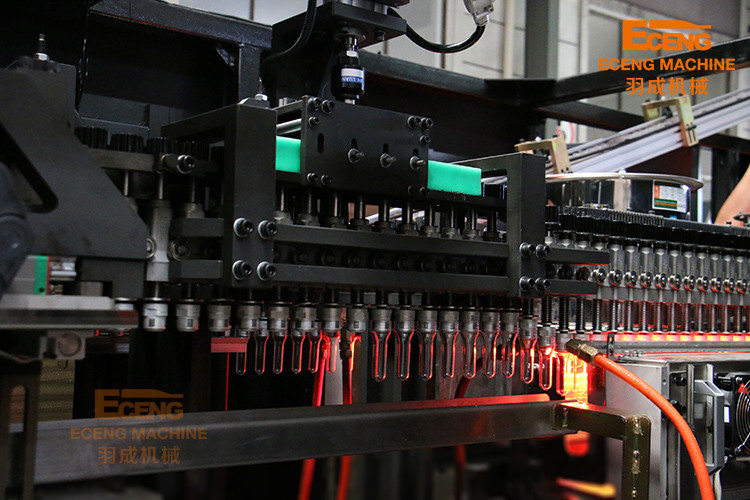

Detailed Images


Mineral Drinking Water Bottle Making Blowing Machine 330 Mm Fully Automatic 5000 Ml 4Mineral Drinking Water Bottle Making Blowing Machine 330 Mm Fully Automatic 5000 Ml 5

Our advantage
1. Resonable price
2. Good after service
3. experienced skilled workers and professional engineers
4. Good quality ,excellent service ,long life mould
5. on time delivery time
6.our engineers can be online for 24 hours to serve you
Company Introduction
Mineral Drinking Water Bottle Making Blowing Machine 330 Mm Fully Automatic 5000 Ml 8
Packing&Shipping
Mineral Drinking Water Bottle Making Blowing Machine 330 Mm Fully Automatic 5000 Ml 10
After Sales Service
1.Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5.well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7.Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.
Mineral Drinking Water Bottle Making Blowing Machine 330 Mm Fully Automatic 5000 Ml 12

Mineral Drinking Water Bottle Making Blowing Machine 330 Mm Fully Automatic 5000 Ml 15
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
