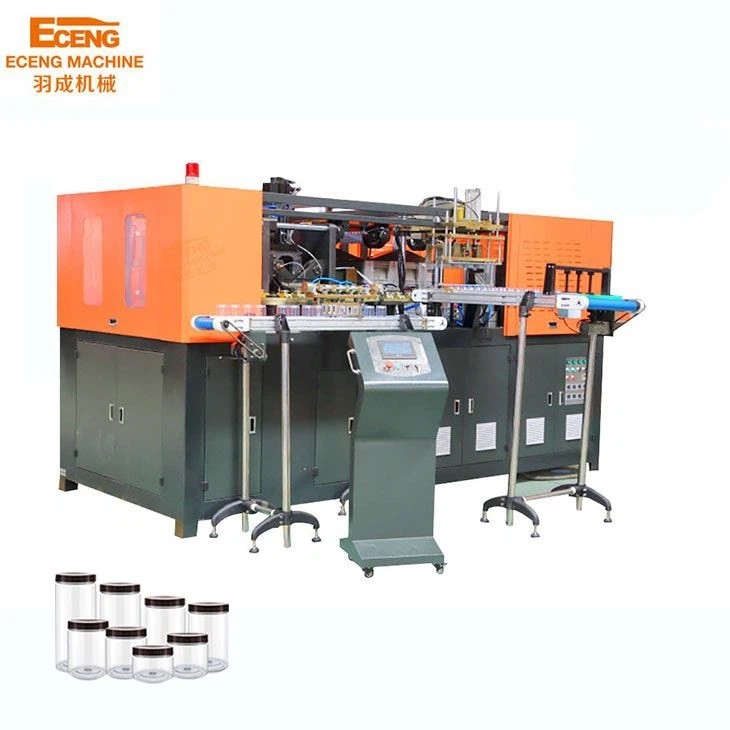

Pet Bottle Jar Blowing Molding Machine 3000bph 2.5ton

Pet Bottle Jar Blowing Molding Machine 3000bph 2.5ton

Pet Bottle Jar Blowing Molding Machine 3000bph 2.5ton
Pet Bottle Jar Blowing Molding Machine 3000bph 2.5ton
Pet Bottle Jar Blowing Molding Machine 3000bph 2.5ton
Product Details:
Place of Origin: CHINA
Brand Name: ECENG
Certification: CE SGS ISO
Payment & Shipping Terms:
Minimum Order Quantity: One
Price: Negotiable
Packaging Details: film/wooden
Delivery Time: 45days
Payment Terms: TT LC western Union
Supply Ability: 10sets Per month
Contact Now
Detailed Product Description
Model Number: J Series Color: Orange
Output: 3000bph Weight: 2.5ton
High Light:

Jar Pet Bottle Blowing Molding Machine

,

3000bph Jar Blowing Molding Machine

,

2.5ton Jar Bottle Blowing Molding Machine

Jar PET blow molding machine adopts unique sealing system that is suitable for different sized wide neck finished without changing preform adopters. PET Jar Blowing Machine of multiple types and specifications for small-scale and large-scale applications. Full automatic, semi-automatic blowing machines, automatic machines for wide neck bottles, and 20ltr PET blowing machines for large volume jars



Product Parameters

Item J1 J2 J4
Bottle type specification Cavity 1 2 4
Theory output 700-800BPH 1200-1300BPH 2400-2600BPH
Max.volume 5L 5L 2L
Bottle mouth maximum overall diameter 150mm 150mm 28-80mm
Bottle biggest diameter 180mm 180mm 100mm
Bottle maximun height 400mm 400mm 330mm
Power specification Light tube quantity 32pcs 32pcs 32pcs
Light tube power 1KW 1.5KW 1KW
Maximum heating pwoer 32KW 48KW 32KW
All electric machine installtion 36KW 51KW 42KW
Actual consumption 30%-60% 30%-60% 30%--60%
Air pressure specification Work pressure 7-9kg/cm² 7-9kg/cm² 7-9kg/cm²
Low-pressure gas consumption 1200L/min 1600L/min 1600L/min
Blow bottle pressure 25-35kg/cm² 25-35kg/cm² 25-35kg/cm²
Higher-pressure ges consumption 2200Ltr/min 3400Ltr/min 3000Ltr/min
Forzen water specification Work pressure 5-6 kg/cm² 5-6 kg/cm² 5-6 kg/cm²
Temperature range 10℃ 10℃ 10℃
Consumption 4000kcal/hr 6000kcal/hr 8000kcal/hr
Forzen water flow 50L/min 50L/min 138L/min
Machine specification Size of the machine 2.4x1.5x1.7 4.7x1.6x1.9 4.1x1.6x1.9
Weight of the machine 2ton 3ton 3.9ton

Pet Bottle Jar Blowing Molding Machine 3000bph 2.5ton 0

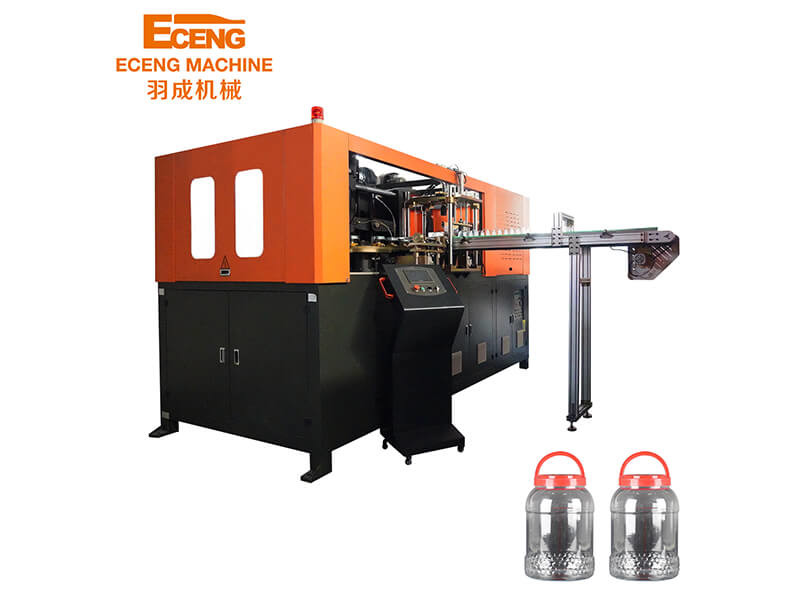

Wide mouth Jar stretch molding machine

J series blow moulding machine is a specialized equipment designed for large-diameterPET bottles, with features of high automation, wide versatility, and easy operation. lt isespecially suitable for the production and processing of large-diameter 50-180mm. Jseries bottle making machine is precisely positioned and adopts advancedmicrocomputer PLC control system, which can be more stable. Strong versatility,suitable for preform loading of jar bottle, automatically unloading the bottle.One worker can control two to three machines, high output, can be equipped withall-electric stretching and mould clamping
